Product Overview

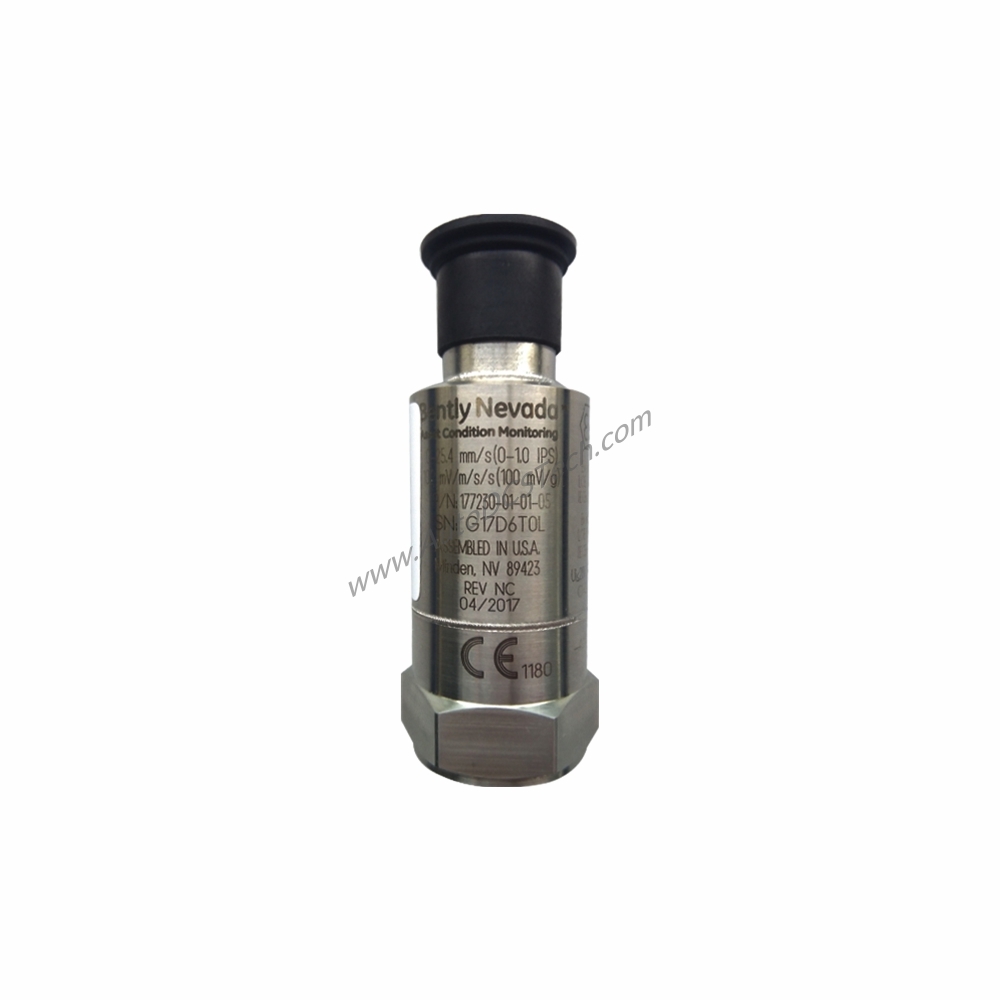

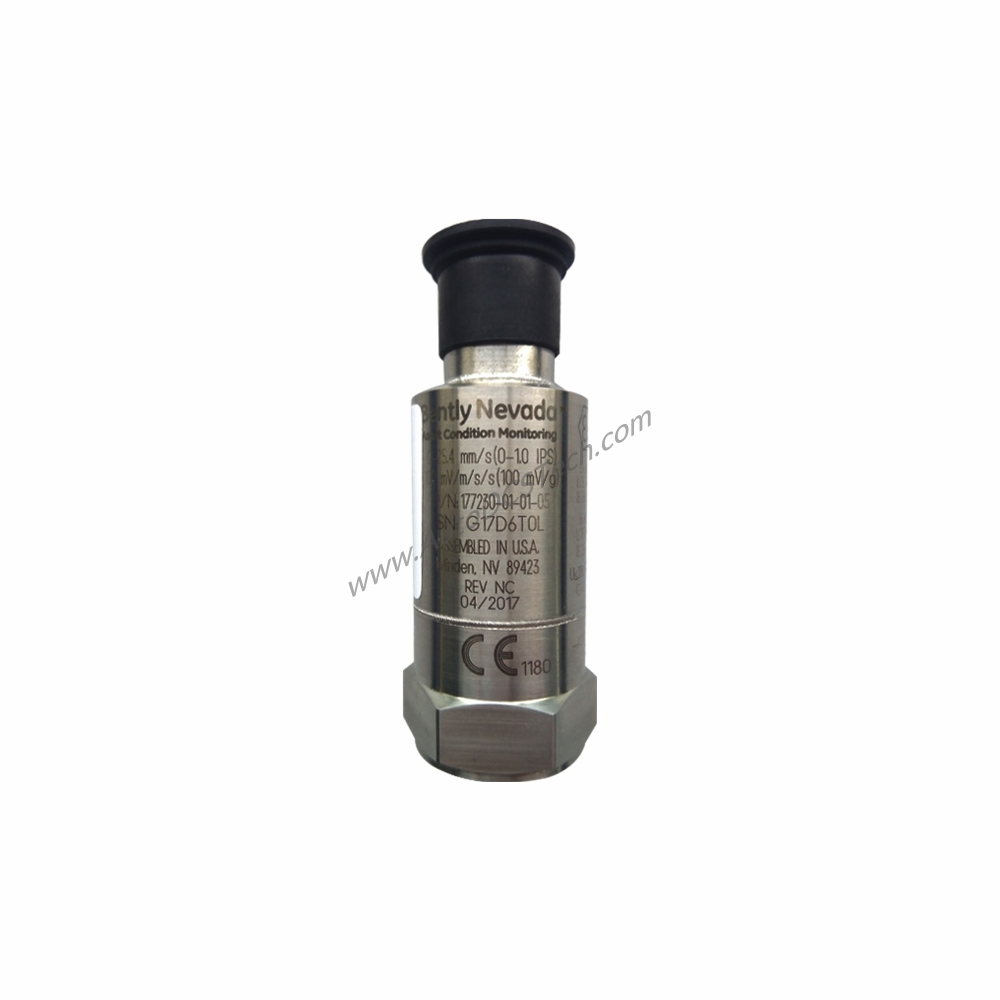

When machinery vibration threatens uptime, the Bently Nevada 177230-00-01-05 Seismic Transmitter delivers reliable, continuous monitoring. This rugged sensor converts vibration velocity into a 4-20 mA signal, seamlessly integrating with PLCs, DCS, and SCADA systems. Designed for maintenance engineers, it prioritizes ease of service and long-term accuracy.
Technical Specifications Breakdown
The 177230-00-01-05 offers a measurement range of 0 to 12.7 mm/s (0 to 0.5 in/s) with a frequency response of 10 Hz to 1 kHz (600 to 60 kcps) RMS. Its 4-20 mA current loop output provides a linear representation of peak vibration levels. The transmitter operates on an excitation voltage of 12 to 30 Vdc, current limited to 40 mA, and settles within 15 seconds to within 2% of final value. With a mounted resonant frequency greater than 12 kHz and transverse sensitivity less than 5%, it ensures accurate readings even in challenging conditions.
Industry Applications
This seismic transmitter excels in rotating machinery monitoring—pumps, fans, compressors, and turbines. In a petrochemical plant, for example, continuous vibration tracking helps detect bearing wear or imbalance early, preventing catastrophic failures. The 177230-00-01-05's hermetically sealed sensor and 316L stainless steel case withstand harsh environments, including 100% non-submerged humidity and temperatures from -40°C to +85°C (-40°F to +185°F).
Installation & Setup Guidance
Mount the 177230-00-01-05 using the 1/4-28 UNF hole or M6 x 1 SI / M8 x 1.25 SI threads, applying a torque of 4 to 7 N-m (35.4 to 62.0 in-lbf). The 3-pin MIL-C-5015 connector simplifies wiring: Pin A for 4-20 mA positive loop, Pin B for loop return and dynamic signal common, and Pin C for dynamic acceleration signal. Ensure the power supply is current limited (typical 30-35 mA) to protect the loop.
Maintenance & Reliability
For maintenance engineers, the 177230-00-01-05 minimizes service interruptions. Its ceramic/shear sensing element and hermetic seal resist contamination and moisture. Periodic inspection of the connector and mounting integrity is recommended. With no moving parts and a robust design, this transmitter offers long service life, reducing total cost of ownership.
Compatibility & Integration
The 4-20 mA output integrates directly with most PLC, DCS, and SCADA analog input modules. The 177230-00-01-05 requires no external signal conditioning, simplifying installation. Its electrical isolation exceeds 108 ohms, with an isolation breakdown voltage of 600 Vrms, ensuring reliable operation in electrically noisy environments.
Frequently Asked Questions
Q: What is the measurement range of the 177230-00-01-05?
A: The measurement range is 0 to 12.7 mm/s (0 to 0.5 in/s) for vibration velocity.
Q: What output signal does this transmitter provide?
A: It provides a 4-20 mA current loop signal proportional to peak vibration levels.
Q: Can I use this transmitter in high-humidity areas?
A: Yes, it can operate in relative humidity up to 100% non-submerged conditions.
Q: What is the operating temperature range?
A: The operating temperature range is -40°C to +85°C (-40°F to +185°F).
Q: How do I mount the 177230-00-01-05?
A: Use the 1/4-28 UNF mounting hole or M6 x 1 SI / M8 x 1.25 SI threads, torqued to 4-7 N-m.
