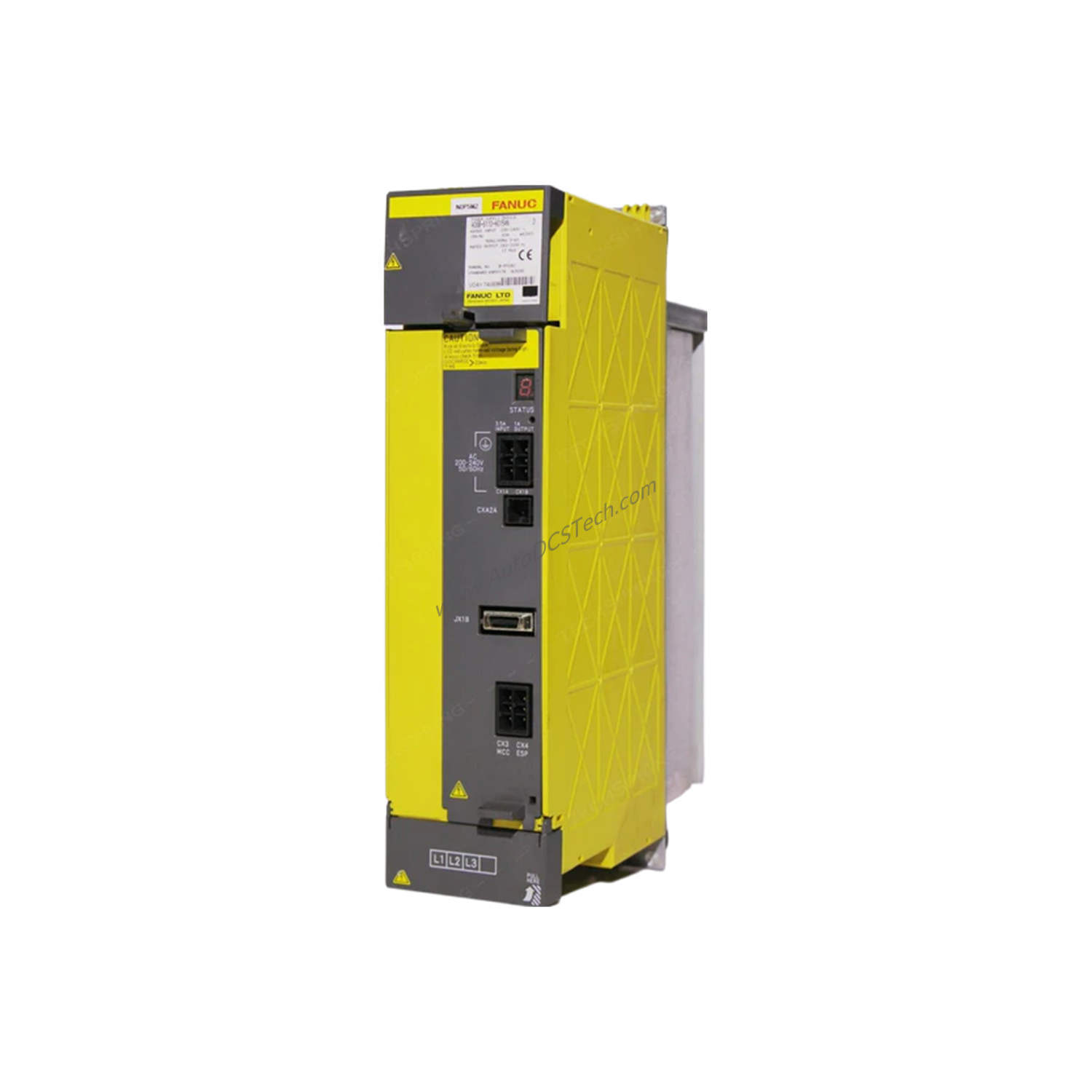

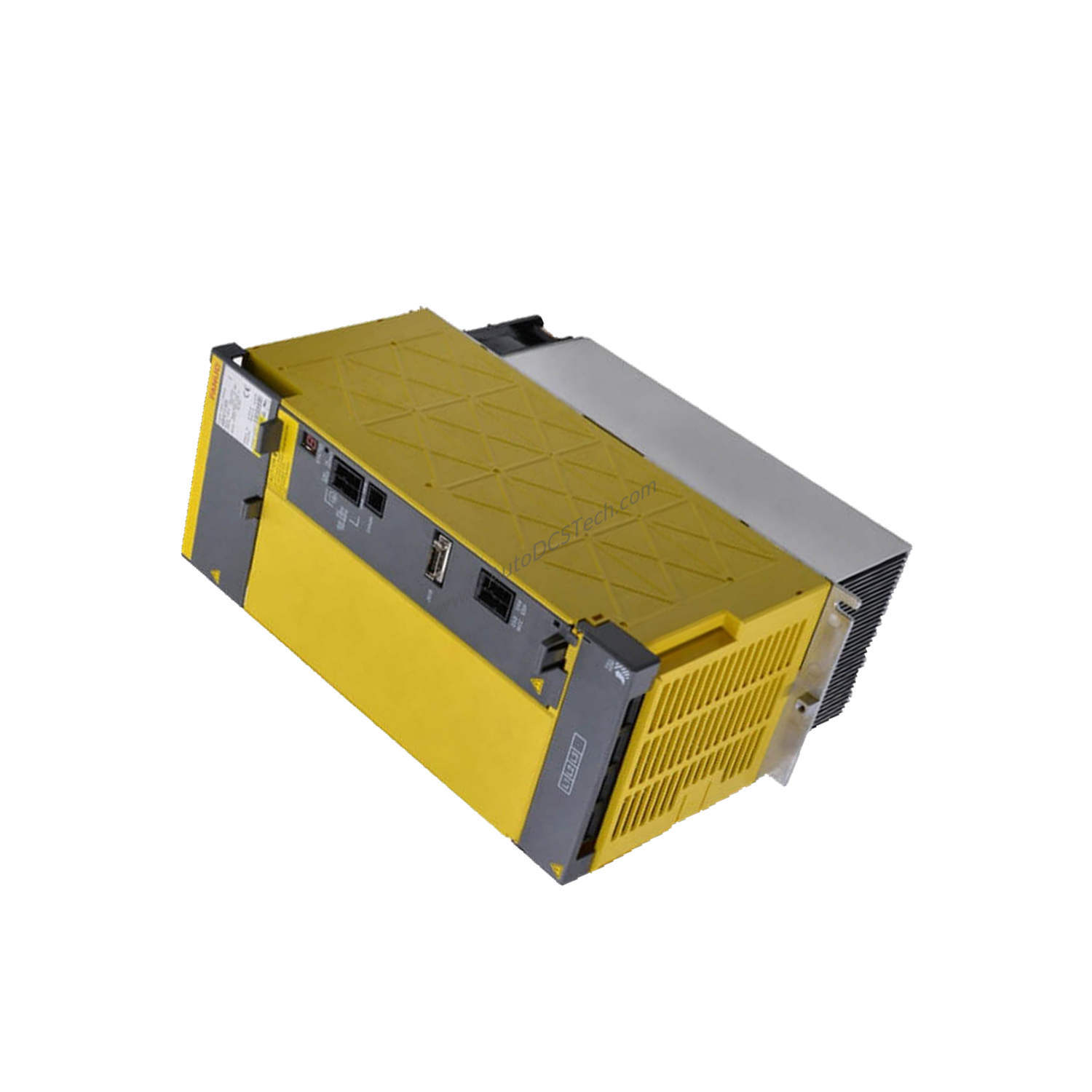

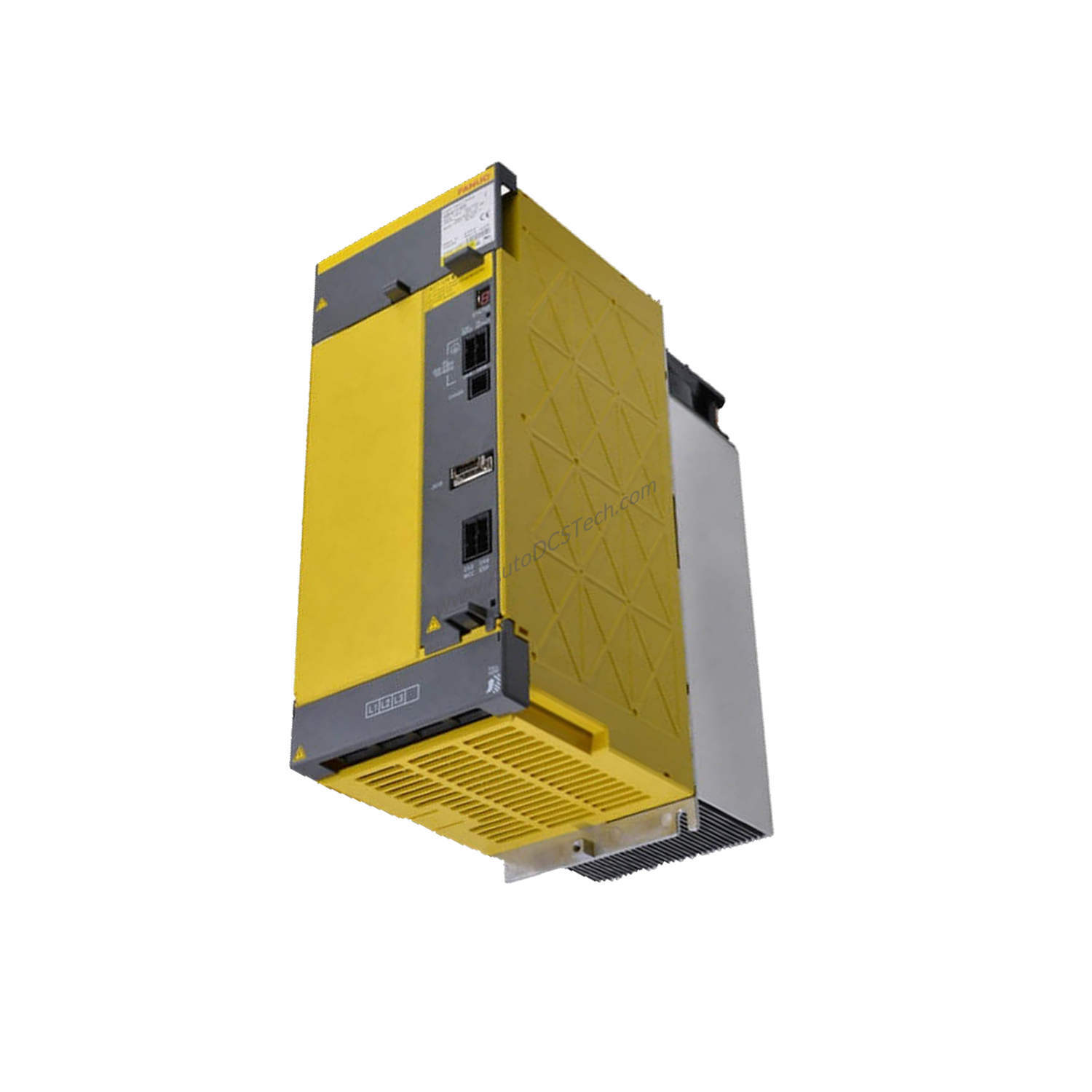

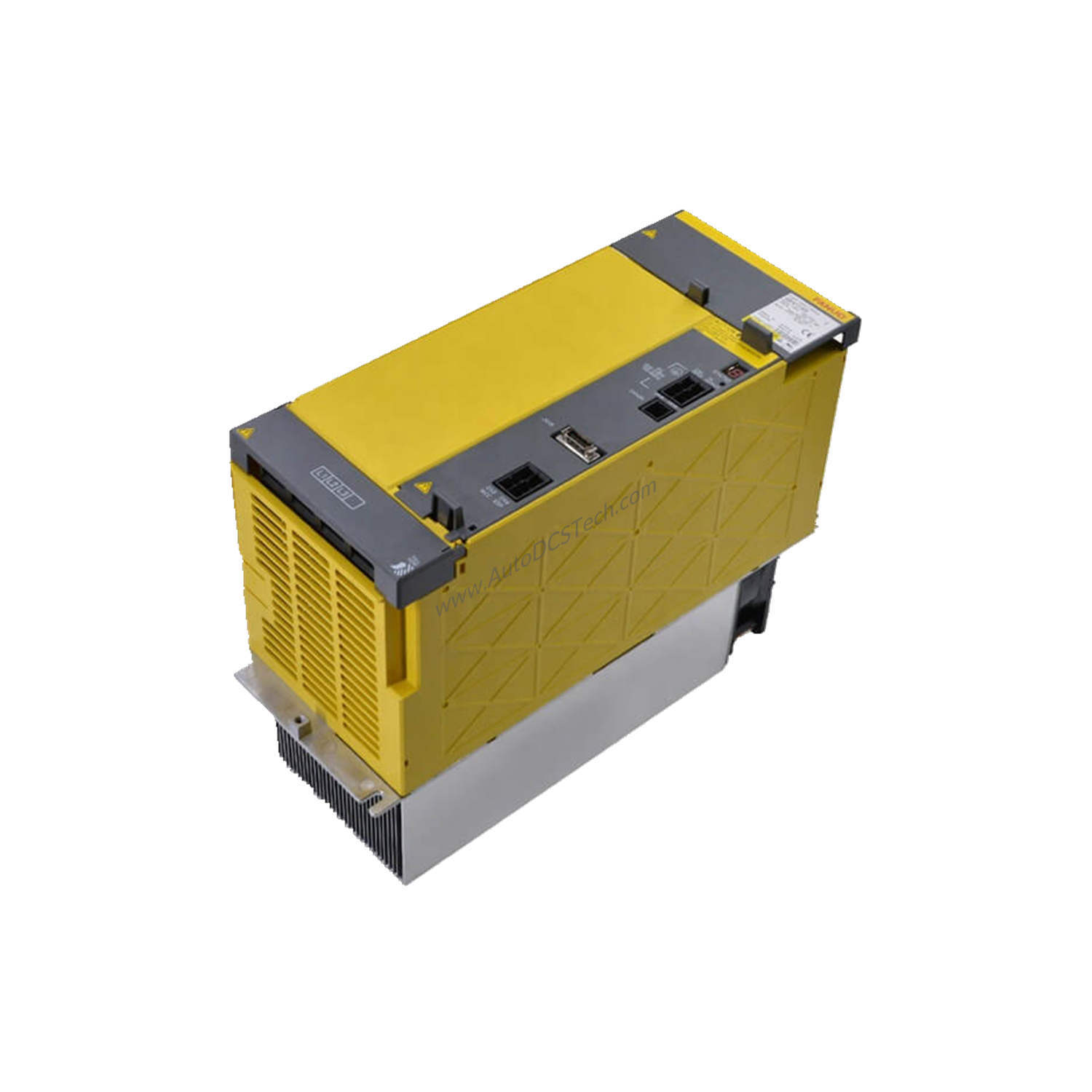

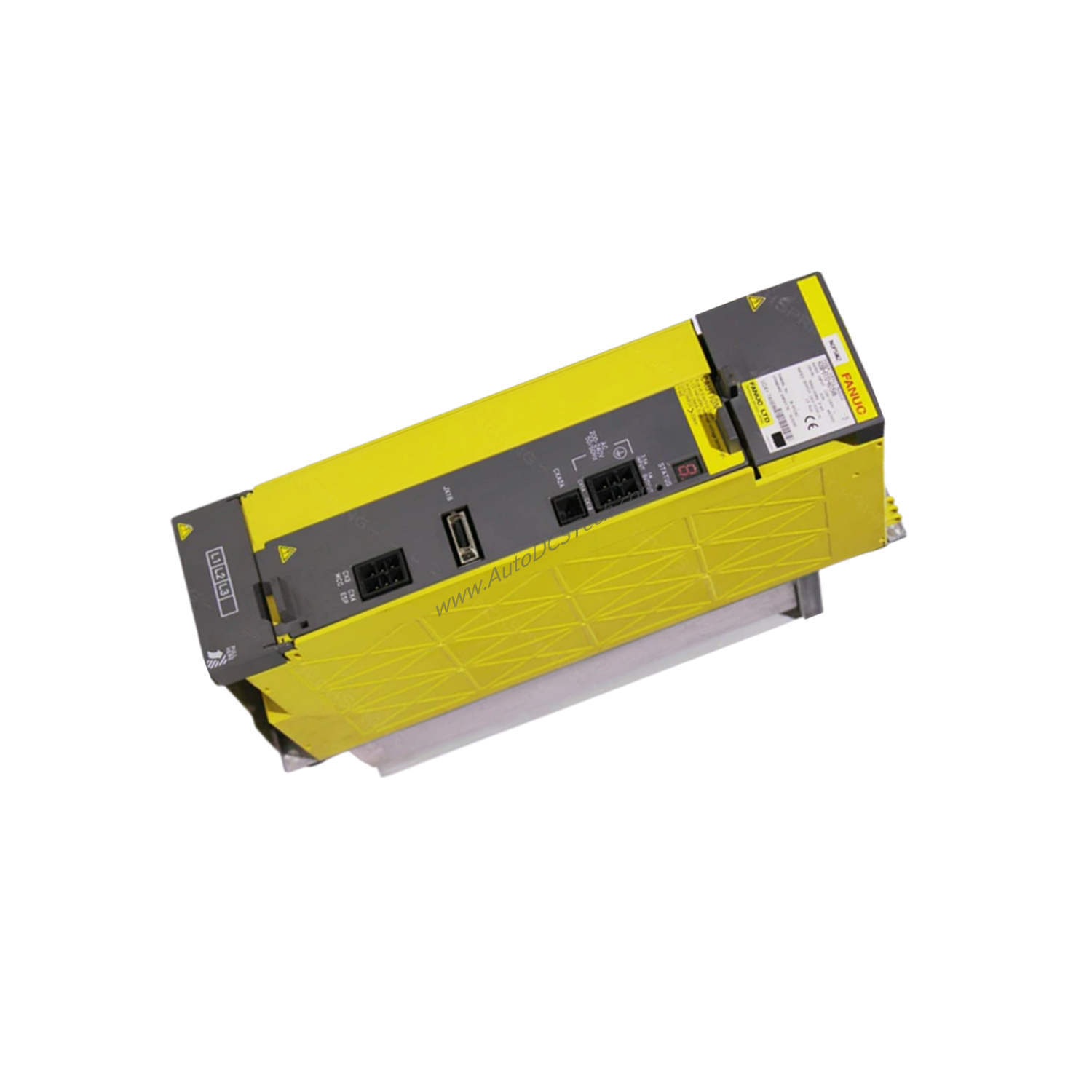

What Is the FANUC A06B-6110-H026?
When your automation system demands consistent, high-efficiency power, the FANUC A06B-6110-H026 delivers. This power supply module from the A06B product line provides a robust 29.8 kW of rated output power. It accepts a 3-phase input voltage of 200-240 VAC at 50/60 Hz, making it compatible with many industrial power grids. The module converts this to a stable output voltage of 283-339 VDC, ensuring reliable energy for connected equipment.
Technical Specifications Breakdown
The A06B-6110-H026 boasts impressive performance metrics. Its input current reaches 106 A at 200V, while the rated output current is 26 A, with a maximum output current of 31 A for peak demands. Efficiency stands at 92%, reducing energy waste and operational costs. Power factor correction of 0.98 enhances power quality, minimizing harmonic distortion. The unit weighs 25.00 lbs (11.34 kg) and has compact dimensions of 190 mm width, 290 mm height, and 170 mm depth, fitting easily into control cabinets.
Industry Applications
This power supply module excels in CNC machining centers, robotic workcells, and automated assembly lines. In a high-speed milling application, the A06B-6110-H026 provides the steady DC bus voltage needed for servo drives to maintain precise axis movements. Its high efficiency and power factor correction also reduce heat generation, lowering cooling requirements in enclosed panels. For 24/7 production environments, the module's 92% efficiency translates directly into energy savings over time.
Installation & Setup Guidance
Mount the A06B-6110-H026 securely within a ventilated enclosure to ensure proper airflow. Connect the 3-phase input (200-240 VAC) using appropriately rated wiring for 106 A at 200V. Verify the input frequency matches your local supply (50 or 60 Hz). The output terminals deliver 283-339 VDC; ensure downstream devices are rated for this voltage range. Always follow local electrical codes and the manufacturer's installation manual.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on cooling fins and fans. Clean with low-pressure dry air to maintain thermal performance. Check all power connections for tightness annually. The high efficiency (92%) and power factor correction (0.98) reduce stress on internal components, extending service life. For maximum uptime, keep a spare A06B-6110-H026 on hand. SpareTechPLC offers this module with verified stock and fast shipping.
Selection Guide & Purchasing Advice
Before ordering, confirm your system's input voltage and phase configuration match the A06B-6110-H026's 3-phase 200-240 VAC requirement. Verify the output voltage range (283-339 VDC) is compatible with your DC bus or load. The module's 29.8 kW rating suits medium-to-large automation systems. Contact SpareTechPLC for current pricing, availability, and lifecycle status. Our team can help you verify compatibility and recommend alternatives if needed.
Frequently Asked Questions
Q: What is the input current of the A06B-6110-H026 at 200V?
A: The input current is 106 A at 200V AC.
Q: Can this module run on a single-phase supply?
A: No, the A06B-6110-H026 requires a 3-phase input configuration.
Q: What is the efficiency rating of this power supply?
A: It achieves 92% efficiency, reducing energy loss.
Q: What output voltage does the A06B-6110-H026 provide?
A: It delivers 283-339 VDC, suitable for many industrial DC loads.
Q: How much does the module weigh?
A: The weight is 25.00 lbs (11.34 kg).
