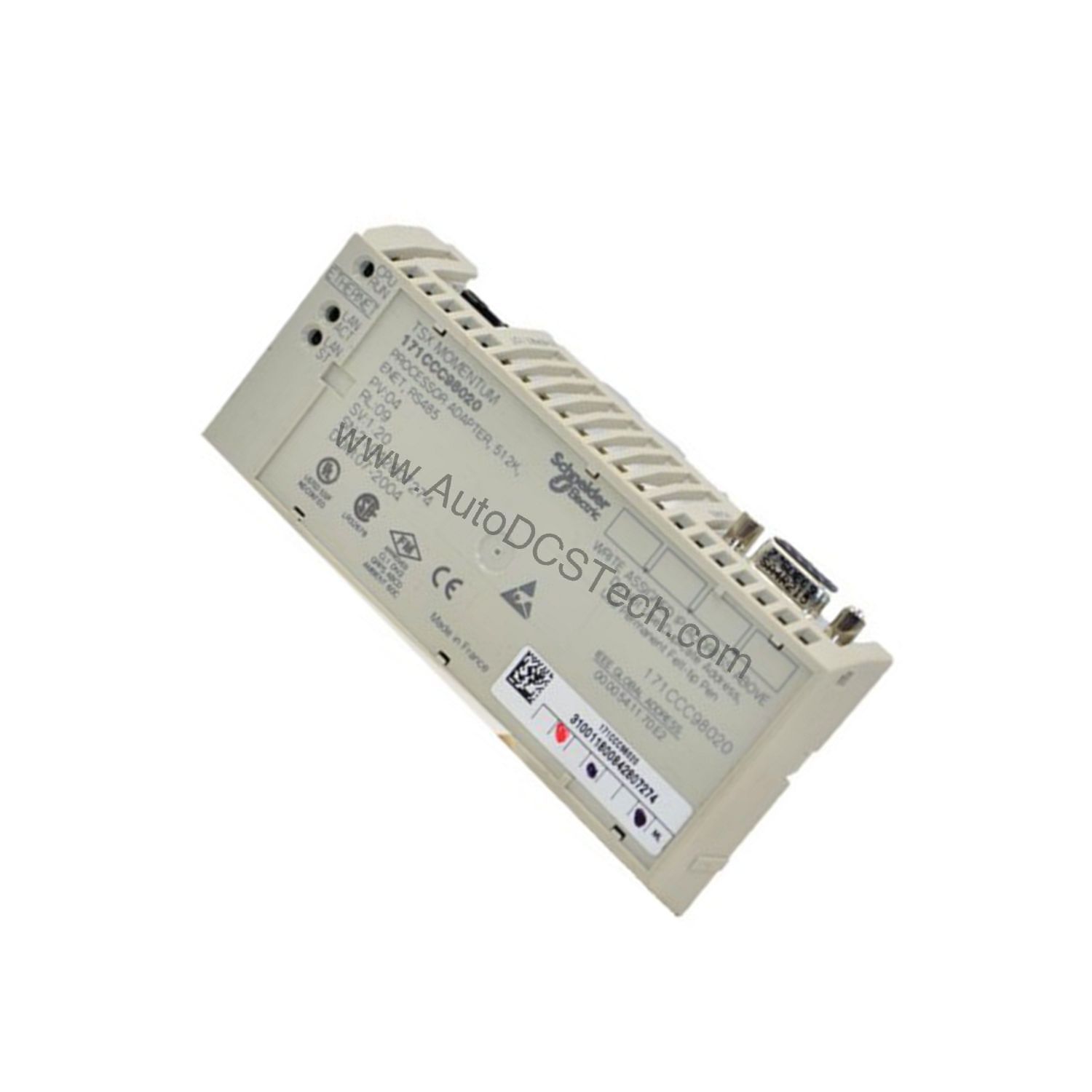

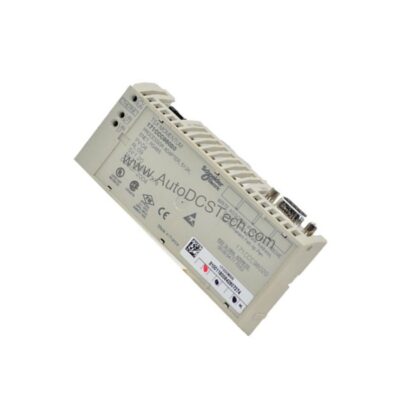

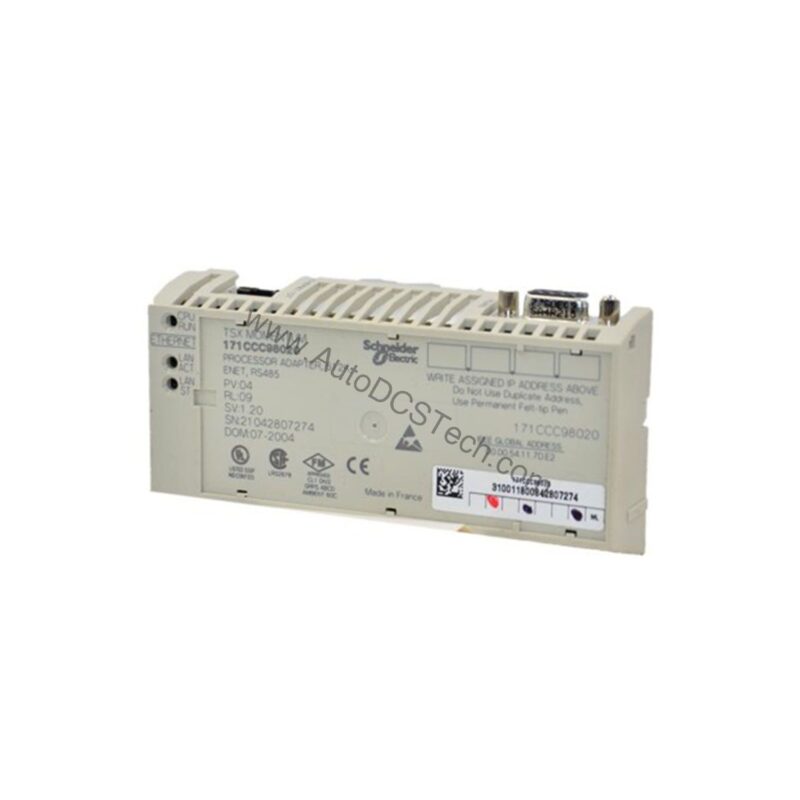

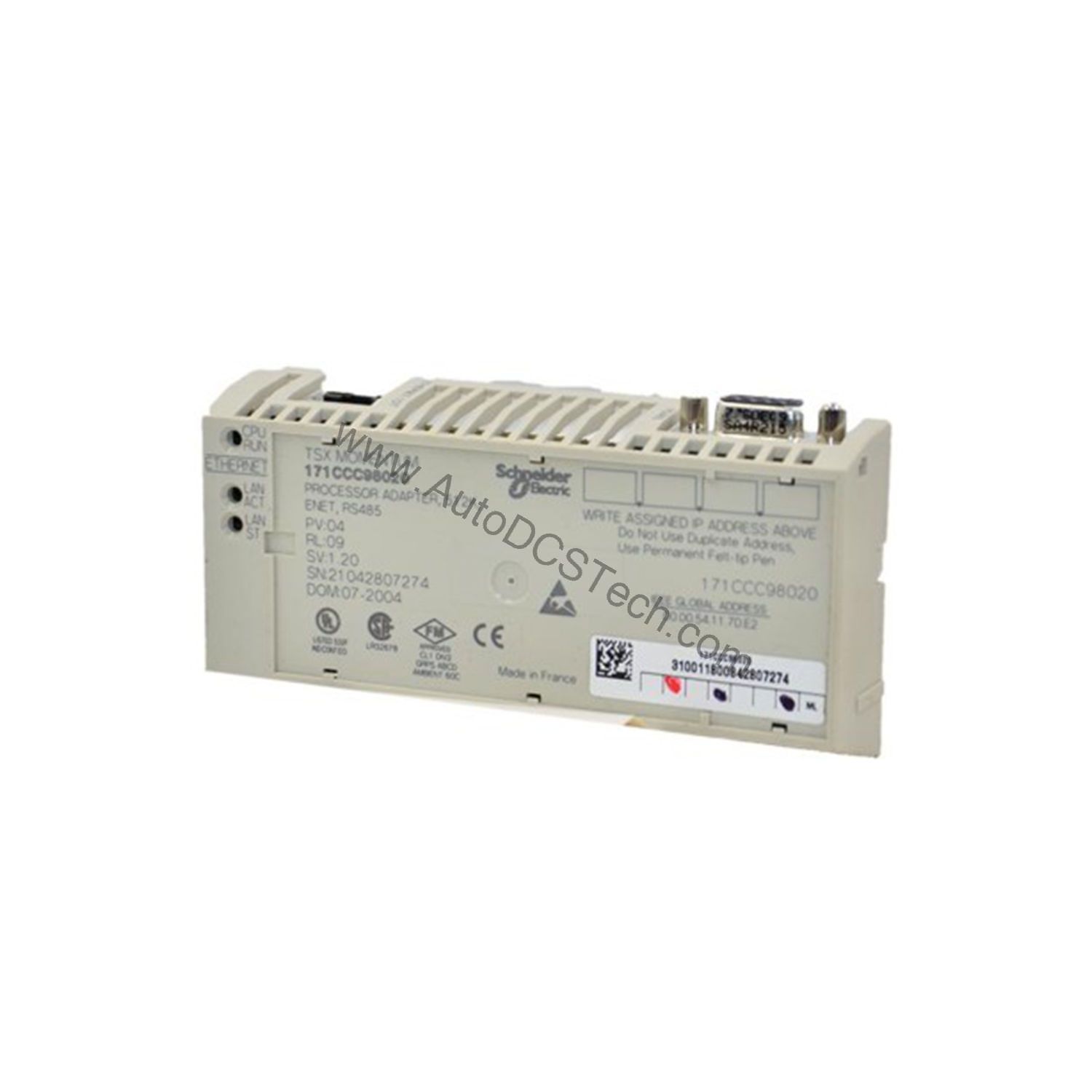

Schneider Modicon Momentum 171CCC98020 Processor Adaptor Module

Technical Specifications Breakdown

Key parameters for the 171CCC98020 are listed below for quick reference:

Industry Applications for the Modicon Momentum Module

This processor adaptor module is well-suited for manufacturing environments where Ethernet and Modbus networks converge. In a packaging line, it can bridge PLCs and remote I/O, enabling real-time data exchange. For building automation, the module supports integration of HVAC controllers with a central monitoring system.

Installation and Setup Guidance

Mount the 171CCC98020 securely on a DIN rail within the control cabinet. Ensure ambient temperature remains between 0 and 40 degrees Celsius. Connect Ethernet and Modbus cables according to the network topology. Verify that the module is properly grounded per local electrical codes. After power-up, check LED indicators for communication status.

Maintenance and Reliability

Periodically inspect the module for dust accumulation and ensure ventilation is unobstructed. Operate within the specified humidity range (80% RH without condensation) to prevent moisture damage. The CE marking confirms compliance with relevant European standards, supporting reliable operation in industrial settings.

Processor Adaptor Module for Reliable Communication

The Schneider Electric 171CCC98020 is a processor adaptor module within the Modicon Momentum series, designed to enable robust communication in industrial automation systems. This module supports both Ethernet and Modbus protocols, making it a versatile choice for integrating diverse control networks. Built-in RAM ensures efficient data processing, while the compact design simplifies installation in space-constrained panels.

Compatibility and Integration

Its support for Ethernet and Modbus allows connection to a wide range of Schneider Electric and third-party devices. Use the built-in RAM for buffering data during high-speed communication.

Selection Guide and Purchasing Advice

When selecting a processor adaptor module, consider the network protocols required for your system. The 171CCC98020 is an choice for applications needing both Ethernet and Modbus. AutoDCSTech offers this module with detailed support to ensure it meets your automation needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
