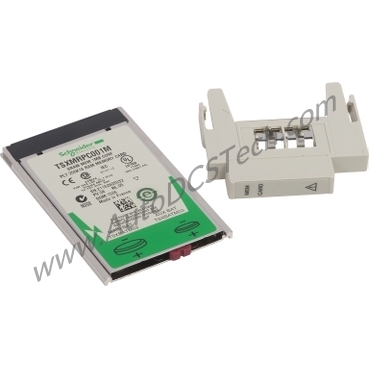

What Is the TSXMRPC001M?
When your TSX Micro PLC runs out of memory for application code or data logging, the Schneider Electric TSXMRPC001M provides a direct solution. This SRAM memory module installs in Slot 0 and expands your system with a configurable capacity from 192 kB to 1024 kB for applications, plus 832 kB to 0 kB for data storage. It is part of the Modicon Premium Automation platform and serves as a configurable SRAM application/file memory extension.
Key Technical Specifications
The TSXMRPC001M operates reliably in industrial environments. It withstands temperatures from 0 to 60 °C (32 to 140 °F) during operation and -25 to 70 °C (-13 to 158 °F) in storage. Relative humidity tolerance is 5 to 95% non-condensing. The module resists shock up to 15 gn for 11 ms and vibration of 1.5 mm peak to peak at 3 to 13 Hz. It complies proactively with the European Union RoHS directive, ensuring environmental responsibility.
Industry Applications
In manufacturing lines where PLCs manage multiple processes, memory bottlenecks cause production delays. The TSXMRPC001M solves this by adding flexible SRAM capacity. For example, a packaging line using a TSX57C controller can store larger recipe databases or extended data logs without upgrading the entire PLC. Similarly, in water treatment plants, the module supports longer historical data retention for compliance reporting.
Installation & Setup Guidance
Install the TSXMRPC001M in Slot 0 of your TSX Micro PLC chassis. Ensure the PLC is powered off before insertion. The module is compact, with net dimensions of 2.6 cm by 9.1 cm by 13.2 cm, and weighs only 0.168 lbs (0.076 kg). After installation, configure the memory size via the programming software to match your application needs. No special tools are required.
Maintenance & Reliability
The TSXMRPC001M uses SRAM technology, which retains data as long as backup power is maintained. For long-term reliability, verify that your PLC backup battery is fresh and properly connected. Periodically inspect the module for dust or corrosion in harsh environments. The module's shock and vibration resistance ensures stable operation in machinery with moderate vibration.
Compatibility & Integration
This memory module is compatible with a range of TSX Micro PLCs: TSX57C, TSX570 to TSX576, and TSXPCI572/3. It integrates seamlessly as an accessory/separate part for processor memory extension. The module is designated as a configurable SRAM application/file memory extension, making it suitable for both new installations and upgrades.
Selection Guide & Purchasing Advice
Before ordering, confirm your PLC model matches the compatibility list. The TSXMRPC001M is available from SpareTechPLC, a trusted industrial automation parts supplier. Verify current lifecycle status and availability with SpareTechPLC before ordering, as product status may change. This module is a cost-effective way to extend memory without replacing your existing PLC.
