Product Overview

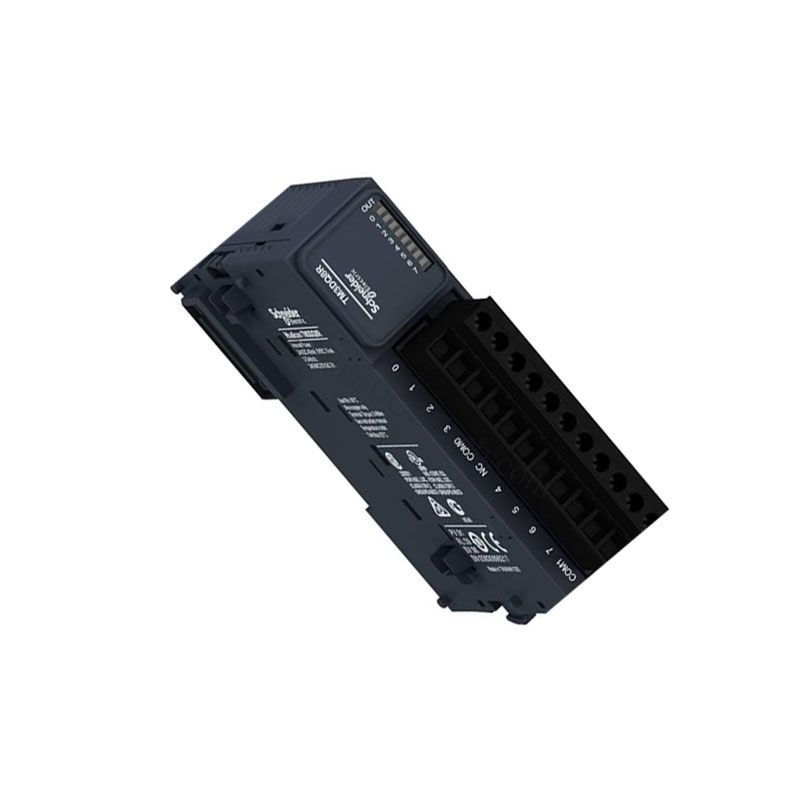

When precise open-loop positioning is required in industrial automation, the Schneider TWDPTO220DT TM2 PTO module delivers reliable pulse train output for stepper motor control. This extension module features 2 PTO output channels, each capable of 200K Hz (100K Hz for A/B phase), making it suitable for applications needing controlled motion sequences.
Key Technical Specifications
The TWDPTO220DT operates with a 24V supply voltage (permissible range 18V to 31.2V) and includes 4 digital inputs for positioning completion, drive ready, origin, and limit signals. The digital outputs provide drive enabling and counter clearance signals, with open collector compatibility for 5V to 24V source inputs at a maximum current of 0.1A. Pulse outputs follow RS422 standard at 7mA per pulse, with a maximum load current of 20mA per pulse.
Industry Applications
This module excels in applications requiring controlled motion profiles, such as conveyor systems, packaging machinery, and labeling equipment. For example, a pulse profile can program a stepper motor through ramp-up, run, and ramp-down sequences for smooth acceleration and deceleration. The open-loop control mode eliminates the need for feedback, simplifying integration and reducing system cost.
Installation & Setup Guidance
When installing the TWDPTO220DT, use shielded cable for all digital inputs and outputs to minimize electromagnetic interference. Cable length must be less than 3 meters. The module accepts source or sink input types, offering flexibility in wiring. Ensure the external 24V supply voltage stays within 19.2V to 30V for reliable operation.
Maintenance & Reliability
Regular inspection of cable connections and supply voltage levels helps maintain consistent performance. The module includes built-in reversed polarity prevention and overload protection on outputs (threshold below 200mA). Operating temperature range is 0 to 55°C with no derating, ensuring stable operation in typical industrial environments.
Compatibility & Integration
The TWDPTO220DT integrates seamlessly with Schneider TM2 series PLC systems. It communicates via dedicated PTO signals, enabling direct control of stepper drives or servo drives with integrated position loops. The open-loop architecture reduces complexity while maintaining precise pulse generation.
Selection Guide & Purchasing Advice
Before purchasing the TWDPTO220DT, verify your controller compatibility and required cable lengths. SpareTechPLC stocks this module and can advise on availability and replacement options. For current lifecycle status, please contact SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the maximum pulse frequency for the TWDPTO220DT?
A: Each PTO channel supports up to 200K Hz, or 100K Hz when using A/B phase mode.
Q: Can the TWDPTO220DT control a stepper motor directly?
A: Yes, it provides square wave pulse trains suitable for stepper motor drives, with programmable profiles for complex motion sequences.
Q: What type of cable is recommended for the digital inputs?
A: Shielded cable is recommended for all digital inputs and outputs, with a maximum length of 3 meters.
Q: Does the module include overload protection?
A: Yes, the digital outputs have overload protection with a threshold below 200mA.
Q: What is the supply voltage range for the TWDPTO220DT?
A: The module requires 24V supply, with a permissible range of 18V to 31.2V.
