Why the 8LSC53.ee030ff00-4 Cuts Costs in High-Speed Automation
In modern manufacturing, every second of downtime and every kilowatt of excess energy directly hits the bottom line. The B&R 8LSC53.ee030ff00-4 three-phase synchronous servo motor is engineered to address both concerns. Its permanent-magnet, electronically commutated design delivers high efficiency, which translates into lower electricity bills over the motor's lifetime. For plant managers and maintenance teams, this motor offers a practical way to reduce total cost of ownership without sacrificing performance.
This motor is part of the 8LSC series, known for compact size and reduced weight. These features simplify installation and can reduce the structural support needed, lowering mechanical integration costs. The externally fan-cooled design (IC4A0A6) ensures consistent thermal performance, helping to avoid overheating-related failures that cause unplanned downtime.
Technical Specifications: Performance That Pays Back
The 8LSC53.ee030ff00-4 delivers a nominal speed of 3000 rpm and a maximum speed of 5000 rpm, making it suitable for high-throughput applications. Its nominal torque of 12.1 Nm and stall torque of 15.6 Nm provide strong starting and holding capability. With a maximum torque of 30.0 Nm, the motor can handle short-duration peak loads, reducing the need for oversizing and saving on initial capital expenditure.
Electrical efficiency is a key cost driver. The motor's nominal current is 7.4 A, and its stall current is 9.6 A. The torque constant of 1.63 Nm/A indicates efficient conversion of current into torque, which means less electrical energy is wasted as heat. The stator resistance of 1.33 Ohm and inductance of 15.7 mH contribute to smooth control and predictable performance, reducing energy losses during operation.
Thermal management is critical for longevity. The motor has a thermal time constant of 38 minutes, allowing it to absorb short-term overloads without immediate overheating. The maximum winding temperature is 155 °C, with the insulation class F per IEC 60085. This robust thermal design extends motor life, reducing replacement and maintenance costs.
Real-World Applications: Where the Motor Saves Money
In packaging lines, the 8LSC53.ee030ff00-4 excels at high-speed indexing and precise positioning. Its high dynamic response and large overload capacity (maximum torque 30.0 Nm) allow it to accelerate and decelerate quickly, reducing cycle times and increasing throughput. This directly improves return on investment by boosting production output.

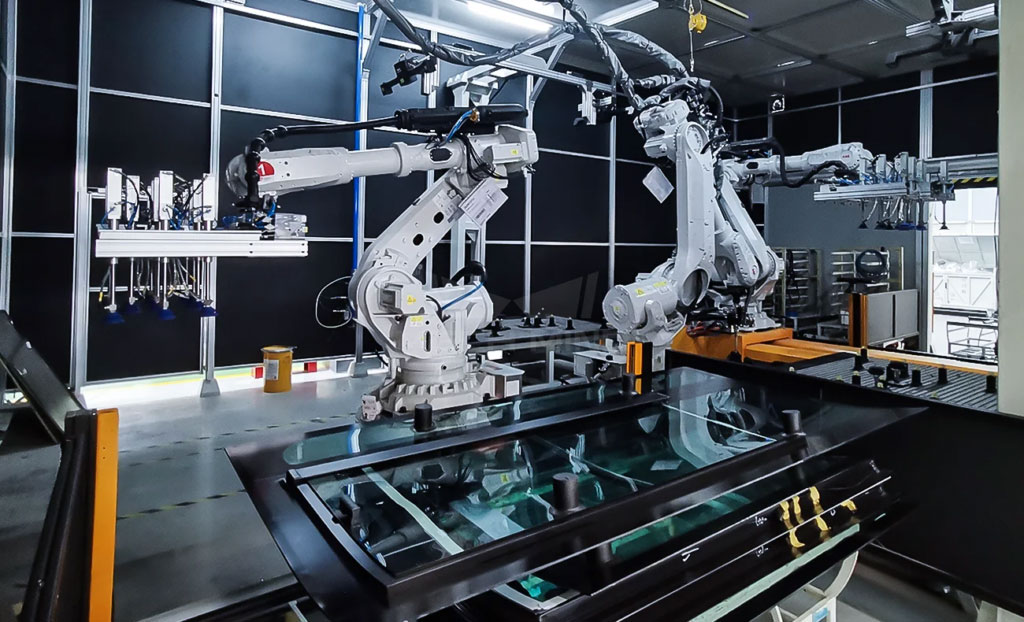

In material handling and robotics, the motor's compact size and reduced weight simplify integration into tight spaces. The optional single-cable (hybrid) solution reduces cabling costs and installation time. The built-in encoders for functional safety (available as options) can eliminate the need for external safety components, lowering system complexity and cost.
For machine tools, the motor's positioning precision and optimized torque rippling ensure high-quality surface finishes, reducing scrap and rework. The ability to operate at up to 5000 rpm supports high-speed machining, further improving productivity.
Compatibility and Integration: Lower Installation Costs
The 8LSC53.ee030ff00-4 is designed to work seamlessly with the ACOPOS servo drive series, specifically the recommended 013X model. This pairing ensures optimal performance and simplifies commissioning. The motor supports resolver or EnDat feedback systems, including safety-related variants, giving integrators flexibility to match existing control architectures.
The motor's mounting options (IM 3001, IM 3011, IM 3031) and flange dimensions per DIN 42948 Form A allow for easy replacement of older motors without major mechanical modifications. This reduces retrofit costs and minimizes downtime during upgrades.
Business Value: Energy Savings and Uptime
Energy efficiency is a major cost factor. The 8LSC53.ee030ff00-4's permanent-magnet design reduces energy consumption compared to induction motors of similar rating. Over a 10-year lifespan, even a 5% efficiency gain can save thousands of dollars in electricity. Additionally, the motor's IP64 protection rating (with optional IP65 with oil seal) guards against dust and water ingress, reducing failure rates in harsh environments.
Reliability directly impacts maintenance budgets. The motor's thermal protection (KTY83-110 / AM-PTC1000) and vibration severity A1 per EN 60034-14 help prevent premature wear. The externally fan-cooled design with a 24 VDC fan (IP68/IP65) ensures consistent cooling, extending bearing and winding life. Fewer breakdowns mean lower repair costs and less lost production.
Frequently Asked Questions
What is the maximum torque of the 8LSC53.ee030ff00-4?
The maximum torque is 30.0 Nm, which is available for short-duration peak loads. This allows the motor to handle transient overloads without oversizing, saving on both motor and drive costs.
What feedback options are available?
The motor supports resolver or EnDat feedback systems, including inductive or optical variants. Safety-related encoder options are also available for functional safety applications, which can reduce the need for external safety hardware.
What is the recommended servo drive for this motor?
The recommended ACOPOS servo drive is the 013X model. Using the recommended drive ensures optimal performance and simplifies integration, reducing commissioning time and cost.
What is the protection rating of the motor?
The motor has an IP64 protection rating per EN 60034-5, with an optional IP65 rating when an oil seal is used. The fan is rated IP20 (or IP68/IP65 for the 24 VDC version). This protects against dust and water, enhancing reliability in demanding environments.
