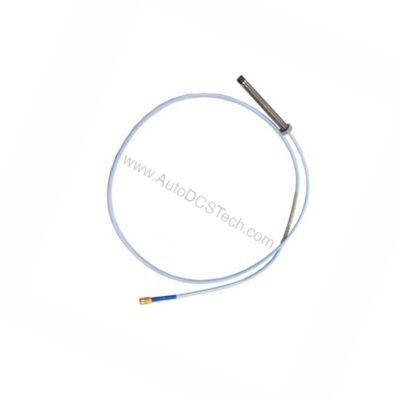

330141-08-20-11-05 Bently Nevada 3300 XL 8 mm Probe

Product Overview: Bently Nevada 330141-08-20-11-05

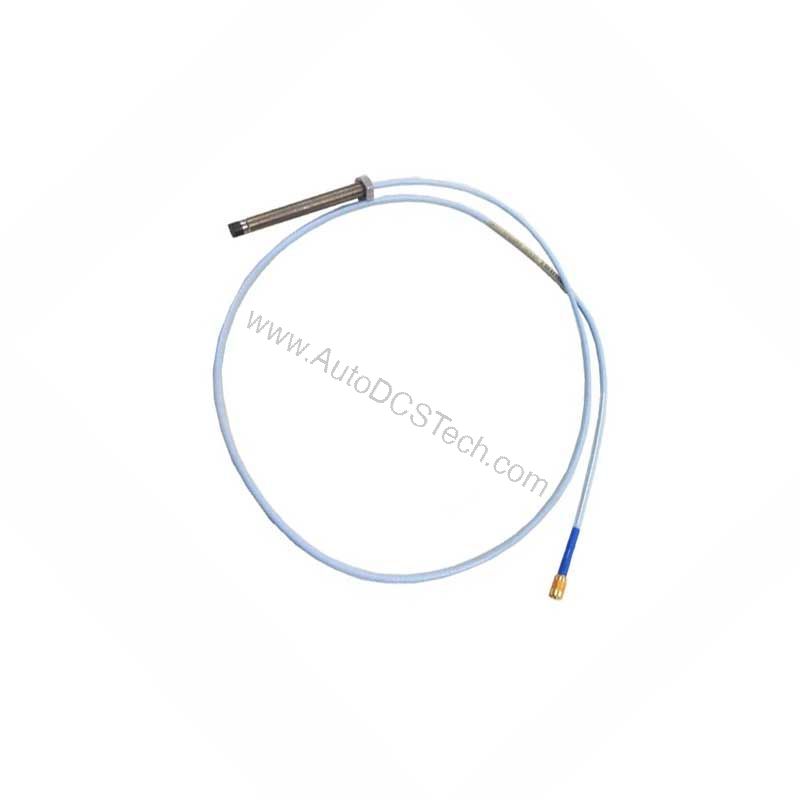

The Bently Nevada 330141-08-20-11-05 is a 3300 XL 8 mm probe with armor and a 2.0-meter total length. It is engineered for precise eddy-current displacement measurement in rotating machinery protection systems. Moreover, the probe features a patented TipLoc molding method that creates a robust bond between the probe tip and body. In addition, the CableLoc design provides 330 N (75 lbf) pull strength to securely attach the cable and tip. Consequently, this probe delivers engineering-grade precision in demanding industrial environments.

Key Specifications of the 330141-08-20-11-05

• Probe Diameter: 8 mm
• Total Length: 2.0 meters (6.6 feet)
• Connector Type: Miniature coaxial ClickLoc with protector
• Cable Type: FluidLoc (prevents oil leakage)
• Approvals: CSA, ATEX, IECEx
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303 or 304 stainless steel
• Operating Temperature: -52°C to +177°C (-62°F to +350°F)
• Nominal DC Resistance: 7.88 ± 0.50 Ω at 2.0 m
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5%

Installation and Setup

Install the 330141-08-20-11-05 according to the machinery protection system requirements. First, verify the probe tip is positioned within the linear range. Second, secure the armor and cable to prevent mechanical stress. Third, connect the miniature coaxial ClickLoc connector to the extension cable. The FluidLoc option prevents oil leakage through the cable interior. Additionally, avoid exposing the probe to temperatures below –34°C (-30°F) to prevent premature pressure seal failure. For precise matching, contact AutoDCSTech with your exact requirements.

Maintenance and Reliability

Regular inspection of the probe tip and cable ensures long-term reliability. Check for physical damage or wear on the armor. Moreover, verify the probe's DC resistance periodically to confirm integrity. The 3300 XL 8 mm probe provides a thicker encapsulation of the probe coil in the molded PPS tip, resulting in a more rugged design. Consequently, it withstands physical abuse better than smaller probes. The stainless steel case adds further robustness. For optimal performance, maintain the specified temperature range and avoid excessive humidity.

Product Support and Availability

The Bently Nevada 330141-08-20-11-05 is in stock and ready to ship. AutoDCSTech provides specialist engineering support for precise matching. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
