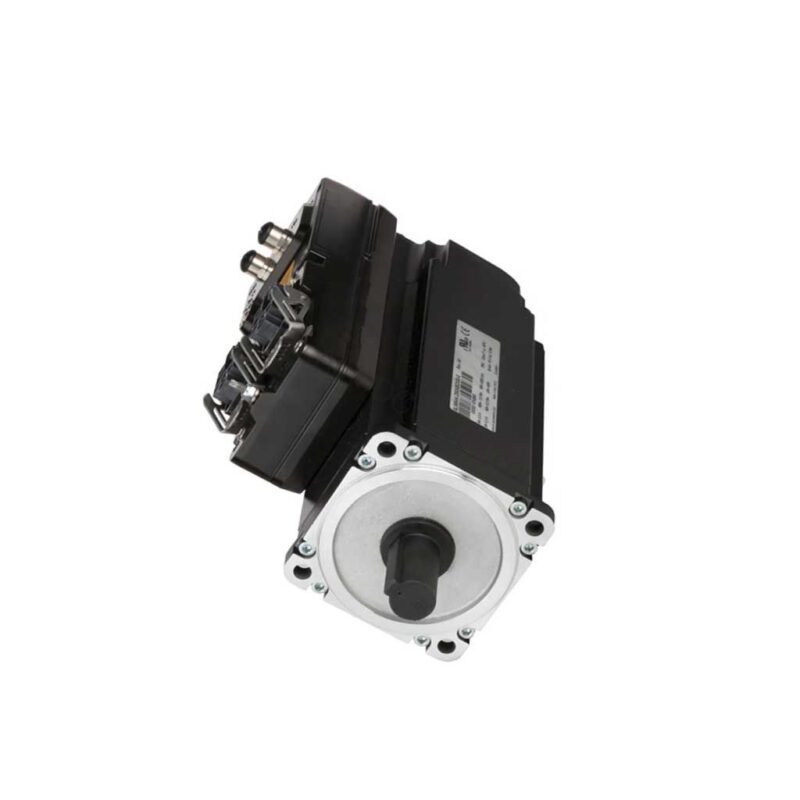

8LSC47.ee030ffgg-4: 13.3 Nm Servo Motor | B&R
The 8LSC47.ee030ffgg-4 is the 13.3 Nm Servo Motor | B&R covered on this page. The attribute that decides whether it fits the existing installation without modification is 4170 W.
What separates this variant from its siblings is 13.3 nm servo motor | b&r. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 13.3 nm servo motor | b&r is the attribute that decides fit and function, and verifying 4170 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC47.ee030ffgg-4 |
| Nominal speed | 3000 rpm |
| Nominal torque | 13.3 Nm |
| Nominal power | 4170 W |
| Nominal current | 8.1 A |
| Stall torque | 15.6 Nm |
| Maximum torque | 45.6 Nm |
| Maximum speed | 6600 rpm |
| Torque constant | 1.63 Nm/A |
| Voltage constant | 98.44 V/1000rpm |
| Moment of inertia | 4.8 kg·cm² |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC47.ee030ffgg-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
