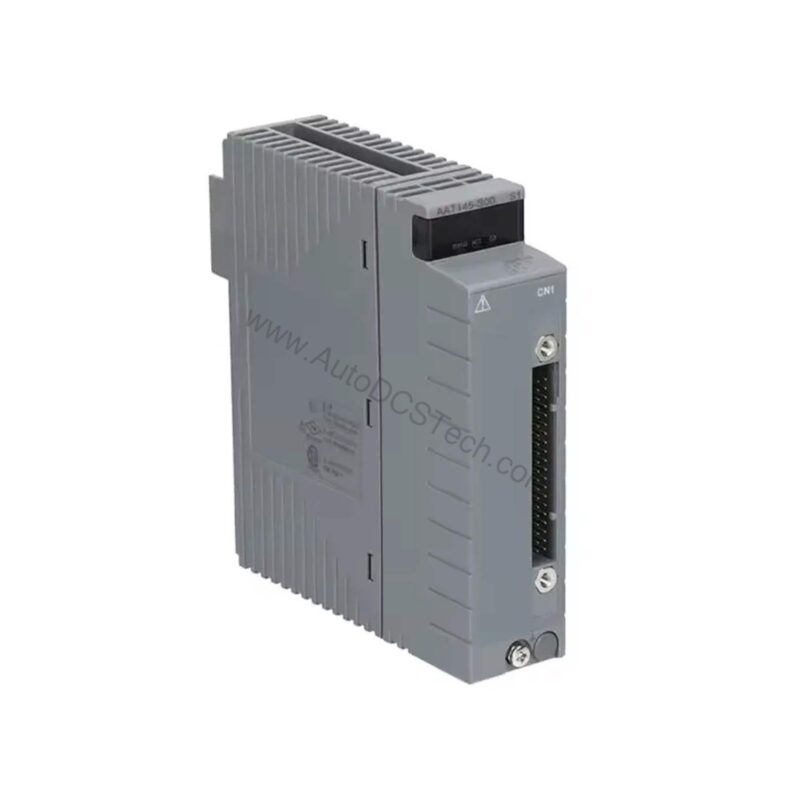

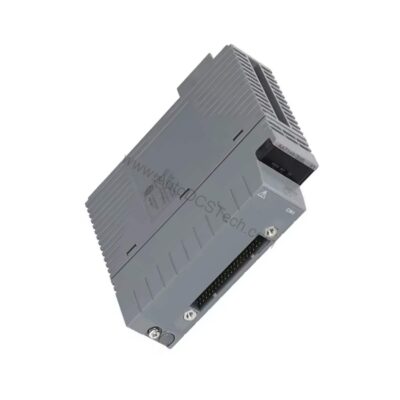

AAV144-s50: 16 Channel Isolated Analog Input Module
The AAV144-s50 is the 16 Channel Isolated Analog Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.2 kg.
On this unit 16 channel isolated analog input module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 16 channel isolated analog input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0.2 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | AAV144-s50 |
| Input Channels | 16 isolated |
| Input Signal Range | 1-5 V, -10 to 10 V |
| Allowable Input Voltage | ±30 V |
| Withstanding Isolated Voltage | 1500 V AC (1 min) |
| Input Resistance | 1 MΩ (ON), 200 kΩ (OFF) |
| Accuracy | ±4 mV / ±20 mV |
| Data Update Period | 10 ms |
| Current Consumption | 500 mA (5 V DC) |
| Weight | 0.2 kg |
Availability & Condition at AutoDCSTech
| Part Number | AAV144-s50 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
