Product Introduction
When temperature measurement accuracy is critical in industrial processes, the ABB AI843 Thermocouple/mV Input Module delivers reliable performance. This analog input module provides 8 differential input channels for thermocouple or millivolt measurements. It supports a wide range of thermocouple types including B, C, E, J, K, L, N, R, S, T, and U, as well as linear -30 mV to +75 mV ranges. A dedicated Pt100 channel handles cold junction compensation, ensuring precise readings even in fluctuating ambient conditions. Part of the S800 I/O series, the AI843 is designed for single or redundant operation, making it a flexible choice for critical control systems.
Technical Specifications Breakdown
Understanding the key specs of the AI843 helps engineers select the right module for their application. The module features 16-bit resolution, providing fine granularity for temperature data. Input impedance exceeds 1 MΩ, minimizing signal loading. The update cycle time is 320 + 80 (number of active channels) ms at 50 Hz, or 267 + 67 (number of active channels) at 60 Hz, allowing for predictable data refresh rates. Isolation is groupwise from ground, enhancing noise immunity. The module also includes wire-break open-circuit detection for each input, alerting operators to sensor faults immediately.
Industry Applications
In chemical processing plants, the AI843 monitors reactor temperatures using Type K thermocouples, ensuring reactions stay within safe limits. The module's cold junction compensation maintains accuracy despite ambient temperature shifts. In power generation, it tracks exhaust gas temperatures with Type N thermocouples, helping optimize combustion efficiency. The 16-bit resolution captures subtle temperature changes, enabling early detection of equipment degradation. For both applications, the AI843's redundancy capability ensures uninterrupted operation, reducing unplanned downtime.
Installation & Setup Guidance

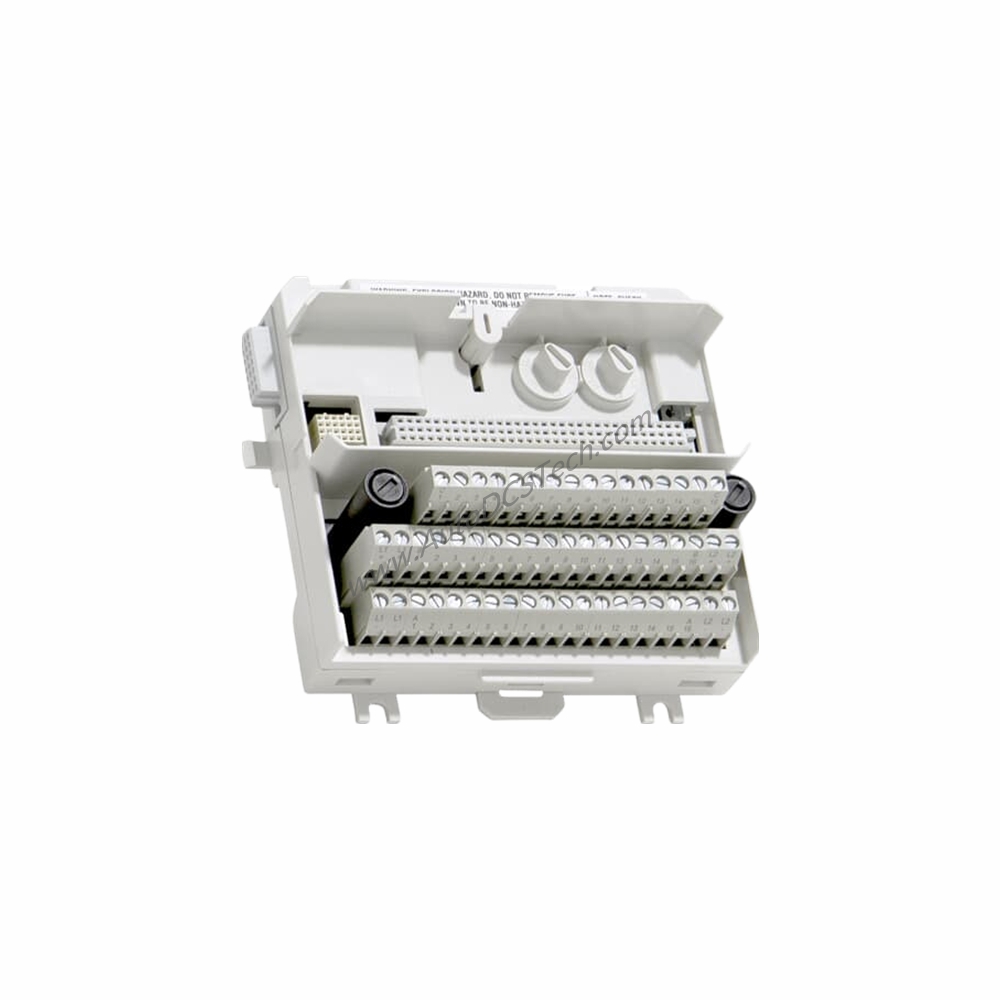

Mount the AI843 module securely in an S800 I/O rack using the appropriate MTU (TU818, TU830, TU833, TU842, or TU843). Ensure the keying code BA matches the base unit. Connect thermocouple wires to the screw terminals, observing polarity. For cold junction compensation, use the dedicated Pt100 channel with a 4-wire RTD. The maximum field cable length is 600 meters (656 yards) or up to 500 Ω resistance. Configure measurement ranges per channel via the control system software. Verify that the module's power consumption does not exceed 1.5 W, with +5 V Modulebus current at 60 mA and +24 V Modulebus current at 50 mA.
Maintenance & Reliability
Regular inspection of the AI843 module ensures long-term reliability. Check front panel LEDs (Fault, Run, Warning) for status indications. The module supervises for errors such as reference channels outside limits, low power supply, open-circuit channels, and cold junction channel errors (channel 8 out of range below -40°C or above 100°C). Operating temperature range is 0 to +55 °C (+32 to +131 °F), with storage from -40 to +70 °C (-40 to +158 °F). The module is protected to IP20 and rated for pollution degree 2. For environments with corrosive gases, the corrosion protection meets ISA-S71.04: G3. Periodic cleaning of the enclosure with a dry cloth is sufficient; avoid solvents.
Compatibility & Integration
The AI843 integrates seamlessly with ABB's S800 I/O system. It communicates over the Modulebus, requiring no HART or SOE support. The module is compatible with MTUs such as TU818, TU830, TU833, TU842, and TU843. For system integration, ensure the control system supports the S800 series and can handle the update cycle times. The module can operate in single or redundant mode, enhancing system availability. No external +24 V power is needed for the module itself, simplifying wiring.
Selection Guide & Purchasing Advice
Before purchasing the AI843, verify your system's compatibility with the S800 I/O platform. Confirm that the required thermocouple types (B, C, E, J, K, L, N, R, S, T, U) are supported. Check the ambient temperature range of your installation site; the module operates from 0 to +55 °C, but vertical mounting in a compact MTU reduces the max ambient to 40 °C. Ensure the MTU keying code is BA. SpareTechPLC offers the AI843 (article number 3BSE028925R1) with fast shipping and expert support. Contact our team to confirm lifecycle status and availability before ordering.
Frequently Asked Questions
What thermocouple types does the AI843 support?
The AI843 supports thermocouple types B, C, E, J, K, L, N, R, S, T, and U, as well as linear -30 mV to +75 mV ranges.
How does the AI843 handle cold junction compensation?
A separate Pt100 channel measures ambient temperature for cold junction compensation. It can be set locally on the MTU screw terminals or via a fixed parameter.
Can the AI843 operate in redundant mode?
Yes, the AI843 supports single or redundant operation for increased system reliability.
What is the maximum cable length for field wiring?
The maximum field cable length is 600 meters (656 yards) or up to 500 Ω resistance.
What are the power requirements for the AI843?
The module consumes 1.5 W, with 60 mA from +5 V Modulebus and 50 mA from +24 V Modulebus. No external +24 V is needed.
