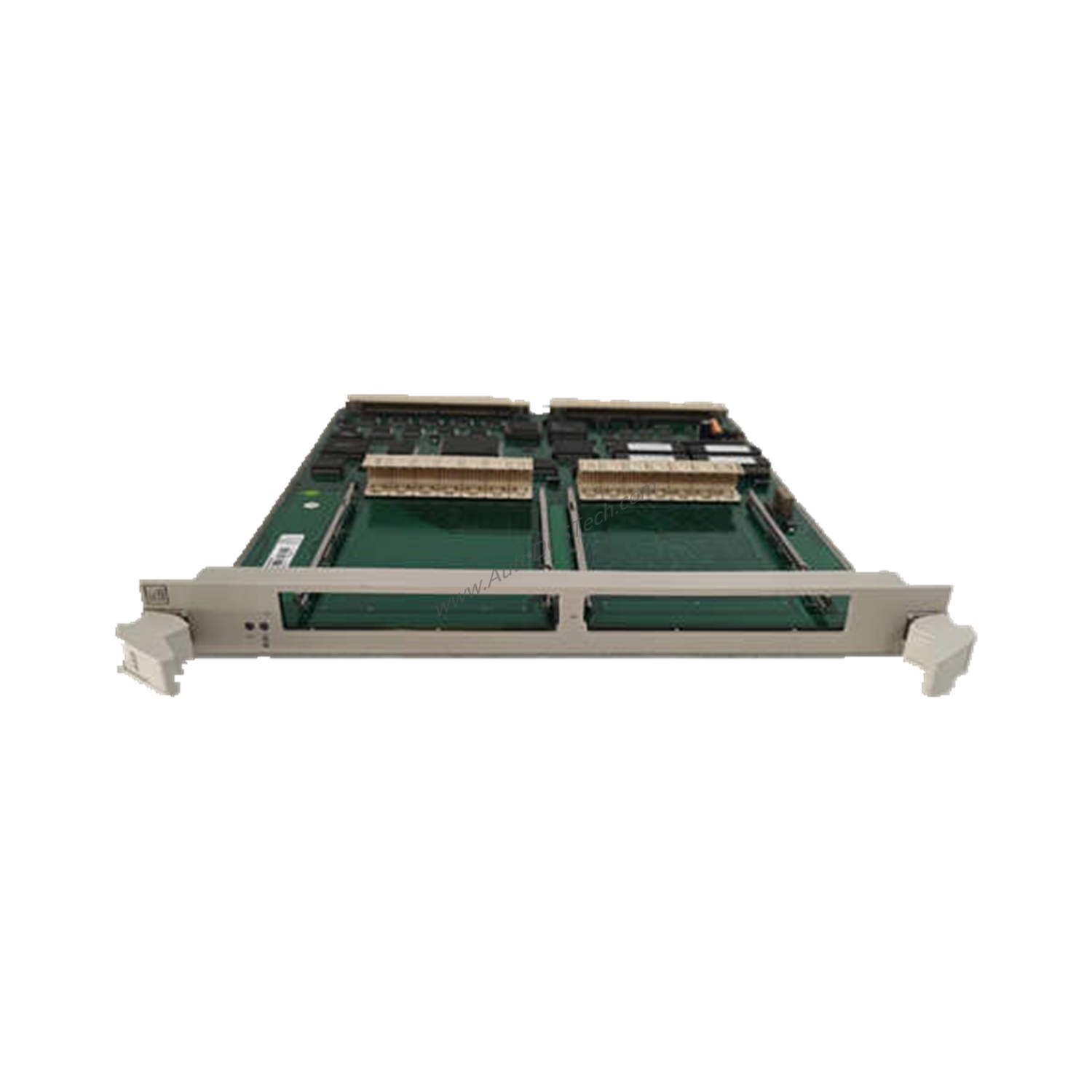

Why Choose the ABB SC520 SC520 Submodule Carrier?
When communication failures halt production lines, the ABB SC520 SC520 Submodule Carrier (3BSE003816R1) provides a reliable backbone for industrial networks. This module integrates a local CPU to handle data exchange efficiently, reducing downtime and enhancing system responsiveness.
Product Overview
The ABB SC520 SC520 Submodule Carrier is a communication module designed for demanding automation environments. It includes a local CPU and supports MB300 and MB300E networks, making it a versatile choice for ABB-based systems. With a compact form factor (291 mm depth, 300 mm height, 30 mm width) and a weight of 0.742 kg, it fits easily into standard subracks.
Technical Specifications Breakdown
- Current Consumption: At 5 V, the module draws 1.5 A; at 24 V, it draws 0.006 A. This low 24 V consumption minimizes power supply load.
- Total Power Dissipation: Only 0.8 W, ensuring minimal heat generation and reliable operation in confined spaces.
- Carrier Position & Error Codes: The module reports specific errors: 01 (failed to initialize), 03 (board halted), and 04 (board missing or not accessible). These diagnostics simplify troubleshooting.
Industry Applications
- Process Control: In chemical plants, the SC520 connects field devices to the control system via MB300, ensuring real-time data flow.
- Manufacturing Lines: For automotive assembly, the local CPU offloads communication tasks from the main controller, improving cycle times.
- Marine Systems: The coated marine variant (SC520M 3BSE016237R1) is available for harsh environments, though this standard unit suits most industrial settings.
Installation & Setup Guidance
Mount the SC520 in a compatible subrack, ensuring proper alignment with the backplane. Verify that the carrier position is correctly assigned to avoid initialization errors. Connect MB300 or MB300E cables per system wiring diagrams. After power-up, check for error codes 01, 03, or 04 to confirm successful startup.
Maintenance & Reliability
Routine inspection of the SC520 includes verifying that all connections are secure and that the module's LEDs indicate normal operation. The low power dissipation (0.8 W) reduces thermal stress, extending service life. For critical applications, monitor error codes periodically to catch issues early.
Compatibility & Integration
The SC520 is designed for ABB automation systems supporting MB300 and MB300E networks. It integrates seamlessly with ABB controllers and I/O modules. For coated marine environments, the SC520M variant is available. Always confirm compatibility with your existing system before ordering.
Selection Guide & Purchasing Advice
Before purchasing the ABB SC520 (3BSE003816R1), verify your system's voltage requirements (5 V and 24 V) and network type (MB300 or MB300E). Check that your subrack has an available slot and that the carrier position is correct. SpareTechPLC stocks this module and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
- Error 01 (Failed to Initialize): Check subrack power and backplane connections. Ensure the module is fully seated.
- Error 03 (Board Halted): Cycle power to the subrack. If persistent, replace the module.
- Error 04 (Board Missing or Not Accessible): Verify carrier position and that the module is correctly installed.
Frequently Asked Questions
Q: What networks does the ABB SC520 support?
A: The SC520 supports MB300 and MB300E networks, as stated in the product description.
Q: What are the current consumption values for the SC520?
A: At 5 V, it consumes 1.5 A; at 24 V, it consumes 0.006 A.
Q: How do I interpret error code 03 on the SC520?
A: Error 03 indicates the board has halted. Try cycling power; if the error persists, the module may need replacement.
Q: Is the SC520 suitable for marine environments?
A: The standard SC520 is not marine classified. For marine use, order the SC520M (3BSE016237R1) coated variant.
Q: What is the total power dissipation of the SC520?
A: The SC520 dissipates 0.8 W total.
