Product Introduction

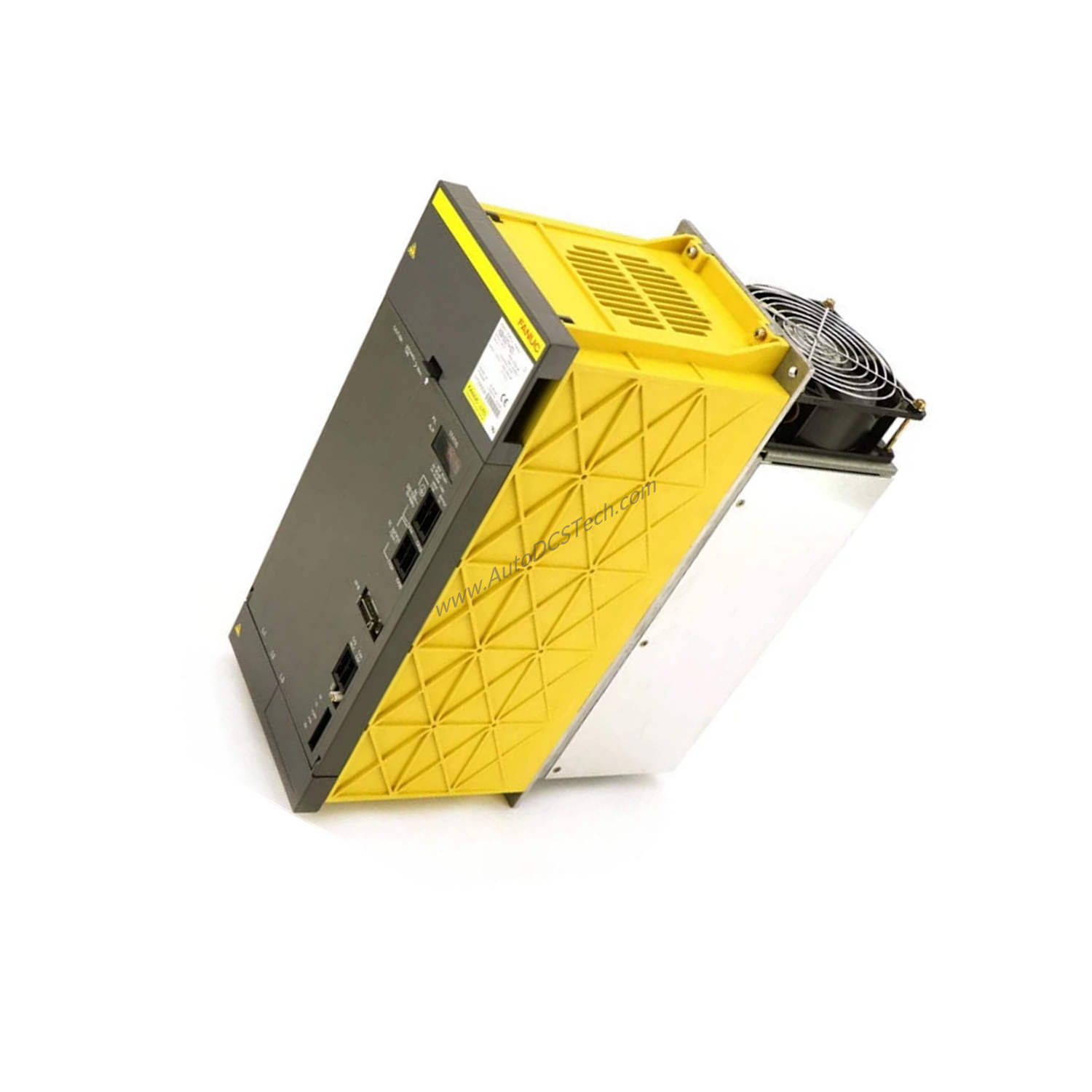

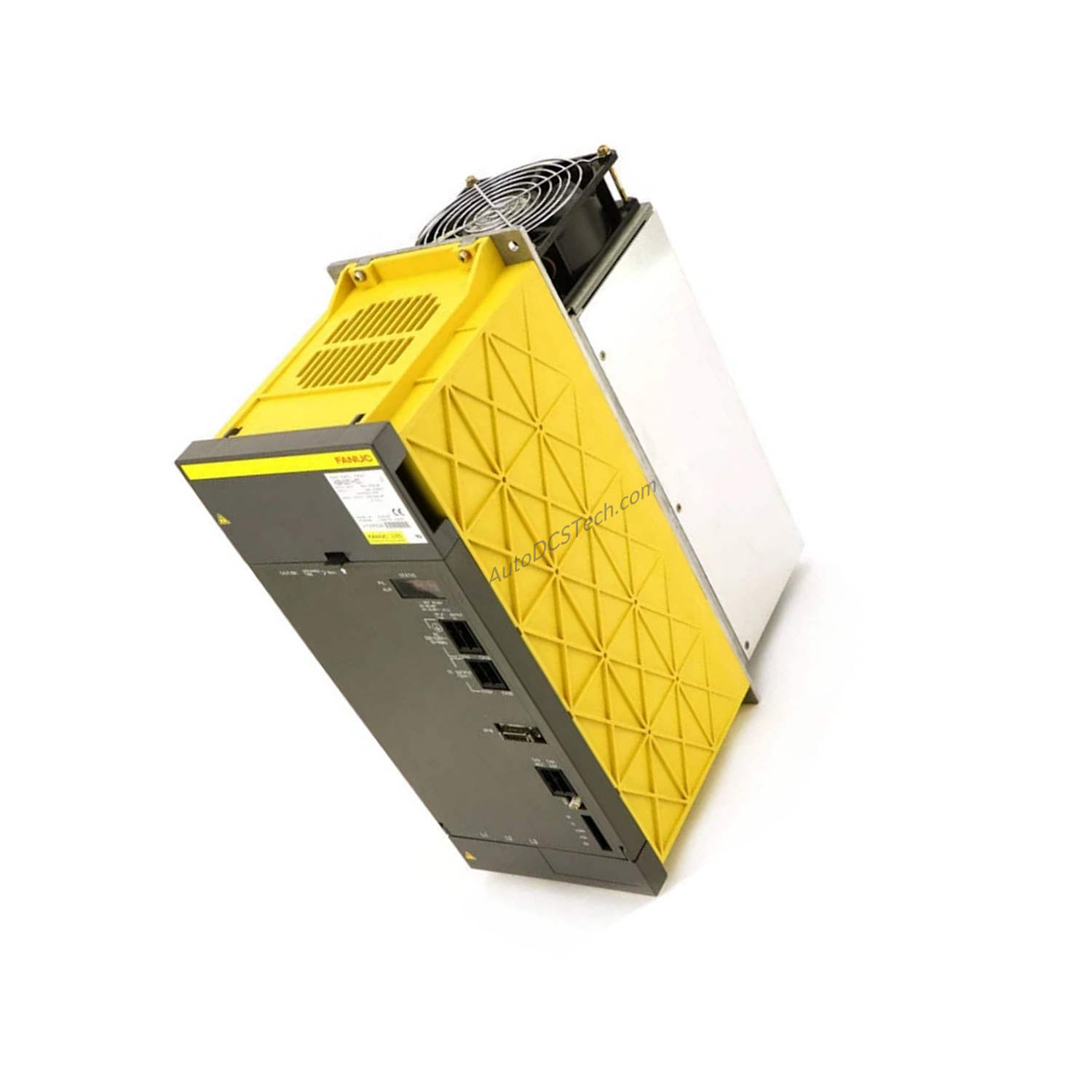

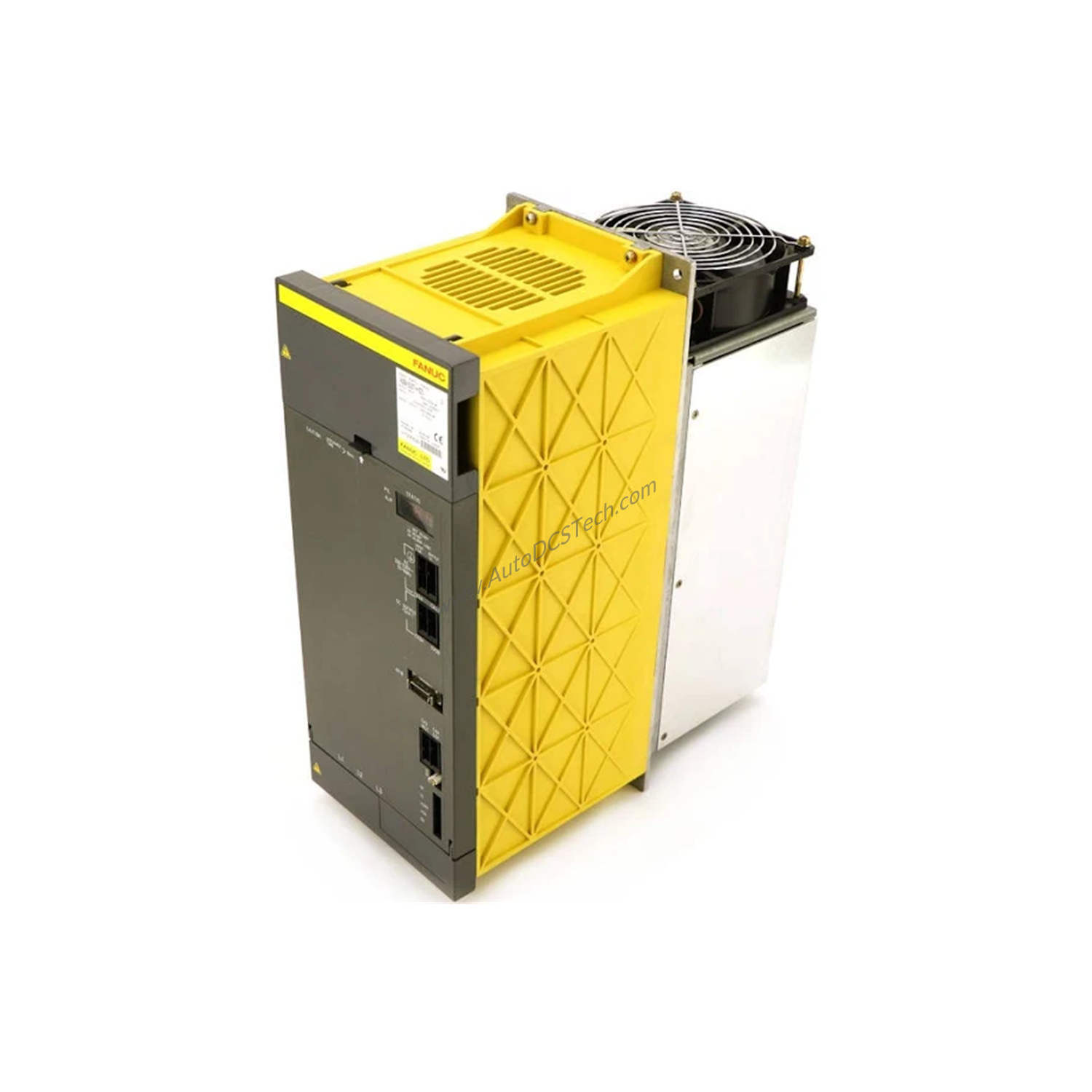

When CNC systems experience power instability, the FANUC A06B-6087-H145 Power Supply Module delivers consistent, reliable performance. This module is part of the A06B product line and is designed specifically for CNC applications. It converts incoming AC power into stable DC power for the system's control components, ensuring smooth operation even under demanding industrial conditions.
Technical Specifications Breakdown
The FANUC A06B-6087-H145 operates with a 3-phase input voltage range of 200-240 VAC, making it suitable for standard industrial power supplies worldwide. It accepts both 50 Hz and 60 Hz frequencies, offering flexibility for different regional power grids. The module achieves an efficiency rating greater than 95%, reducing energy waste and heat generation. Its air-cooled design maintains reliable operation within an ambient temperature range of 0°C to 55°C. Built-in protection features include overload, overcurrent, and overvoltage protection, safeguarding both the module and connected equipment.
Industry Applications
In CNC machining centers, the A06B-6087-H145 provides stable power to servo drives and spindle controllers, preventing voltage sags that could cause tool positioning errors. For automated milling systems, its high efficiency minimizes thermal stress on surrounding components, extending overall system life. The module's vertical or wall-mounted mounting option saves valuable cabinet space in crowded control panels.
Installation & Setup Guidance
Mount the FANUC A06B-6087-H145 vertically on a flat, vibration-free surface using the provided mounting brackets. Ensure adequate clearance around the air intake and exhaust for proper cooling. Connect the 3-phase input power (200-240 VAC) to the designated terminals, observing correct phase rotation. Verify that the input frequency matches the local supply (50 or 60 Hz). After wiring, power on the system and check the output voltage before connecting loads.
Maintenance & Reliability
Periodically inspect the air filters and cooling fans for dust accumulation, as blocked airflow can reduce efficiency and trigger thermal shutdown. Verify that all input and output connections remain tight and free of corrosion. The module's built-in protection features—overload, overcurrent, and overvoltage—help prevent damage from common electrical faults, reducing unplanned downtime. Regular inspection according to the manufacturer's guidelines ensures long-term reliability.
Compatibility & Integration
The A06B-6087-H145 is designed for integration with FANUC CNC systems. It works seamlessly with FANUC servo drives and spindle amplifiers that require a stable DC bus. The module's 3-phase input and high efficiency make it a direct replacement for earlier FANUC power supply models in compatible systems. Always verify the specific system requirements before installation.
Selection Guide & Purchasing Advice
Before purchasing the FANUC A06B-6087-H145, confirm that your CNC system requires a 3-phase 200-240 VAC input power supply. Check the physical dimensions and weight (45.00 lbs / 20.41 kg) to ensure it fits your cabinet layout. SpareTechPLC stocks this module and can provide current availability and lifecycle status. Contact us for assistance with compatibility and ordering.
Frequently Asked Questions
Q1: What is the input voltage range for the A06B-6087-H145?
A: The module accepts 200-240 VAC, 3-phase input.
Q2: What cooling method does this power supply use?
A: It uses air cooling for thermal management.
Q3: What protection features are included?
A: Overload, overcurrent, and overvoltage protection are built in.
Q4: Can this module operate at 50 Hz?
A: Yes, it supports both 50 Hz and 60 Hz frequencies.
Q5: What is the operating temperature range?
A: The module operates from 0°C to 55°C.
