The Evolution of Precision Motion Control
Industrial automation has evolved from simple relay logic to sophisticated servo-driven systems that demand precise torque, speed, and position control. The FANUC A06B-6140-H030 servo amplifier module represents a key component in this evolution, engineered to handle high-power motor control with reliability and efficiency. Whether you are upgrading a legacy system or building a new production line, this module delivers the robust performance required for today's competitive manufacturing environment.
Product Overview

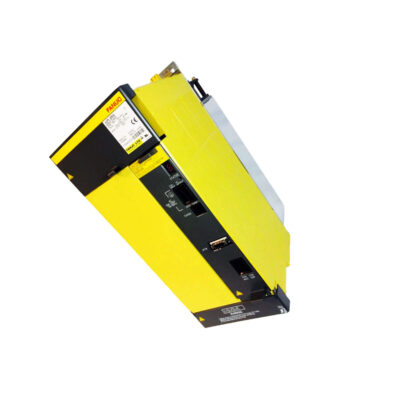

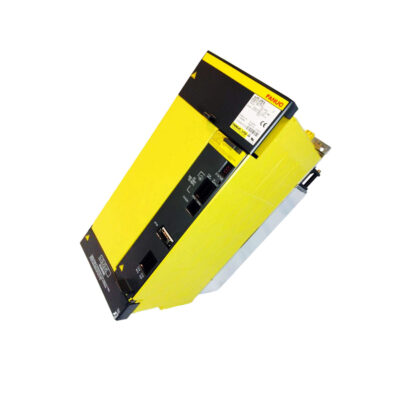

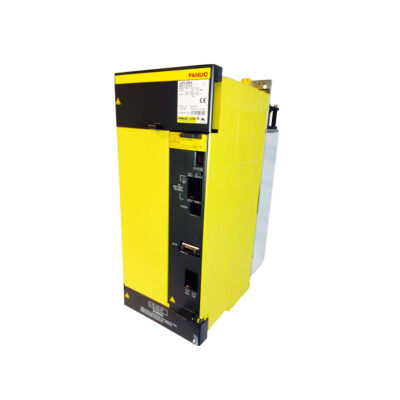

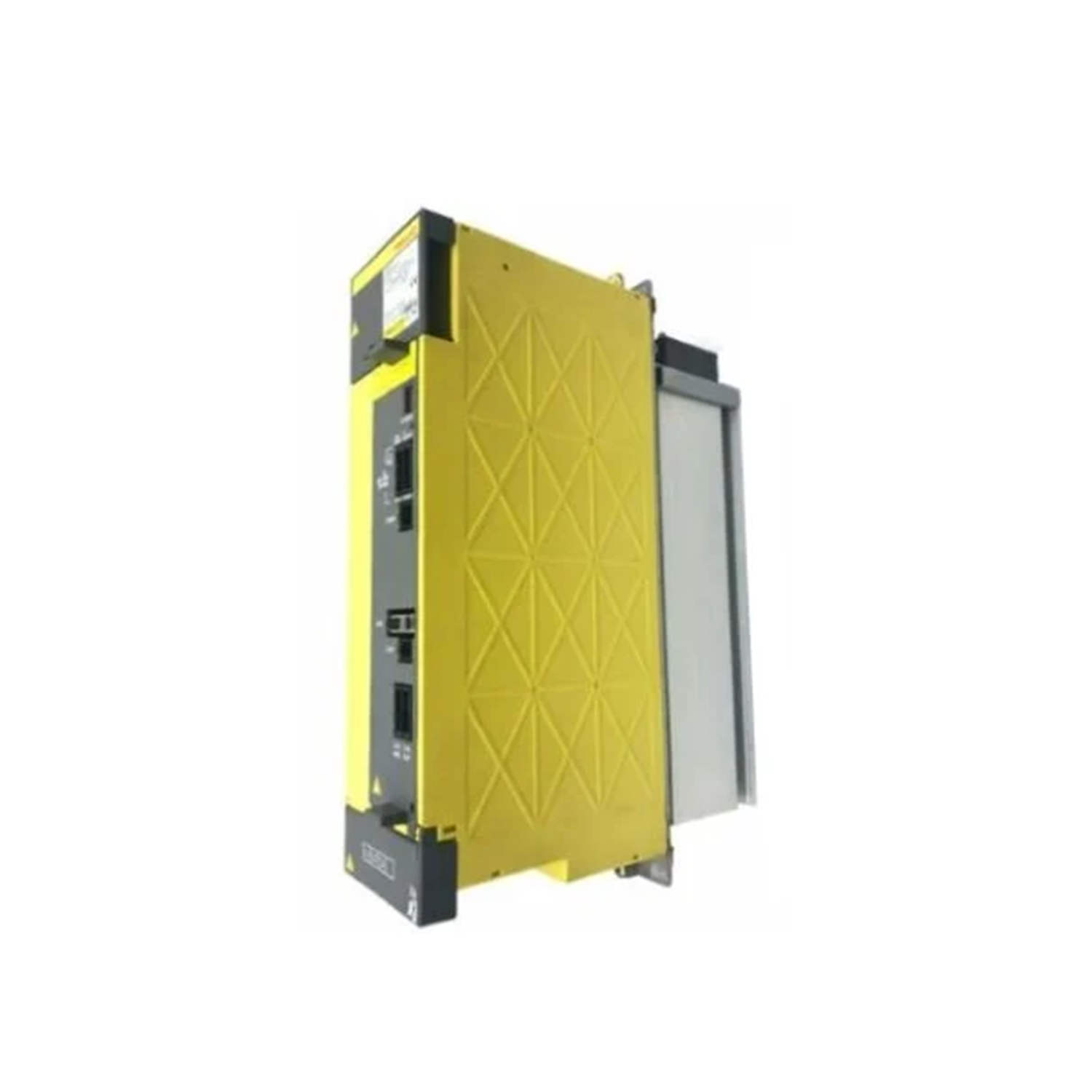

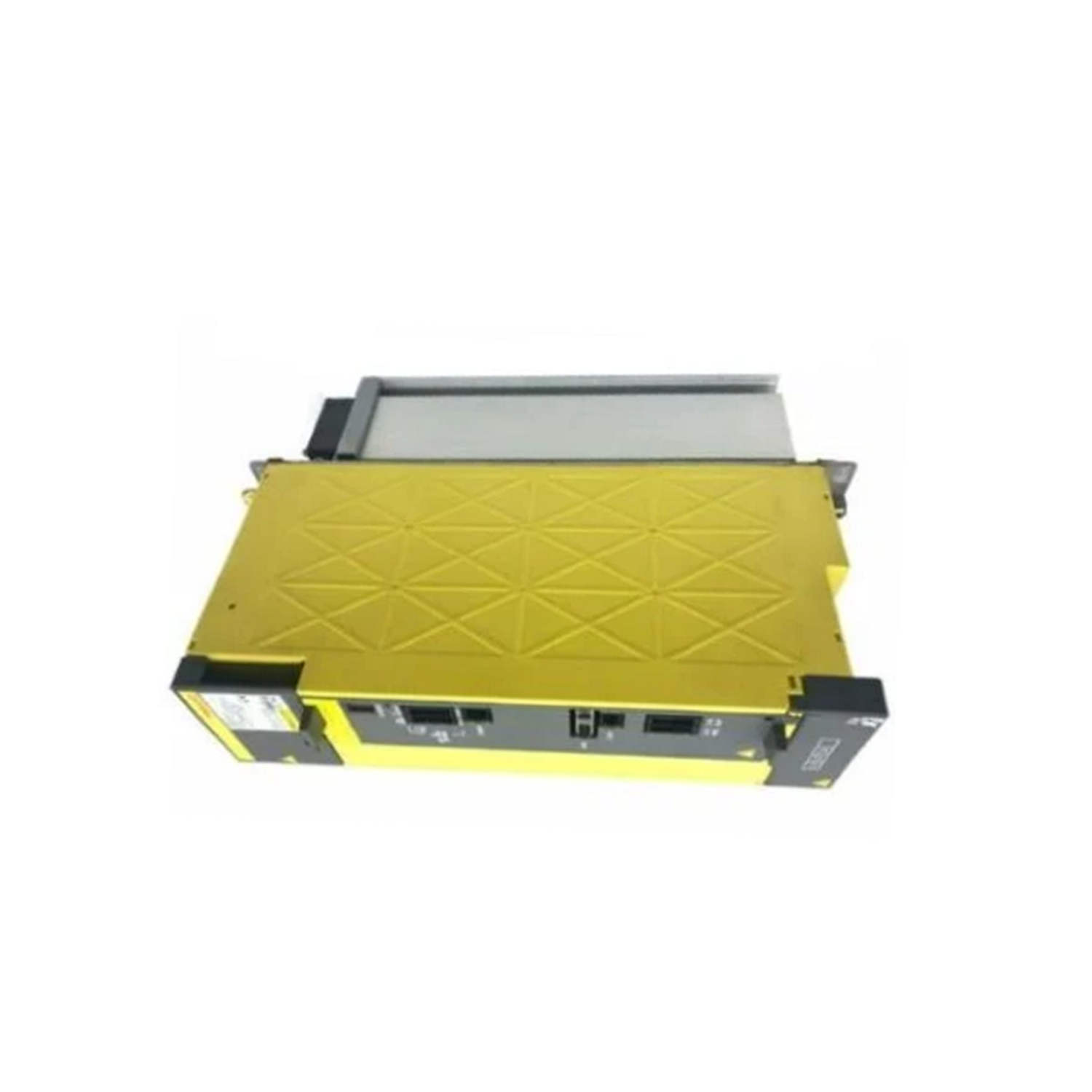

The FANUC A06B-6140-H030 is a dedicated servo amplifier module from the A06B product line. It is designed to drive servo motors in applications requiring precise motion control. The module accepts a rated input voltage of 200 to 240 VAC and a main input current of 127 A in a 3-phase configuration, making it suitable for heavy industrial loads. With a rated output voltage range of 283 to 339V and a rated output current of 35 kW, it provides ample power for demanding automation tasks.
Technical Specifications Breakdown
Key parameters for the A06B-6140-H030 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-6140-H030 |
| Rated Input Voltage | 200 to 240 VAC |
| Main Input Current | 127 A |
| Input Frequency | 50/60 Hz |
| Voltage Phase | 3-phase |
| Rated Output Voltage Range | 283 to 339V |
| Rated Output Current | 35 kW |
| Voltage Class | 200V |
| Weight | 25.00 lbs (11.34 kg) |
| Height | 38 cm |
| Width | 15 cm |
| Length | 27.2 cm |
Industry Applications
This servo amplifier module excels in applications requiring high torque and precise speed regulation. In CNC machining centers, it drives spindle and axis motors to achieve tight tolerances. In robotic assembly lines, it provides the dynamic response needed for rapid pick-and-place operations. Its 35 kW output capacity supports heavy-duty material handling systems, reducing cycle times and improving throughput.
Installation & Setup Guidance
Mount the module securely in a clean, dry cabinet with adequate ventilation. Ensure the input power supply matches the rated input voltage of 200 to 240 VAC and is configured for 3-phase operation. Use appropriately sized conductors for the 127 A main input current. Verify that the output connections to the servo motor are properly shielded to minimize electromagnetic interference. Follow FANUC's wiring diagrams and torque specifications for terminal connections.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on heat sinks and cooling fans. Keep the ambient temperature within the recommended range (not specified in data — consult manual). Check all power connections for tightness annually. The module's robust design supports long service life in continuous operation environments.
Compatibility & Integration
This servo amplifier is part of the FANUC A06B product line and is designed to work with compatible FANUC servo motors and controllers. For system integration, confirm that the motor's voltage and current requirements fall within the module's rated output voltage range (283 to 339V) and rated output current (35 kW).
Selection Guide & Purchasing Advice
When selecting a servo amplifier, verify that the input voltage, phase, and current ratings match your facility's power supply. The FANUC A06B-6140-H030 is a reliable choice for new installations or as a replacement unit. SpareTechPLC stocks this module and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the module fails to power on, check the input voltage at the terminals to ensure it is within 200 to 240 VAC. If the motor does not move, verify that the main input current of 127 A is available and that the 3-phase supply is balanced. Overheating may indicate inadequate ventilation or excessive load — reduce duty cycle or improve airflow. Always consult the official FANUC manual for detailed fault codes.
