Product Overview

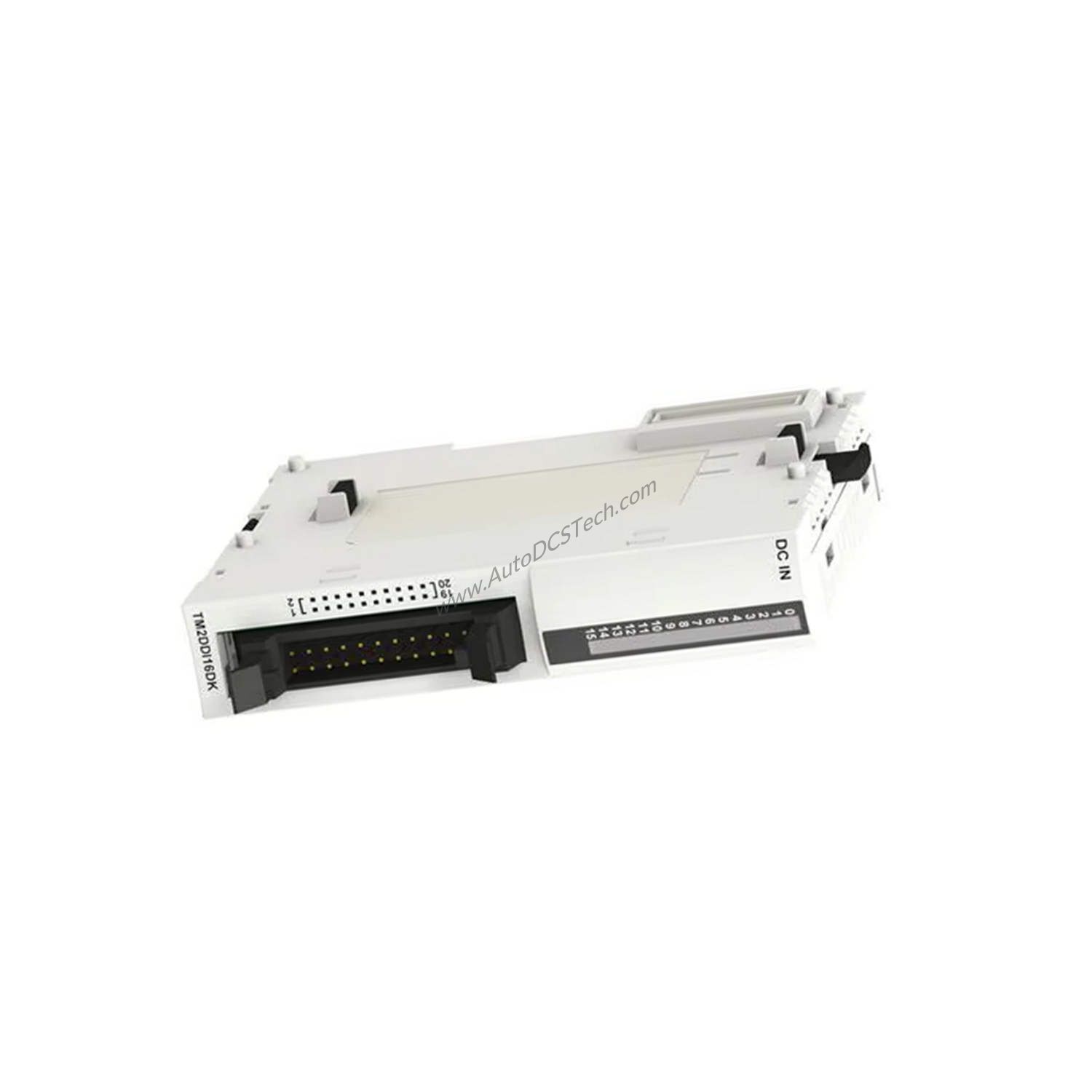

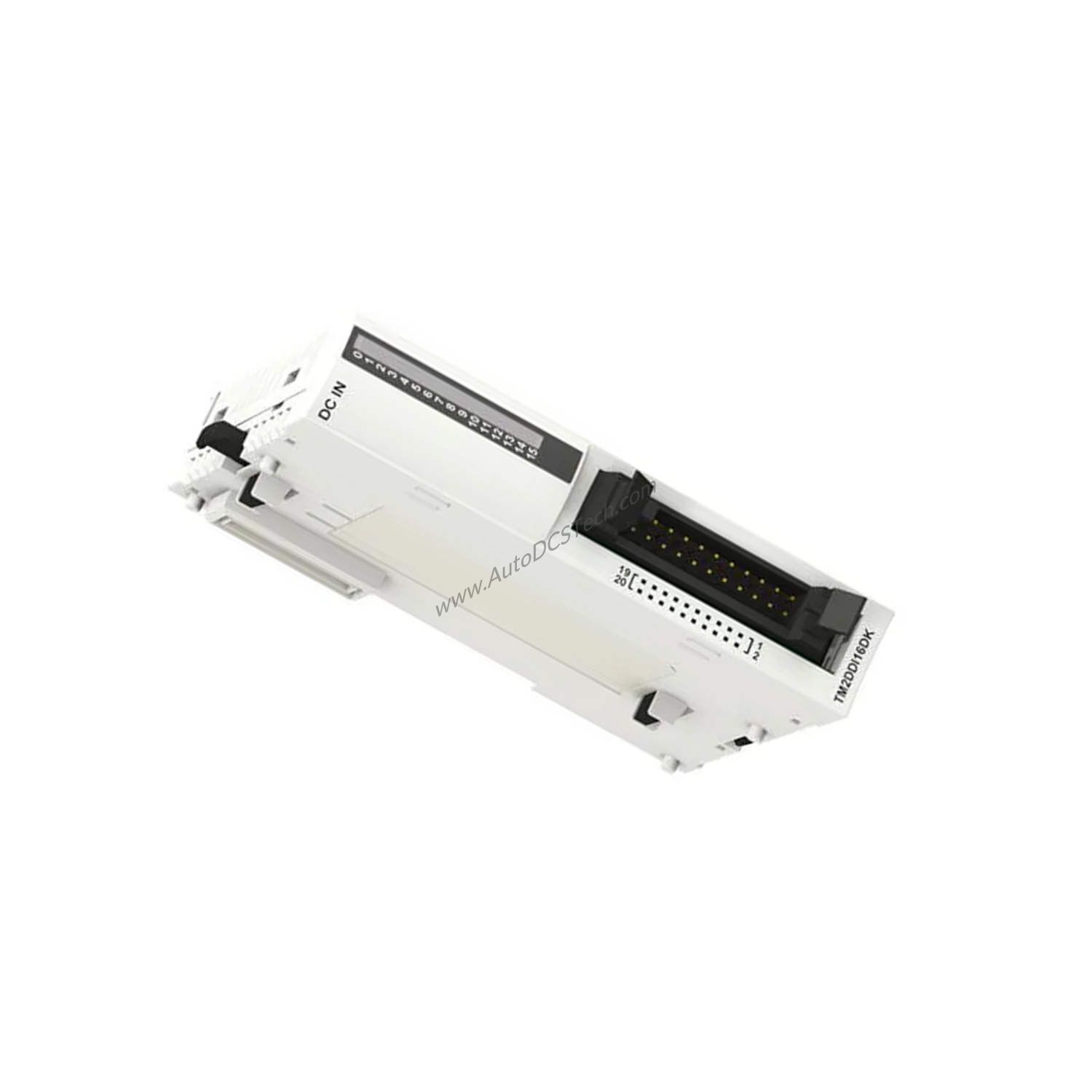

The Schneider Electric TM2DDI16DK is a discrete input module designed for the Modicon M238 logic controller series. This module provides 16 discrete inputs with 24 V DC voltage type, making it suitable for a wide range of industrial automation applications. As part of the Modicon M238 family, it integrates seamlessly into existing control systems, offering reliable signal acquisition for sensors, switches, and other digital devices.
Technical Specifications Breakdown
When evaluating the TM2DDI16DK for your automation needs, key specifications from the product data include:
- Discrete Input Number: 16 inputs, providing ample capacity for monitoring multiple field devices.
- Discrete Input Voltage: 24 V DC with limits of 20.4...28.8 V, ensuring stable operation within standard industrial power supplies.
- Discrete Input Logic: Sink or source, offering flexibility for different wiring configurations.
- Discrete Input Current: 5 mA per input, typical for standard 24 V DC digital inputs.
- Input Impedance: 4.4 kOhm, which helps define the electrical load on the sensor.
- Response Time: 4 ms at state 0 and 4 ms at state 1, suitable for most discrete monitoring tasks.
- Number of Common Point: 1 common point for all inputs, simplifying wiring.
- Isolation: No isolation between channels, but 500 V for 1 minute isolation between channels and internal logic.
- Current Consumption: 35 mA at 5 V DC at state 1 for all inputs, important for power budget calculations.
- Electrical Connection: 1 connector HE10, a standard ribbon cable interface.
- Mounting Support: 35 mm symmetrical DIN rail, enabling quick installation in control cabinets.
- Product Weight: 0.1 kg, lightweight and easy to handle.
- Dimensions: Depth 81.3 mm, Height 90 mm, Width 21.4 mm, fitting compact spaces.
These parameters allow engineers to verify compatibility with existing systems and ensure proper electrical integration.
Industry Applications
The TM2DDI16DK is ideal for discrete manufacturing, packaging, material handling, and machine control applications. For example, in a packaging line, it can monitor limit switches, presence sensors, and emergency stop buttons. The 16 inputs allow grouping multiple sensors without needing additional modules, reducing overall system cost. The sink or source logic supports both NPN and PNP sensors, simplifying sensor selection.
Installation & Setup Guidance
Mount the TM2DDI16DK on a 35 mm symmetrical DIN rail within an enclosure. Use the HE10 connector to wire field devices, ensuring proper polarity for 24 V DC signals. Configure the input logic (sink or source) according to your sensor type. The module communicates with the Modicon M238 controller via the backplane bus; no additional wiring is needed for data transfer. Verify that the power supply provides 24 V DC within the 20.4...28.8 V limits.
Maintenance & Reliability
Regularly inspect the module for dust accumulation and ensure the DIN rail mounting remains secure. The solid-state design has no moving parts, reducing wear. Environmental conditions should stay within the unspecified operating range; avoid excessive humidity or vibration. Periodic testing of input signals can help detect early failures. The 4 ms response time is consistent for both on and off states, providing predictable behavior.
Compatibility & Integration
The TM2DDI16DK is compatible with Modicon M238 logic controllers and also works with Advantys OTB and Twido platforms. It integrates as a local I/O module, expanding the controller's digital input capacity. No special software configuration is required beyond standard controller programming tools.
Selection Guide & Purchasing Advice
Before ordering, confirm that your controller supports the TM2DDI16DK. Verify the number of inputs needed and ensure the 24 V DC supply meets the voltage limits. The HE10 connector requires a compatible cable or termination. SpareTechPLC offers this module with fast shipping and expert support to help you select the right components for your automation project.
Frequently Asked Questions
Q: Can the TM2DDI16DK be used with 24 V AC signals?
A: No, this module is designed for 24 V DC only, as specified by the discrete input voltage type.
Q: What is the maximum cable length for the HE10 connector?
A: The product data does not specify a maximum cable length; consult your system design guidelines for HE10 connections.
Q: Does the module support both sinking and sourcing inputs simultaneously?
A: The module supports sink or source logic, but all inputs share the same configuration. You cannot mix both types on the same module.
Q: How do I wire the common point?
A: The module has 1 common point. Connect it to the appropriate supply return based on your logic configuration (sink or source).
Q: Is the TM2DDI16DK compatible with older Twido controllers?
A: Yes, the range compatibility includes Twido, but verify the specific controller model and firmware version.
