Product Overview

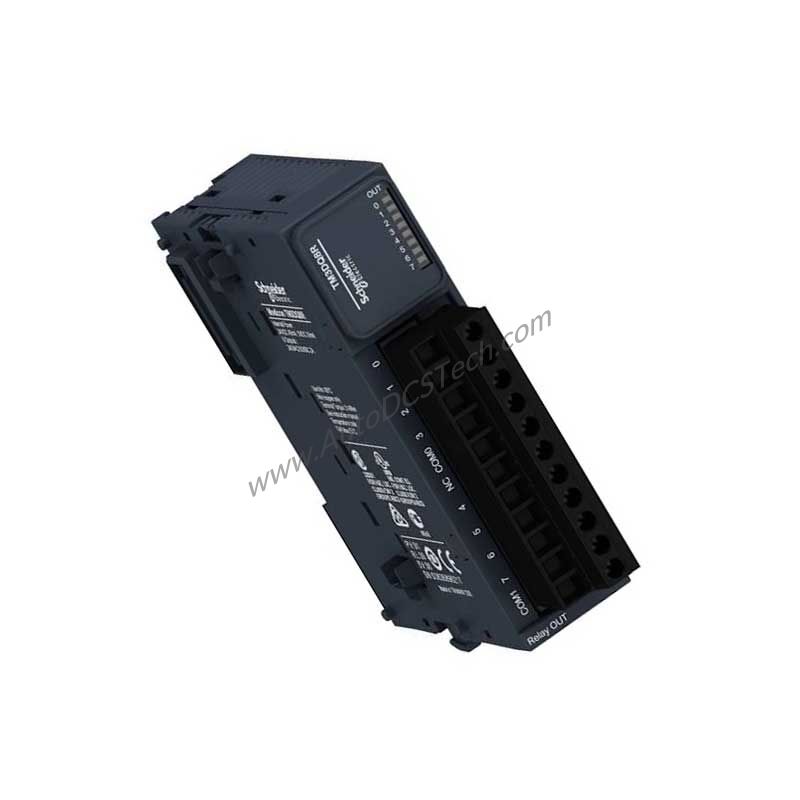

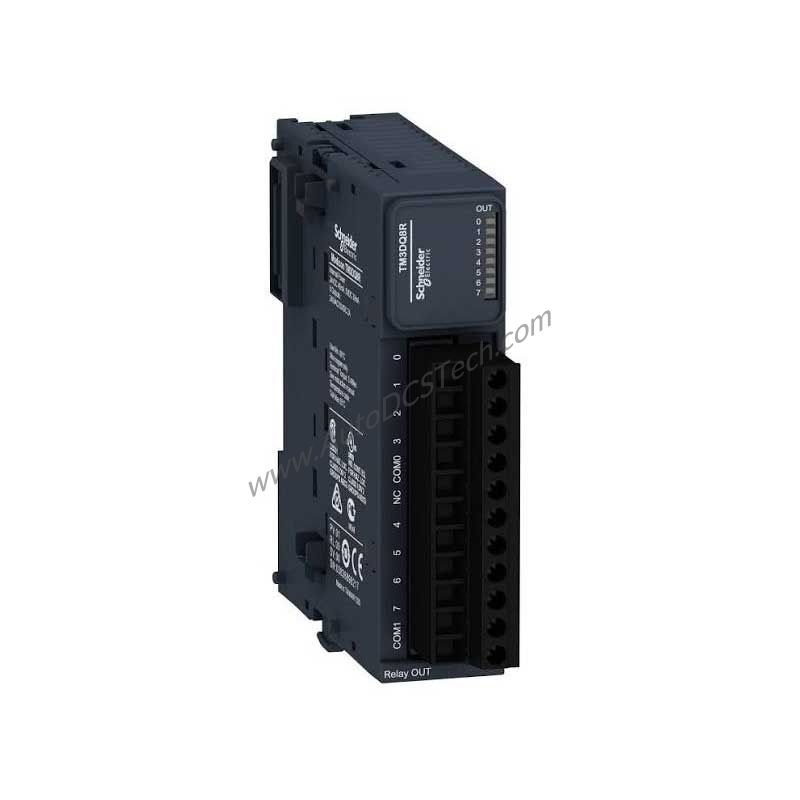

The Schneider TM3DQ8R is a discrete output module belonging to the Modicon TM3 range. It provides 8 normally open relay outputs, each capable of switching 24 V DC or 240 V AC loads up to 2000 mA. This module is designed for seamless integration with Modicon M221, M241, M251, and M262 controllers, making it a versatile choice for a wide variety of automation tasks.
Technical Specifications Breakdown
- Output Type and Count: The TM3DQ8R features 8 relay outputs, each normally open, offering both positive and negative logic flexibility. This allows the module to interface with different sensor and actuator configurations without additional hardware.
- Voltage and Current Handling: Each relay output supports 24 V DC or 240 V AC with a maximum current of 2000 mA. This dual-voltage capability simplifies inventory and ensures compatibility with both DC and AC loads.
- Response Time: With a turn-on time of 10 ms and turn-off time of 5 ms, the module provides predictable switching performance suitable for most industrial sequences.
- Insulation: The module offers robust isolation: 2300 V AC between output and internal logic, 750 V AC between outputs, and 1500 V AC between output groups, enhancing system safety.
- Mechanical Durability: Rated for 20,000,000 cycles, the relays are built for long-term reliability in high-cycling applications.
Industry Applications
- Packaging Machinery: In packaging lines, the TM3DQ8R can control solenoids, actuators, and indicator lights. The 8 relay outputs allow for simultaneous control of multiple devices, while the 2000 mA capacity handles typical solenoid loads.
- Material Handling: For conveyor systems, the module can manage motor starters, diverters, and sensors. The insulation ratings ensure safe operation in electrically noisy environments.
Installation & Setup Guidance
Mount the TM3DQ8R on a top hat DIN rail (TH35-15 or TH35-7.5 per IEC 60715) or on a panel using a fixing kit. The module connects via an 11-point removable screw terminal block with 5.08 mm pitch. For relay outputs, use unshielded cable runs shorter than 30 meters to maintain signal integrity. Ensure the ambient temperature remains between -10°C and 55°C for horizontal installation or -10°C to 35°C for vertical mounting.
Maintenance & Reliability
Periodically inspect the terminal connections for tightness and check for signs of relay wear, especially in high-cycle applications. The module's IP20 protection (with cover) guards against dust and accidental contact. Operate within the specified humidity range (10-95% non-condensing) to prevent corrosion. The TM3DQ8R's 20 million cycle mechanical durability reduces maintenance frequency, contributing to lower total cost of ownership.
Compatibility & Integration
The TM3DQ8R is designed for use with Modicon M221, M241, M251, and M262 controllers. It communicates via the backplane bus, drawing 5 mA at 5 V DC (off state) or 30 mA at 5 V DC (on state). The module supports positive or negative logic, allowing straightforward integration into existing control schemes.
Selection Guide & Purchasing Advice
Before ordering, verify that your controller is from the Modicon M221, M241, M251, or M262 series. The TM3DQ8R is a standard discrete output module with 8 relay outputs; if you need transistor outputs or a different channel count, consider other TM3 modules. SpareTechPLC offers this module with fast shipping and expert support to ensure you get the right part for your application.
