Product Overview

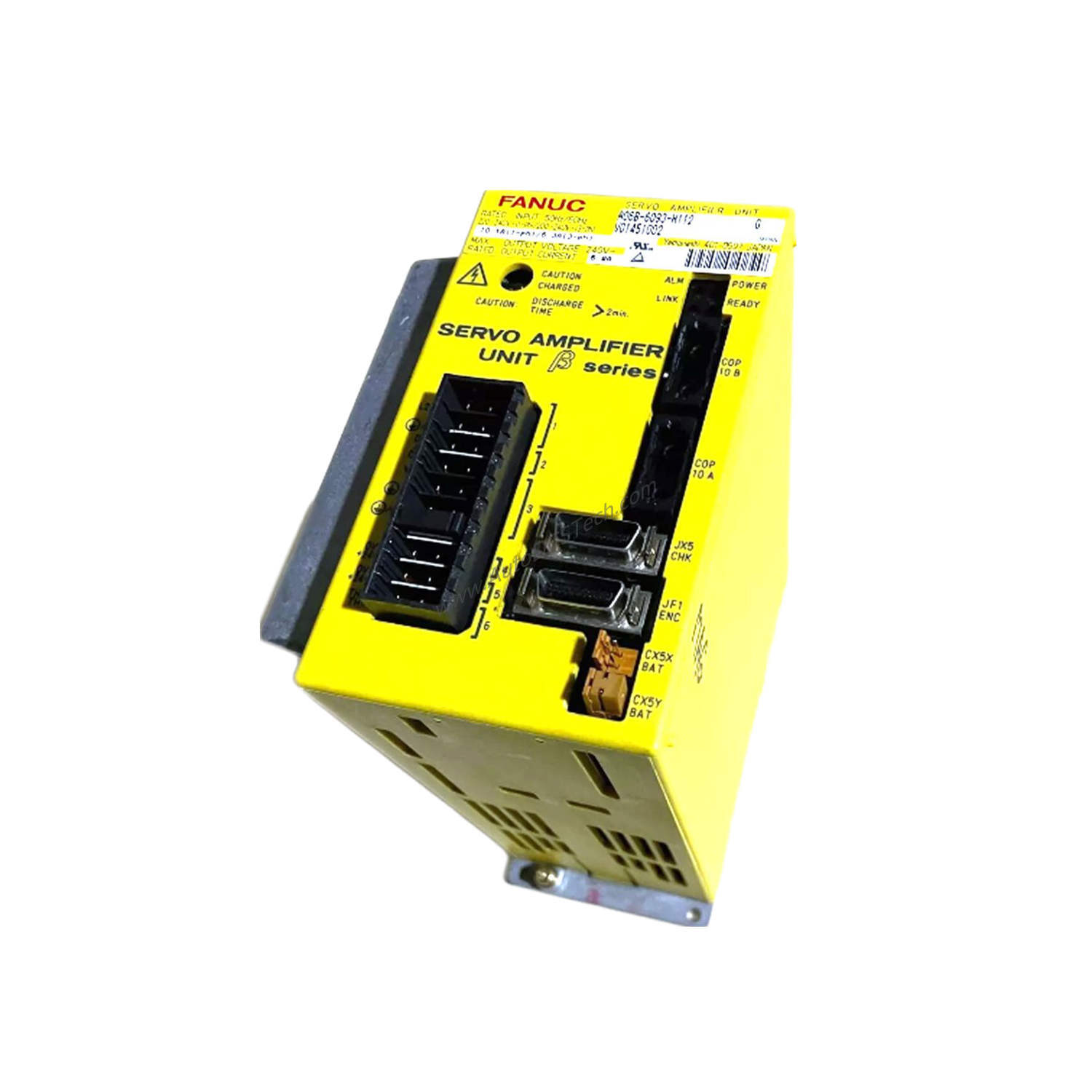

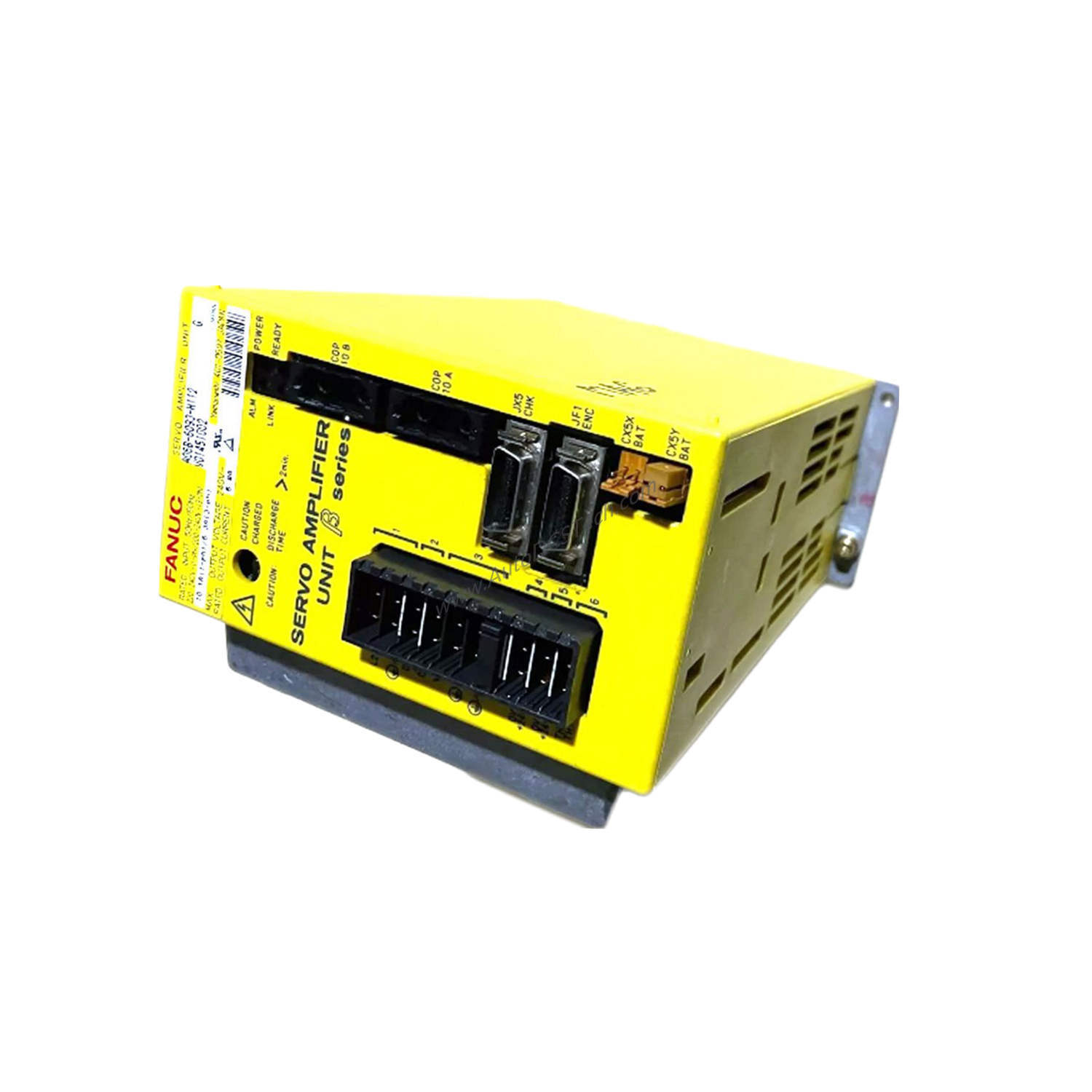

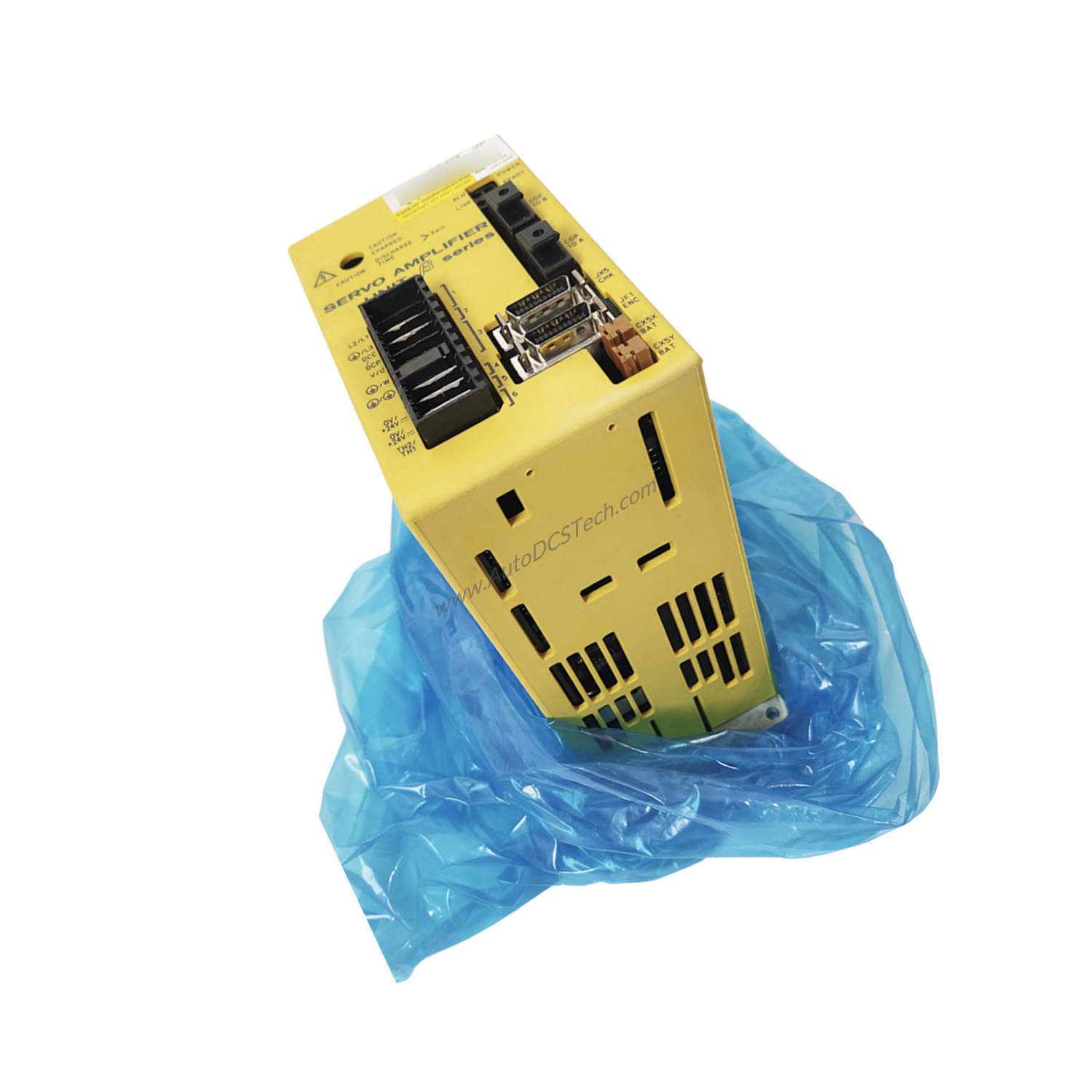

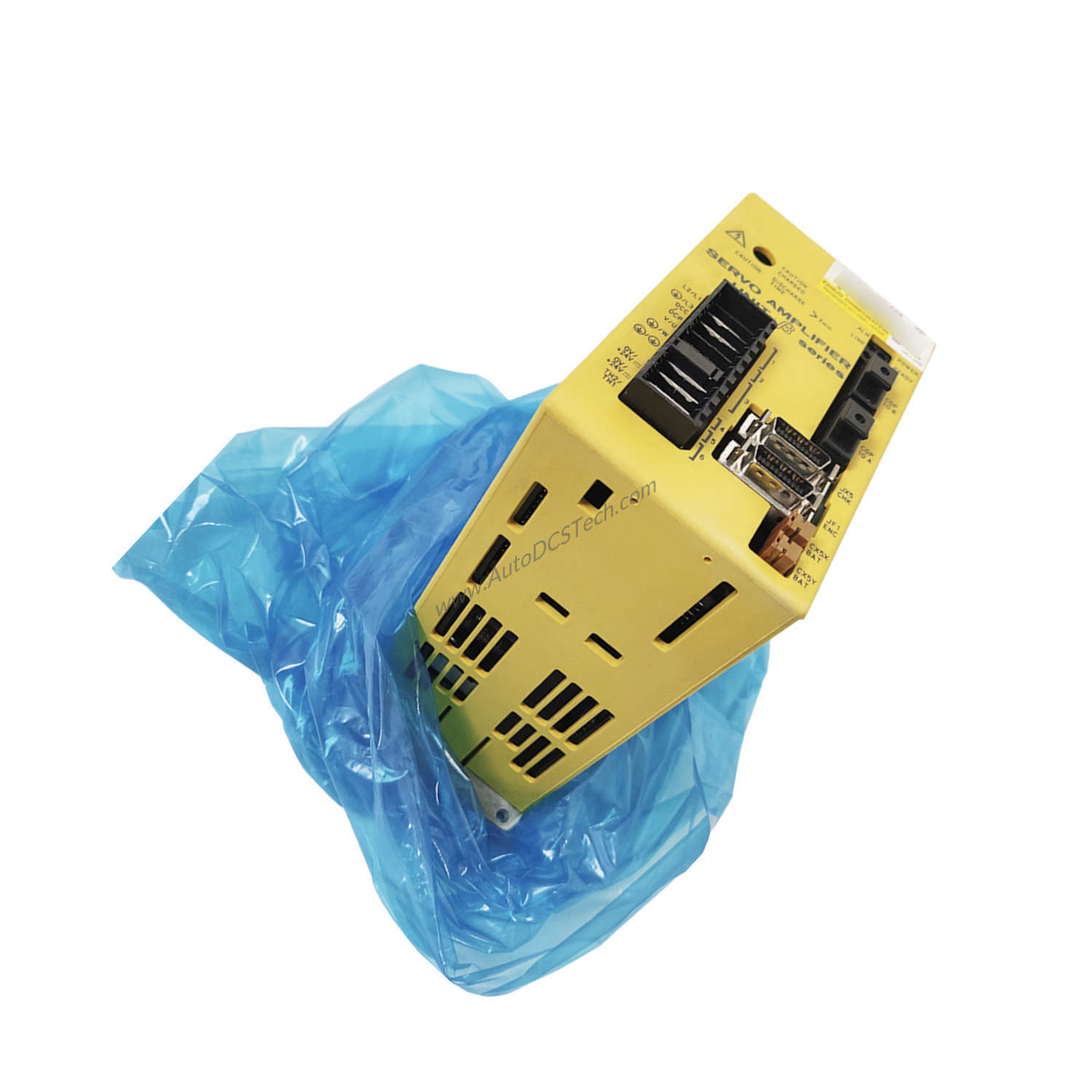

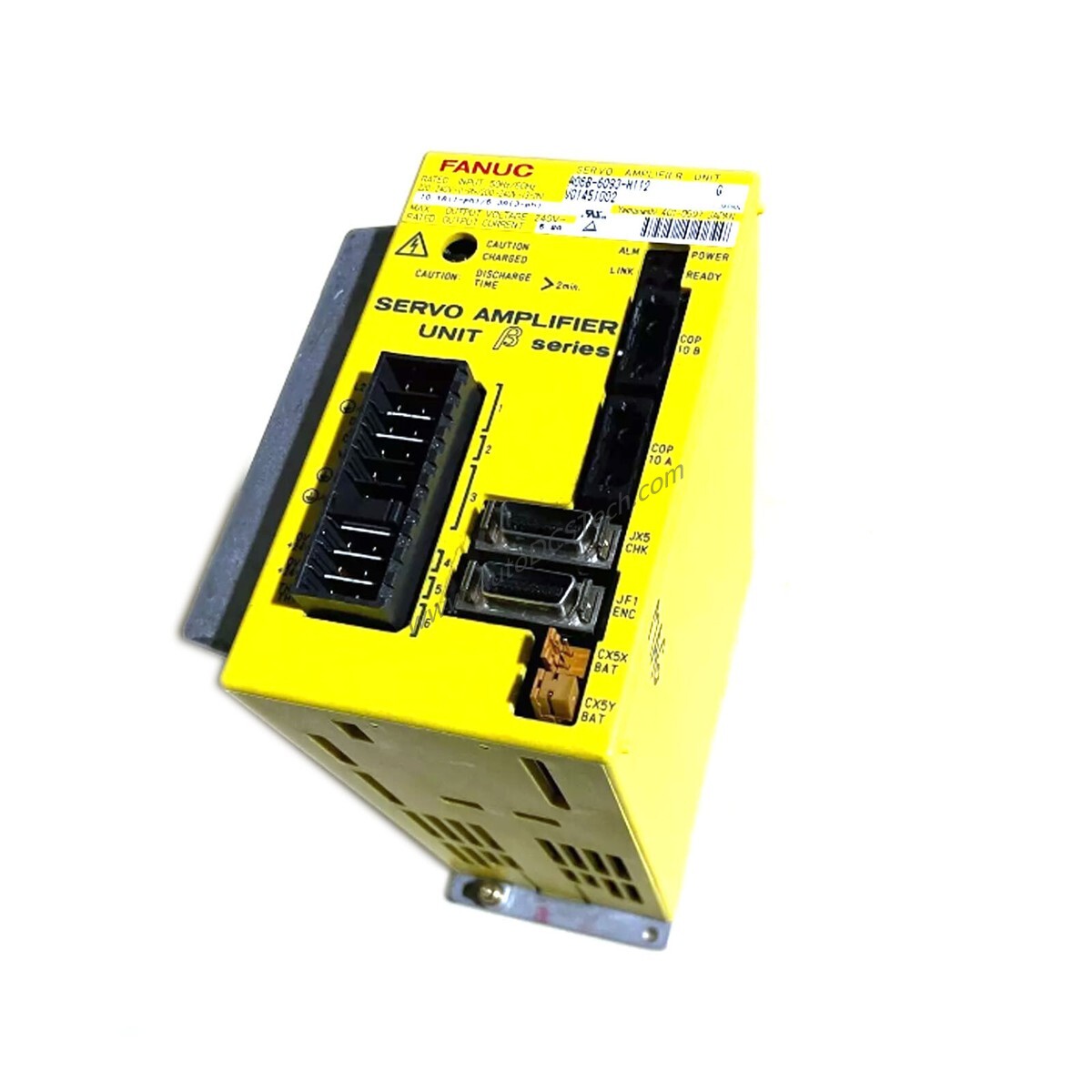

When CNC systems demand precise motion control and reliable operation, the FANUC A06B-6093-H102 Servo Amplifier (Servo Drive) delivers. This unit is part of the A06B product line and operates on input voltages between 220 and 240 VAC. It functions effectively at frequencies of 50 or 60 Hz, making it suitable for global applications. Weighing 7.00 lbs (3.18 kg), this servo amplifier maintains stable operations within an ambient temperature range of 0°C to 55°C. The design incorporates the BETA PWM interface and allows flexible installation options, as it can be mounted vertically or on walls as needed. Air cooling regulates temperature during processes.
Key Technical Specifications
- Input Voltage: 220-240 VAC
- Frequency: 50/60 Hz
- PWM Interface Type: BETA PWM Interface
- Operating Temperature: 0°C to 55°C
- Protection Features: Overload, Overcurrent Protection
- Servo Unit Type: BETA SERVO UNIT TYPE SVU-20
- Mounting: Vertical/Wall-mounted
- Cooling Method: Air Cooled
These specifications ensure the A06B-6093-H102 handles demanding CNC applications with precision and reliability. The overload and overcurrent protection features safeguard the unit and connected equipment during high-stress scenarios.
Industry Applications
The FANUC A06B-6093-H102 excels in CNC machining centers, lathes, and milling machines. In a typical CNC milling application, the servo amplifier controls axis movement with high accuracy, leveraging the BETA PWM interface for smooth torque delivery. The 220-240 VAC input range and 50/60 Hz frequency compatibility allow integration into global manufacturing facilities. Overload protection prevents downtime during heavy cuts, while overcurrent protection safeguards against electrical faults.
Installation & Setup Guidance
Mount the A06B-6093-H102 vertically or on a wall using the provided mounting points. Ensure adequate clearance for air cooling. Connect input power within the 220-240 VAC range and verify frequency matches local supply (50 or 60 Hz). Use shielded cables for the BETA PWM interface to minimize electrical noise. Verify ambient temperature stays between 0°C and 55°C. After installation, test the unit under no load before connecting to the servo motor.
Maintenance & Reliability
Periodically inspect the cooling fan and air intake for dust accumulation. Clean using low-pressure compressed air to maintain airflow. Check all electrical connections for tightness and signs of overheating. The overload and overcurrent protection features reduce stress on internal components, extending service life. Operating within the specified temperature range (0°C to 55°C) ensures reliable performance. Regular inspection helps prevent unexpected downtime.
Compatibility & Integration
The A06B-6093-H102 integrates with FANUC CNC systems using the BETA PWM interface. It pairs with the BETA SERVO UNIT TYPE SVU-20 for precise control. This servo amplifier works with various FANUC servo motors designed for CNC applications. Verify motor compatibility with the unit's output specifications before integration.
Selection Guide & Purchasing Advice
Before purchasing the A06B-6093-H102, confirm your system requires a servo amplifier with 220-240 VAC input and 50/60 Hz frequency. Ensure the BETA PWM interface matches your controller. Verify physical dimensions for mounting space. SpareTechPLC stocks this unit and offers fast shipping. Contact our team for availability and any compatibility questions.
Frequently Asked Questions
Q: What is the input voltage range for the A06B-6093-H102?
A: The input voltage range is 220-240 VAC.
Q: What cooling method does this servo amplifier use?
A: It uses air cooling for temperature regulation.
Q: What protection features are included?
A: Overload and overcurrent protection are built in.
Q: What is the operating temperature range?
A: 0°C to 55°C.
Q: Can this unit be mounted in different orientations?
A: Yes, it supports vertical and wall-mounted installation.
