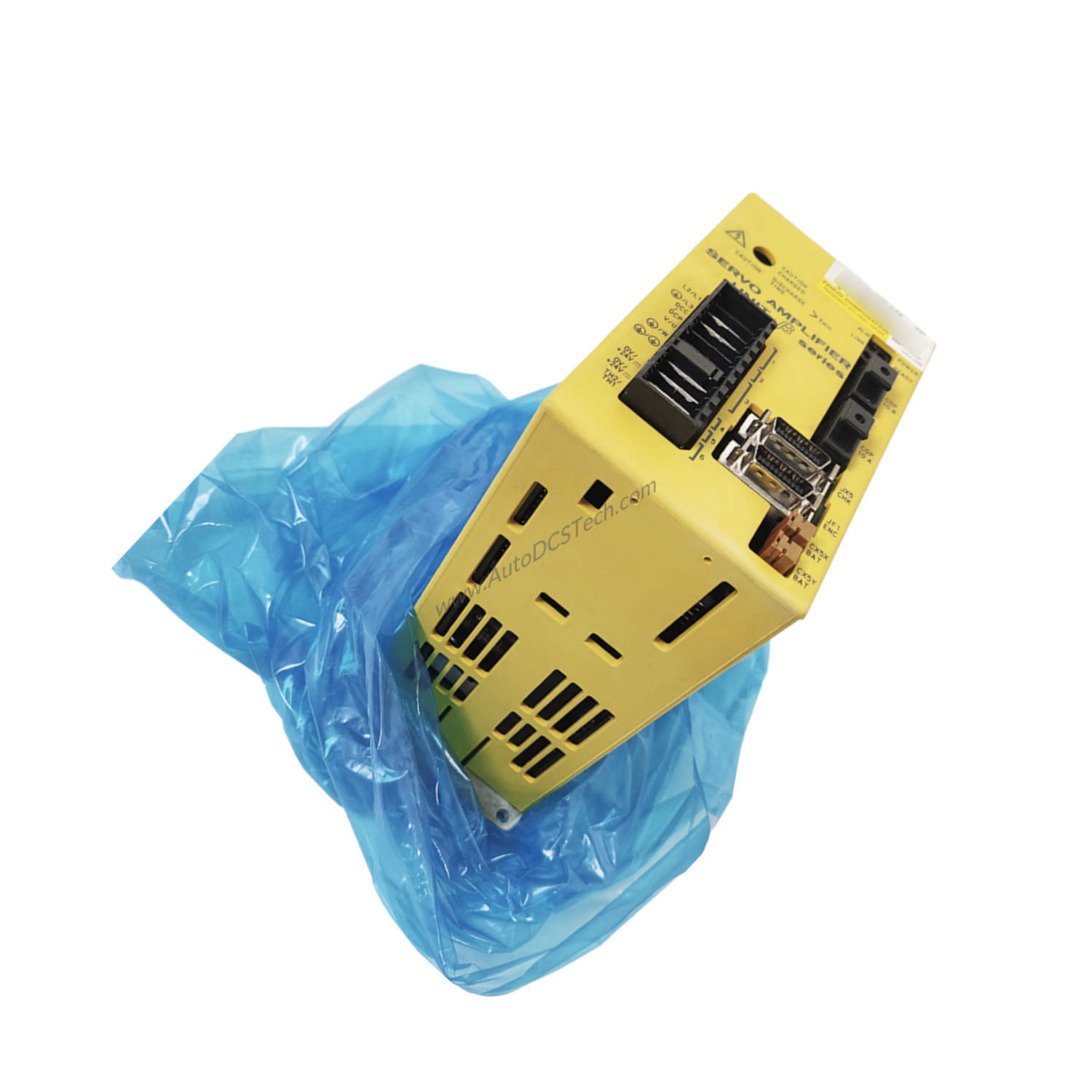

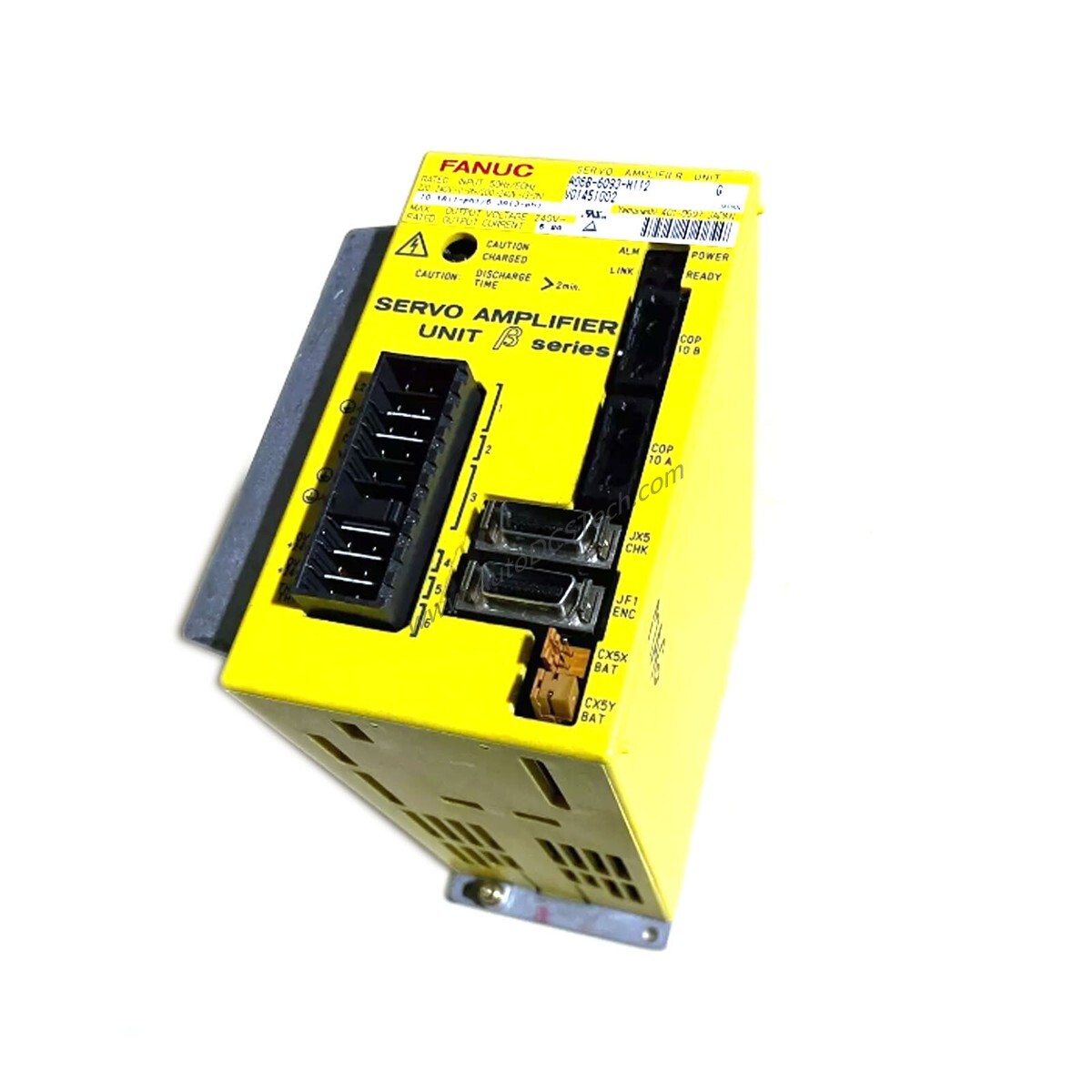

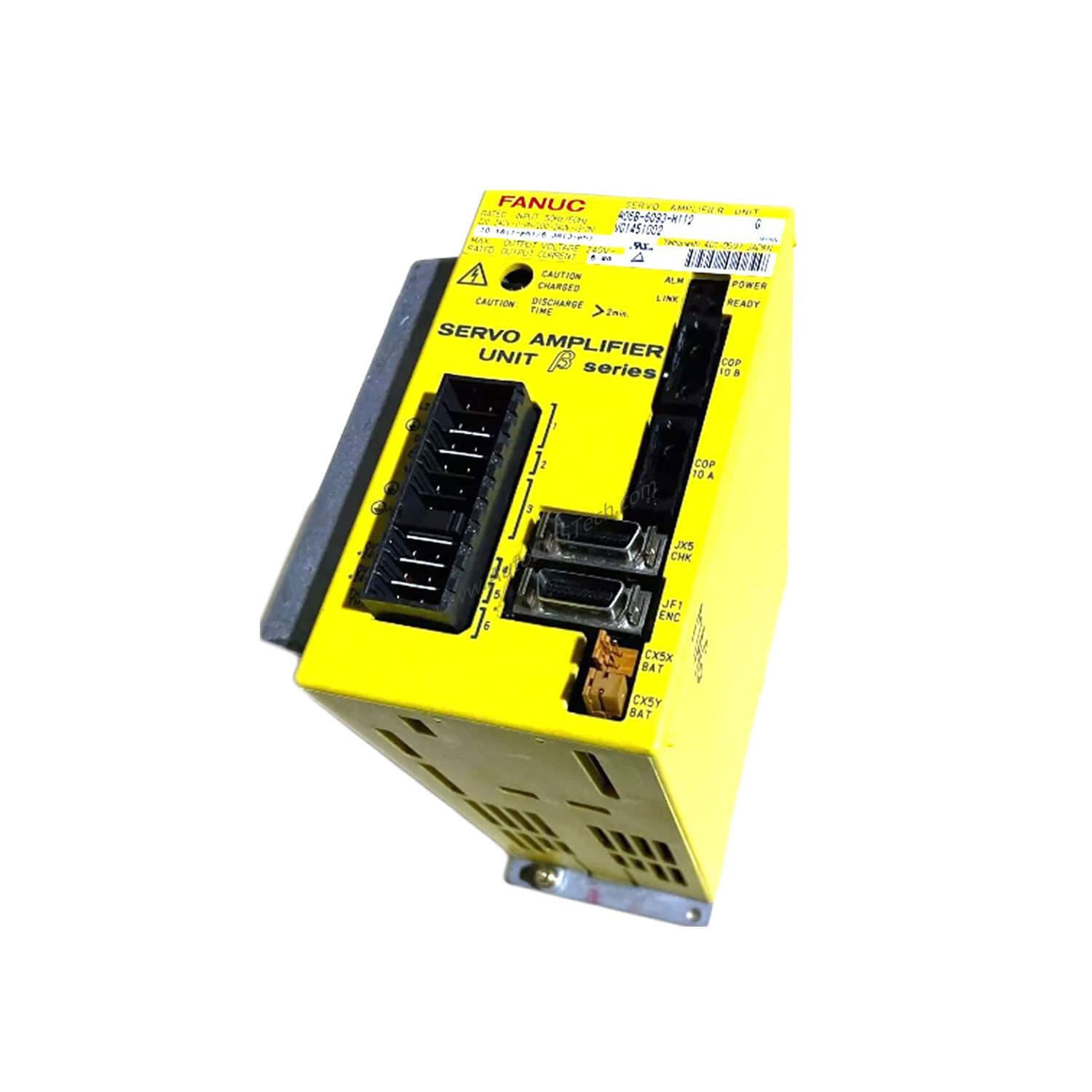

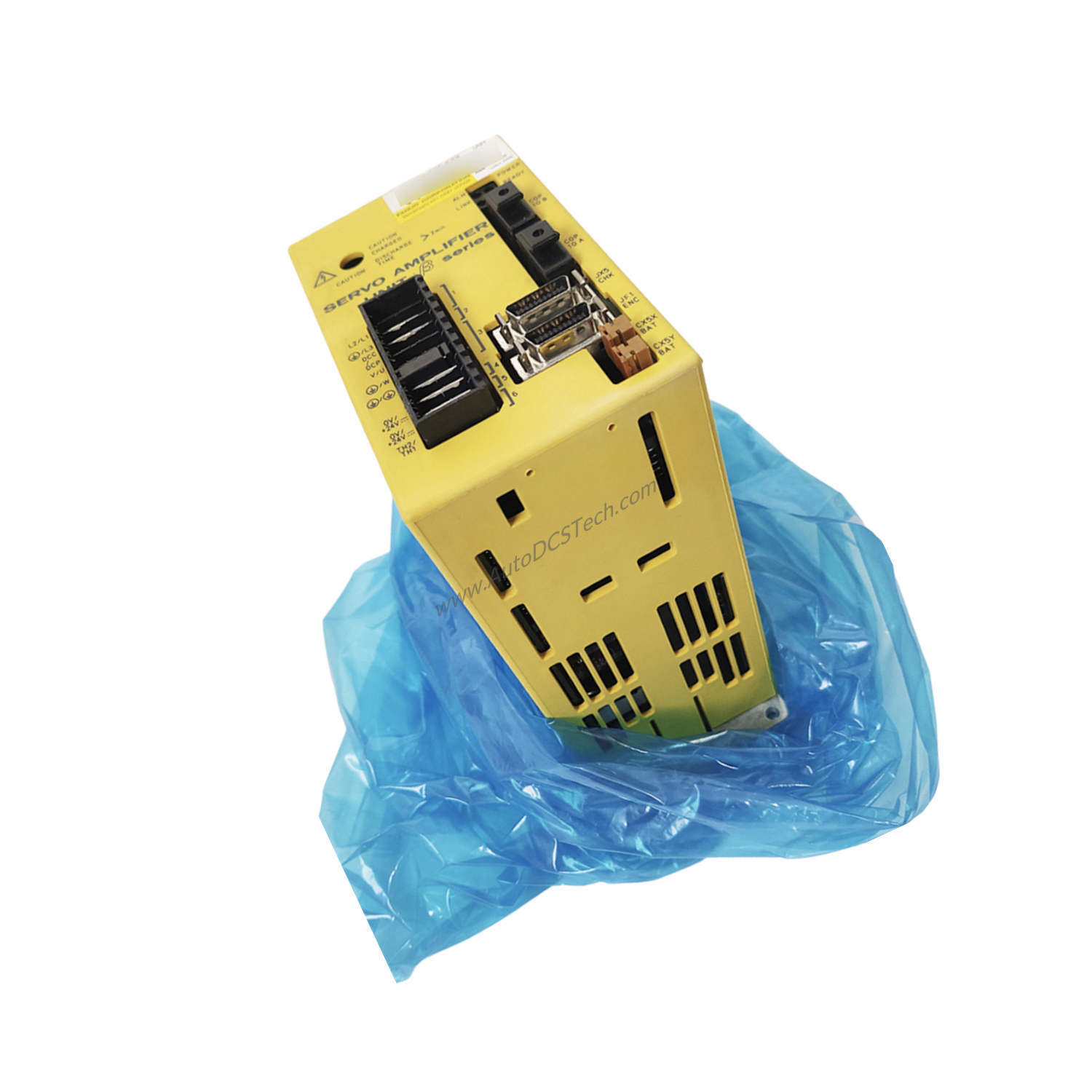

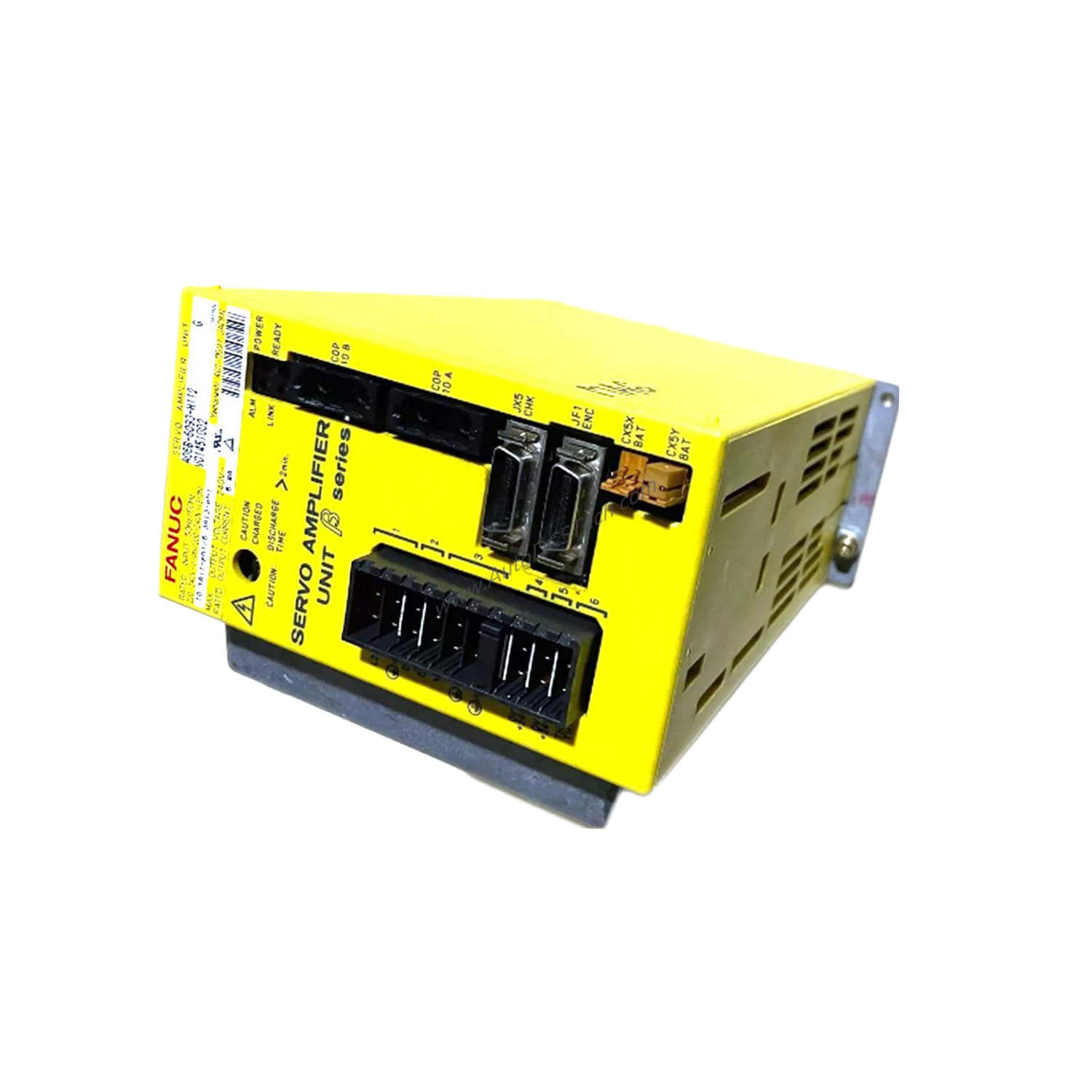

FANUC A06B-6093-H112 Servo Amplifier for CNC Systems

Technical Specifications Breakdown

The FANUC A06B-6093-H112 operates at standard line frequencies of 50/60 Hz, making it compatible with global power grids. Its operating temperature range of 0°C to 55°C ensures stable performance in typical industrial environments. The unit weighs 7.00 lbs (3.18 kg) and features an FSSB interface for high-speed communication with CNC controllers. As part of the BETA SERVO UNIT TYPE SVU-20 series, it provides robust overload and overcurrent protection to safeguard both the drive and connected machinery.

Industry Applications

For example, in a high-speed milling operation, the A06B-6093-H112 maintains consistent torque and speed regulation, reducing cycle times and improving surface finish. Its vertical or wall-mounting flexibility allows integration into compact machine cabinets, saving valuable floor space.

Installation & Setup Guidance

Mount the FANUC A06B-6093-H112 on a vertical surface or wall using the provided mounting holes. Ensure adequate airflow around the air-cooled unit to maintain proper thermal management. Connect the FSSB interface cable to the CNC controller following the manufacturer's wiring diagram. Verify that the input power matches the 50/60 Hz frequency requirement before energizing the system.

Maintenance & Reliability

Regularly inspect the cooling vents for dust accumulation and clean them with compressed air to prevent overheating. Check all electrical connections for tightness and signs of corrosion. The built-in overload and overcurrent protection features reduce the risk of damage from unexpected faults, extending the service life of the drive. Operating within the 0°C to 55°C temperature range helps maintain optimal reliability.

Compatibility & Integration

It is designed for use with the BETA SERVO UNIT TYPE SVU-20, ensuring compatibility with a wide range of FANUC servo motors and controllers.

Selection Guide & Purchasing Advice

Before ordering, verify that your CNC system supports the FSSB interface and that the power supply matches the 50/60 Hz frequency. Confirm the physical dimensions fit your cabinet layout. AutoDCSTech stocks the FANUC A06B-6093-H112 Servo Amplifier (Servo Drive) and can assist with availability and shipping details. Contact our team for current lifecycle status and replacement options if needed.
