Introduction

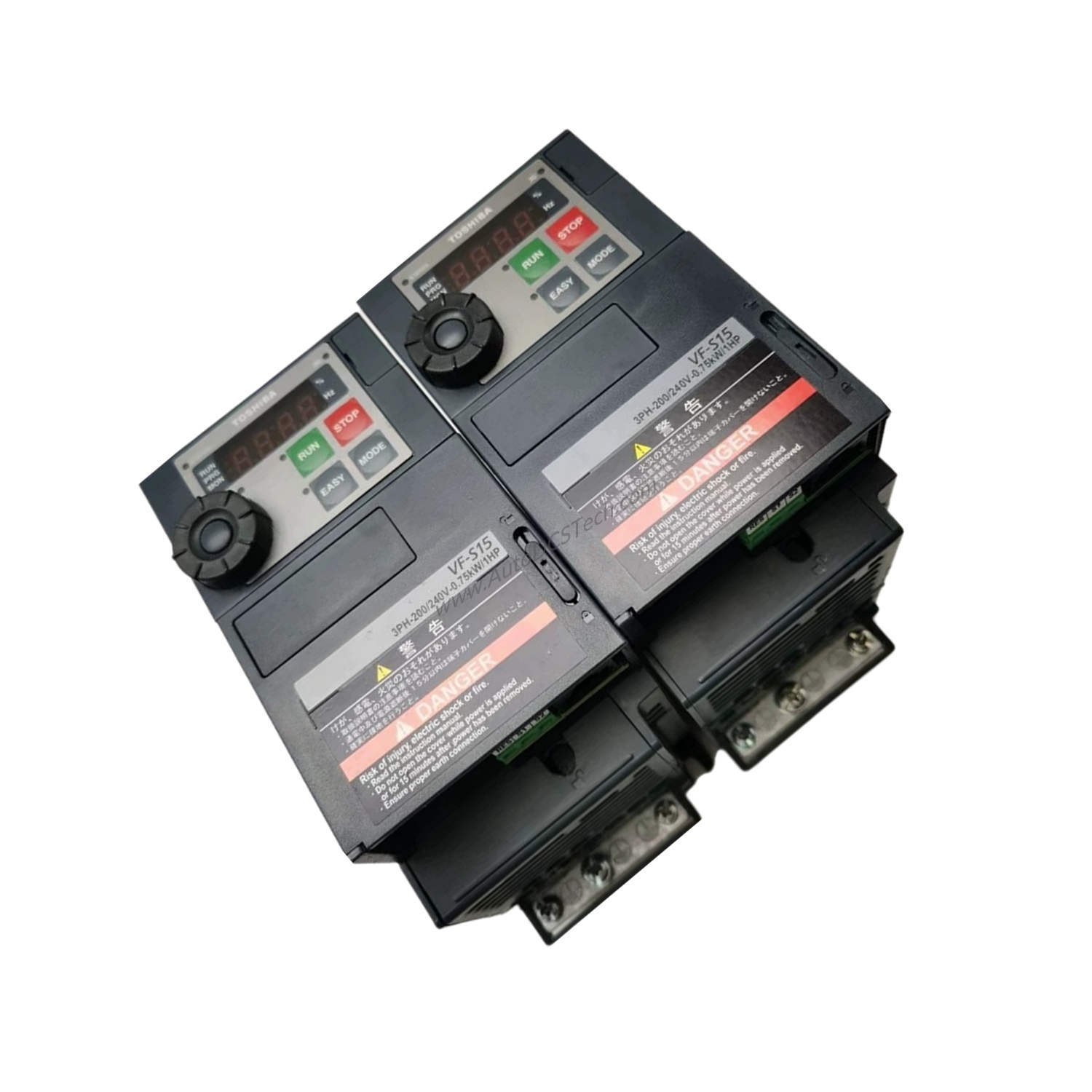

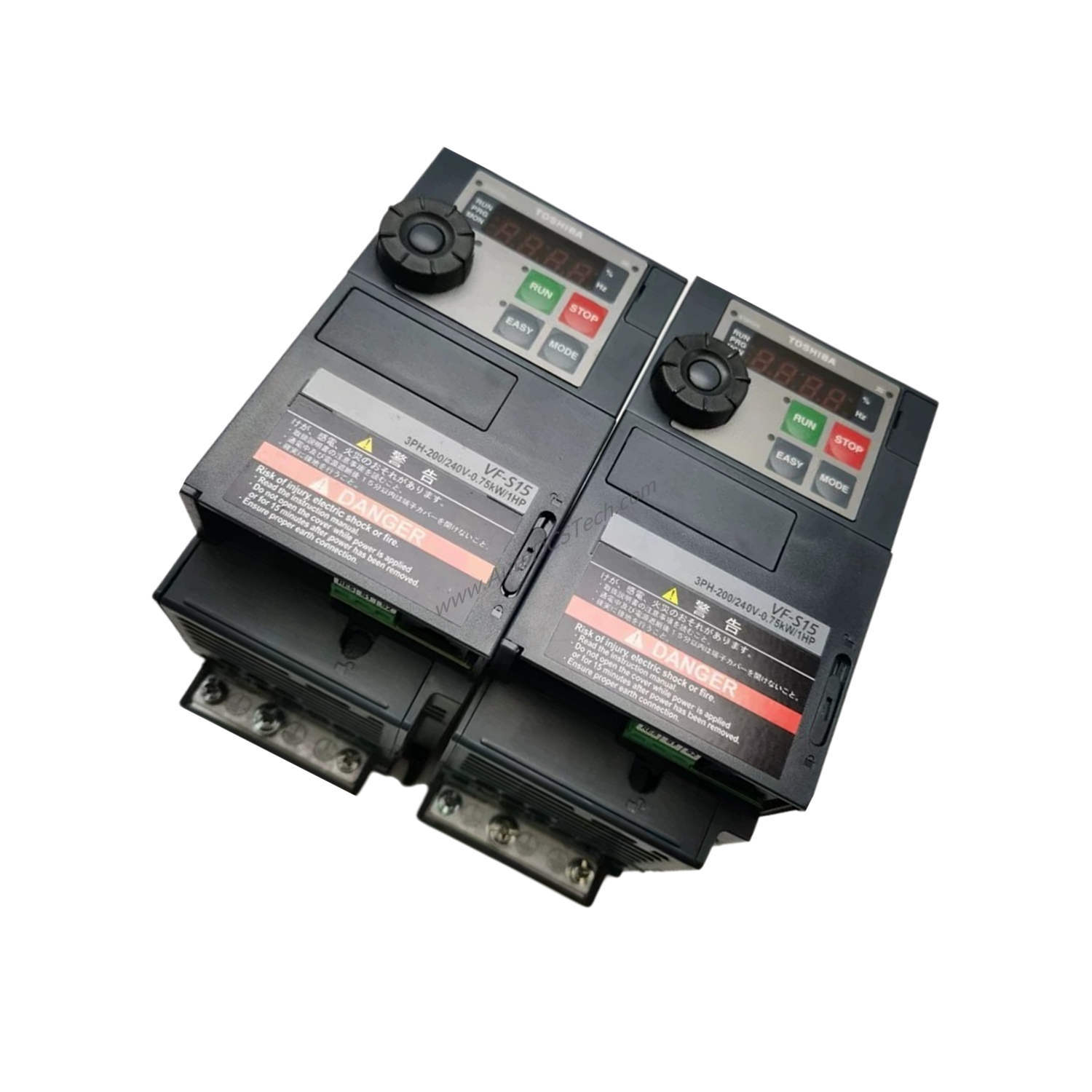

As industrial automation evolves, the demand for compact yet powerful variable frequency drives grows. The FANUC VFS15-4037PL1-W1 AC drive meets this need, offering a robust solution for precise motor control in space-constrained environments. Part of the Toshiba VF-S15 series, this micro-drive delivers reliable performance for applications requiring efficient speed regulation.
Technical Specifications Breakdown
The VFS15-4037PL1-W1 operates on a three-phase 460 VAC supply and is rated at 5 HP with 9.5 full load amps. It employs sinusoidal PWM control for smooth motor operation across a frequency range of 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz and a maximum adjustable frequency from 30 to 500 Hz. A built-in high-attenuation EMC filter reduces electrical noise, ensuring compliance with industrial standards.
Industry Applications
This drive excels in applications like conveyor systems, pumps, and fans where variable speed control improves efficiency. For example, in a manufacturing line, the VFS15-4037PL1-W1 adjusts motor speed to match production demands, reducing energy consumption and mechanical wear. Its compact design fits easily into control panels, making it ideal for retrofitting older fixed-speed systems.
Installation & Setup Guidance
When installing the VFS15-4037PL1-W1, ensure the input voltage matches the 460 VAC three-phase supply. Mount the drive in a clean, dry location with adequate ventilation. Use shielded cables for motor connections to minimize interference. The operation panel allows for straightforward parameter adjustments, including frequency settings and acceleration/deceleration times.
Maintenance & Reliability
Regular inspection of cooling fans and air filters prevents overheating. Check terminal connections for tightness annually. The built-in EMC filter reduces external noise, enhancing system reliability. Following these practices extends the drive's service life and minimizes unplanned downtime.
Selection Guide & Purchasing Advice
Before purchasing, verify that the VFS15-4037PL1-W1 matches your motor's voltage and horsepower requirements. Confirm the available supply voltage is 460 VAC three-phase. For replacement or new installations, SpareTechPLC offers this model with fast shipping and expert support to ensure you get the right component for your system.
Frequently Asked Questions
Q: What is the maximum frequency output of the VFS15-4037PL1-W1?
A: The drive can be set to a maximum frequency between 30 and 500 Hz, with a default range of 0.5 to 60 Hz.
Q: Does this drive include a built-in EMC filter?
A: Yes, it features a built-in high-attenuation EMC filter to reduce electromagnetic interference.
Q: What is the full load amp rating for this model?
A: The VFS15-4037PL1-W1 is rated for 9.5 full load amps at 5 HP.
Q: Can this drive be used for pump or fan applications?
A: Yes, its sinusoidal PWM control and wide frequency range make it suitable for variable torque loads like pumps and fans.
Q: What is the input voltage requirement?
A: The drive requires a three-phase 460 VAC input supply.
