Product Overview

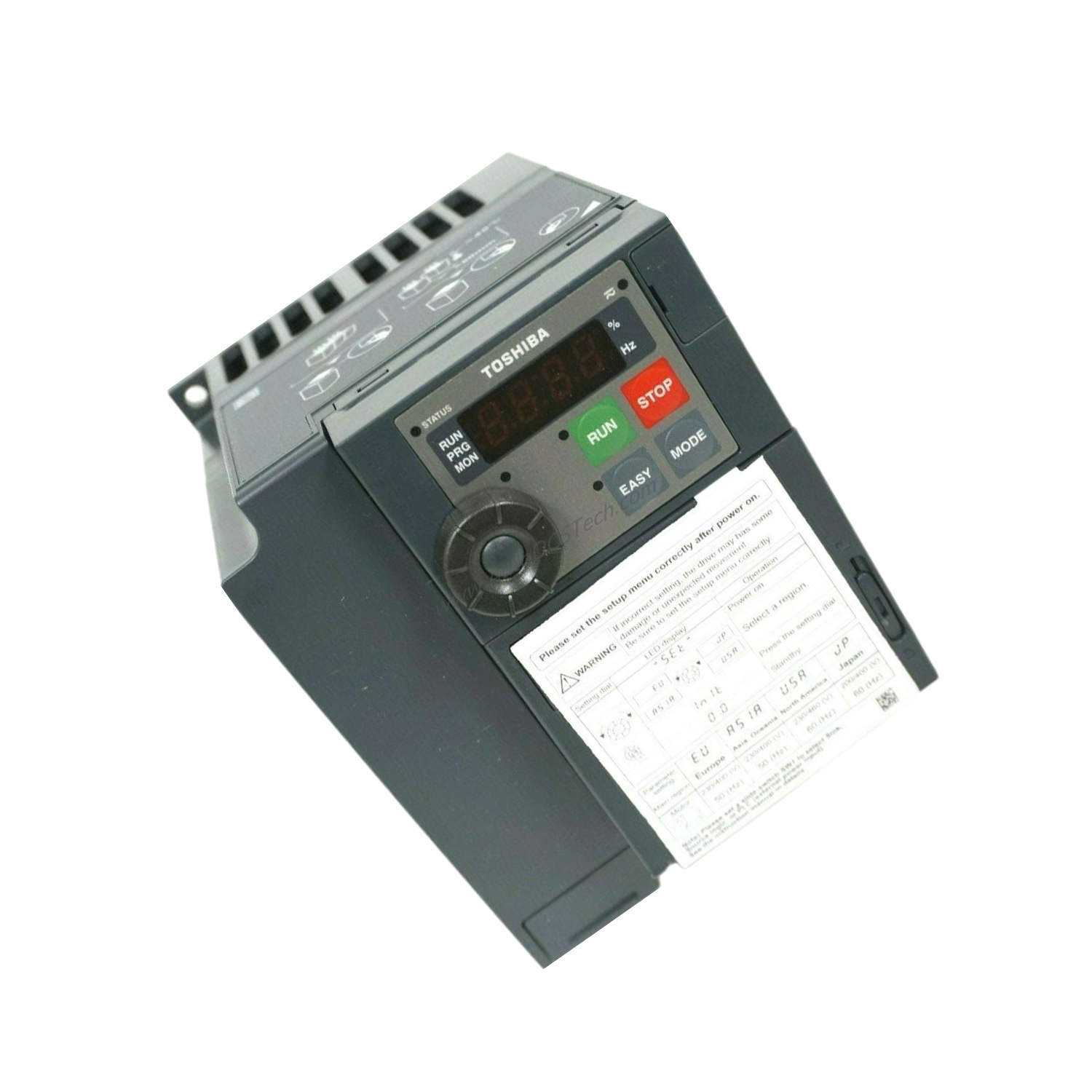

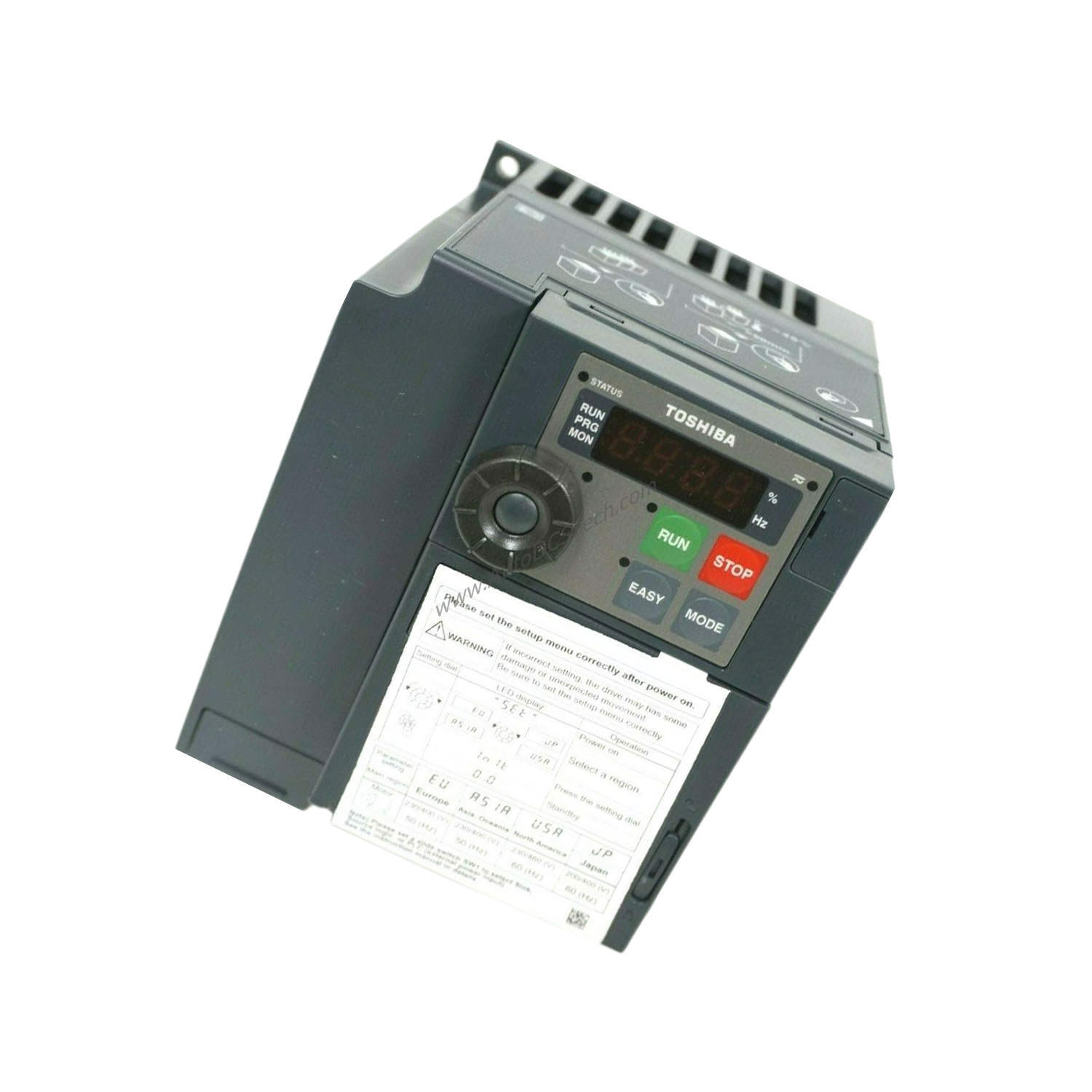

When motor control precision and reliability are non-negotiable, the FANUC VFS15-4015PL1-W1 AC drive delivers. This variable frequency drive from the S15 series is engineered for applications requiring accurate speed regulation and robust performance. With a 2 HP power rating and 4.1 full load amps, it handles moderate loads efficiently. The drive operates on three-phase 460 VAC power, making it suitable for standard industrial installations. Its sinusoidal PWM control ensures smooth motor operation, reducing mechanical stress and improving system longevity.
Technical Specifications Breakdown
The VFS15-4015PL1-W1 offers a frequency range from 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz. The maximum frequency is adjustable from 30 to 500 Hz, providing flexibility for various motor speeds. This drive includes a built-in operation panel for local control and configuration. A high-attenuation EMC filter is integrated, minimizing electromagnetic interference and helping meet compliance standards. The 4.1 A current rating and 2 HP capacity define its power handling, while the 460 VAC supply voltage matches common three-phase systems.
Industry Applications
In conveyor systems, the VFS15-4015PL1-W1 provides precise speed control to synchronize material flow. For pump and fan applications, its sinusoidal PWM control reduces energy consumption and wear. The built-in EMC filter is especially valuable in environments with sensitive electronics, such as packaging lines or automated assembly stations. The drive's compact micro-drive form factor fits easily into control panels with limited space.
Installation & Setup Guidance
Mount the VFS15-4015PL1-W1 in a clean, dry location with adequate ventilation. Ensure the supply voltage matches the 460 VAC three-phase rating. Connect the motor leads to the output terminals, observing proper phase rotation. Use the operation panel to set the desired frequency range and acceleration/deceleration times. Verify that the EMC filter is properly grounded for optimal noise suppression. Always follow local electrical codes and the manufacturer's installation manual.
Maintenance & Reliability
Periodically inspect the drive for dust accumulation on the heatsink and cooling fan. Clean the exterior with a dry cloth; avoid solvents. Check all power connections for tightness and signs of corrosion. The built-in EMC filter requires no routine maintenance but should be inspected if performance degrades. Regular monitoring of the operation panel for fault codes helps catch issues early. Following these steps extends the drive's service life and maintains reliability.
Compatibility & Integration
The VFS15-4015PL1-W1 integrates with standard three-phase induction motors rated for 2 HP or less. It accepts analog and digital control signals via the operation panel or external terminals. The drive is compatible with typical PLC and automation systems that provide 0-10 V or 4-20 mA speed references. Its S15 series design ensures interchangeability with other drives in the same family for easy upgrades or replacements.
Selection Guide & Purchasing Advice
Before ordering the VFS15-4015PL1-W1, verify that your motor's full load amps do not exceed 4.1 A and that your power supply is three-phase 460 VAC. Confirm that the frequency range meets your application needs. SpareTechPLC offers this drive with fast shipping and expert support. Contact our team for assistance with compatibility or to discuss replacement options for older drives.
