Introduction

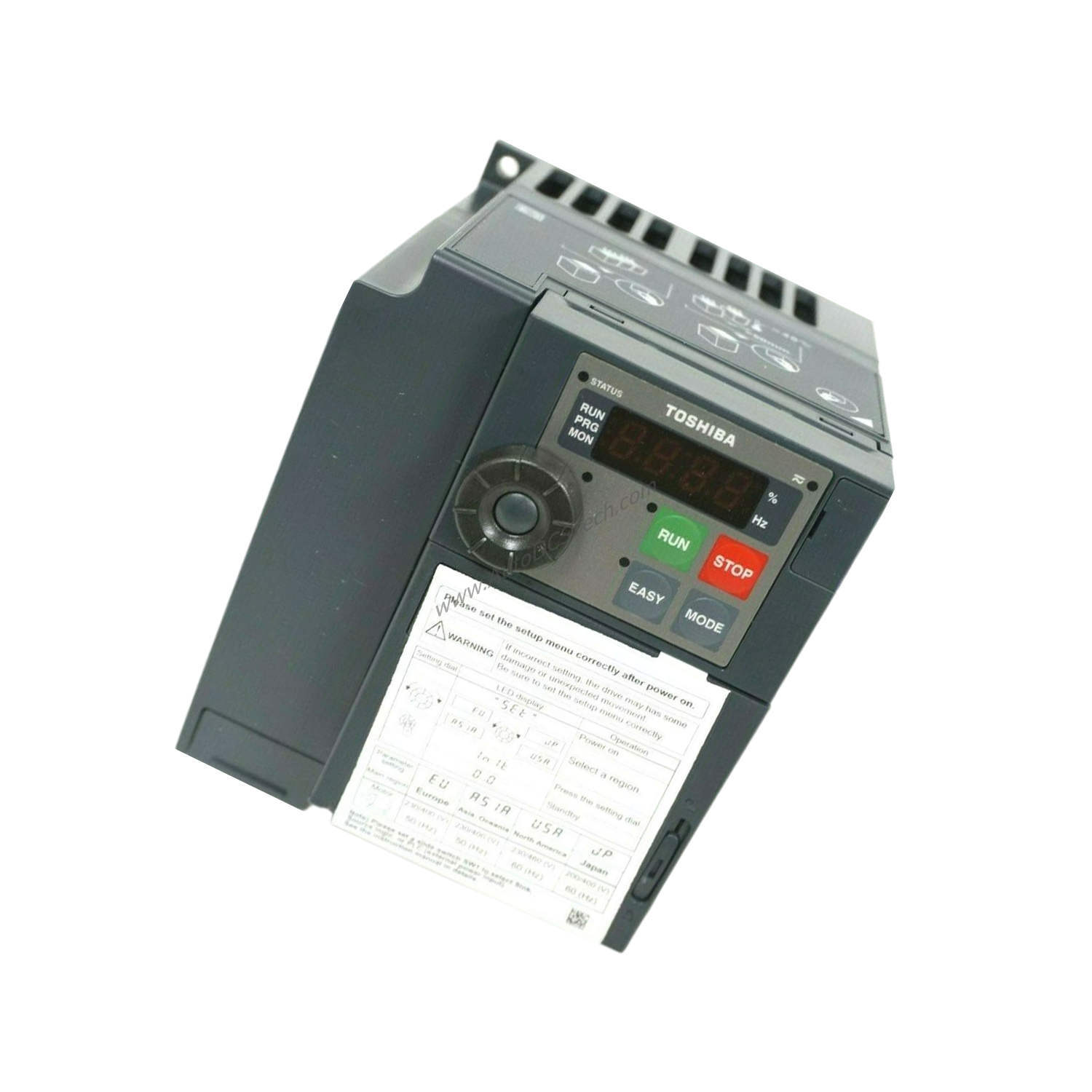

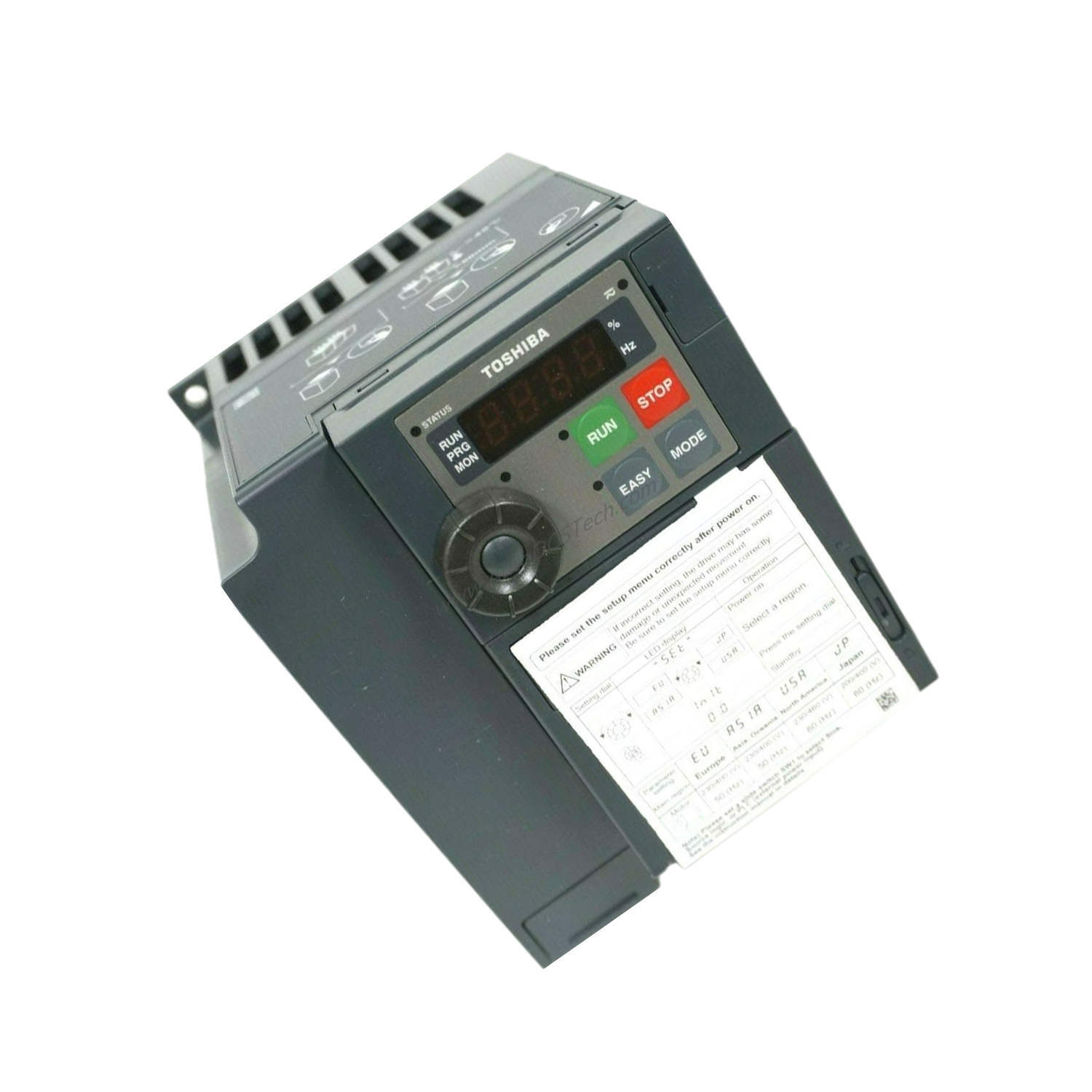

When a centrifugal pump or fan application demands precise speed control and energy efficiency, the Toshiba VFS15-4022PL1-W1 Variable Torque VFD delivers reliable performance. This drive, part of the VF-S15 series, is engineered specifically for variable torque loads such as pumps, fans, and blowers. With a 460 Volt three-phase input and output, it provides 3 HP and 5.5 Amp output, making it a compact solution for industrial HVAC and process control systems.
Technical Specifications Breakdown
The VFS15-4022PL1-W1 offers key specifications that define its capabilities:
- Input/Output Voltage: 460 Volt Three Phase ensures compatibility with standard industrial power systems.
- Output Horsepower: 3 HP provides sufficient power for small to medium variable torque loads.
- Output Amperage: 5.5 Amp matches the current requirements of typical 3 HP motors.
- Control Method: Sinusoidal PWM control delivers smooth motor operation across a frequency range of 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz and maximum frequency adjustable from 30 to 500 Hz.
- Environmental Ratings: Ambient temperature range of 14° to 122°F (-10° to 50°C), humidity up to 95% non-condensing, and altitude up to 1000 meters without derate ensure reliable operation in demanding conditions.
- Enclosure: IP20 rating allows wall-mount installation in clean indoor environments.
- Communication: A two-wire RS485 communication port enables integration with control networks.
- Compliance: UL Listed in US & Canada, CSA, and CE certified for global use.
Industry Applications
This variable torque drive excels in three primary applications:
- Centrifugal Pumps: The VFS15-4022PL1-W1 matches the quadratic torque curve of centrifugal pumps, reducing energy consumption during partial load conditions. Past trip monitoring stores the last eight faults with at-trip data, helping operators quickly diagnose issues like cavitation or overpressure.
- Fans: For HVAC supply or exhaust fans, the drive provides smooth acceleration and deceleration, minimizing mechanical stress on belts and bearings.
- Blowers: In industrial blower systems, the VFD maintains consistent airflow while reducing starting current and wear on motor windings.
Installation & Setup Guidance
Mount the VFS15-4022PL1-W1 on a flat, vertical surface using the wall-mount design. Ensure adequate clearance around the IP20 enclosure for airflow. Connect three-phase 460 VAC power to the input terminals and the motor to the output terminals. Use the built-in high-attenuation EMC filter to reduce electrical noise. Configure parameters via the four-digit, seven-segment LED display and operation panel. Set the maximum frequency between 30 and 500 Hz based on motor and application requirements.
Maintenance & Reliability
Regular inspection of the VFD ensures long service life. Check ambient temperature stays within 14° to 122°F and humidity below 95% non-condensing. Clean the enclosure and heat sink periodically to prevent dust buildup. The drive’s past trip monitoring feature logs faults in succession, aiding predictive maintenance. For variable torque applications, the drive reduces mechanical shock, extending motor and driven equipment life.
Compatibility & Integration
The VFS15-4022PL1-W1 integrates easily into existing systems via its two-wire RS485 communication port. This allows connection to PLCs, SCADA systems, or building management networks for remote monitoring and control. The drive’s sinusoidal PWM control ensures compatibility with standard three-phase induction motors rated for 460 VAC and 3 HP. The rotary encoder input supports closed-loop speed feedback for precise regulation.
Selection Guide & Purchasing Advice
Before purchasing the VFS15-4022PL1-W1, verify that your application requires variable torque control for centrifugal pumps, fans, or blowers. Confirm the input power is 460 Volt three-phase and the motor rating does not exceed 3 HP or 5.5 Amp. The IP20 enclosure suits indoor installations only. SpareTechPLC stocks this model and can provide availability and lifecycle status. Contact us to confirm current inventory and any replacement options if needed.
Frequently Asked Questions
Q: What is the input voltage requirement for the VFS15-4022PL1-W1?
A: The drive requires 460 Volt three-phase input power.
Q: Can this VFD control a 5 HP motor?
A: No, the output horsepower is 3 HP. For larger motors, select a higher-rated model.
Q: Does the drive include a built-in EMC filter?
A: Yes, it features a built-in high-attenuation EMC filter.
Q: How do I retrieve fault history?
A: Use the four-digit LED display to access past trip monitoring, which stores the last eight faults with at-trip operation data.
