Introduction

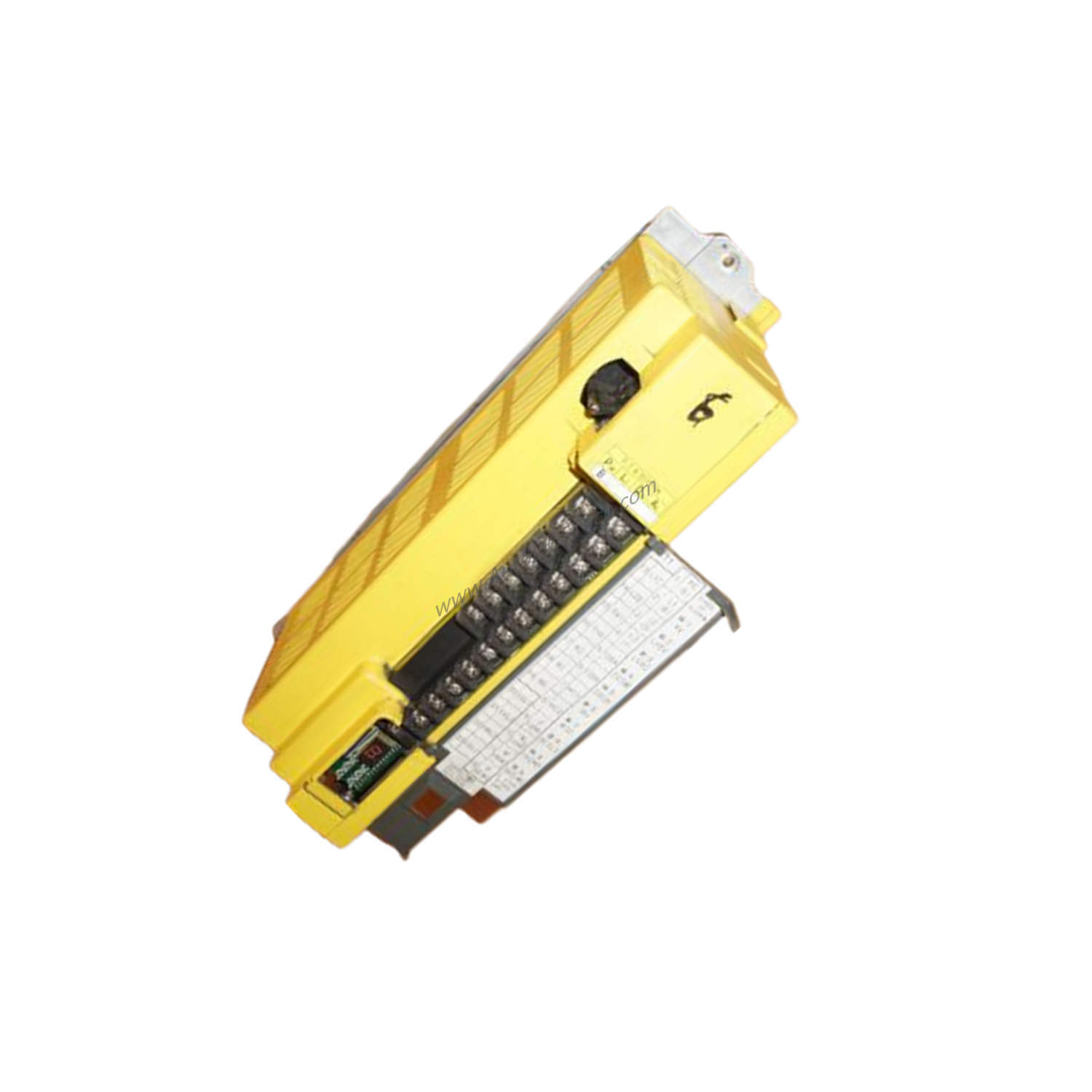

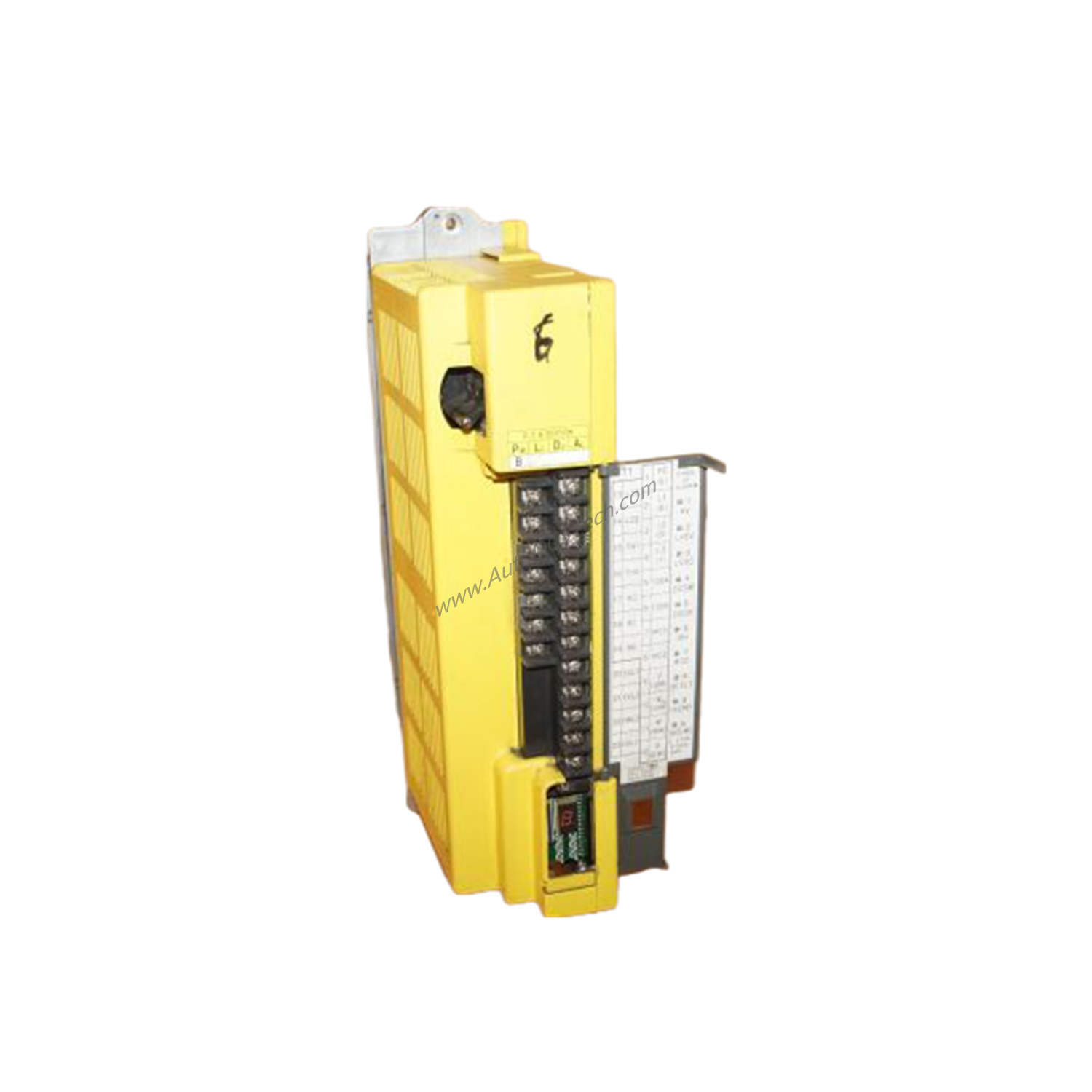

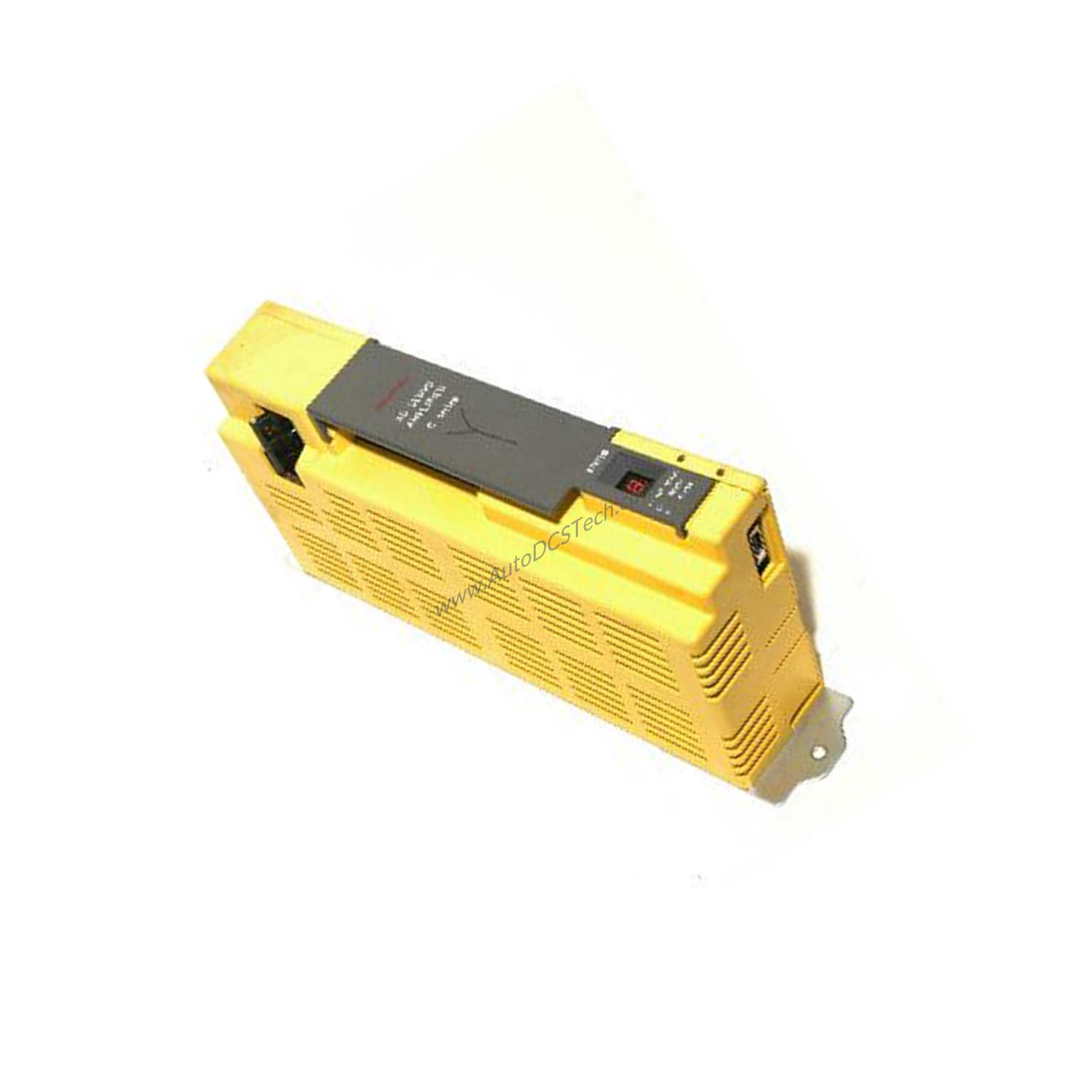

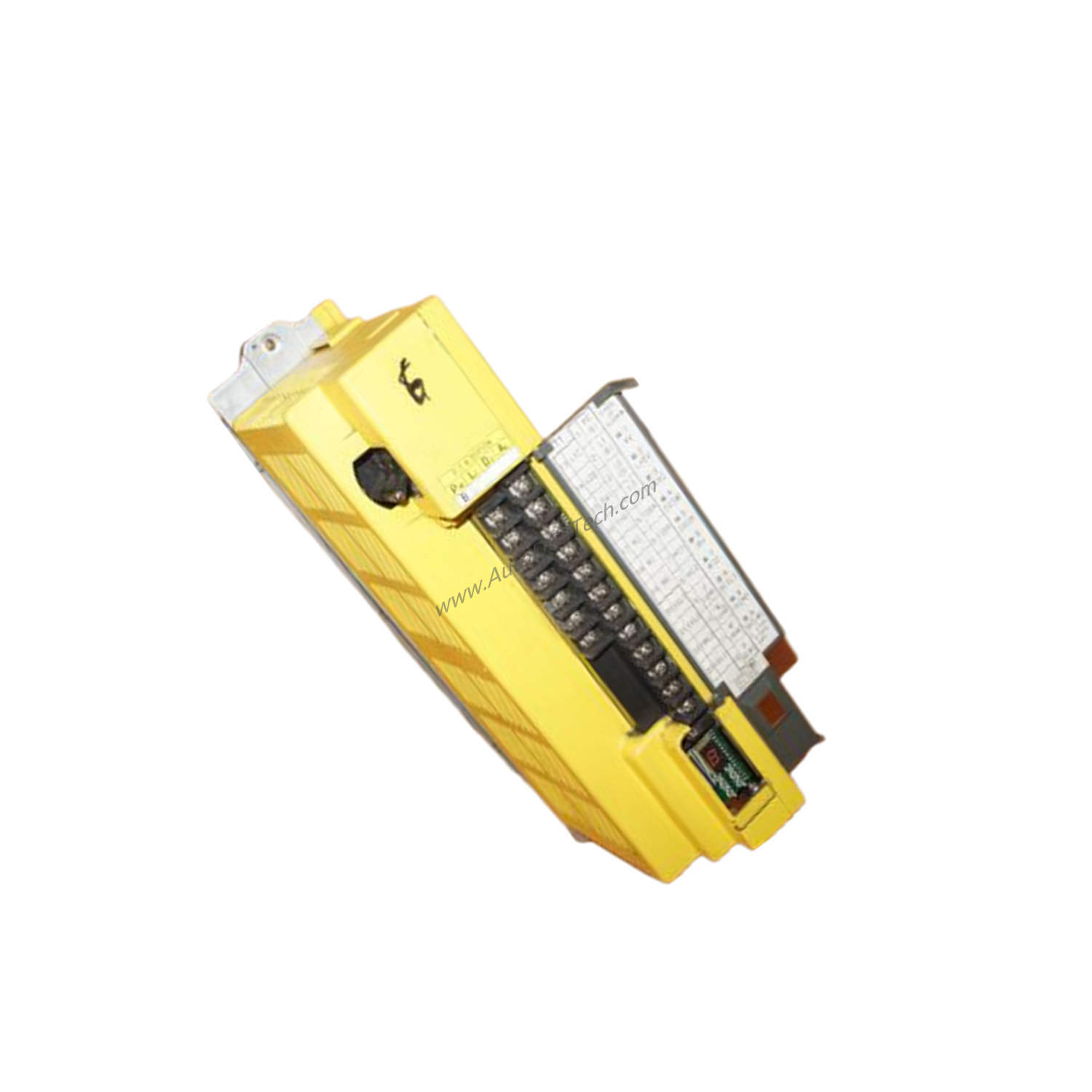

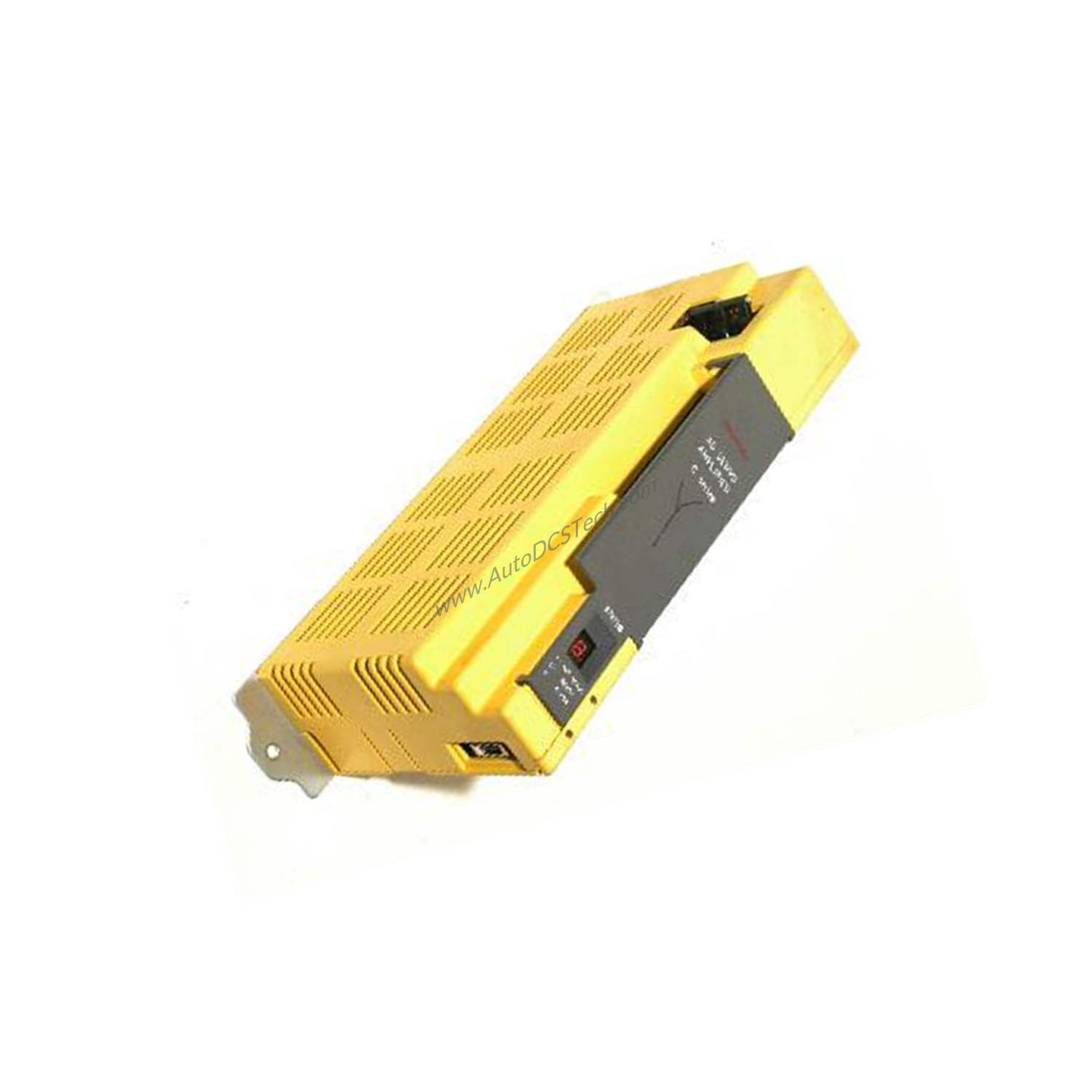

When CNC machining precision is compromised by servo drive instability, the FANUC A06B-6066-H008 AC Servo Amplifier provides reliable single-axis control. This servo drive is engineered for demanding CNC systems, managing position, speed, and torque with high accuracy. It operates on a single-phase power supply within 200 to 230 VAC, ensuring consistent performance in industrial environments.
Technical Specifications Breakdown
Power and Current Handling
The A06B-6066-H008 delivers a rated current of 120 A and a peak current of 240 A, enabling it to handle heavy loads during acceleration and deceleration. This capability reduces the risk of motor stalling and improves cycle times in CNC applications.
Voltage and Frequency Flexibility
With an input voltage range of 200/220/230 VAC ±10%/-15% and support for 50/60 Hz frequencies, this amplifier adapts to global power standards. This flexibility minimizes the need for additional transformers, simplifying integration into existing systems.
Protection Features
Built-in overload, overcurrent, and overvoltage protection safeguard the drive and connected equipment. These features prevent damage from electrical faults, reducing unplanned downtime and maintenance costs.
Industry Applications
CNC Milling and Turning Centers
In CNC milling machines, the A06B-6066-H008 controls a single axis with precise torque and speed. Its 120 A rated current supports heavy cutting loads, while the 240 A peak current handles sudden load changes during tool engagement.
Precision Grinding Machines
For grinding applications requiring smooth motion, this servo amplifier maintains accurate position control. The air-cooled design ensures stable operation even in dusty environments, extending service life.
Installation & Setup Guidance
Mount the A06B-6066-H008 vertically or on a wall to optimize airflow. Ensure adequate clearance around the unit for air cooling. Connect the single-phase power supply within the specified voltage range (200/220/230 VAC ±10%/-15%). Verify that the operating environment stays between 0°C and 55°C to prevent overheating.
Maintenance & Reliability
Regularly inspect cooling vents for dust buildup to maintain air-cooling efficiency. Check electrical connections for signs of wear or corrosion. The built-in protection features reduce the need for frequent maintenance, but periodic testing of overload and overvoltage circuits is recommended. This approach minimizes unexpected failures and extends the amplifier's operational life.
Compatibility & Integration
This servo amplifier is designed for FANUC CNC systems, ensuring seamless communication and control. It integrates with standard single-phase power supplies and supports 50/60 Hz line frequencies. For multi-axis setups, pair multiple A06B-6066-H008 units to coordinate synchronized motion.
Selection Guide & Purchasing Advice
Before ordering, verify that your system requires a single-axis drive with 120 A rated current and 240 A peak current. Confirm the input voltage matches your facility's supply (200/220/230 VAC). SpareTechPLC stocks the A06B-6066-H008 and can assist with availability and lifecycle status. Contact us to ensure compatibility with your CNC controller.
