Product Overview

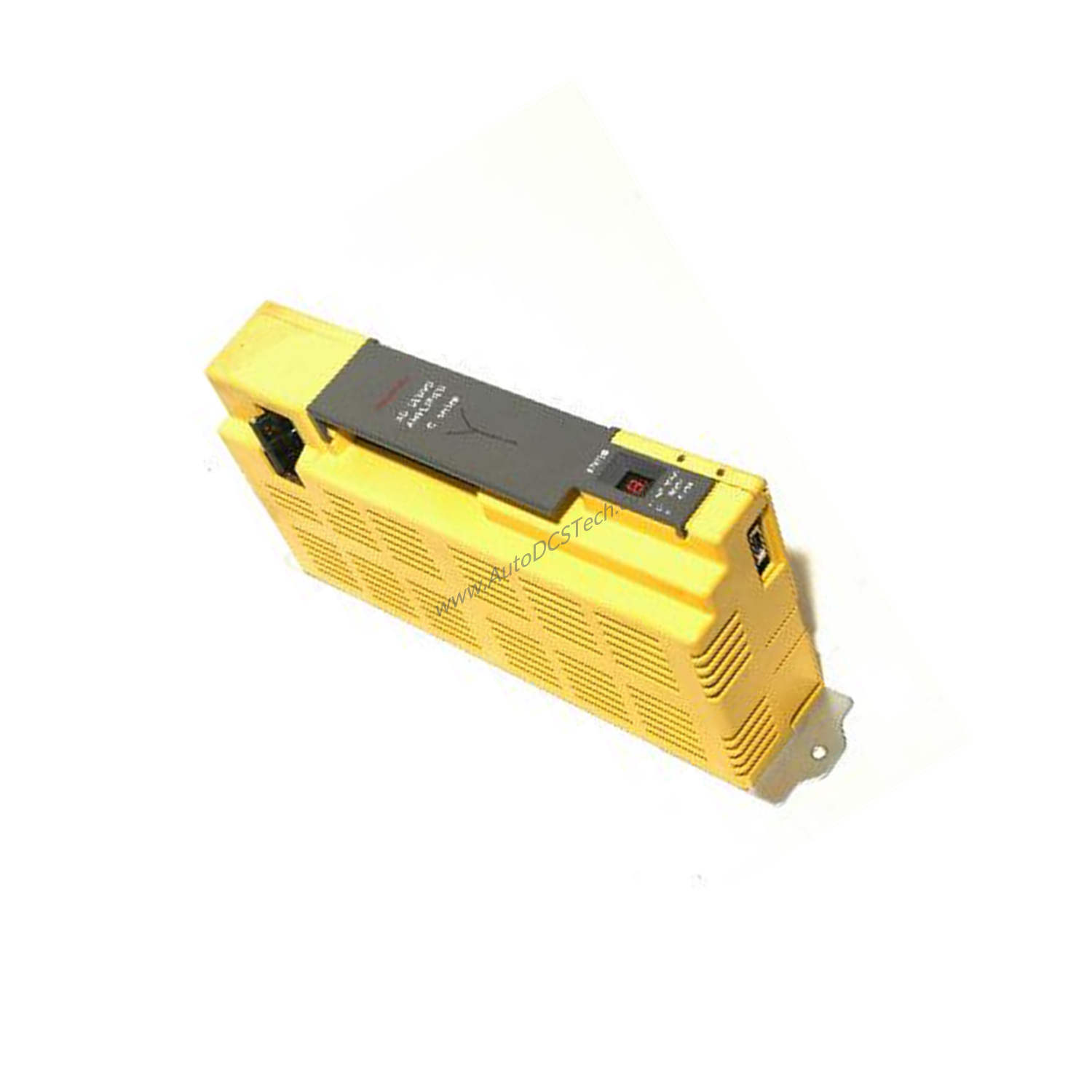

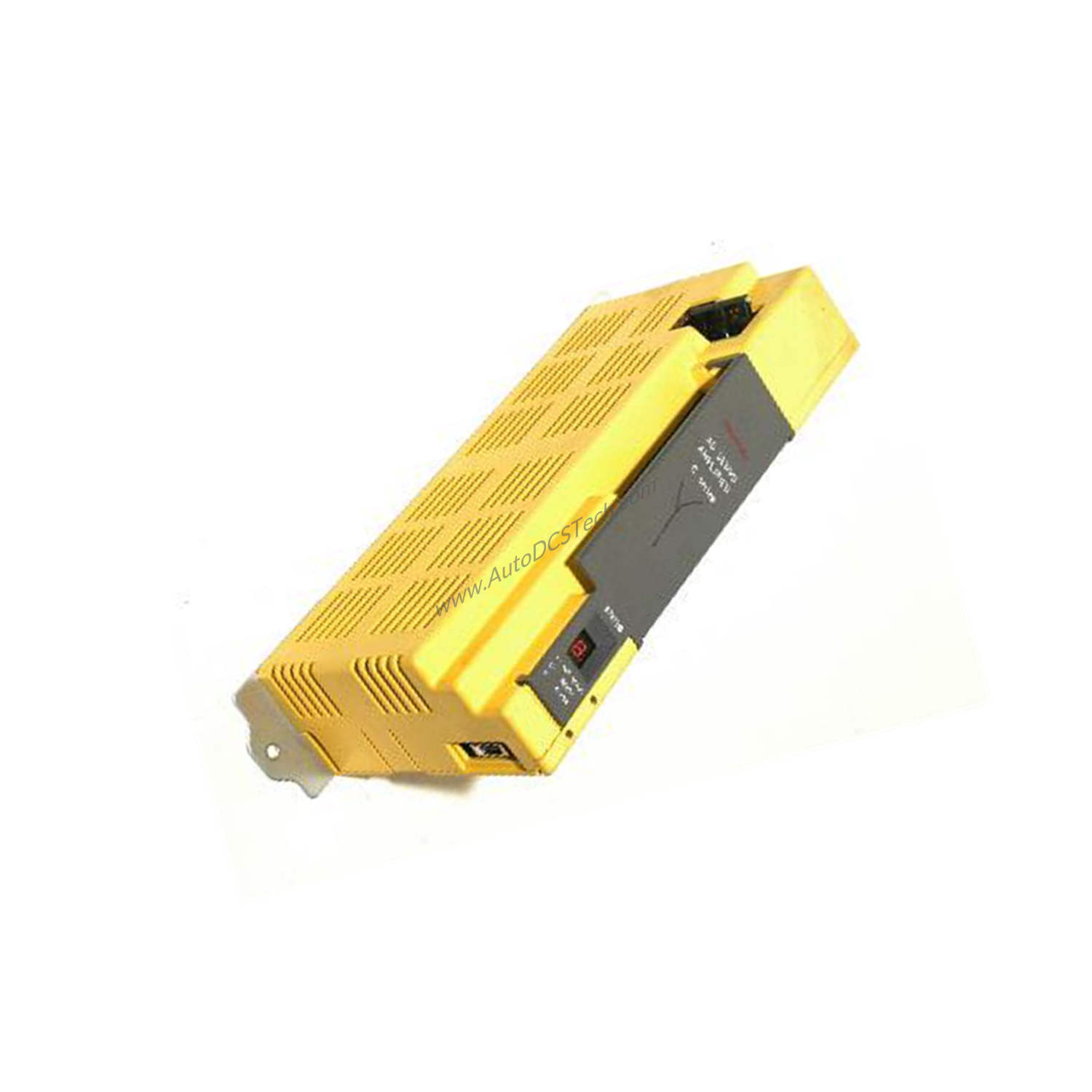

When CNC machinery demands precise motion and consistent torque, the FANUC A06B-6066-H003 Servo Drive delivers reliable performance. This compact unit supports both current and speed control, making it a cost-effective choice for optimizing machine efficiency and reducing energy waste.
Technical Specifications Breakdown
- Weight: 19.00 lbs (8.62 kg) — a moderate weight that balances durability with ease of installation, reducing shipping costs and simplifying mounting.
- Operating Temperature: 0 to 40 degrees Celsius — ensures stable operation in typical factory environments without expensive cooling upgrades.
- Maximum Vibration: 5G — built to withstand harsh conditions, minimizing downtime from vibration-related failures.
- Maximum Altitude: 1000 Meters Above Sea Level — suitable for most industrial sites, avoiding derating costs at higher elevations.
- Space-Saving and Compact Design: Yes — reduces cabinet footprint, lowering enclosure costs and freeing space for other components.
Industry Applications
- CNC Machining Centers: The A06B-6066-H003 provides precise speed and current control for spindle and axis drives, improving surface finish and reducing scrap rates. This directly lowers per-part production costs.
- Robotic Assembly Lines: With 5G vibration tolerance, the drive maintains accuracy in high-speed pick-and-place operations, cutting maintenance expenses.
- Automated Material Handling: Its compact design fits into tight conveyor system cabinets, saving valuable floor space and installation labor.
Installation & Setup Guidance
Mount the drive in a clean, dry location within the specified temperature range (0 to 40 degrees Celsius). Ensure adequate airflow around the unit to prevent overheating. Use proper shielding for motor and feedback cables to minimize electrical noise. Verify that the AC servo motor is compatible and that current/speed control parameters are set according to the motor manufacturer's specifications.
Maintenance & Reliability
Regular inspection of cooling fans and air filters helps maintain the 5G vibration rating and extends service life. Periodic torque checks on power connections prevent resistive losses that increase energy bills. By following these simple steps, users can maximize uptime and avoid costly emergency repairs.
Compatibility & Integration
The A06B-6066-H003 is designed for use with FANUC AC servo motors and CNC controllers. Its current and speed control capabilities integrate seamlessly into existing FANUC-based systems, simplifying upgrades and reducing integration costs.
Selection Guide & Purchasing Advice
Before purchasing, verify that your AC servo motor matches the drive's voltage and current ratings (refer to the motor's datasheet). Confirm that the operating environment stays within 0 to 40 degrees Celsius and below 1000 meters altitude. For reliable supply and competitive pricing, choose SpareTechPLC as your trusted partner. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
