Introduction

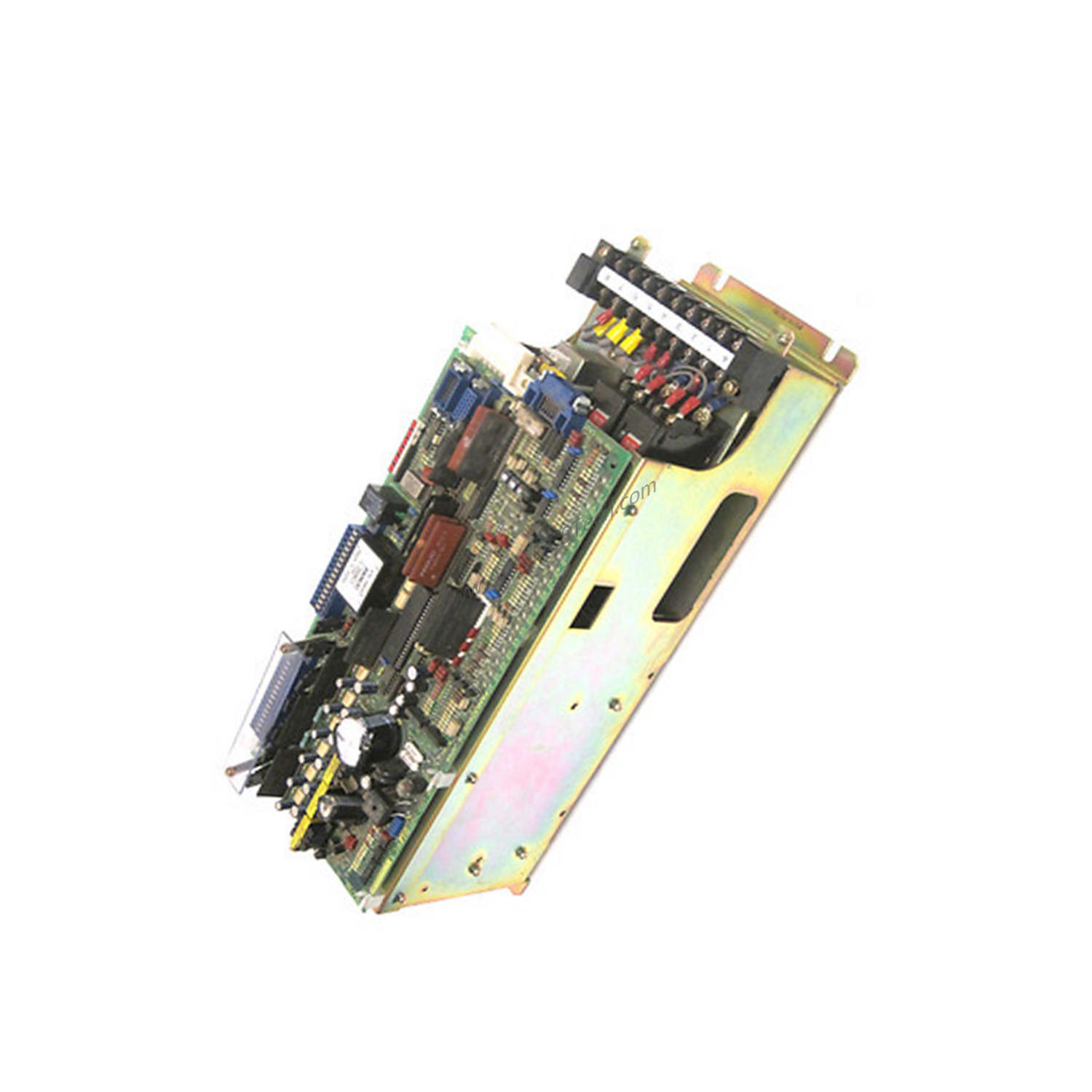

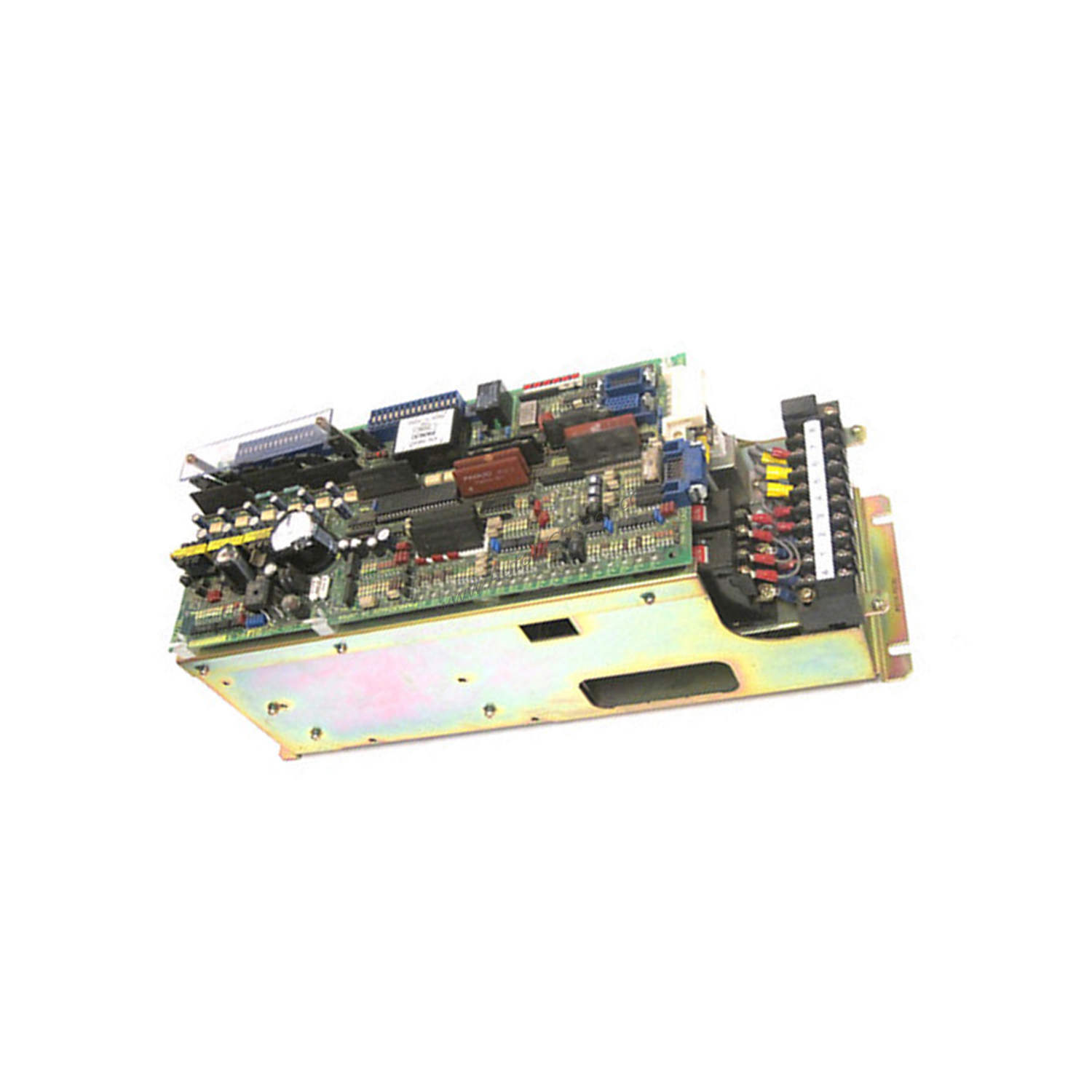

When CNC machining processes demand precise motion control and reliable performance, the FANUC A06B-6050-H102 Servo Drive delivers. This versatile drive is engineered to handle the rigorous requirements of CNC applications, providing consistent torque and speed regulation. It supports both rotary and linear motors, making it a flexible choice for a wide range of industrial automation tasks.
Technical Specifications Breakdown
The FANUC A06B-6050-H102 operates within a temperature range of 0 to 40 degrees Celsius, ensuring stable performance in standard factory environments. It withstands maximum vibration levels of 5G, which is critical for maintaining accuracy in dynamic machining operations. The drive is also rated for altitudes up to 1000 meters above sea level, making it suitable for facilities at moderate elevations. With a weight of 19.00 lbs (8.62 kg), it is robust yet manageable for installation.
Industry Applications
In CNC machining centers, the A06B-6050-H102 provides the precise motor control needed for complex cutting, milling, and turning operations. Its support for Model 0/5 configurations allows seamless integration into existing FANUC control systems. In automotive manufacturing, this drive powers assembly line robots and material handling equipment, where reliability under continuous operation is paramount. The ability to drive both rotary and linear motors further expands its utility in automated guided vehicles and precision positioning stages.
Installation & Setup Guidance
When installing the FANUC A06B-6050-H102, ensure the ambient temperature stays within the 0 to 40 degrees Celsius range to avoid thermal derating. Mount the drive in a clean, dry location with adequate airflow. Verify that the mounting surface can support the 19.00 lbs weight. Connect the drive to a compatible FANUC CNC controller using the appropriate cables and follow the manufacturer's wiring diagrams. After physical installation, configure the drive parameters using the control software to match the specific motor type (rotary or linear) and application requirements.
Maintenance & Reliability
Regular inspection of the A06B-6050-H102 helps extend its service life. Check for dust accumulation on cooling fins and ensure ventilation paths remain clear. Monitor the operating environment to stay within the 0 to 40 degrees Celsius temperature specification. The drive's 5G vibration rating indicates it can handle moderate shock loads, but periodic tightening of mounting bolts is recommended. For facilities above 1000 meters altitude, consult the manufacturer for any necessary derating adjustments. Following these practices minimizes unplanned downtime and reduces total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing the A06B-6050-H102, verify that your CNC controller supports Model 0/5 drive configurations. Confirm the motor type—rotary or linear—matches the drive's capabilities. The A06B-6050-H102 is designed for new installations or as a direct replacement in existing FANUC systems. SpareTechPLC offers this servo drive with fast shipping and expert support. Contact our team to confirm availability and compatibility with your specific application.
Frequently Asked Questions
What is the operating temperature range of the A06B-6050-H102?
The FANUC A06B-6050-H102 operates from 0 to 40 degrees Celsius.
Does this drive support linear motors?
Yes, the A06B-6050-H102 supports both rotary and linear motors.
What is the maximum vibration level this drive can withstand?
The drive can endure up to 5G vibration.
What is the weight of the A06B-6050-H102?
It weighs 19.00 lbs (8.62 kg).
Is the A06B-6050-H102 suitable for automotive applications?
Yes, the drive supports automotive applications as per its specifications.
