Product Overview

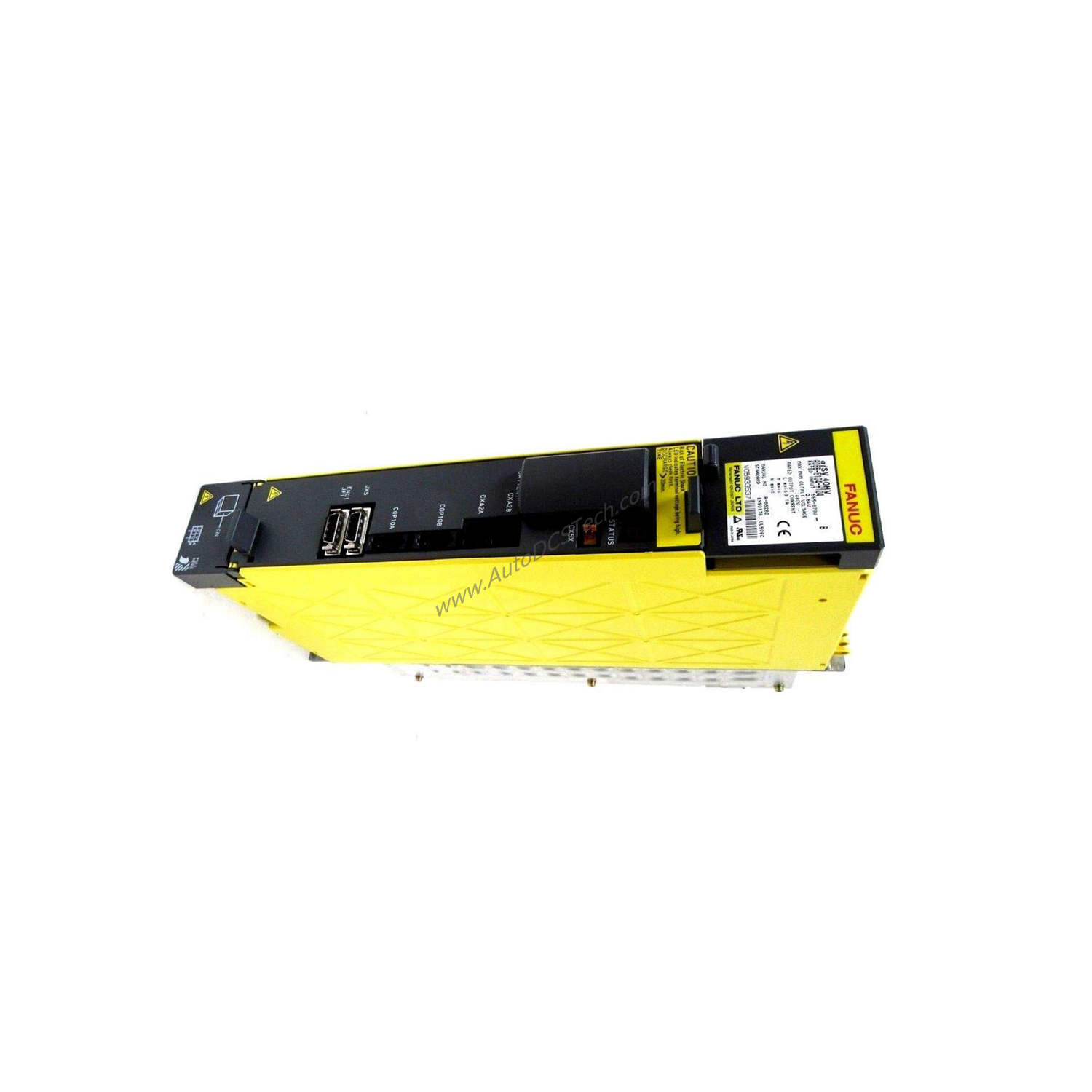

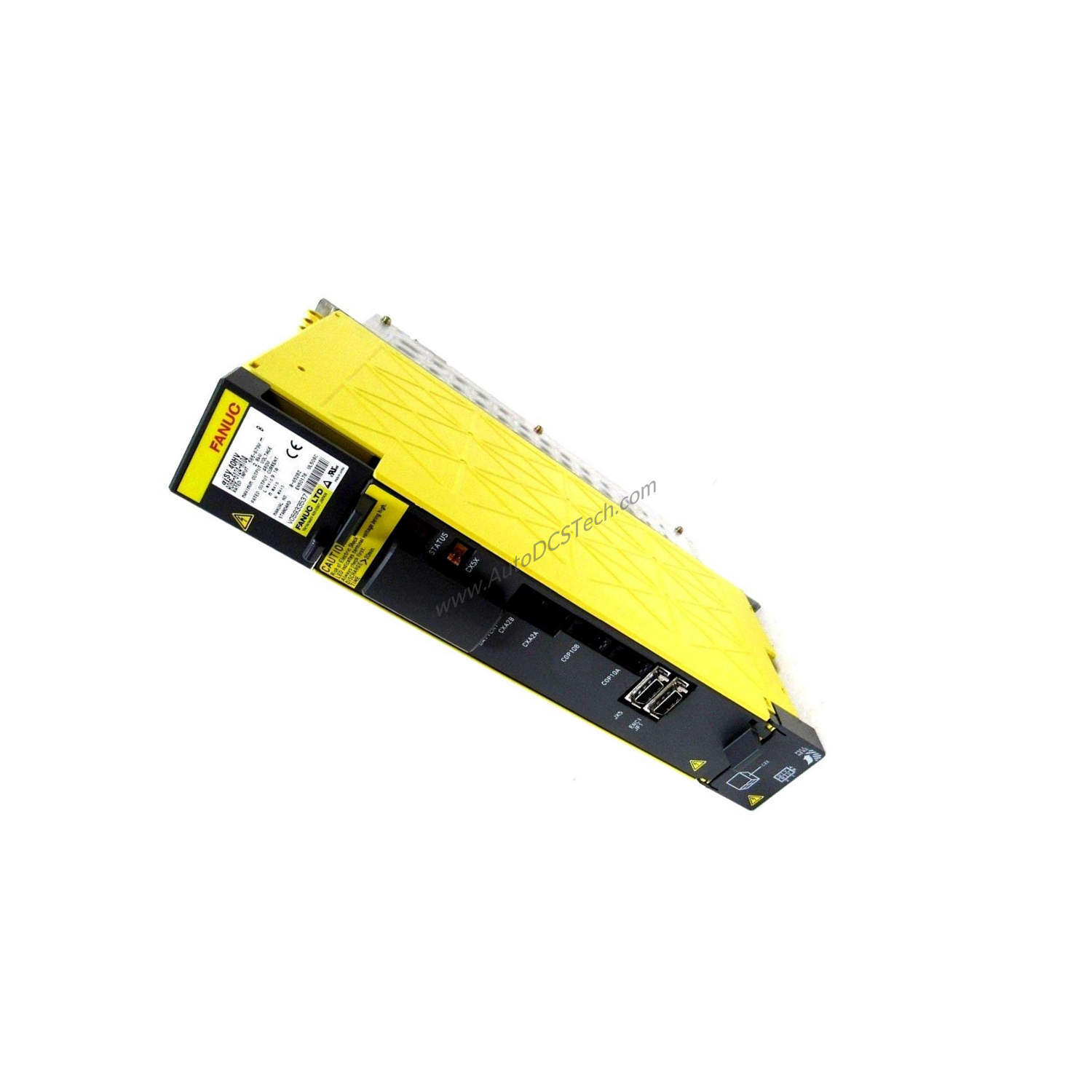

When production downtime from servo amplifier failures drives up operational costs, the FANUC A06B-6124-H104 delivers reliable single-axis control for 400V class systems. This servo amplifier module from the A06B product line is engineered to maintain consistent performance in demanding industrial environments, helping reduce unplanned maintenance expenses.
Technical Specifications Breakdown
The A06B-6124-H104 operates with a voltage class of 400V, accepting a three-phase main power supply from 400 VAC to 480 VAC. This wide input range accommodates global voltage variations without additional transformers, saving on installation costs. The control power supply requires single-phase 200 VAC to 240 VAC, with an allowable voltage deviation of -15% to +10% including load effects—this tolerance minimizes the risk of nuisance trips from line fluctuations.
A critical reliability feature is the instantaneous power failure guarantee time of 3 ms. This brief hold-up time allows the amplifier to ride through short power dips, preventing costly process interruptions. The power frequency is 50/60 Hz ±1 Hz, ensuring compatibility with standard industrial mains.
Rated output current is 9.1 A (rms), with a nominal current limit of 40 A (peak). This peak capacity supports high-torque acceleration for demanding loads without oversizing the amplifier, directly reducing capital expenditure. The single-axis configuration simplifies wiring and reduces component count, lowering both initial and maintenance costs.
Industry Applications
In CNC machining centers, the A06B-6124-H104 drives spindle or axis servomotors with precision. The 40 A peak current enables rapid tool changes and aggressive cutting, boosting throughput. For robotic assembly lines, the 3 ms power failure guarantee ensures that brief voltage sags do not interrupt critical pick-and-place cycles, minimizing scrap and rework costs.
Installation & Setup Guidance
Mount the amplifier on a clean, vibration-free surface within the specified ambient operational temperature range of 0 to 55°C. Ensure adequate airflow around the unit for heat dissipation. Connect the three-phase main power supply (400-480 VAC) and the single-phase control voltage (200-240 VAC) using appropriately rated conductors. Verify that the voltage deviation does not exceed -15% to +10% to maintain reliable operation. The unit weighs 12.00 lbs (5.44 kg), so use proper lifting techniques during installation.
Maintenance & Reliability
Regular inspection of the cooling fans and air filters (if present) every six months helps prevent overheating and extends service life. Keep the ambient humidity at 90% RH or below and free from condensation to avoid corrosion. Operational vibration should remain below 0.5G. These simple maintenance steps reduce the likelihood of unexpected failures, lowering total cost of ownership.
Selection Guide & Purchasing Advice
Before ordering, confirm that your system requires a single-axis servo amplifier with 9.1 A rated output and 40 A peak current. Verify the main and control voltage specifications match your facility's power supply. SpareTechPLC offers the FANUC A06B-6124-H104 with fast shipping and expert support to help you select the right component for your application.
Frequently Asked Questions
Q: What is the voltage class of the A06B-6124-H104?
A: The voltage class is 400V, with a three-phase main supply range of 400 VAC to 480 VAC and a single-phase control supply of 200 VAC to 240 VAC.
Q: How many axes does this amplifier support?
A: It supports one axis, making it suitable for single-axis motion control applications.
Q: What is the peak current capability?
A: The nominal current limit is 40 A (peak), while the rated output current is 9.1 A (rms).
Q: What is the instantaneous power failure guarantee time?
A: The guarantee time is 3 ms, allowing the amplifier to ride through brief power interruptions.
Q: What are the operating temperature limits?
A: The ambient operational temperature range is 0 to 55°C, with storage from -20 to 60°C.
