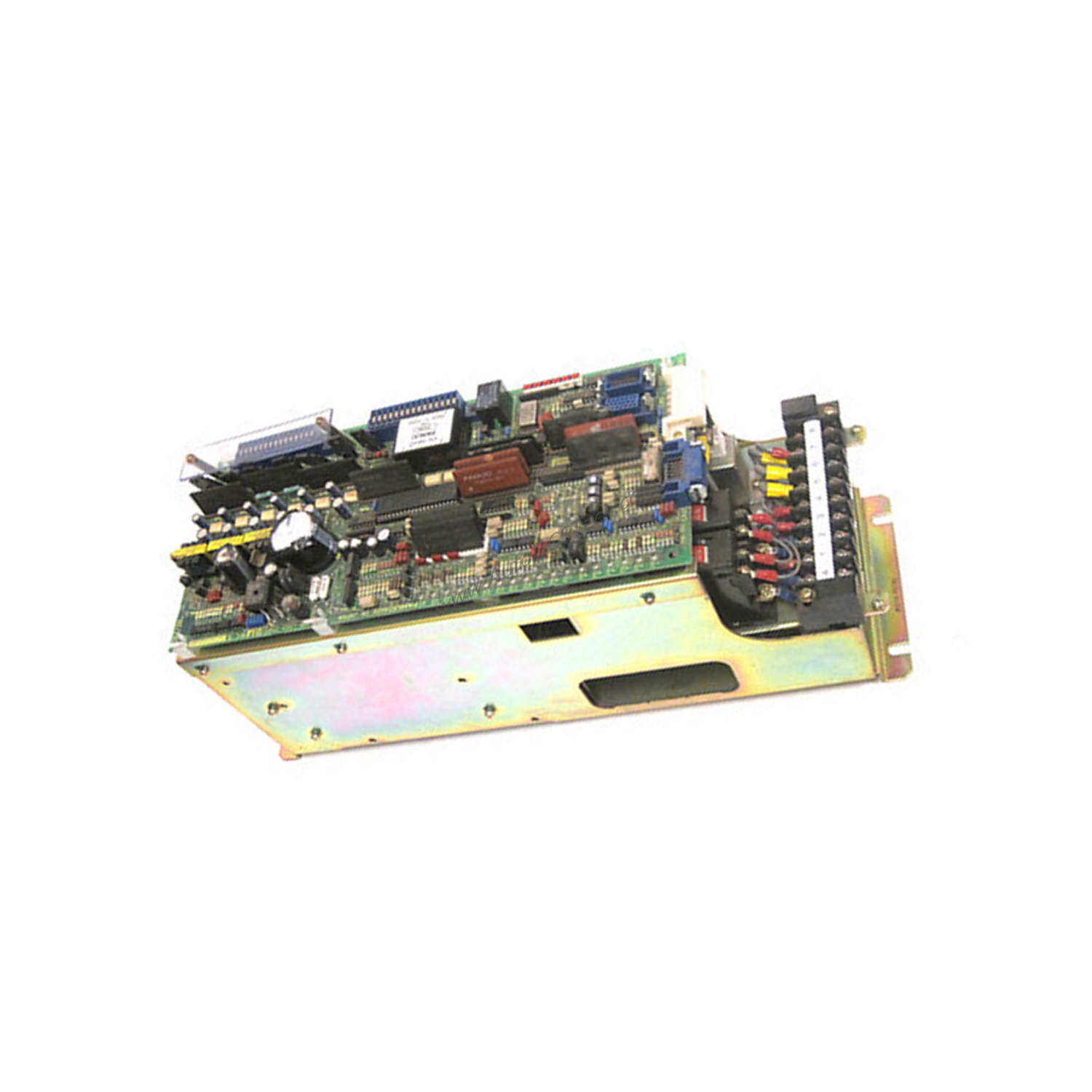

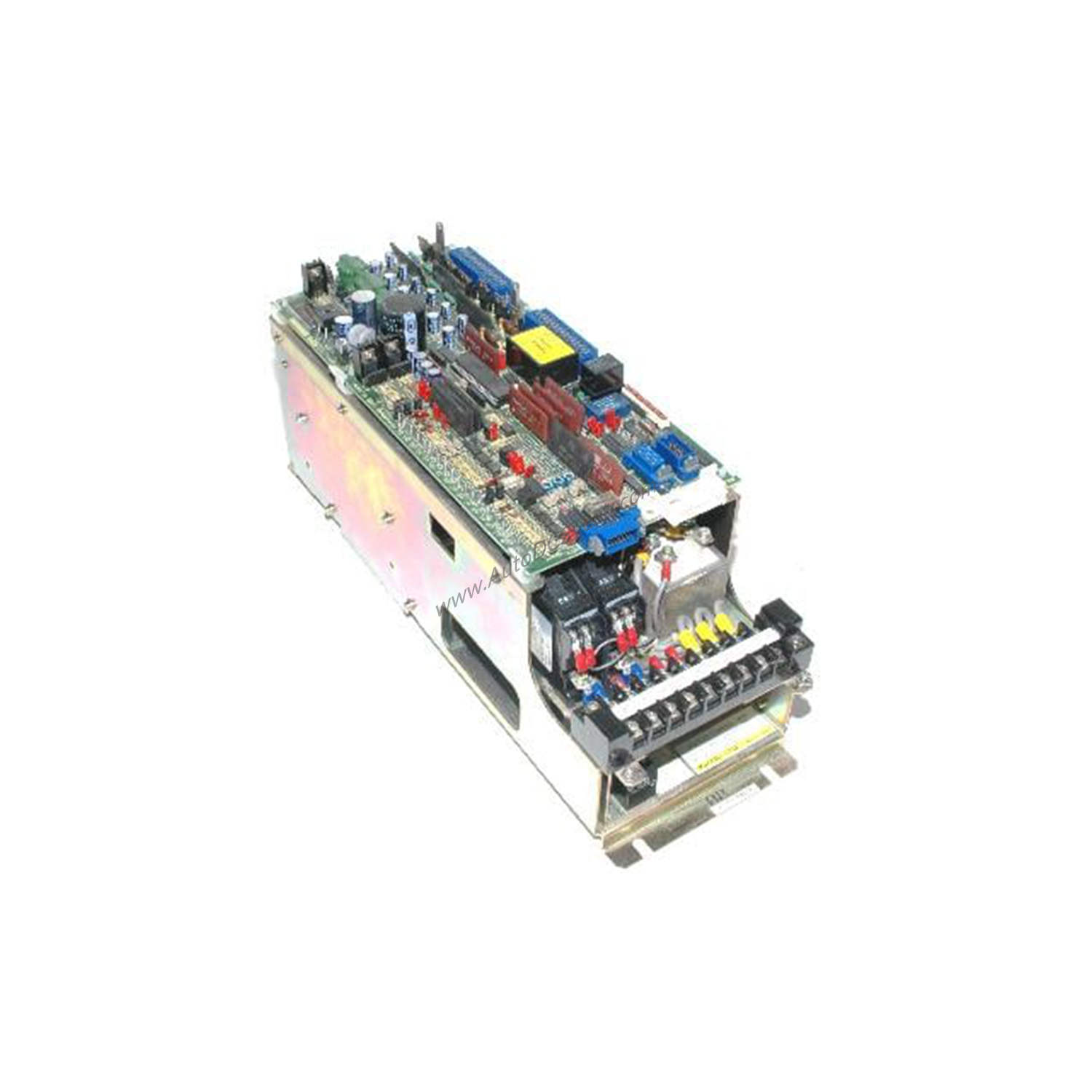

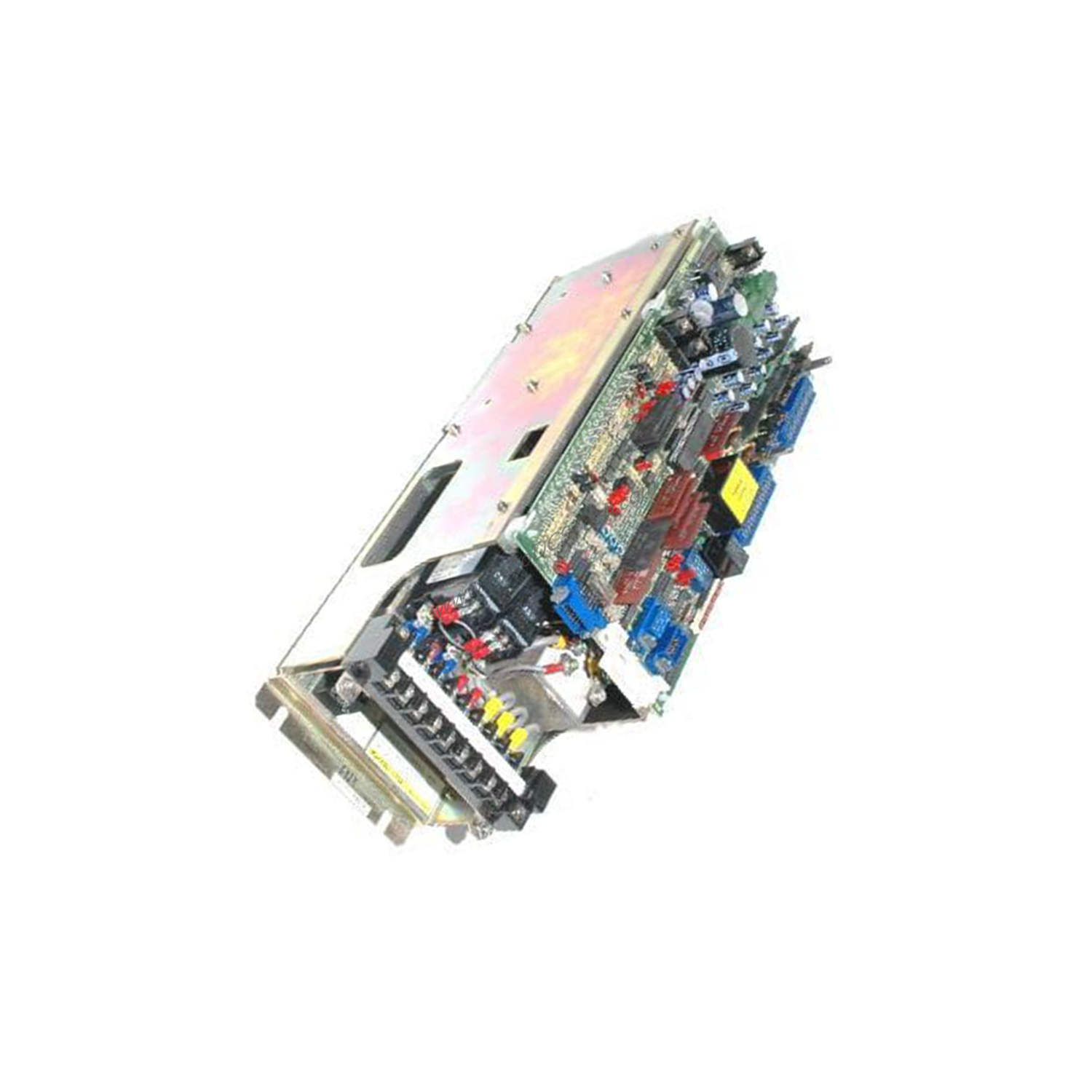

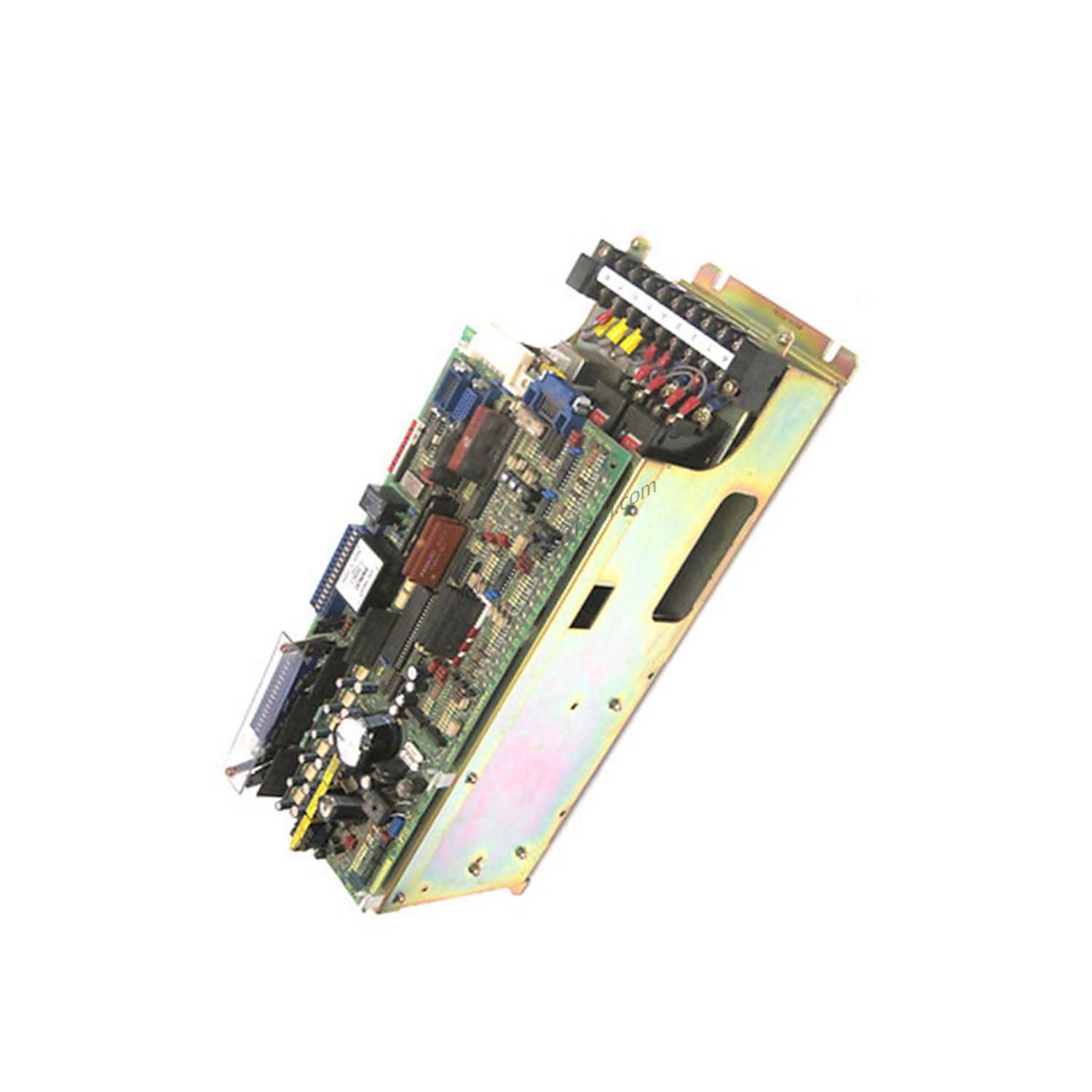

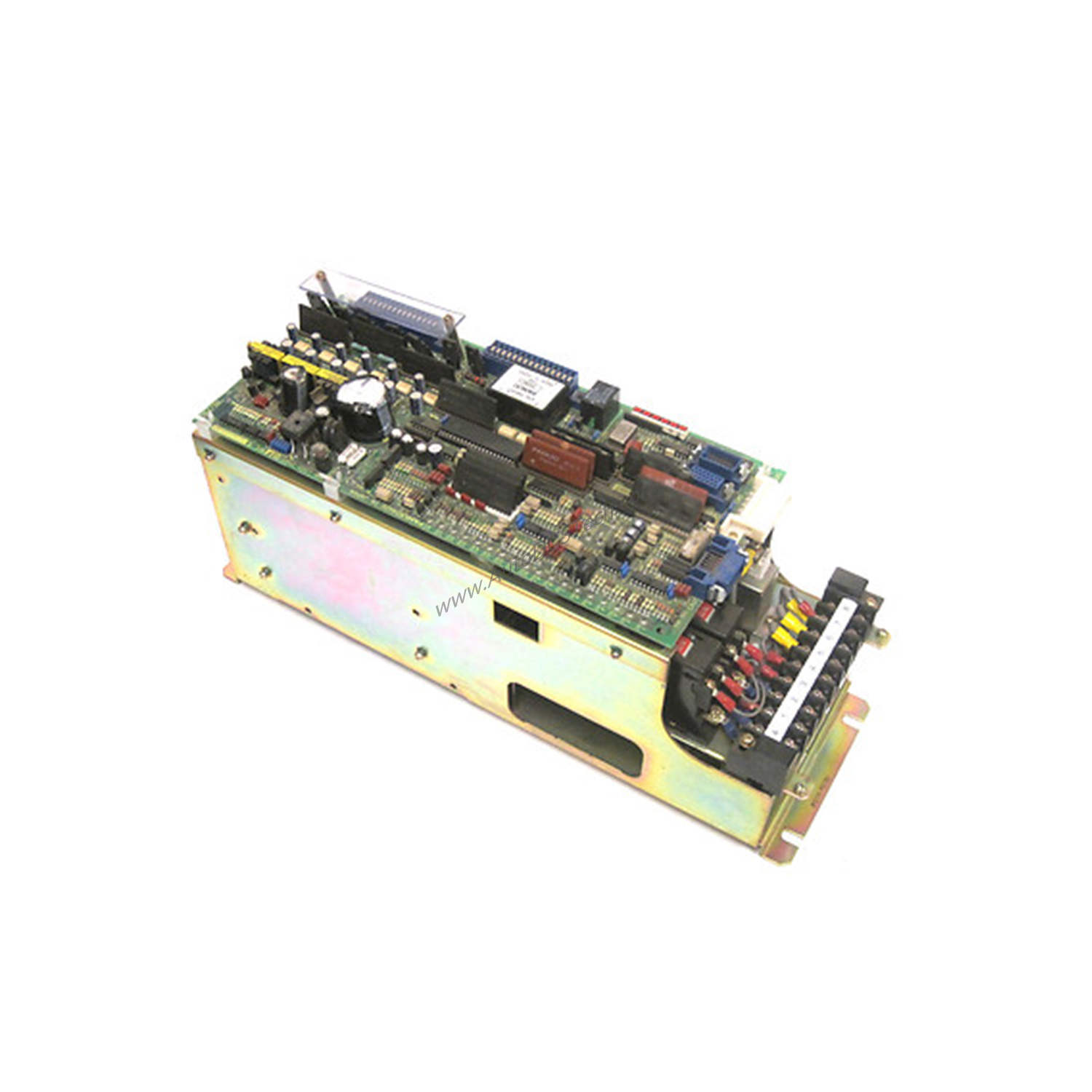

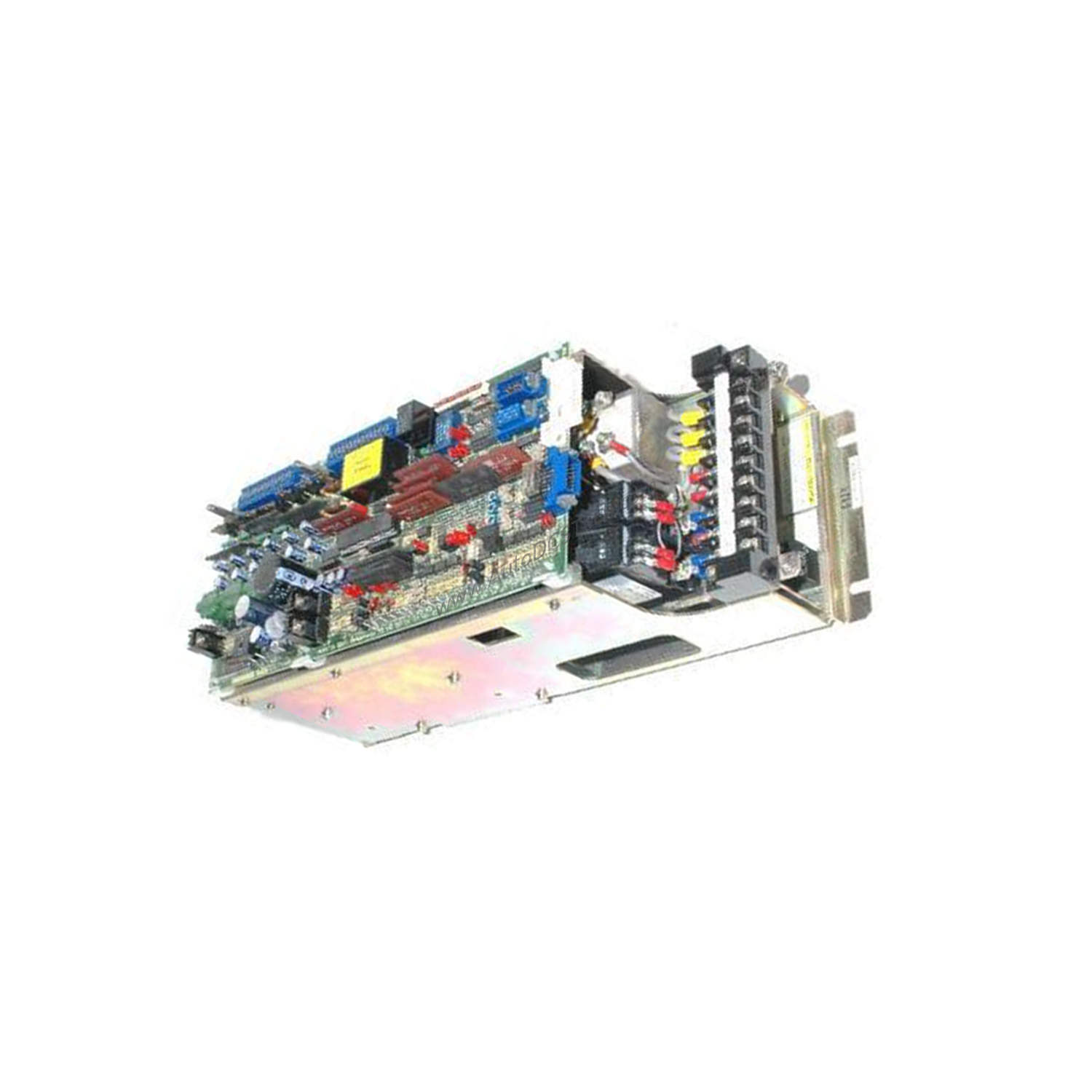

FANUC A06B-6050-H104 Compact Servo Drive Overview
When your CNC system demands precise and reliable motion control, the FANUC A06B-6050-H104 servo drive delivers consistent performance. This compact unit supports AC servo motors and is engineered for demanding industrial environments. It is part of the A06B product line and is classified as Type 20/30 Model Yes, ensuring compatibility with a wide range of existing systems.
Technical Specifications Breakdown
The A06B-6050-H104 operates reliably within an ambient temperature range of 0 to 40 degrees Celsius. This thermal tolerance makes it suitable for typical factory floor conditions without requiring special cooling. The drive can withstand maximum vibration of 5G, which helps maintain performance in machinery that generates significant mechanical shock. It is also rated for use at altitudes up to 1000 meters above sea level, covering most standard industrial locations. Weighing 19.00 lbs (8.62 kg), the unit is manageable for installation and integration into existing cabinets.
Industry Applications
This servo drive is specifically designed for CNC applications, where it provides accurate speed and position control for machining centers, lathes, and milling machines. By supporting AC servo motors, it enables smooth acceleration and deceleration, reducing cycle times and improving surface finish. The compact design also benefits applications with limited panel space, such as robotic cells or multi-axis transfer lines.
Installation & Setup Guidance
Mount the A06B-6050-H104 in a clean, dry location that stays within the 0 to 40 degrees Celsius operating range. Ensure adequate airflow around the drive to prevent heat buildup. Secure the unit using the provided mounting holes and follow standard wiring practices for AC servo drives. Verify that the input power matches the drive's requirements before connecting. After installation, perform a functional test to confirm proper communication with the CNC controller and servo motor.
Maintenance & Reliability
Regularly inspect the drive for dust accumulation and ensure the ambient temperature remains within the specified range. Check all electrical connections for tightness and signs of corrosion. The drive's 5G vibration tolerance reduces the risk of loosening under normal operating conditions, but periodic visual checks are still recommended. Keeping the drive within its altitude limit of 1000 meters helps maintain cooling efficiency and component longevity.
Compatibility & Integration
The A06B-6050-H104 is designed to work with FANUC CNC systems and supports a variety of AC servo motors. Its Type 20/30 Model Yes designation indicates compatibility with specific FANUC control architectures, simplifying integration into new or retrofit projects. For detailed compatibility with your existing system, consult the product documentation or contact SpareTechPLC.
Selection Guide & Purchasing Advice
Before purchasing the A06B-6050-H104, verify that your application requires a servo drive with the specifications listed above. Confirm that the operating environment stays within the 0 to 40 degrees Celsius temperature range and that the altitude does not exceed 1000 meters. Ensure your CNC controller supports this drive model. SpareTechPLC stocks this unit and can provide current availability and lifecycle status. Contact our team for assistance with your specific requirements.
Frequently Asked Questions
Q: What is the weight of the FANUC A06B-6050-H104 servo drive?
A: The drive weighs 19.00 lbs (8.62 kg).
Q: What is the operating temperature range for the A06B-6050-H104?
A: It operates from 0 to 40 degrees Celsius.
Q: Can this drive be used in high-vibration environments?
A: Yes, it has a maximum vibration tolerance of 5G.
Q: What is the maximum altitude for safe operation?
A: The drive is rated for altitudes up to 1000 meters above sea level.
Q: Is the A06B-6050-H104 compatible with CNC systems?
A: Yes, it supports CNC applications and AC servo motors.
