Product Overview

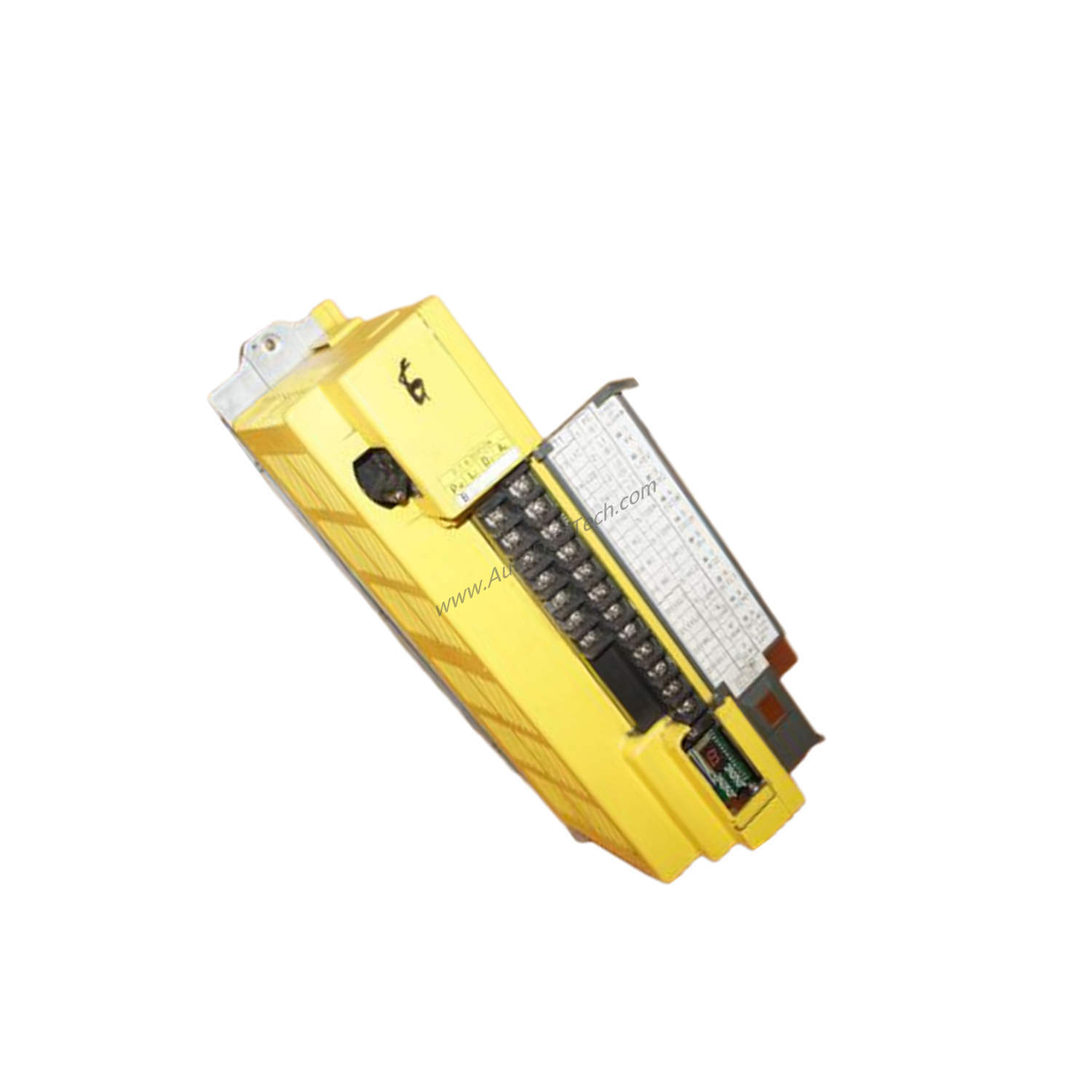

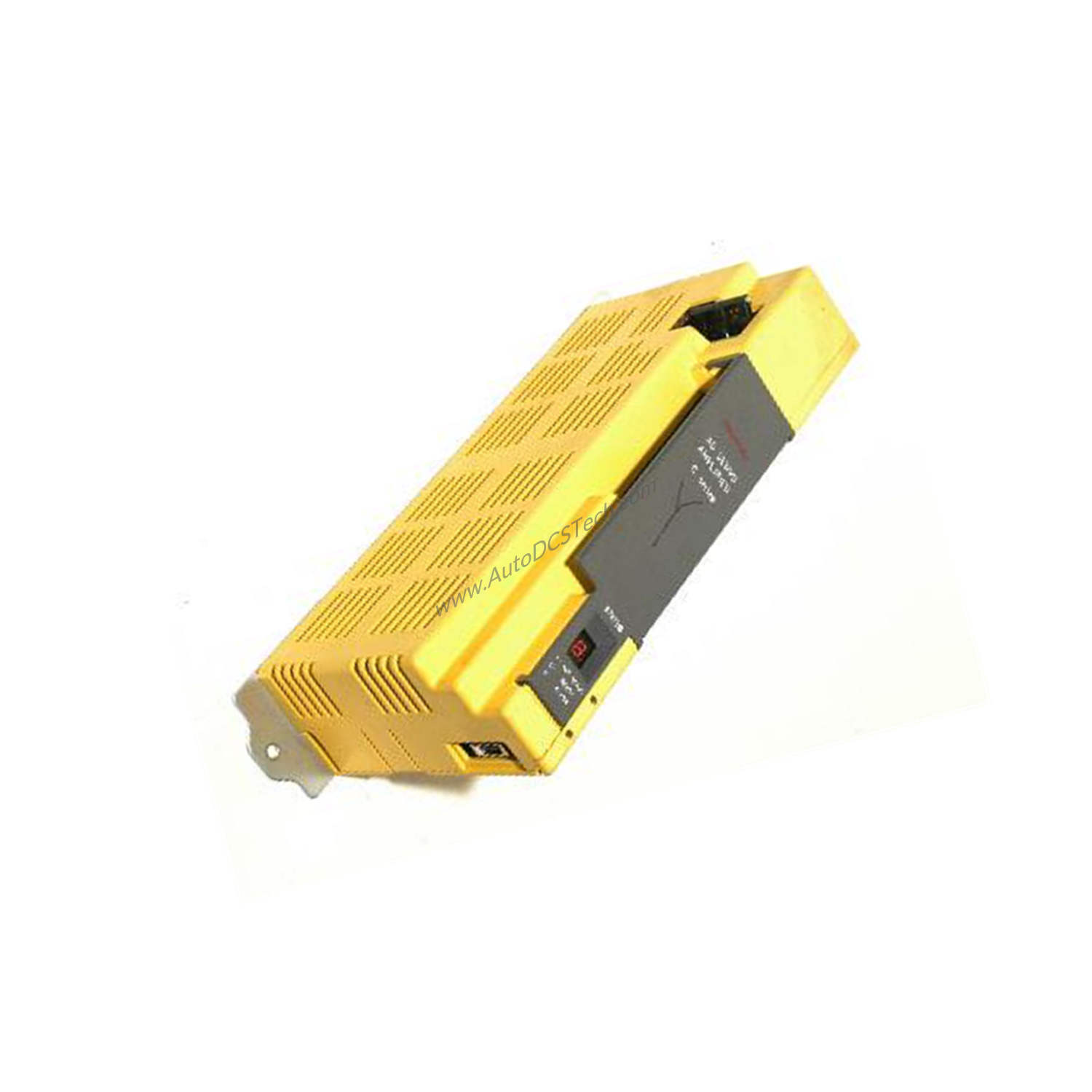

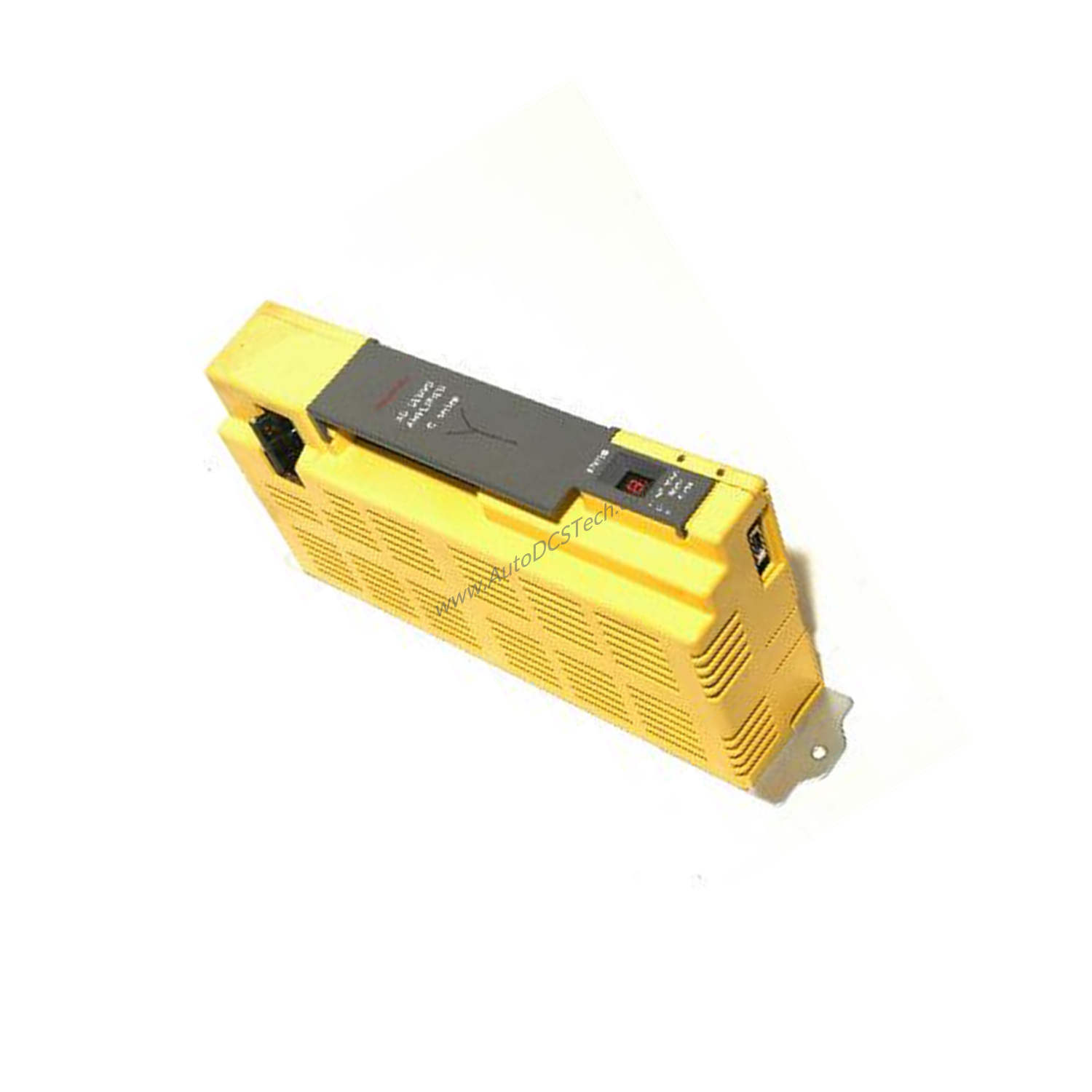

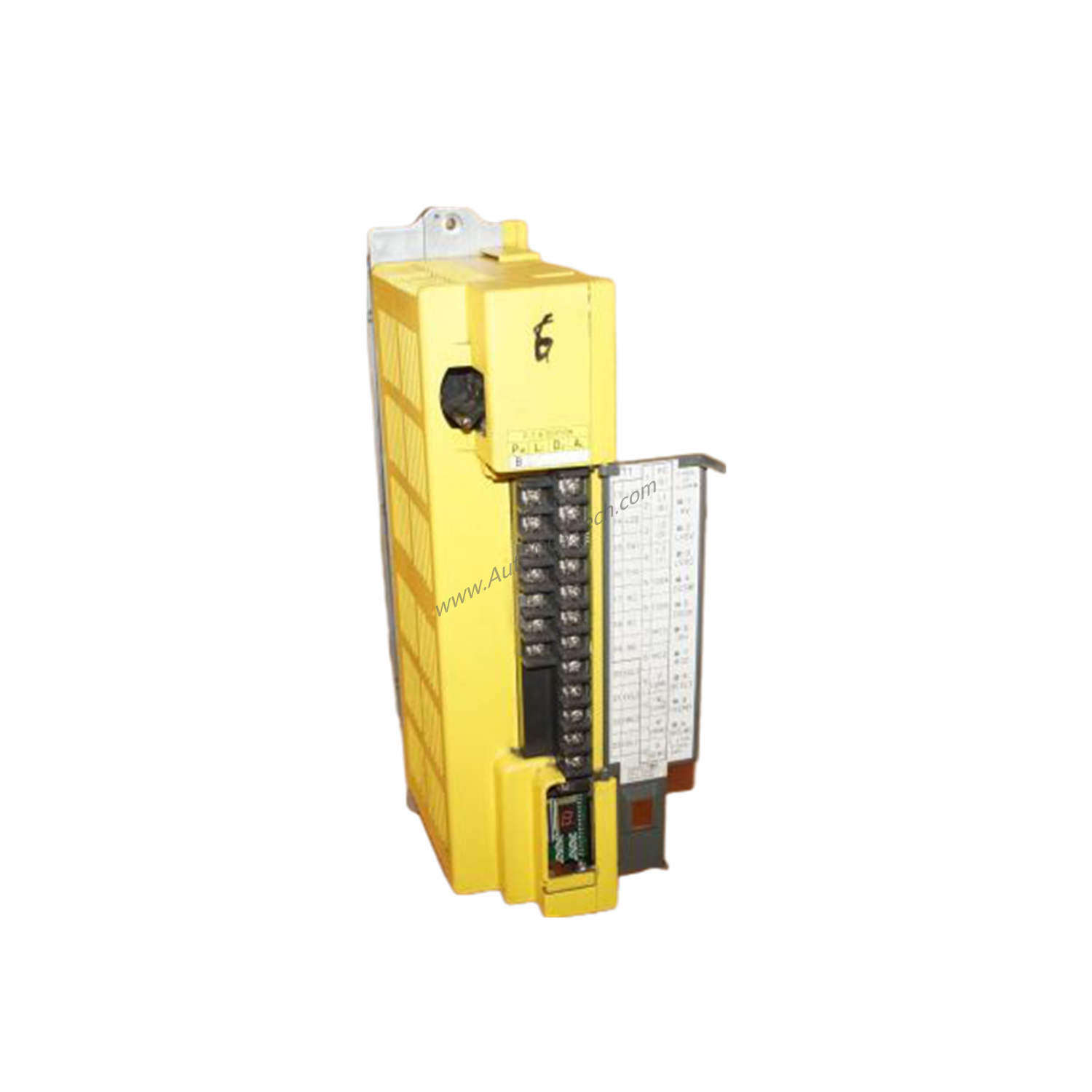

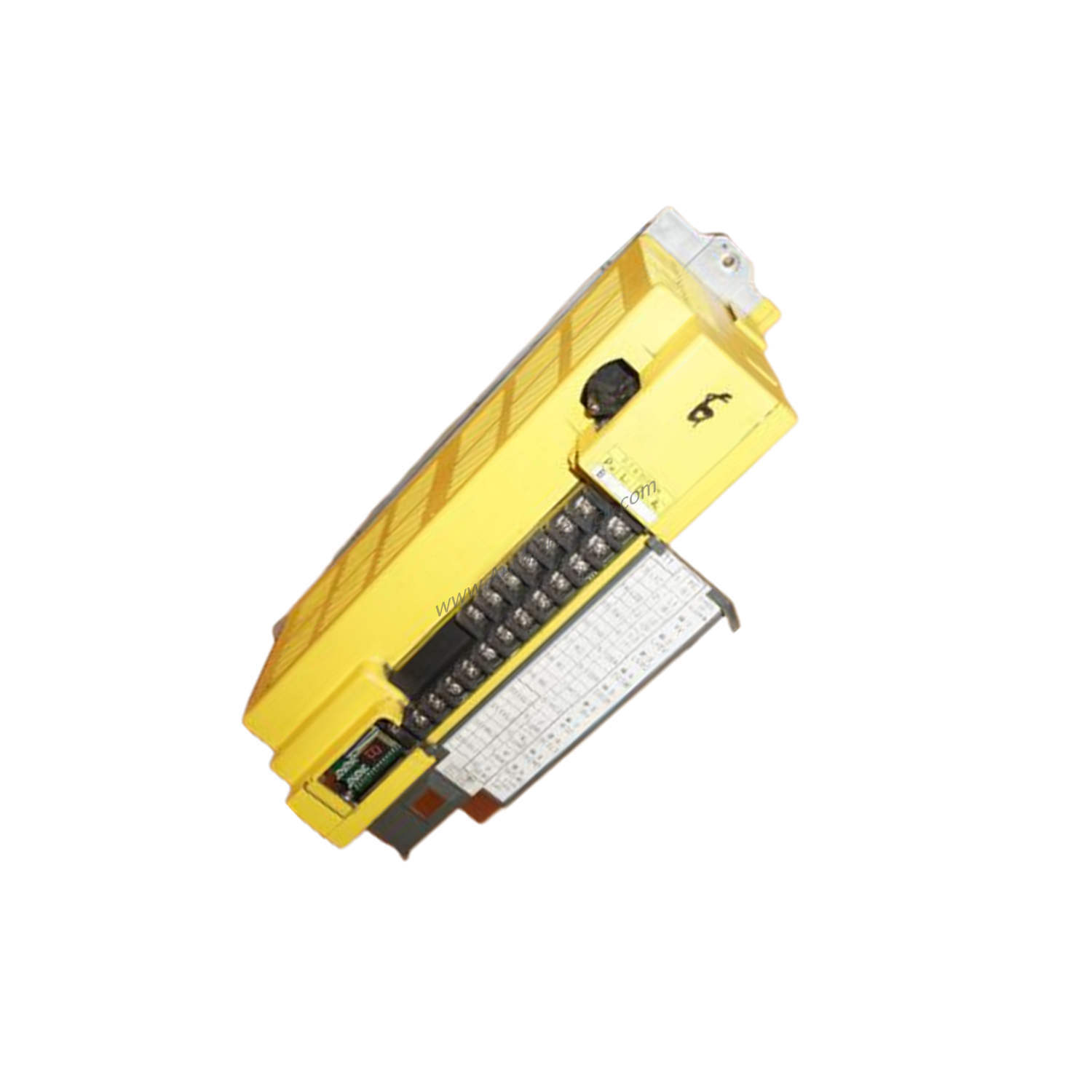

When your CNC system demands precise motion control, the FANUC A06B-6066-H246 AC Servo Amplifier delivers reliable performance. This dual-axis drive from the A06B series handles position, speed, and torque control, making it a versatile choice for automated machining operations. With an input voltage range of 200/220/230 VAC ±10%/-15% and single-phase power supply, it integrates easily into existing industrial setups.
Technical Specifications Breakdown
- Axis Configuration: The A06B-6066-H246 supports two axes of control, enabling efficient drive management for multi-axis CNC machines.
- Input Voltage: Rated for 200/220/230 VAC ±10%/-15%, it accommodates common industrial power variations without additional transformers.
- Control Type: Offers position, speed, and torque control modes, providing flexibility for different machining tasks.
- Protection Features: Built-in overload, overcurrent, and overvoltage protection safeguard the amplifier and connected equipment from electrical faults.
- Cooling and Mounting: Air-cooled design with vertical or wall-mounting options simplifies installation in space-constrained cabinets.
Industry Applications
This servo amplifier excels in CNC milling, turning, and grinding applications where precise axis synchronization is critical. For example, in a multi-axis milling center, the dual-axis capability allows simultaneous control of two axes, reducing cycle times and improving surface finish. The robust protection features also make it suitable for high-duty-cycle operations, minimizing unplanned downtime.
Installation & Setup Guidance
Mount the A06B-6066-H246 vertically or on a wall using the provided brackets, ensuring adequate airflow for the air-cooled system. Connect the single-phase power supply within the 200/220/230 VAC range and verify frequency matches 50/60 Hz. For optimal performance, use shielded cables for encoder and motor connections to reduce electromagnetic interference.
Maintenance & Reliability
Regularly inspect the amplifier for dust accumulation on cooling fins and ensure ambient temperature stays between 0°C and 55°C. The overload and overvoltage protection circuits reduce wear from electrical stress, extending service life. Periodic checks of terminal connections and cooling fan operation help maintain reliability in continuous-use environments.
Buying Guide
Before purchasing, confirm your CNC system's axis count and control requirements. The A06B-6066-H246 is a dual-axis unit, ideal for systems needing two synchronized axes. SpareTechPLC stocks this model and can verify compatibility with your existing FANUC controller. Contact our team for current availability and pricing.
Frequently Asked Questions
Q: What is the weight of the A06B-6066-H246?
A: The unit weighs 15.00 lbs (6.80 kg), making it manageable for single-person installation.
Q: Can this amplifier be used with a three-phase power supply?
A: No, the A06B-6066-H246 requires a single-phase power supply as specified in its technical data.
Q: What protection features does it include?
A: It includes overload, overcurrent, and overvoltage protection to prevent damage from electrical faults.
Q: What is the operating temperature range?
A: The amplifier operates reliably from 0°C to 55°C, suitable for most industrial environments.
Q: Is this model compatible with older FANUC CNC controllers?
A: It is designed for CNC systems; please verify compatibility with your specific controller model before ordering.
