Product Overview

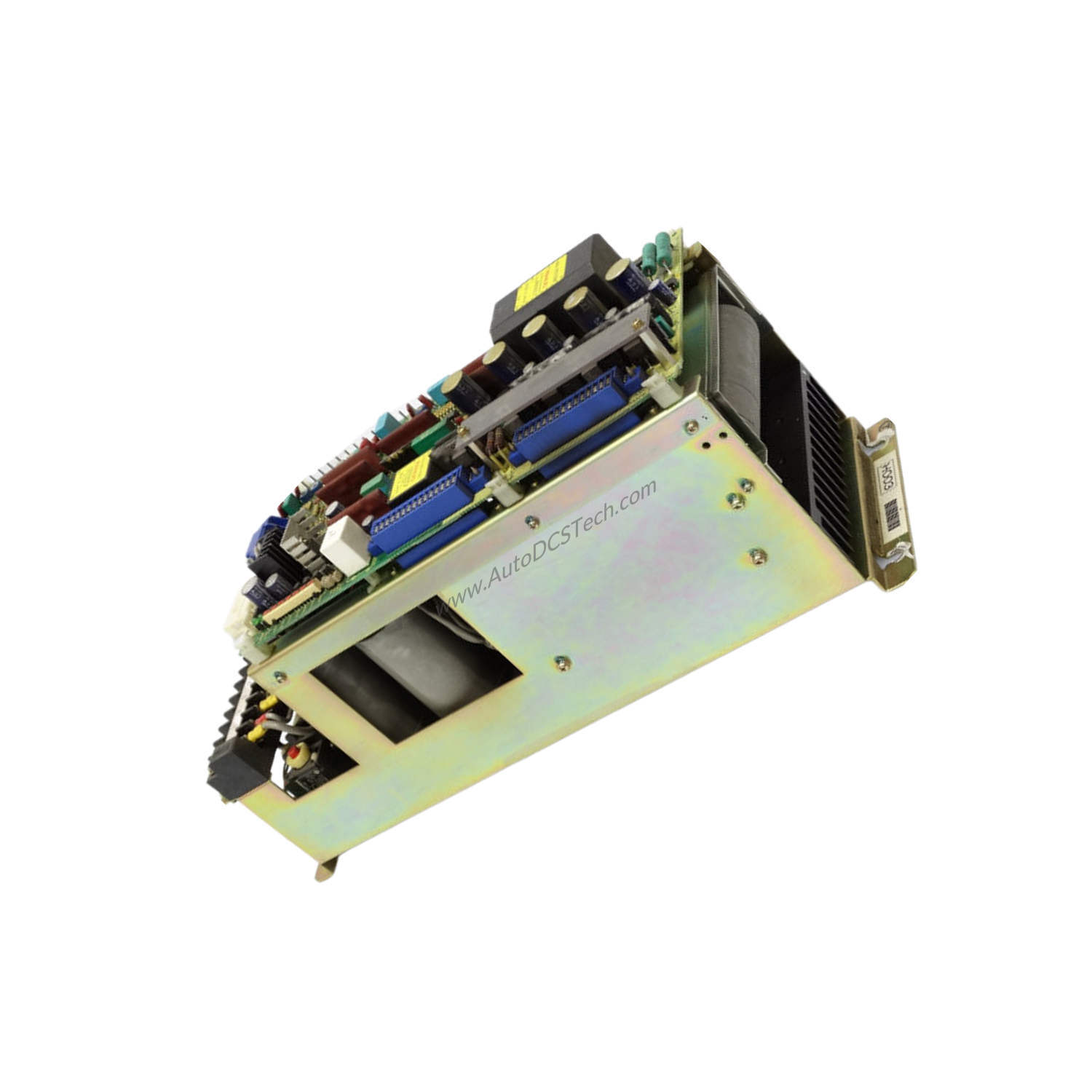

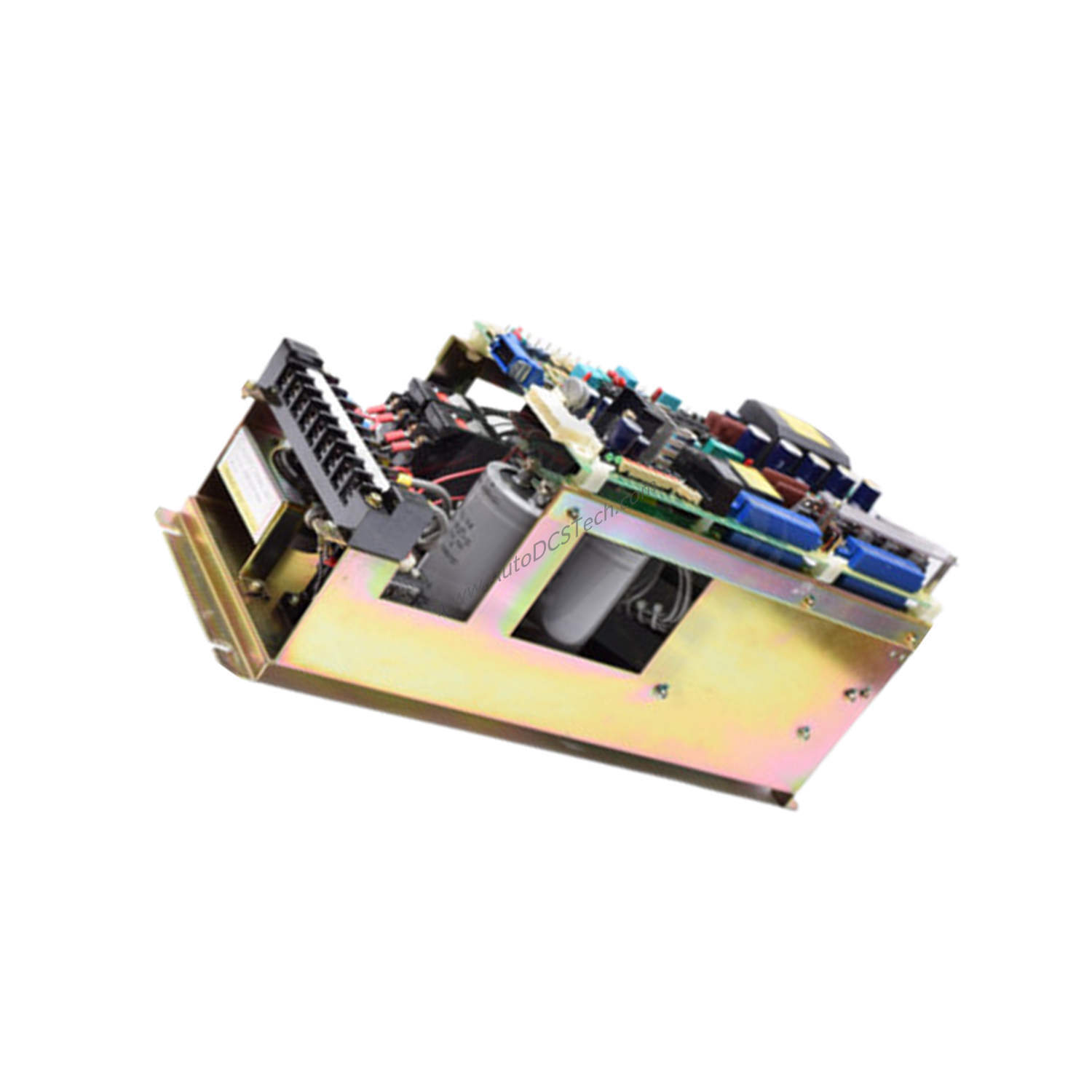

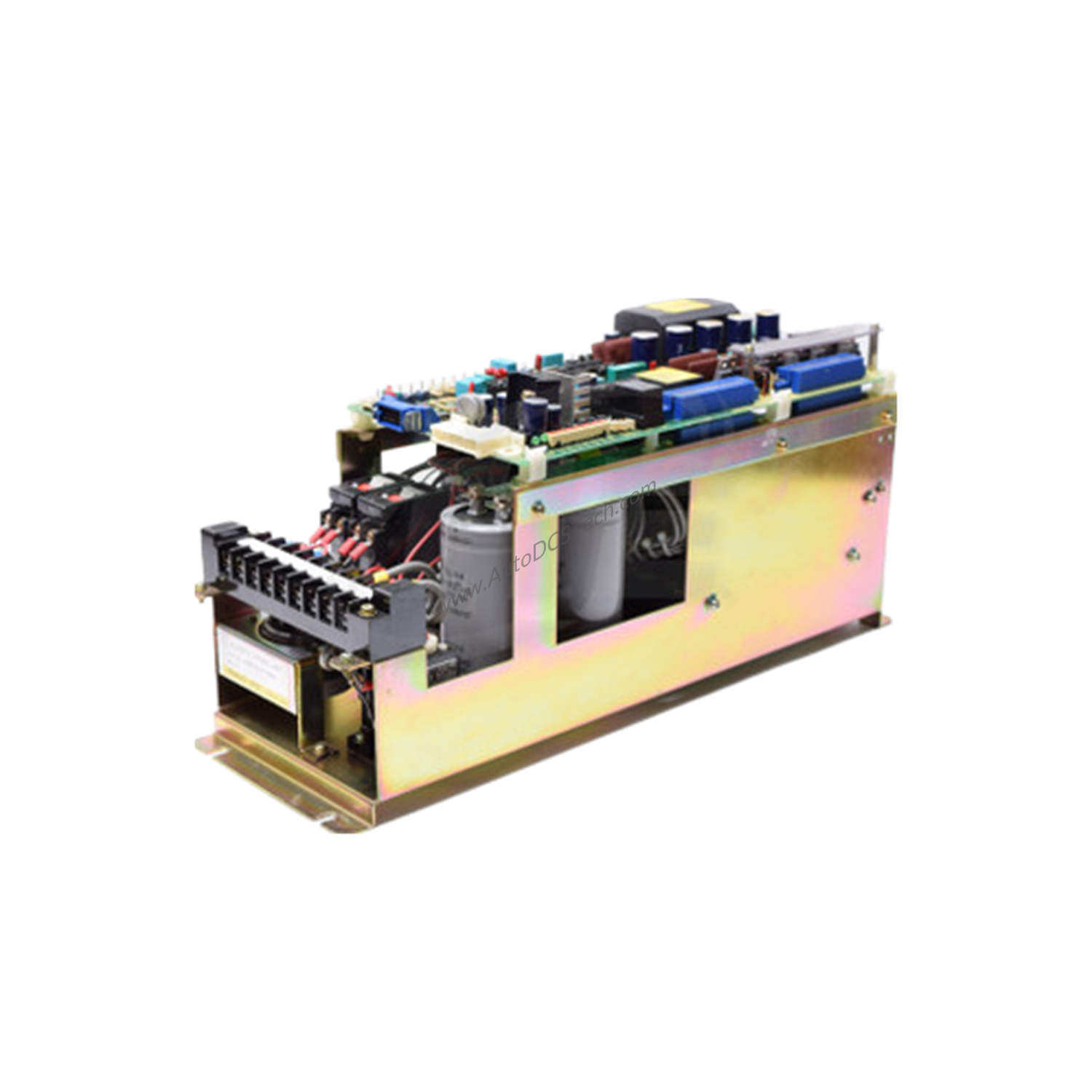

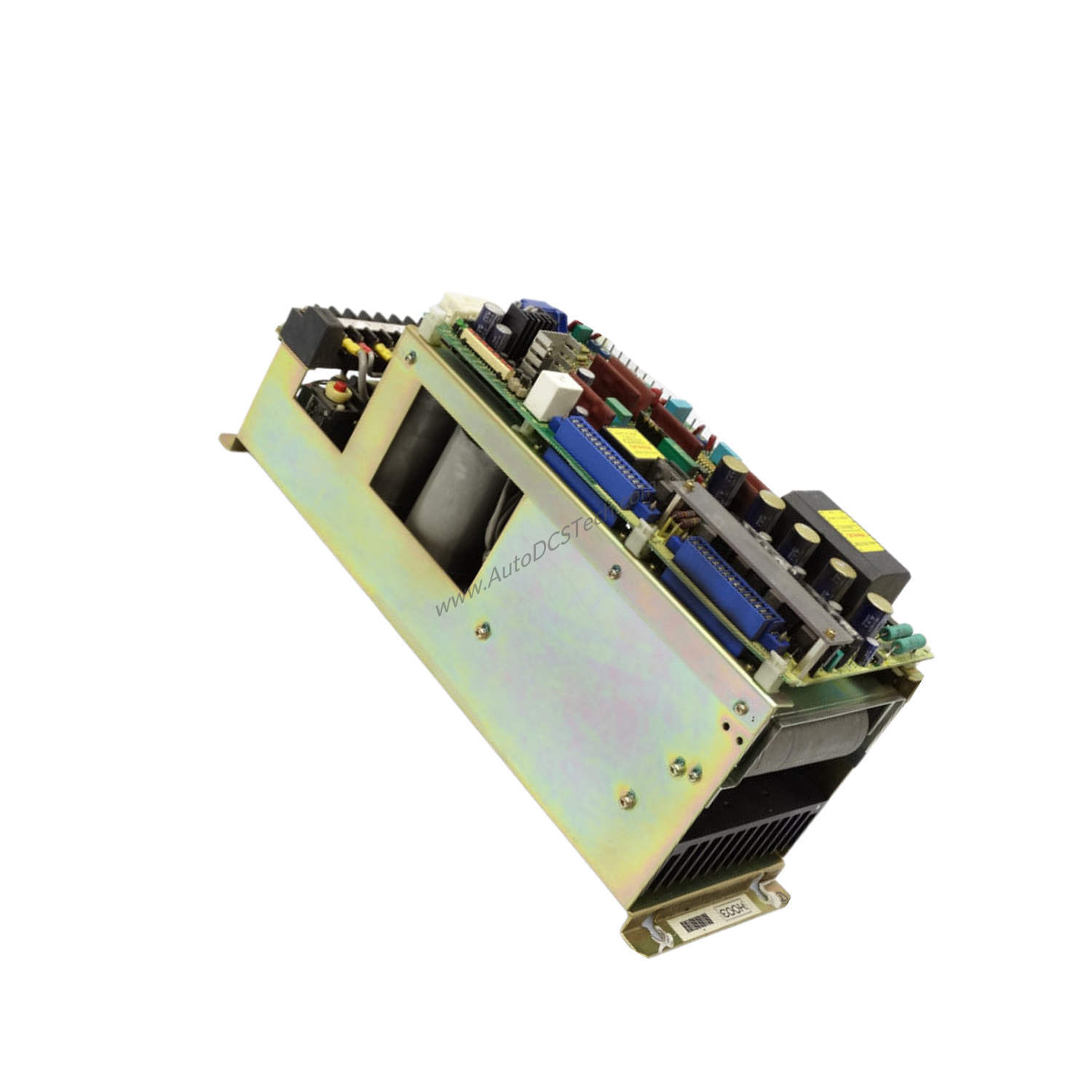

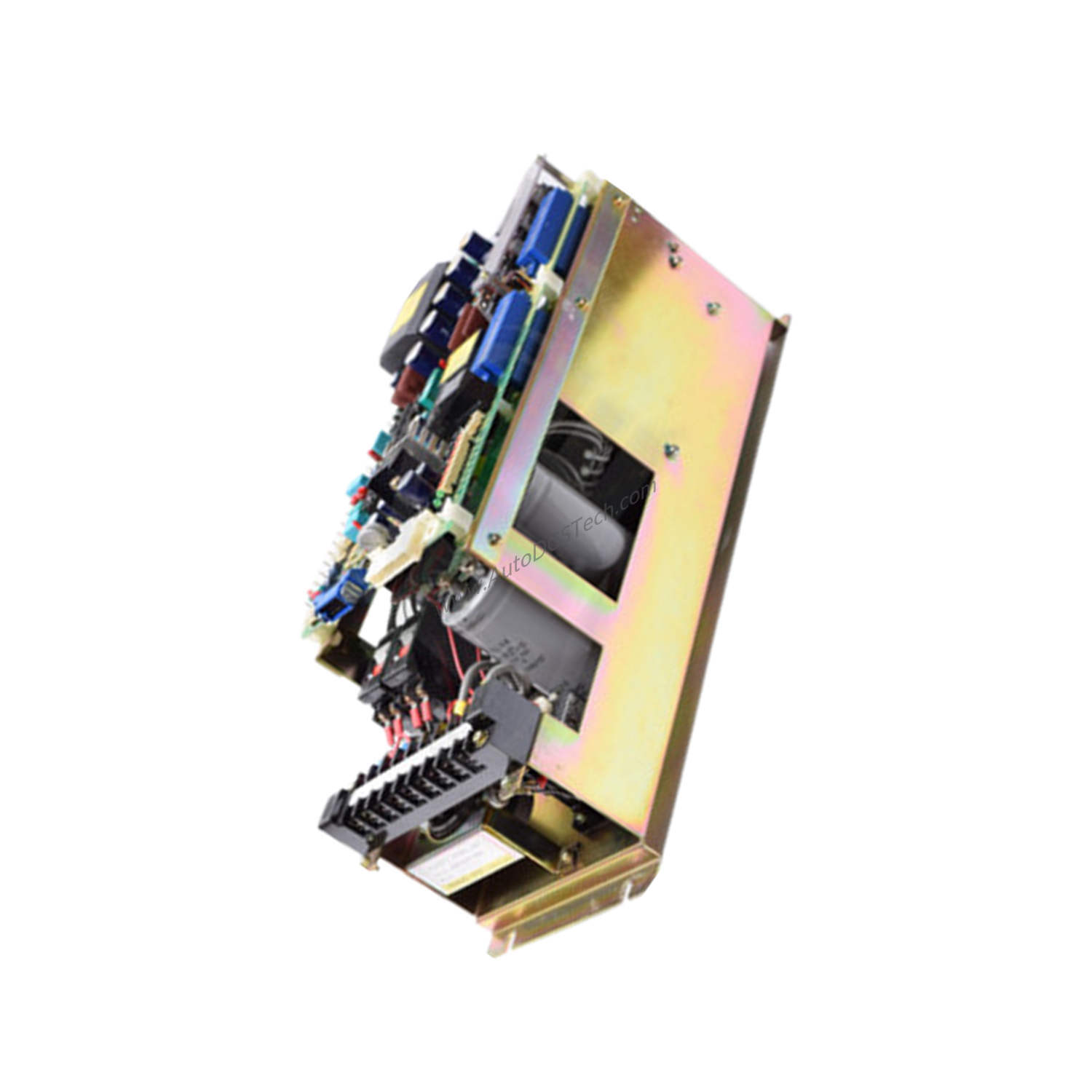

When CNC applications demand precise motion control and reliable operation, the FANUC A06B-6047-H040 Servo Axis Drive delivers. This versatile drive handles velocity and acceleration control, real-time feedback, and plug-and-play setup. It supports DC 10 and DC 20 servo amplifier options, offering flexibility for diverse automation tasks. With a robust design that withstands up to 5G vibration and operates from 0 to 40 degrees Celsius, this drive ensures consistent performance in challenging environments.
Technical Specifications
Key specifications from the manufacturer include:
- Weight: 19.00 lbs (8.62 kg) – manageable for installation and replacement.
- Operating Temperature: 0 to 40 degrees Celsius – suitable for typical industrial settings.
- Maximum Vibration: 5G – maintains stability under dynamic conditions.
- Maximum Altitude: 1000 meters above sea level – adaptable to various facility locations.
- Supported Features: Velocity control, acceleration control, real-time feedback, and plug-and-play option.
These parameters directly impact cost efficiency. For example, the wide temperature range reduces the need for additional cooling, saving energy and maintenance expenses. The 5G vibration tolerance minimizes downtime from mechanical shocks, lowering total cost of ownership.
Industry Applications
In CNC machining centers, the A06B-6047-H040 provides precise axis control for milling, turning, and drilling operations. Its real-time feedback enables accurate positioning, reducing scrap and rework costs. For robotic transfer lines, the drive's acceleration control optimizes cycle times, boosting throughput without sacrificing reliability. The plug-and-play option simplifies integration, cutting installation labor costs.
Installation & Setup Guidance
Before mounting, verify the operating environment stays within 0 to 40 degrees Celsius and below 1000 meters altitude. Secure the drive to a flat, vibration-damped surface. Use the plug-and-play feature to connect to compatible CNC controllers and servo amplifiers. Confirm the DC 10 or DC 20 amplifier option matches your system configuration. Always follow manufacturer guidelines for wiring and grounding to ensure safe operation.
Maintenance & Reliability
Regular inspection of the A06B-6047-H040 extends its service life. Check for dust accumulation on cooling surfaces and ensure ambient temperature remains within the specified range. The 5G vibration rating means the drive can handle typical industrial shocks, but periodic tightening of mounting bolts prevents loosening. By maintaining these conditions, you avoid unscheduled downtime and reduce long-term repair costs.
Compatibility & Integration
This drive works with FANUC CNC systems that support DC 10 or DC 20 servo amplifier options. It integrates seamlessly with controllers that accept real-time feedback signals. The plug-and-play feature simplifies connection to existing networks. For specific compatibility details, consult your system documentation or contact SpareTechPLC support.
Buying Guide
When ordering the FANUC A06B-6047-H040, confirm your CNC system's amplifier option (DC 10 or DC 20). Verify the operating environment meets the temperature and altitude limits. SpareTechPLC stocks this model and can advise on availability and lifecycle status. Contact us for current pricing and lead times.
Frequently Asked Questions
Q: What is the weight of the A06B-6047-H040?
A: It weighs 19.00 lbs (8.62 kg), making it manageable for one-person installation.
Q: What temperature range does this drive support?
A: It operates from 0 to 40 degrees Celsius, suitable for most industrial environments.
Q: Can this drive handle high vibration environments?
A: Yes, it withstands up to 5G vibration, ensuring reliable performance under dynamic conditions.
Q: What amplifier options are compatible?
A: It supports both DC 10 and DC 20 servo amplifier options for flexible system design.
Q: Does it offer real-time feedback?
A: Yes, real-time feedback is supported for accurate motion monitoring and control.
