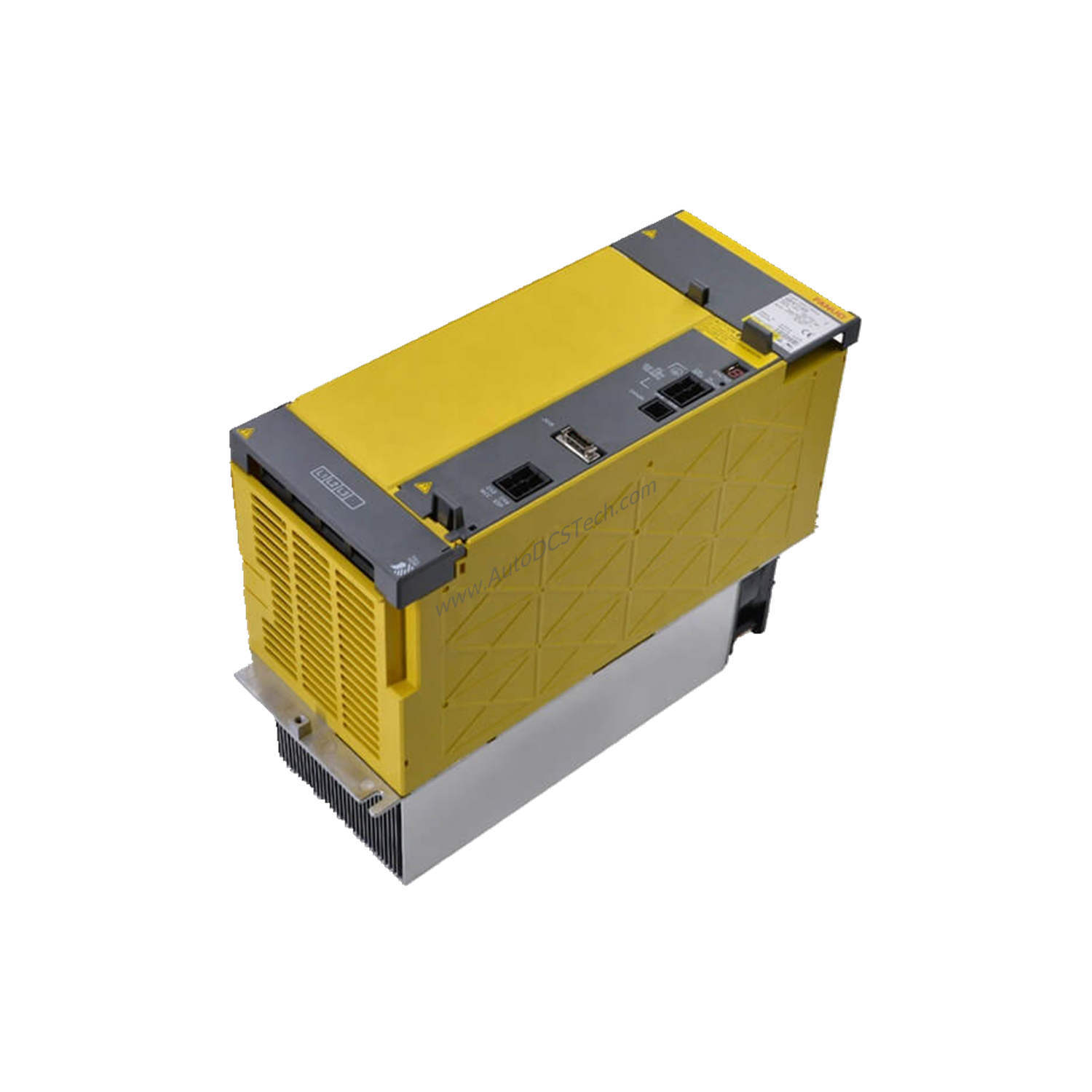

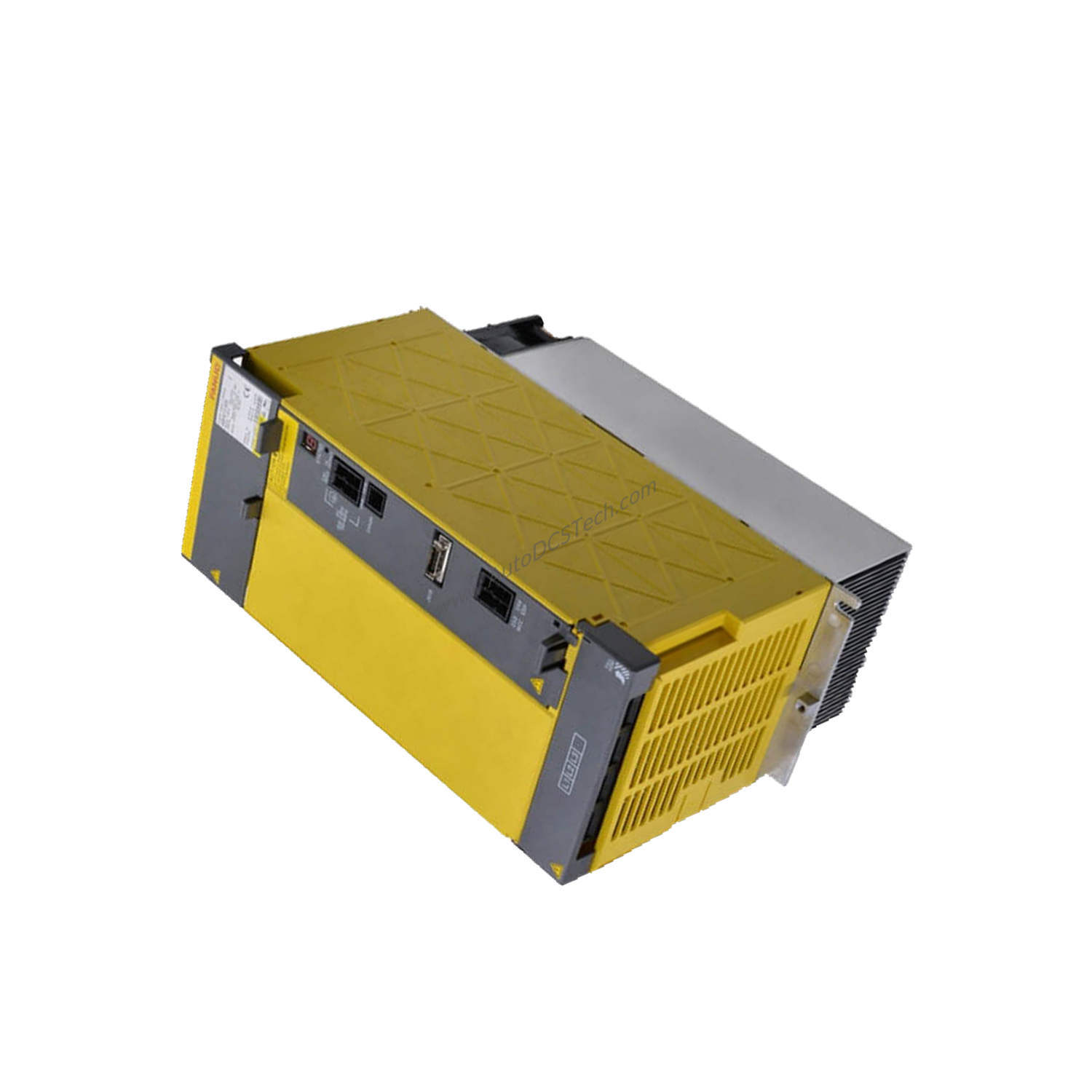

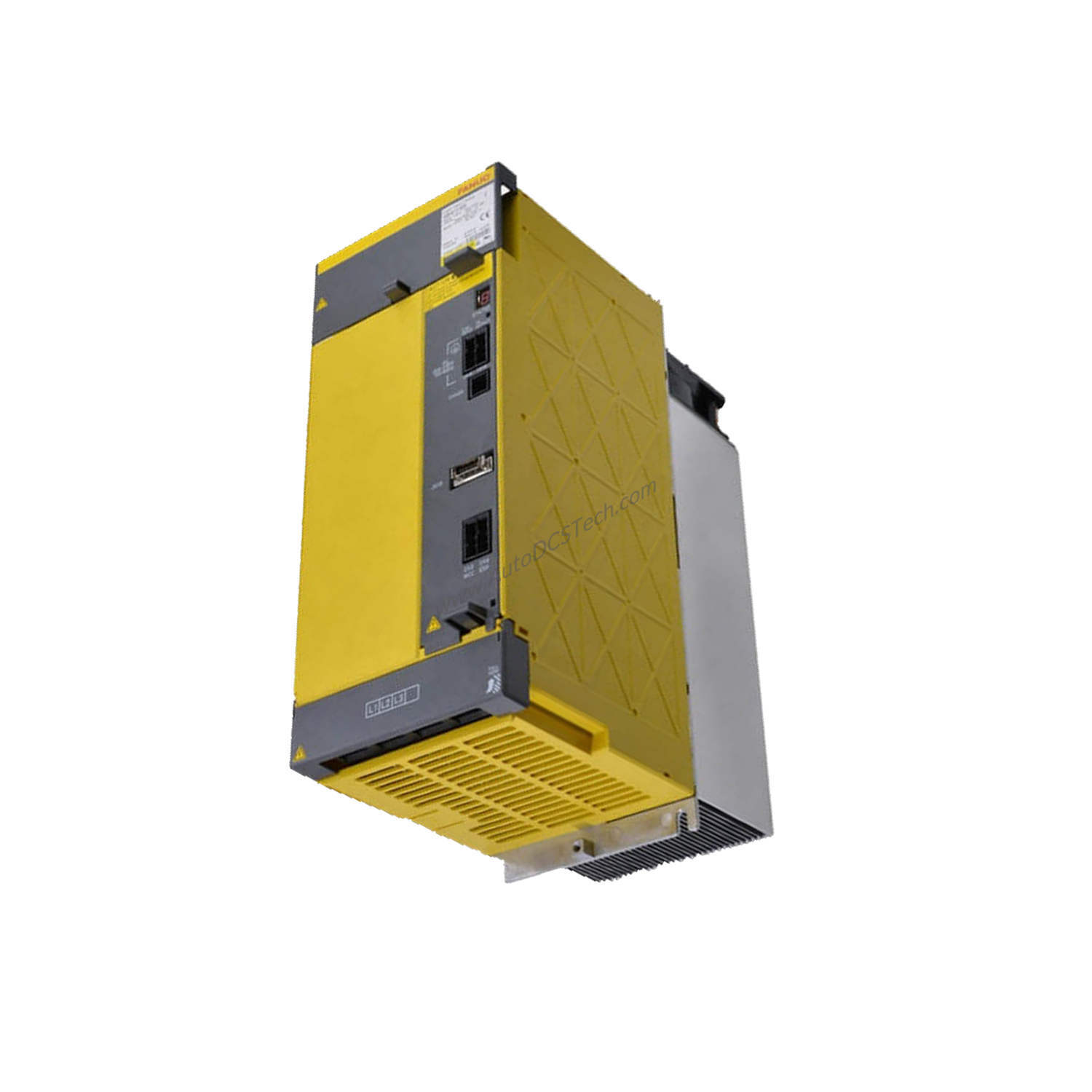

Product Overview
When your CNC equipment demands consistent and robust power, the FANUC A06B-6110-H011 power supply delivers reliable performance. This unit operates on a 3-phase AC input, converting 200-240V AC into a stable output voltage ranging from 283 to 339 volts. Designed specifically for industrial automation, it supports a wide range of CNC applications, ensuring your machinery runs smoothly.
Technical Specifications Breakdown
The A06B-6110-H011 offers key specifications that matter for demanding environments:
- Input Voltage Type: 3-Phase AC Voltage, accepting 200-240V AC input.
- Output Voltage: 283-339V, providing consistent power for CNC systems.
- Output Power: 13.2 kW, sufficient for heavy-duty operations.
- Current: 49 Amps at 200V, ensuring efficient power delivery.
- Operating Temperature: 0 to 40 degrees Celsius, suitable for typical industrial floors.
- Maximum Vibration: 5G, maintaining stability under mechanical stress.
- Maximum Altitude: 1000 meters above sea level, allowing installation in elevated locations.
- Frequency: 50/60 Hz, compatible with global power grids.
These parameters make the A06B-6110-H011 a reliable choice for CNC machinery where power consistency is critical.
Industry Applications
This power supply excels in CNC machining centers, lathes, and milling machines. For example, in a high-precision milling operation, the stable 283-339V output ensures spindle motors and servo drives receive clean power, reducing downtime and improving part quality. Its 5G vibration tolerance means it can handle the mechanical shocks common in heavy cutting operations.
Installation & Setup Guidance
When installing the A06B-6110-H011, ensure the 3-phase AC input voltage matches your facility's supply (200-240V AC). Mount the unit in a location with adequate airflow to maintain operating temperatures within 0 to 40 degrees Celsius. Verify that the altitude does not exceed 1000 meters. Use proper cable gauges rated for 49 Amps at 200V to minimize voltage drop. Always follow local electrical codes and the manufacturer's wiring diagram.
Maintenance & Reliability
To maximize service life, inspect the power supply periodically for dust buildup on cooling fins and ensure ambient temperature stays below 40 degrees Celsius. The unit's 5G vibration rating indicates robust construction, but check mounting bolts for tightness during routine maintenance. Given its 13.2 kW output, verify that connected loads do not exceed the rated current of 49 Amps at 200V to prevent thermal stress.
Selection Guide & Purchasing Advice
Before ordering the A06B-6110-H011, confirm your system requires a 3-phase AC input power supply with 200-240V AC input and 283-339V output. This unit is ideal for CNC applications, but verify compatibility with your specific FANUC controller model. SpareTechPLC offers this power supply with fast shipping and expert support. Contact us to check current availability and lifecycle status.
Frequently Asked Questions
Q: What is the input voltage range for the A06B-6110-H011?
A: The input voltage is 200-240V AC, 3-phase.
Q: What output voltage does this power supply provide?
A: It delivers an output voltage of 283-339V.
Q: Can this unit operate in high-temperature environments?
A: Yes, it operates within 0 to 40 degrees Celsius.
Q: What is the maximum altitude for installation?
A: The maximum altitude is 1000 meters above sea level.
Q: Is the A06B-6110-H011 suitable for CNC applications?
A: Yes, it is specifically designed to support CNC applications.
