Product Overview

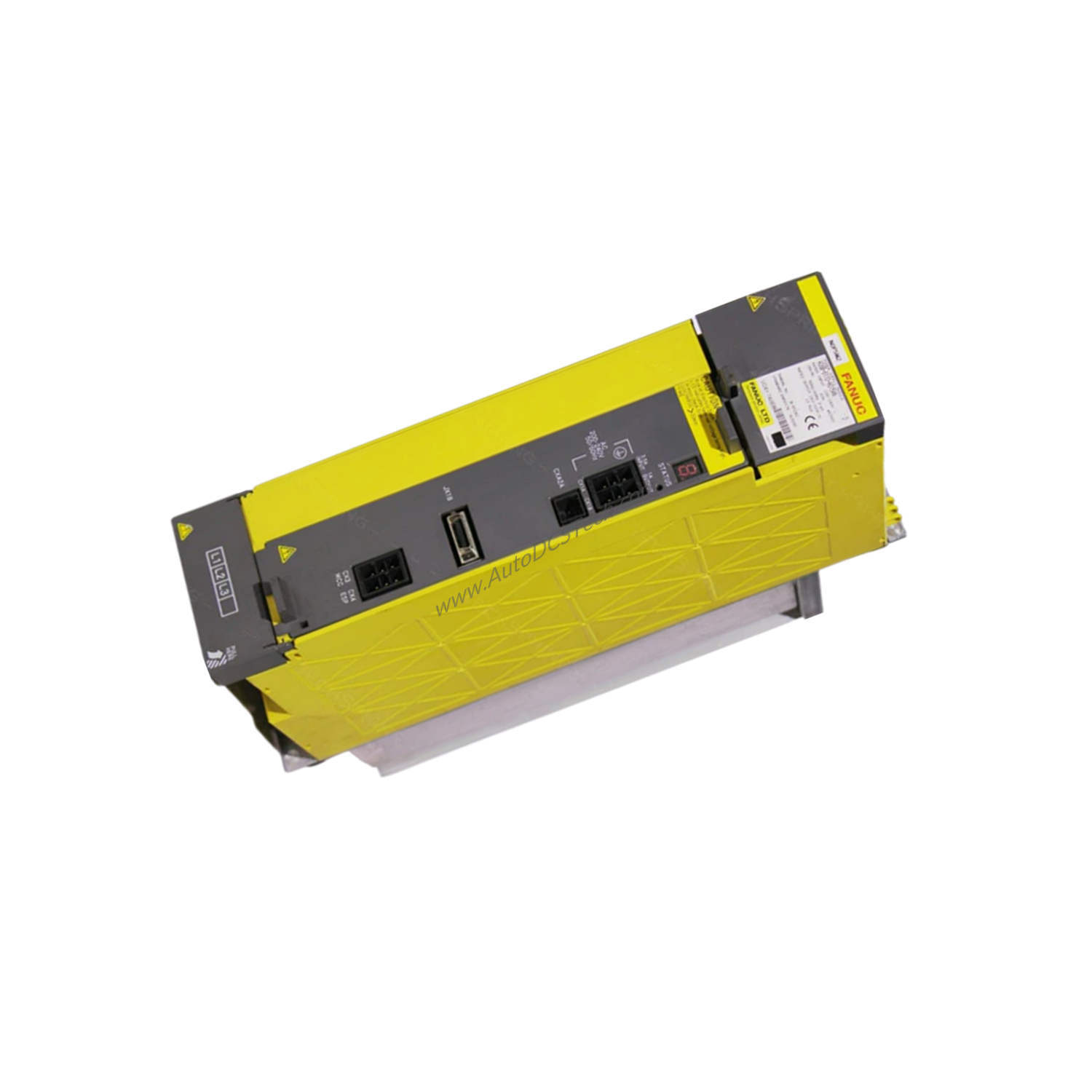

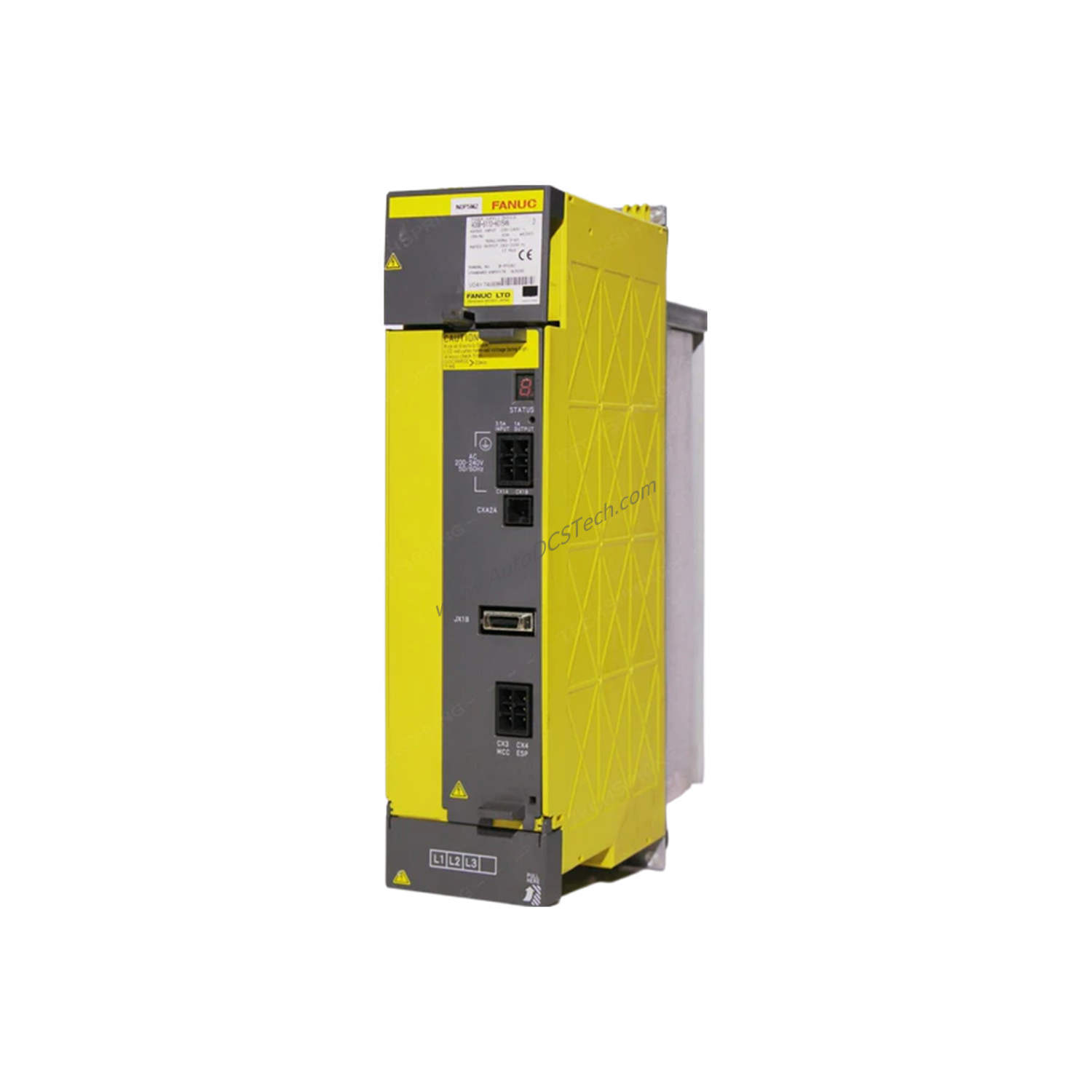

When CNC machinery demands stable and robust power, the FANUC A06B-6110-H015 Power Supply Module delivers consistent energy for critical operations. This module accepts 200-240V AC three-phase input and converts it to a 283-339V DC output, ensuring your equipment runs smoothly. With a power rating of 17.5 kW and current capacity of 63 Amps at 200V, it handles heavy loads typical in industrial environments.
Technical Specifications Breakdown
The A06B-6110-H015 operates on 50/60 Hz frequency and supports three-phase AC input, making it compatible with standard industrial power grids. Its output voltage range of 283-339V DC provides flexibility for various CNC drives and controllers. The module weighs 12.00 lbs (5.44 kg), allowing straightforward installation in control cabinets. It functions reliably in temperatures from 0 to 40 degrees Celsius and withstands vibration up to 5G, ensuring durability in demanding shop floors.
Industry Applications
This power supply module excels in CNC machining centers, lathes, and milling machines where consistent DC power is essential for servo drives and spindle motors. For example, in a high-speed milling operation, the A06B-6110-H015 maintains stable voltage even during rapid acceleration and deceleration cycles, reducing downtime and improving part quality. Its ability to operate at altitudes up to 1000 meters above sea level expands its use in facilities located in elevated regions.
Installation & Setup Guidance
Mount the A06B-6110-H015 securely in a well-ventilated cabinet to ensure proper cooling. Connect the three-phase AC input (200-240V) using appropriately rated wiring and fusing. Verify the output DC voltage (283-339V) with a multimeter before connecting to downstream equipment. Ensure ambient temperature stays within 0 to 40 degrees Celsius and avoid exposure to excessive vibration beyond 5G.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on cooling fins and fans, as this can reduce thermal performance. Check all electrical connections for tightness and signs of corrosion. Operating within the specified temperature and vibration limits extends the service life of the A06B-6110-H015. For critical applications, consider a spare unit to minimize downtime.
Selection Guide & Purchasing Advice
Before ordering, verify that your system requires a 17.5 kW power supply with 63 Amp output at 200V. Confirm input voltage type (three-phase AC, 200-240V) and output voltage range (283-339V DC). The A06B-6110-H015 is part of the FANUC A06B series, designed for CNC applications. For current availability and lifecycle status, contact SpareTechPLC. We offer competitive pricing and fast shipping for industrial automation parts.
Frequently Asked Questions
Q1: What is the input voltage requirement for the A06B-6110-H015?
A: The module requires three-phase AC input voltage between 200 and 240 volts.
Q2: What output voltage does this power supply provide?
A: It outputs a DC voltage range of 283 to 339 volts DC.
Q3: What is the power rating of the A06B-6110-H015?
A: The module has a power rating of 17.5 kW.
Q4: Can this module operate in high-vibration environments?
A: Yes, it withstands maximum vibration of 5G.
Q5: What is the weight of the A06B-6110-H015?
A: It weighs 12.00 lbs (5.44 kg).
