Problem: Unstable DC Power in Critical Monitoring Systems
Industrial monitoring systems demand a clean, uninterrupted DC power supply. Voltage spikes or brownouts can corrupt data, trigger false alarms, or damage sensitive electronics. The Bently Nevada 129478-01 Legacy High Voltage DC Power Input Module directly addresses these challenges by providing a robust power interface designed for the 3500 series rack.
Solution: The Bently Nevada 129478-01

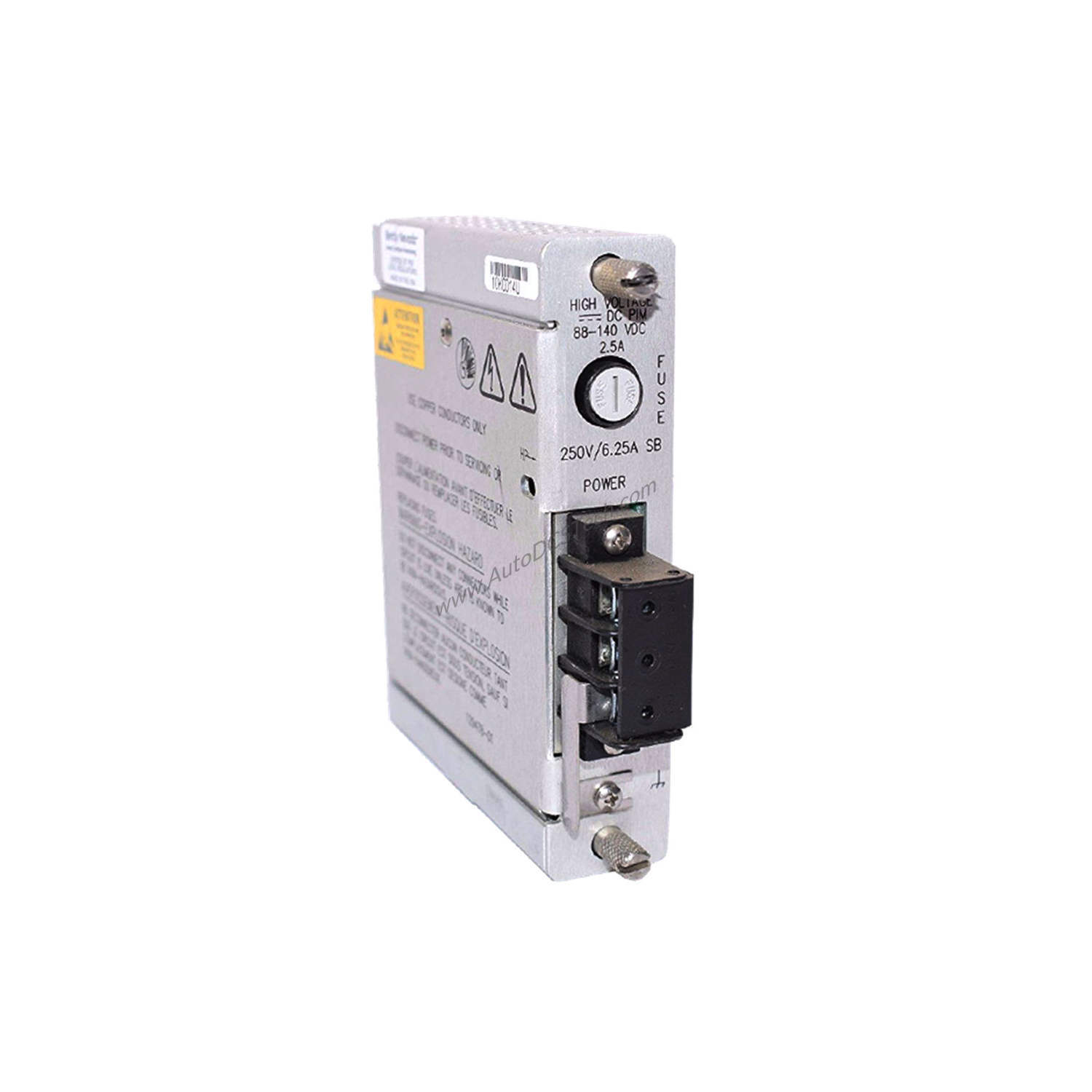

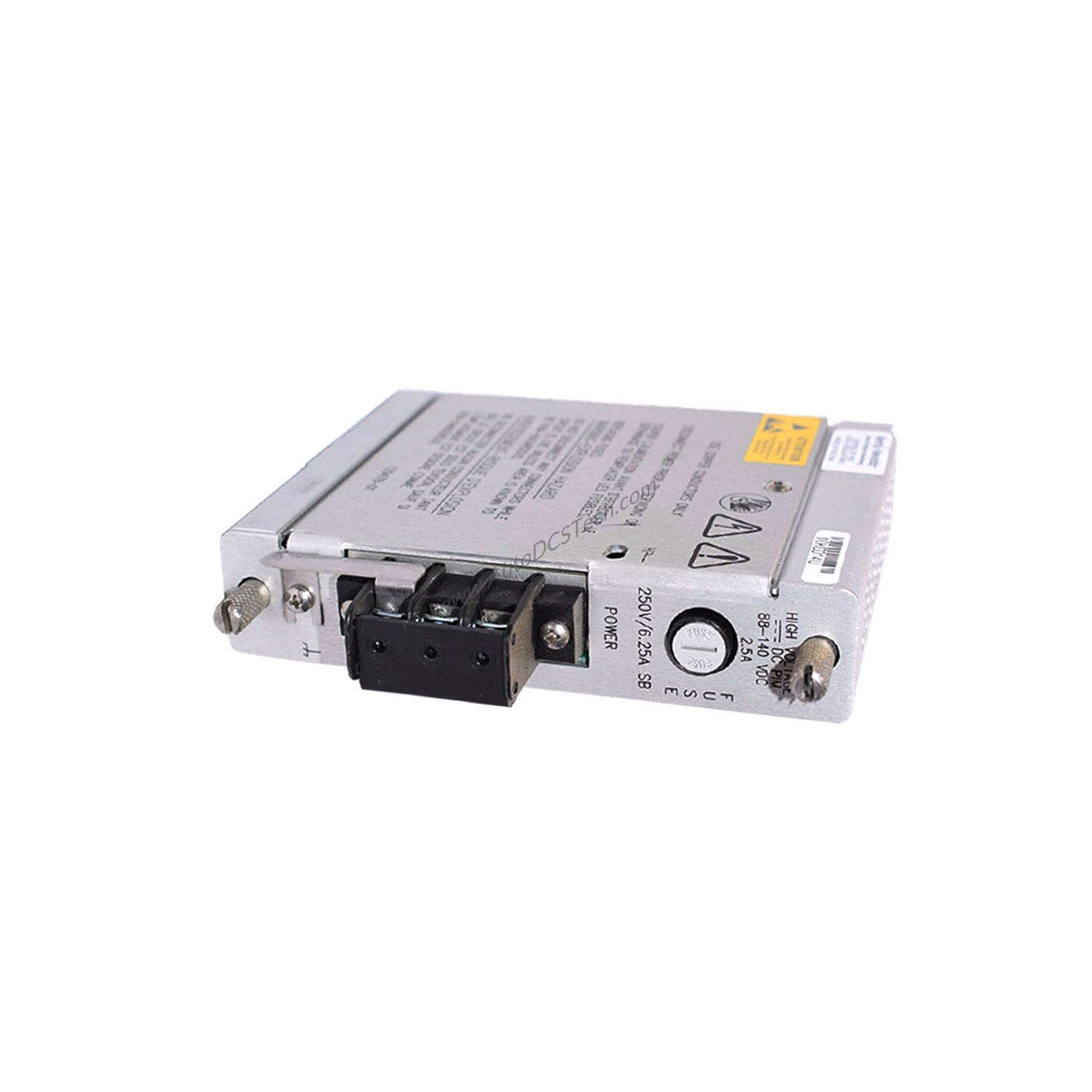

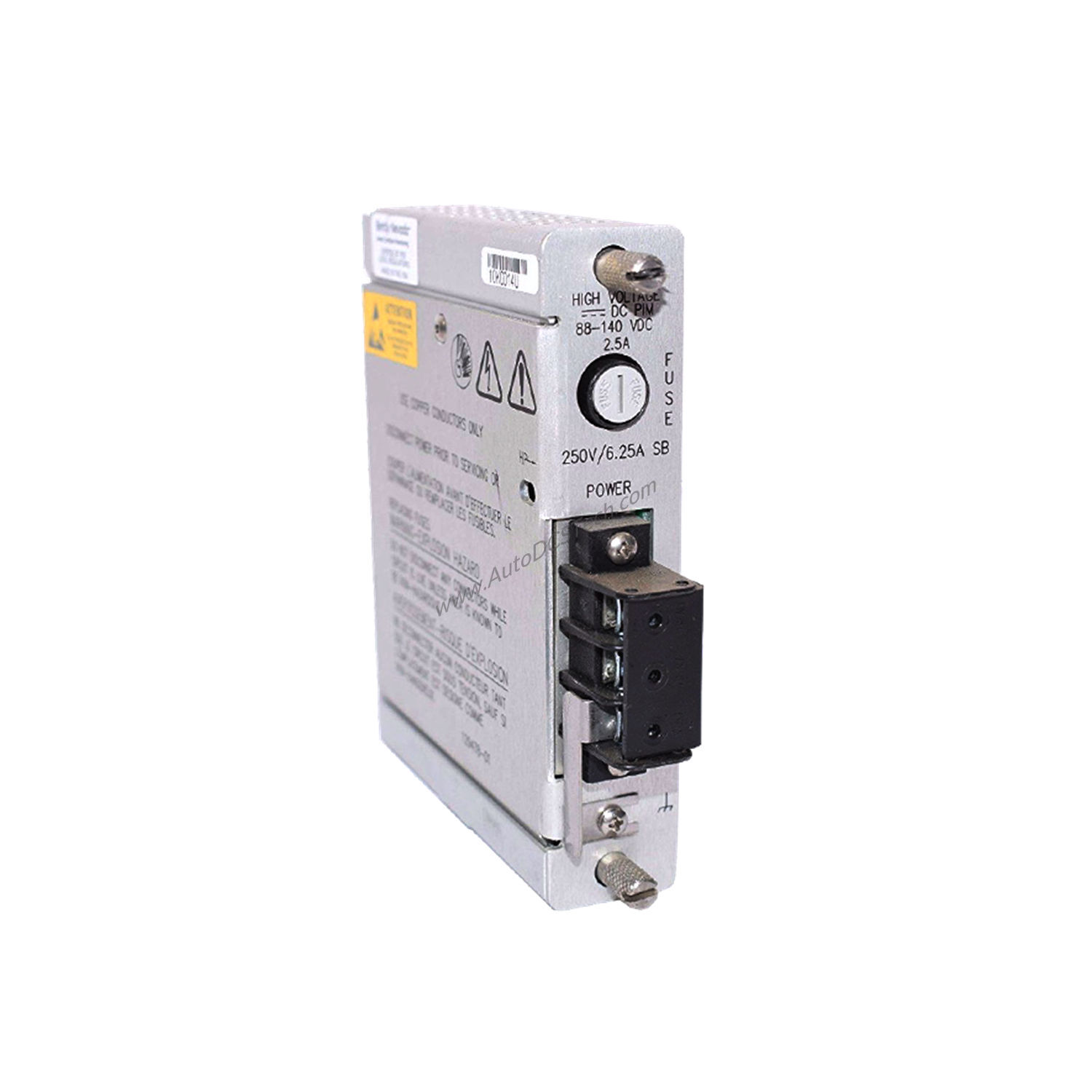

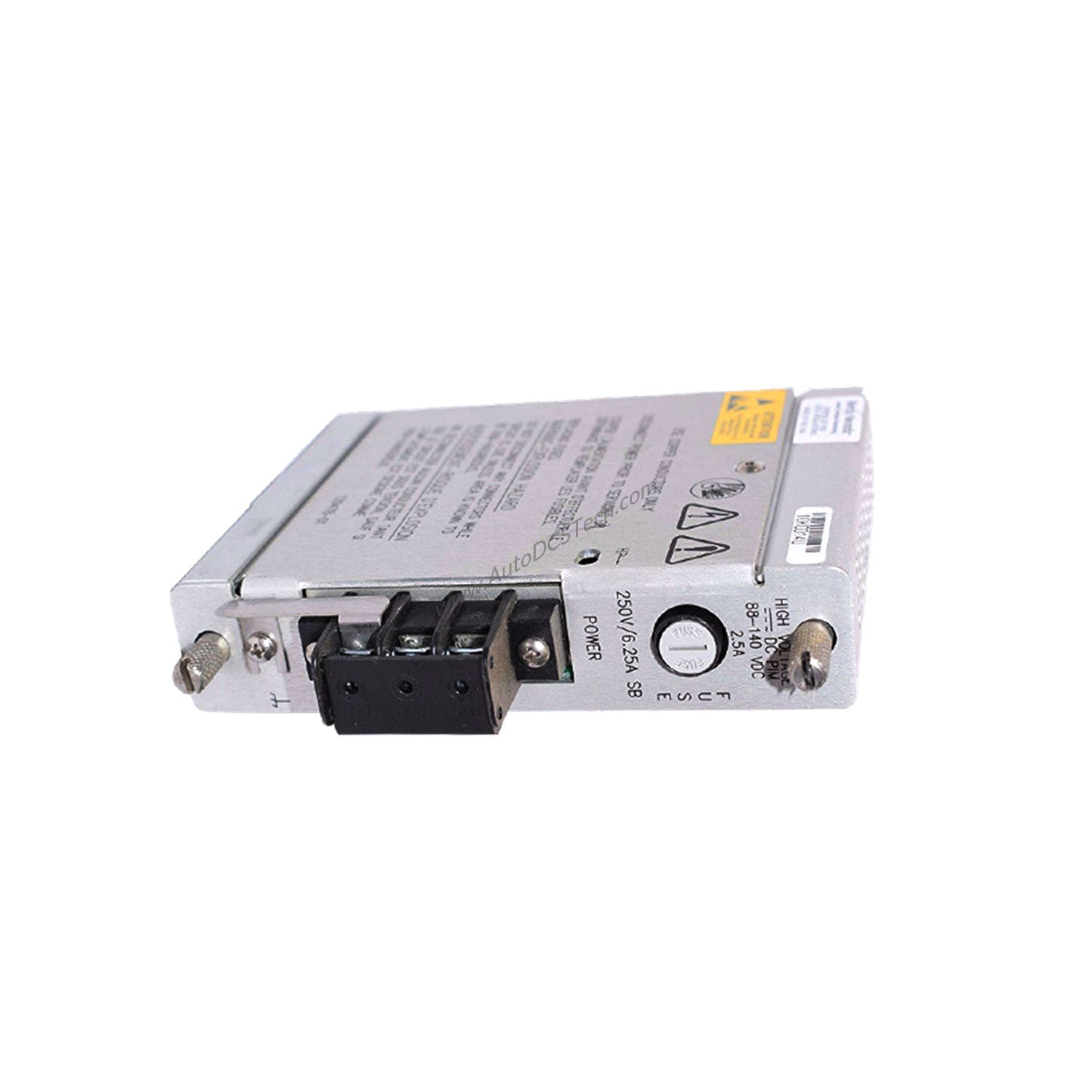

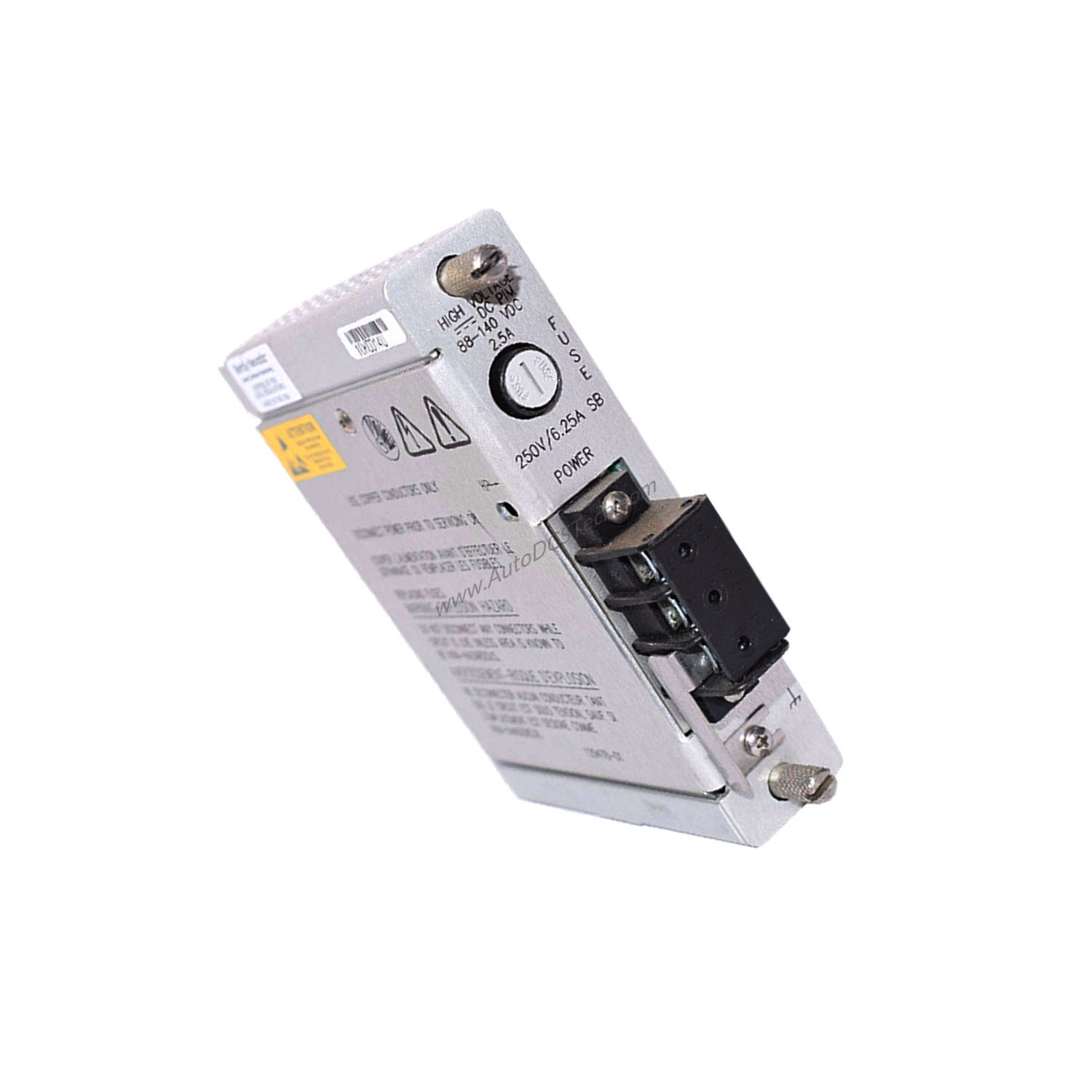

This Legacy High Voltage DC Power Input Module (PIM) accepts an input voltage range of 88 to 140 Vdc, making it suitable for common industrial DC bus voltages. It works in tandem with the High Voltage DC Power Supply to deliver stable power to the entire rack. The module's over-voltage protection automatically opens an internal fuse if the input exceeds safe limits, preventing damage to downstream components. Under-voltage conditions do not harm the supply or the PIM, adding a layer of fault tolerance.
Technical Specifications Breakdown
- Input Voltage: 88 to 140 Vdc – ensures compatibility with standard high-voltage DC systems.
- Full Rack Current Draw: 2.5 A (maximum) – allows accurate power budget planning for the entire rack.
- Physical Dimensions: 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) – compact footprint fits two half-height slots on the left side of the rack.
- Weight: 0.34 kg (0.75 lb) – lightweight for easy handling during installation.
- Environmental Limits: Operating temperature -30 °C to +65 °C; storage -40 °C to +85 °C; humidity 95% non-condensing – suitable for harsh industrial environments.
- Compliance: FCC Part 15, EMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4), LV Directive 2014/35/EU (EN 61010-1), RoHS Directive 2011/65/EU, and maritime certifications (DNV GL, ABS) – meets global regulatory and safety standards.
Industry Applications
Oil & Gas: In offshore platforms, the 129478-01 powers vibration monitoring systems that track turbine and compressor health. Its wide temperature range and maritime certifications (DNV GL, ABS) ensure reliable operation in salt-laden, high-humidity environments.
Power Generation: For steam and gas turbine supervisory systems, the module's over-voltage protection safeguards critical measurement channels during grid disturbances. The 2.5 A maximum draw allows engineers to calculate total rack power consumption accurately.
Manufacturing: In continuous process lines, the PIM supports redundant power supply configurations (both half-height slots can hold supplies simultaneously) to eliminate single points of failure.
Installation & Setup Guidance
Mount the 129478-01 in either of the two half-height slots on the left side of the 3500 rack. Each slot accommodates one power supply, and both can be populated for redundancy. No minimum rack load is required, simplifying initial configuration. Connect the DC input to a source within the 88-140 Vdc range. The front panel Supply OK LED illuminates when the power supply operates properly, providing immediate visual confirmation.
Maintenance & Reliability
The module's over-voltage protection is a key reliability feature: an over-voltage condition opens the fuse on the PIM, preventing damage. Under-voltage does not harm the supply or the PIM, reducing nuisance failures. Regular inspection of the Supply OK LED and periodic verification of input voltage within the specified range (88-140 Vdc) help ensure long-term dependable operation. The wide operating temperature range (-30 °C to +65 °C) and 95% non-condensing humidity tolerance make it suitable for demanding environments.
Compatibility & Integration
The 129478-01 is designed exclusively for the Bently Nevada 3500 series rack system. It works with the High Voltage DC Power Supply to form a complete power solution. The module's compliance with FCC, EMC, LV, and RoHS directives ensures it meets global regulatory requirements for industrial automation.
Selection Guide & Purchasing Advice
Before ordering, verify that your rack system is a Bently Nevada 3500 series and that your facility has a high-voltage DC source (88-140 Vdc). The module occupies two half-height slots; ensure sufficient space on the left side of the rack. For redundant configurations, order two units. SpareTechPLC stocks the 129478-01 and can advise on current lifecycle status and availability.
Troubleshooting & Common Issues
- Supply OK LED off: Check that the input voltage is within 88-140 Vdc and that the power supply is properly seated. If the fuse has opened due to over-voltage, replace the PIM.
- No power to rack: Verify the DC source is active and within range. Inspect the fuse on the PIM for continuity.
- Intermittent operation: Ensure the module is firmly inserted into the rack slot and that all connectors are clean and secure. Confirm ambient temperature is within -30 °C to +65 °C.
Frequently Asked Questions
Q: What is the input voltage range for the 129478-01?
A: The input voltage range is 88 to 140 Vdc.
Q: Does the module support redundant power supplies?
A: Yes, the rack has two half-height slots on the left side, each accommodating one power supply. Both slots can hold supplies simultaneously for redundancy.
Q: What happens if the input voltage goes too high?
A: An over-voltage condition causes the fuse on the PIM to open, protecting the system. The fuse must be replaced by replacing the module.
Q: What certifications does this module hold?
A: It complies with FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU, and maritime standards (DNV GL, ABS).
Q: What is the maximum current draw for a full rack with this module?
A: The full rack current draw is 2.5 A maximum.
