Solving High-Power Motor Control Challenges
In high-torque machining centers or heavy-duty material handling systems, maintaining precise speed and torque under fluctuating loads is a constant engineering challenge. The FANUC A06B-6250-H045 servo amplifier module addresses this need by delivering robust, reliable power conversion for demanding industrial environments.
Product Overview

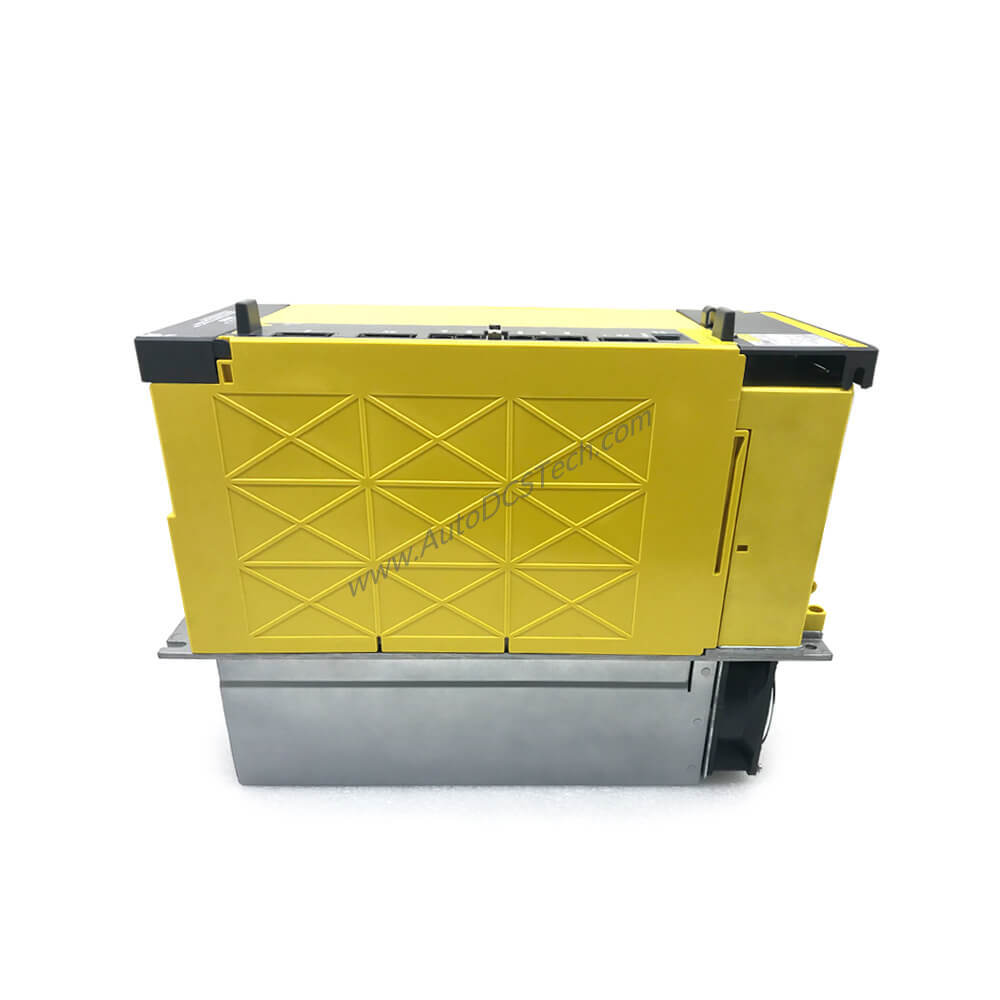

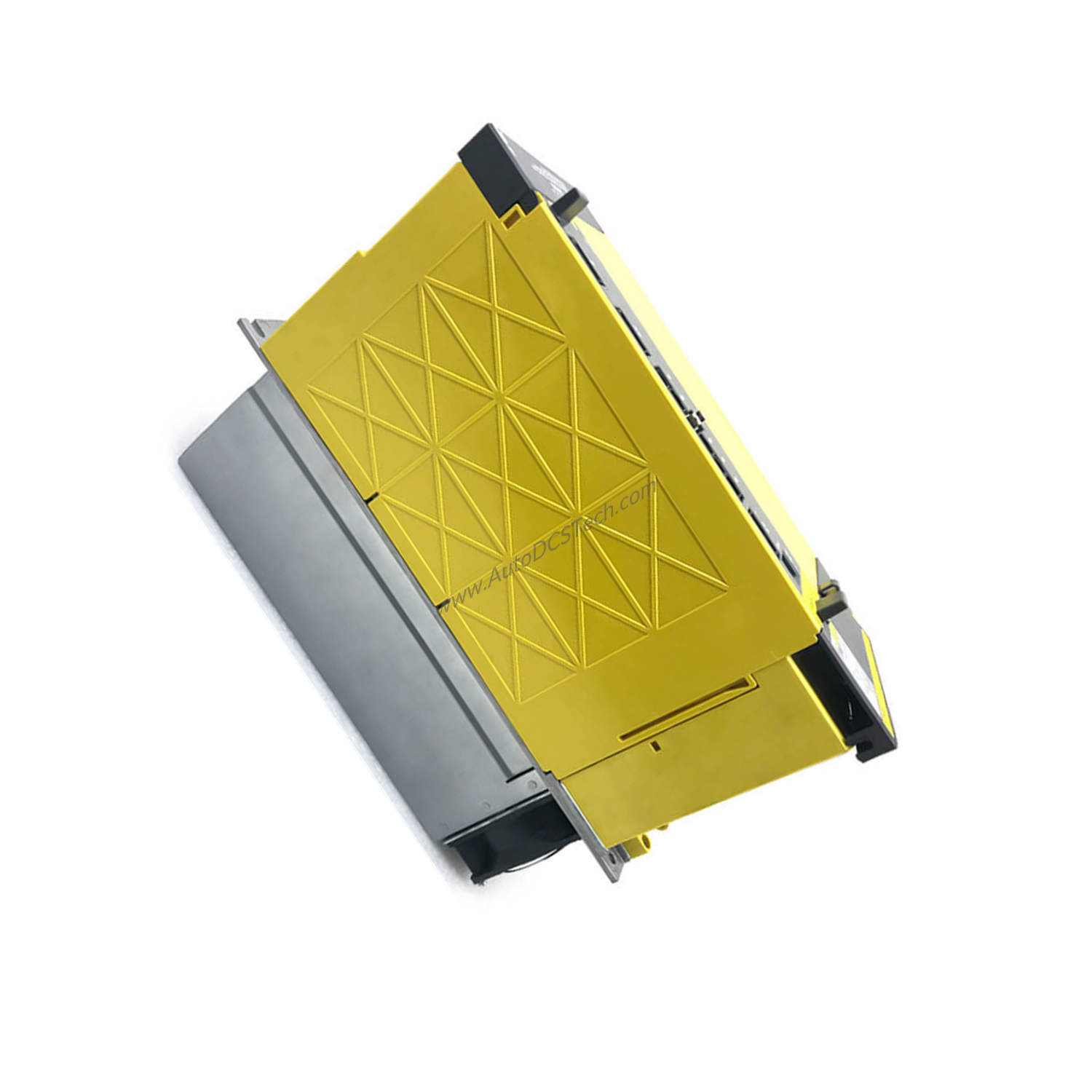

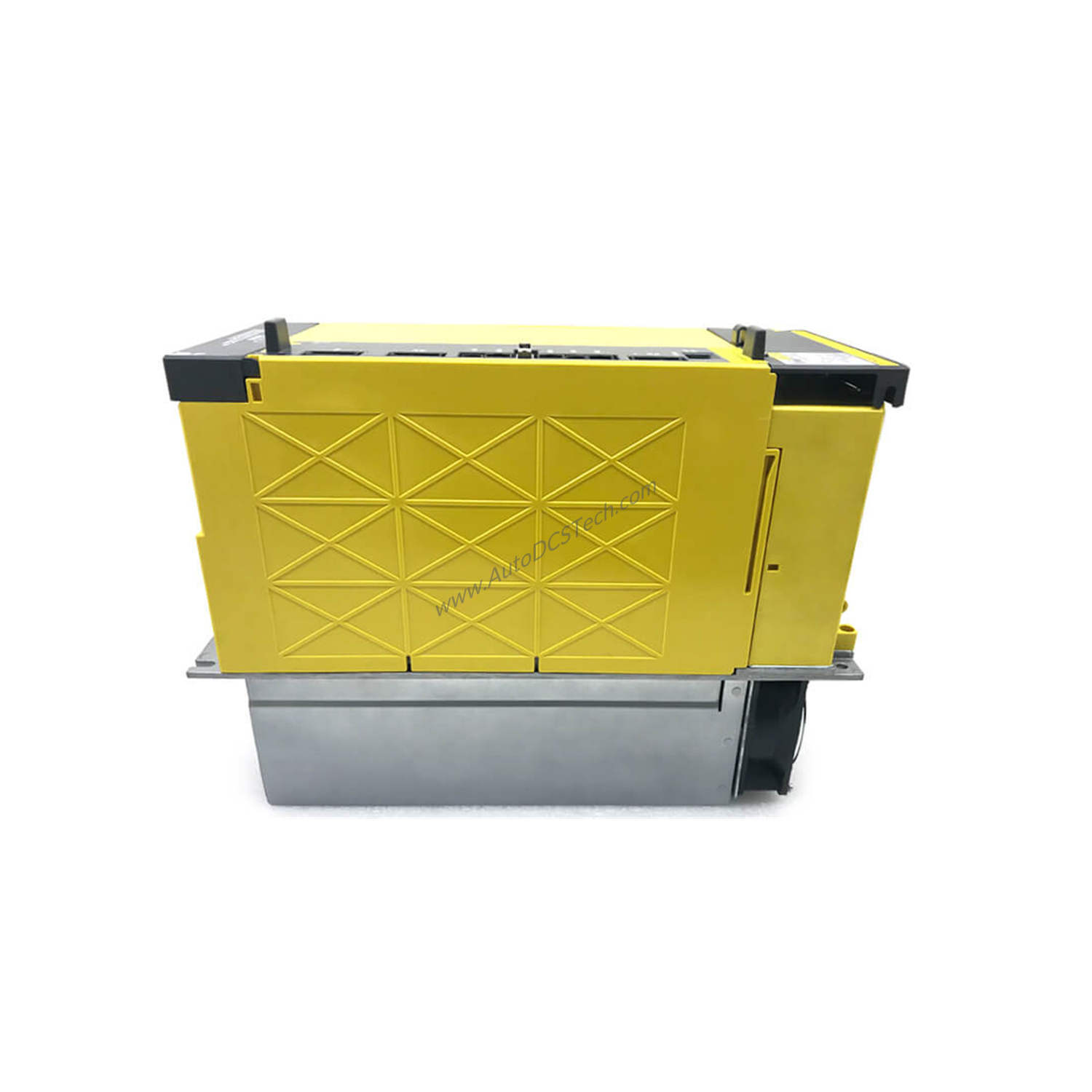

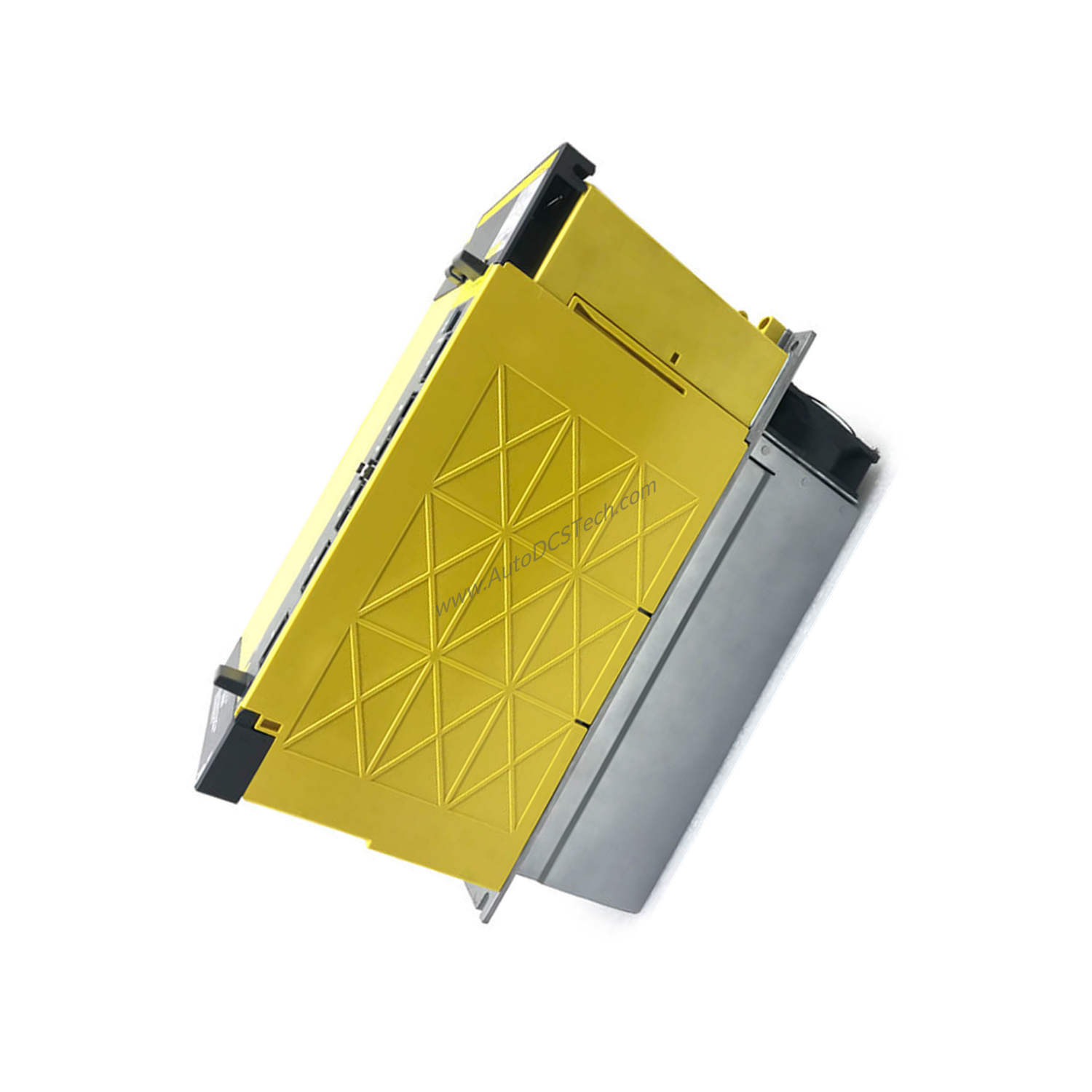

The FANUC A06B-6250-H045 is a servo amplifier module from the A06B product line, designed for efficient motor control in 3-phase electrical systems. It converts input AC power to a regulated DC output voltage range of 537 to 679 VDC, enabling precise servo motor operation. This module is built to withstand industrial conditions with an ambient operating temperature range of 0°C to 55°C.
Technical Specifications Breakdown
Input Power Characteristics
- Input Voltage: 380-480 VAC, 3-phase
- Input Frequency: 50/60 Hz
- Rated Input Current: 99 A at 400 V
Output Performance
- Output Voltage: 537-679 VDC
- Rated Output Power: 54 kW
These specifications indicate the module is suited for medium-to-high power servo applications. The wide input voltage range accommodates global industrial power standards, while the 54 kW output supports large axis motors or multiple smaller motors in coordinated motion systems.
Environmental Tolerance
- Ambient Operating Temperature: 0°C to 55°C
This temperature range allows installation in typical factory floor environments without special cooling, though proper ventilation is recommended for sustained high-load operation.
Industry Applications
CNC Machining Centers
In multi-axis CNC machines, the A06B-6250-H045 provides the stable DC bus voltage needed for precise spindle and axis control. Its 54 kW capacity handles heavy cutting loads while maintaining position accuracy.
Automated Assembly Lines
For robotic arms and transfer systems requiring consistent torque at varying speeds, this amplifier ensures smooth acceleration and deceleration, reducing mechanical stress and improving cycle times.
Installation & Setup Guidance
Mount the A06B-6250-H045 in a clean, dry enclosure with adequate airflow. Ensure the 3-phase input voltage (380-480 VAC) matches your facility supply. Use appropriately rated wiring for 99 A input current. Connect the DC output (537-679 VDC) to the servo motor drive bus, observing polarity. Verify that the ambient temperature remains within 0°C to 55°C during operation.
Maintenance & Reliability
Regularly inspect the module for dust accumulation on heat sinks and fans. Check all power connections for tightness and signs of overheating. Operate within the specified temperature range to maximize service life. Periodic performance testing under load helps detect early signs of component degradation.
Selection Guide & Purchasing Advice
Before ordering, confirm that the A06B-6250-H045 matches your system's power requirements: input voltage (380-480 VAC), frequency (50/60 Hz), and output voltage range (537-679 VDC). Verify physical fit based on weight (20.00 lbs / 9.07 kg). Contact SpareTechPLC for current availability and lifecycle status.
Frequently Asked Questions
Q: What is the rated output power of the A06B-6250-H045?
A: The rated output power is 54 kW.
Q: What input voltage does this servo amplifier require?
A: It requires a 3-phase input voltage of 380-480 VAC.
Q: What is the output voltage range?
A: The output voltage is 537-679 VDC.
Q: What is the rated input current at 400 V?
A: The rated input current is 99 A at 400 V.
Q: What is the ambient operating temperature range?
A: The ambient operating temperature range is 0°C to 55°C.
