Product Overview

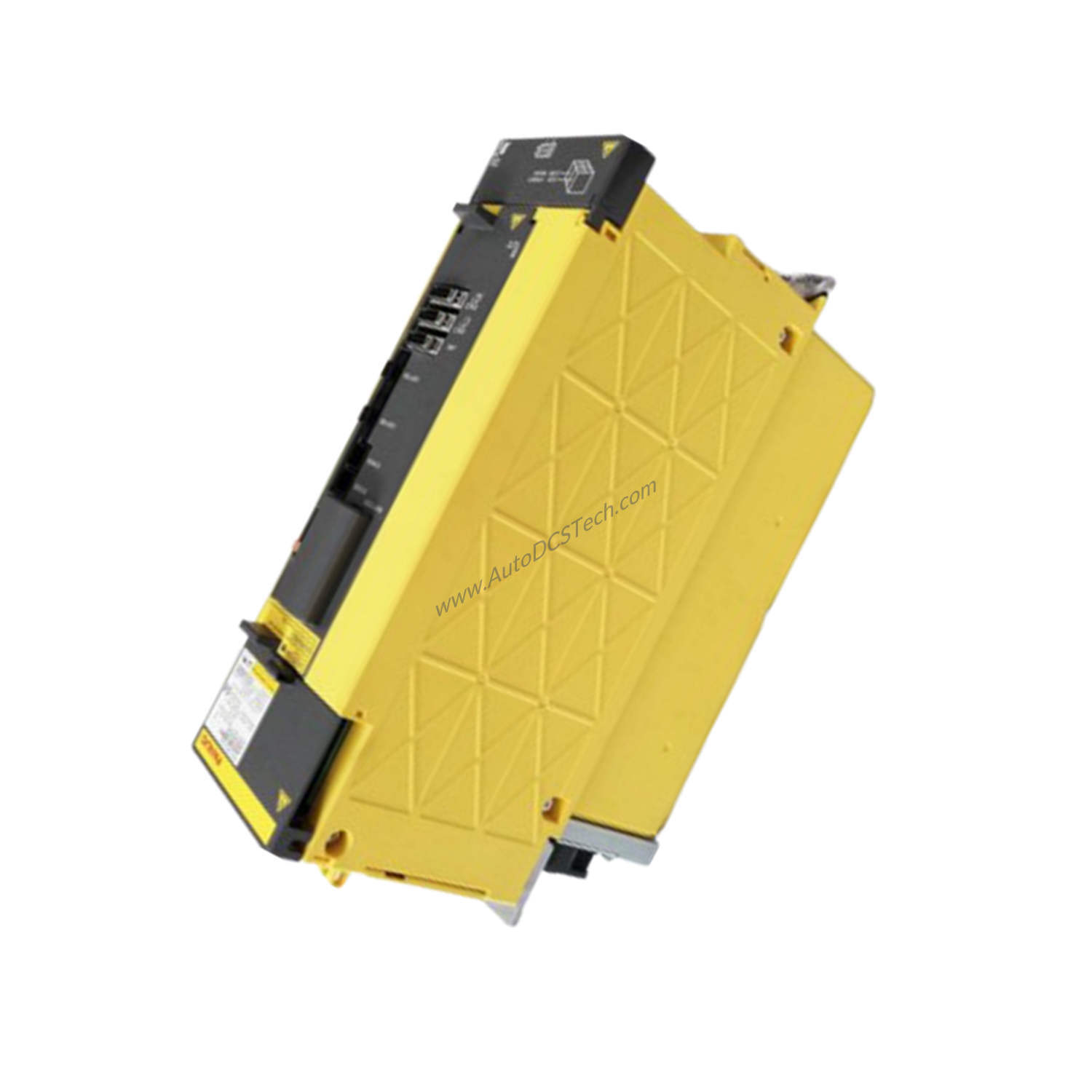

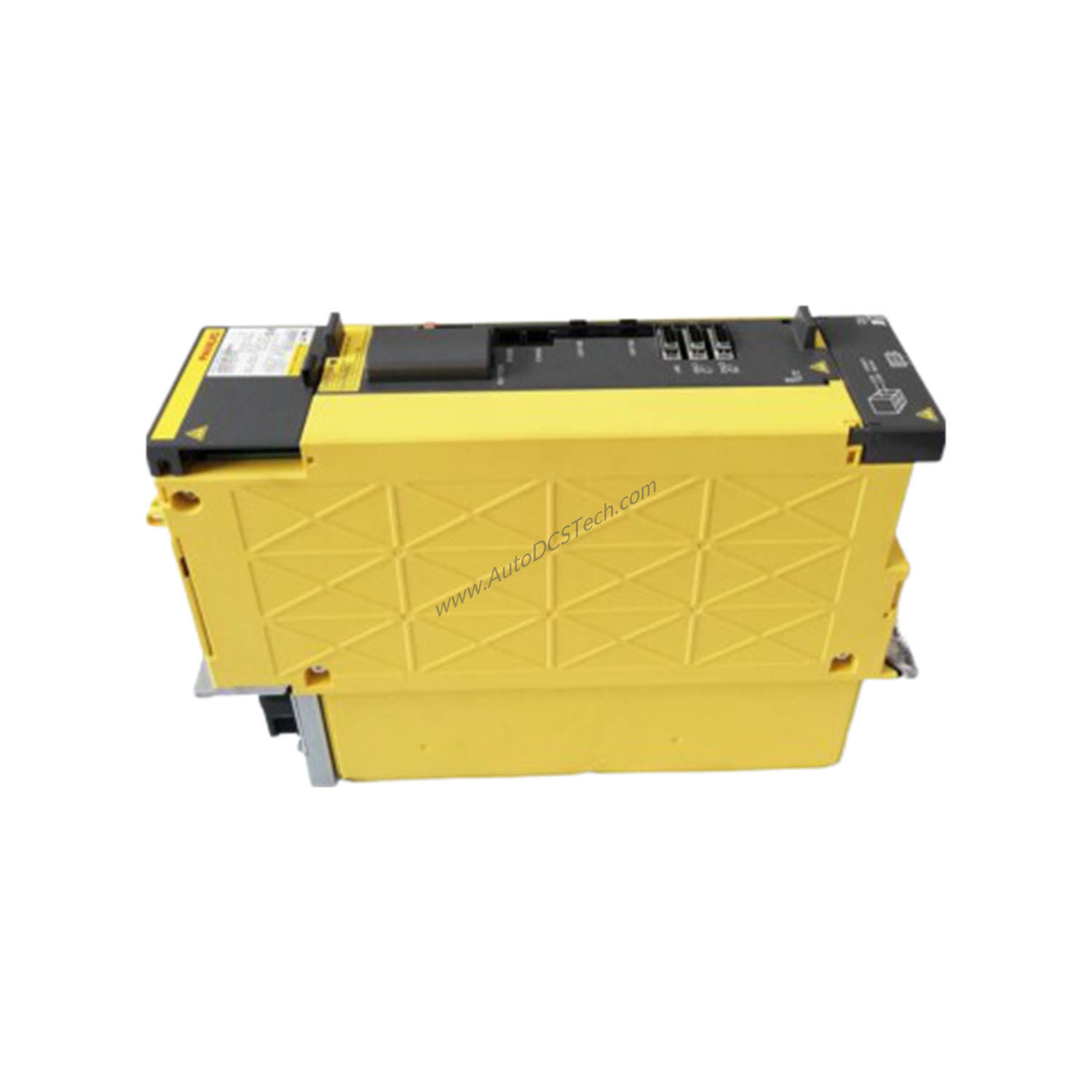

When production lines demand precise motion control and high torque, the FANUC A06B-6290-H209 servo amplifier module provides a cost-effective solution. This dual-axis unit handles heavy loads while maintaining energy efficiency, reducing overall operational costs. Part of the A06B series, it is engineered for advanced manufacturing environments where uptime and accuracy are critical.
Technical Specifications Breakdown
Understanding key specs helps you evaluate long-term value. The FANUC A06B-6290-H209 operates with an output voltage range of 400-480 VAC, ensuring compatibility with common industrial motors. Its rated output current reaches 22.5A for both the L-axis and M-axis, allowing simultaneous control of two axes without derating. The output frequency range spans 0 to 550 Hz, offering flexibility for various speed profiles. On the input side, it accepts 565-679 VDC and draws a rated input current of 33.5A at 585V, with a 3-phase design that minimizes power losses. The ambient operating temperature range of 0°C to 55°C supports installation in typical factory environments without extra cooling costs.
Industry Applications
In high-speed CNC machining centers, the A06B-6290-H209 drives spindle and feed axes with precision, reducing scrap rates and cycle times. For robotic assembly lines, its dual-axis capability simplifies wiring and cabinet space, lowering installation expenses. The wide frequency range suits variable-speed conveyor systems, where energy savings directly improve ROI.
Installation & Setup Guidance
Mount the module securely on a flat surface using the provided dimensions (378 mm length, 58 mm width, 168 mm height). Ensure adequate airflow around the unit for heat dissipation. Connect the 3-phase DC input (565-679 VDC) to a properly rated power supply. Verify that the output wiring to the servo motors matches the 400-480 VAC range and current ratings. Always follow local electrical codes and manufacturer guidelines for safe installation.
Maintenance & Reliability
Regular inspection of the cooling fan and air filters prevents overheating and extends service life. Check input and output connections periodically for tightness to avoid arcing. The module's robust design supports continuous operation in temperatures up to 55°C, reducing unplanned downtime. By following a simple preventive maintenance schedule, you maximize the return on your investment.
Compatibility & Integration
This servo amplifier integrates seamlessly with FANUC CNC controllers and servo motors. Its standard 3-phase DC input and 400-480 VAC output align with common industrial power architectures. For new installations, verify that the controller's command interface matches the module's input requirements. SpareTechPLC can help confirm compatibility with your existing system.
Selection Guide & Purchasing Advice
Before ordering the A06B-6290-H209, confirm your application's voltage and current demands. This module suits dual-axis loads up to 22.5A per axis. Consider the ambient temperature range and available cabinet space. SpareTechPLC offers this model with fast shipping and expert support to ensure you get the right part for your automation needs.
Frequently Asked Questions
Q: What is the output voltage range of the A06B-6290-H209?
A: The output voltage range is 400-480 VAC.
Q: How much current can each axis handle?
A: Each axis (L-axis and M-axis) is rated for 22.5A.
Q: What input voltage does this module require?
A: It requires a DC input voltage of 565-679 VDC.
Q: Can this module operate in high-temperature environments?
A: Yes, the ambient operating temperature range is 0°C to 55°C.
Q: Is the A06B-6290-H209 a single-phase or three-phase device?
A: It is a 3-phase device.
