Product Overview

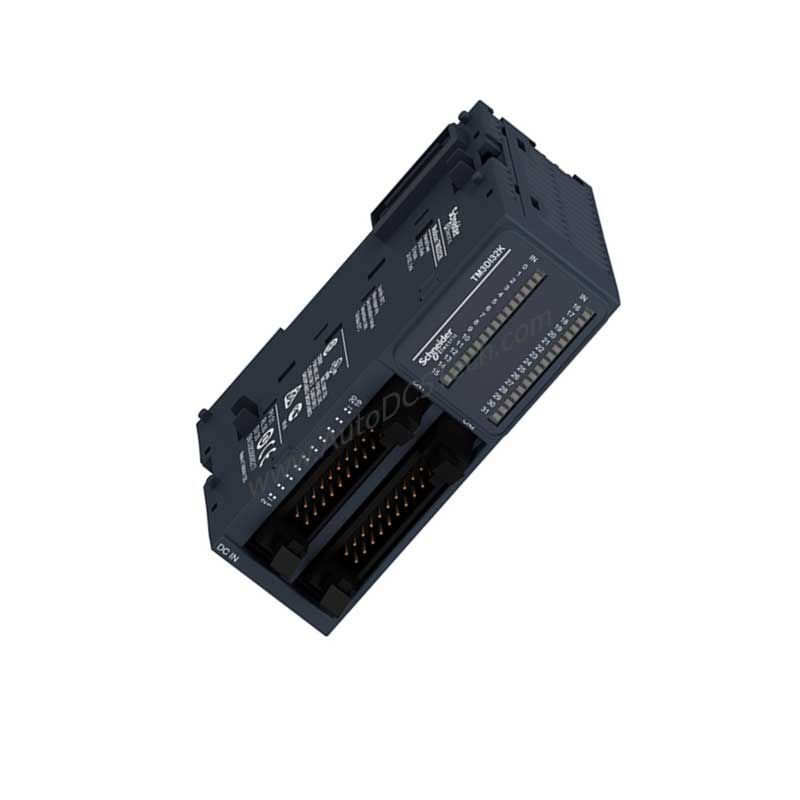

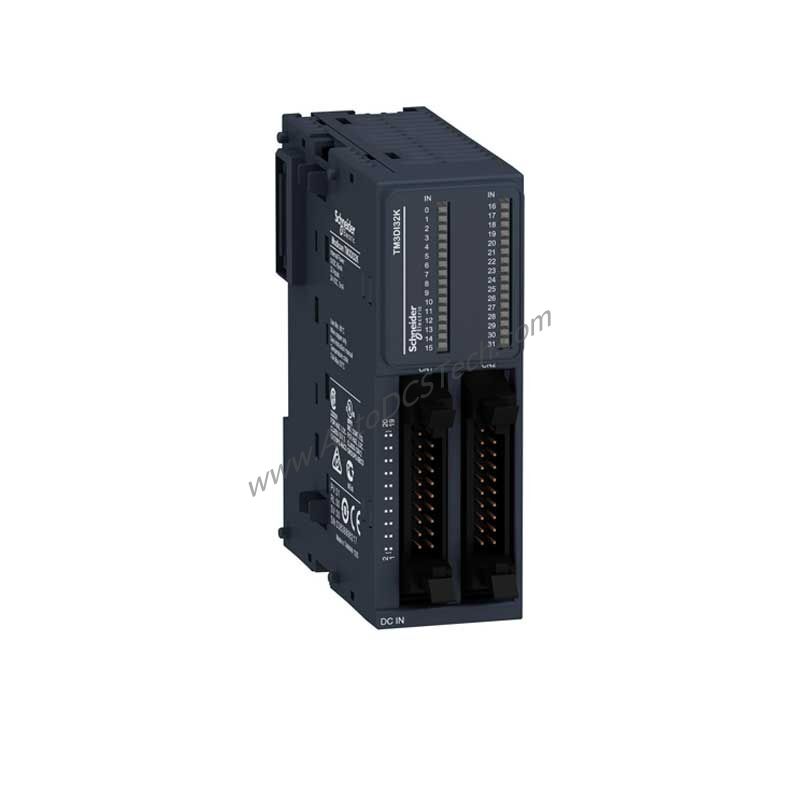

When your automation system requires reliable digital signal acquisition, the Schneider Electric TM3DI32K discrete input module provides a robust solution. Part of the Modicon TM3 family, this module is designed for seamless integration with Modicon M221, M241, M251, and M262 controllers. It offers 32 inputs conforming to IEC 61131-2 Type 1, making it suitable for a wide range of industrial sensing applications.
Technical Specifications Breakdown
The TM3DI32K operates at 24V DC with a current consumption of 5 mA per input. It supports both sink and source (positive/negative) logic, providing flexibility in wiring configurations. The voltage state 1 is guaranteed between 15 and 28.8V, while state 0 is between 0 and 5V. Current thresholds are ≥2.5 mA for state 1 and ≤1 mA for state 0. Input impedance is 4.4 kOhm, and response time is 4 ms for both turn-on and turn-off. The module draws 65 mA at 5V DC via the bus connector when inputs are on, and 5 mA at 5V DC when off. It uses an HE-10 connector for inputs, with a maximum unshielded cable distance of 30 meters.
Industry Applications
In manufacturing environments, the TM3DI32K excels at monitoring limit switches, proximity sensors, and pushbuttons. For example, in a packaging line, its 32 inputs can simultaneously track product presence, conveyor position, and safety interlocks. The 4 ms response time ensures fast detection of events, reducing downtime. In material handling systems, the module's sink/source compatibility simplifies integration with various sensor types, enhancing system flexibility.
Installation & Setup Guidance
Mount the TM3DI32K on a top hat TH35-15 or TH35-7.5 rail per IEC 60715, or on a panel using a fixing kit. Ensure the protective cover is in place to maintain IP20 protection. Connect inputs via the HE-10 connector, keeping unshielded cable runs under 30 meters to avoid noise issues. The module automatically powers from the bus connector; no external power supply is needed for the logic side. For optimal performance, verify that the input voltage remains within the guaranteed range of 15 to 28.8V DC for state 1.
Maintenance & Reliability
Regular inspection of the TM3DI32K is straightforward. Check the green LED per channel to verify input status. The module is designed for long service life with no moving parts. Environmental resistance includes electrostatic discharge up to 8 kV in air, electromagnetic fields up to 10 V/m, and fast transients up to 1 kV. Operating temperature ranges from -10 to 55°C horizontally or -10 to 35°C vertically. These robust specifications minimize unexpected failures, contributing to lower total cost of ownership.
Compatibility & Integration
The TM3DI32K is compatible with Modicon M221, M241, M251, and M262 controllers. It connects via the TM3 bus, providing direct access to input data in the controller's memory. The module supports both sink and source wiring, making it adaptable to existing sensor networks. No additional communication modules are required for basic operation. For advanced diagnostics, the controller's software can monitor each channel's status.
Selection Guide & Purchasing Advice
Before purchasing the TM3DI32K, verify that your controller supports Modicon TM3 expansion modules. Confirm the required number of inputs and logic type (sink or source). The module weighs 0.1 kg and measures 90 mm high, 81.3 mm deep, and 33.5 mm wide. SpareTechPLC offers this module with fast shipping and expert support. Contact us to confirm current lifecycle status and availability before ordering.
Frequently Asked Questions
Q: Can the TM3DI32K be used with Modicon M221?
A: Yes, the TM3DI32K is compatible with Modicon M221, M241, M251, and M262 controllers.
Q: What is the input voltage range for state 1?
A: The voltage state 1 is guaranteed between 15 and 28.8V DC per input.
Q: How many inputs does the TM3DI32K have?
A: It has 32 discrete inputs conforming to IEC 61131-2 Type 1.
Q: What type of connector does it use?
A: It uses an HE-10 connector for input wiring.
Q: Is the module CE certified?
A: Yes, the TM3DI32K carries CE, CULus, UKCA, RCM, and EAC certifications.
