Introduction

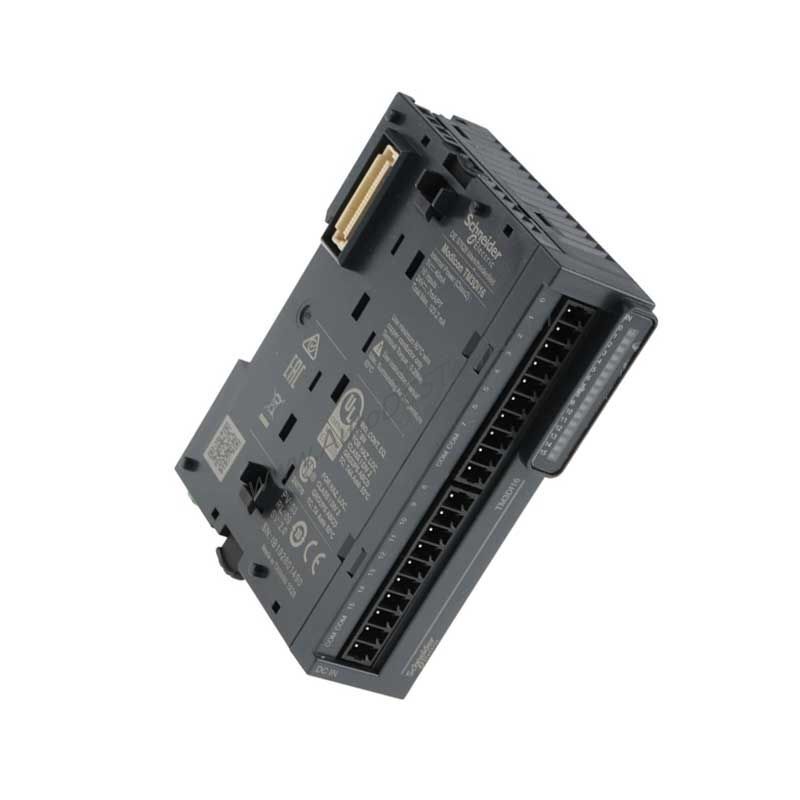

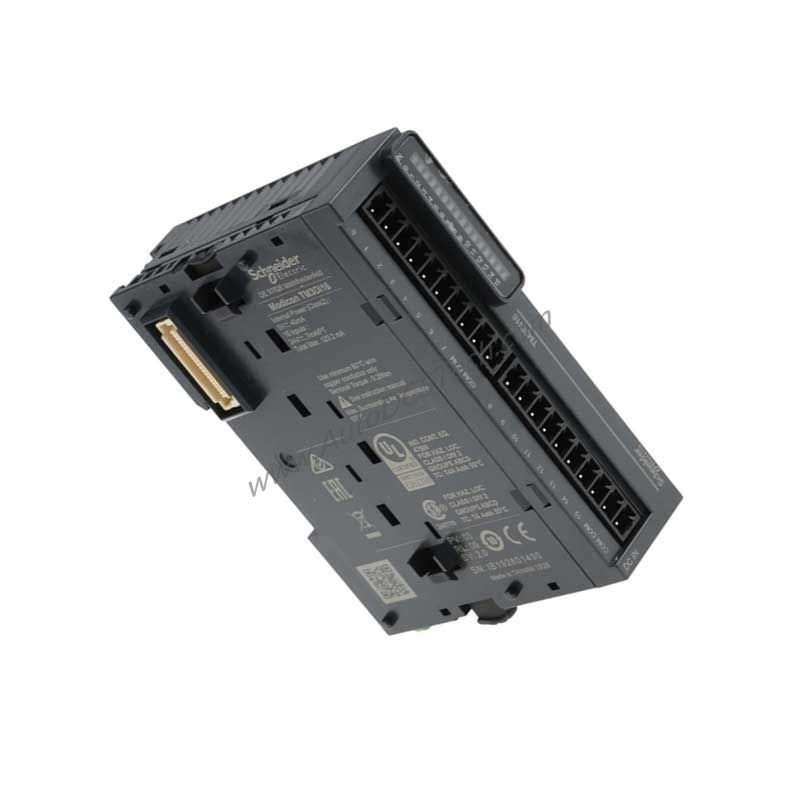

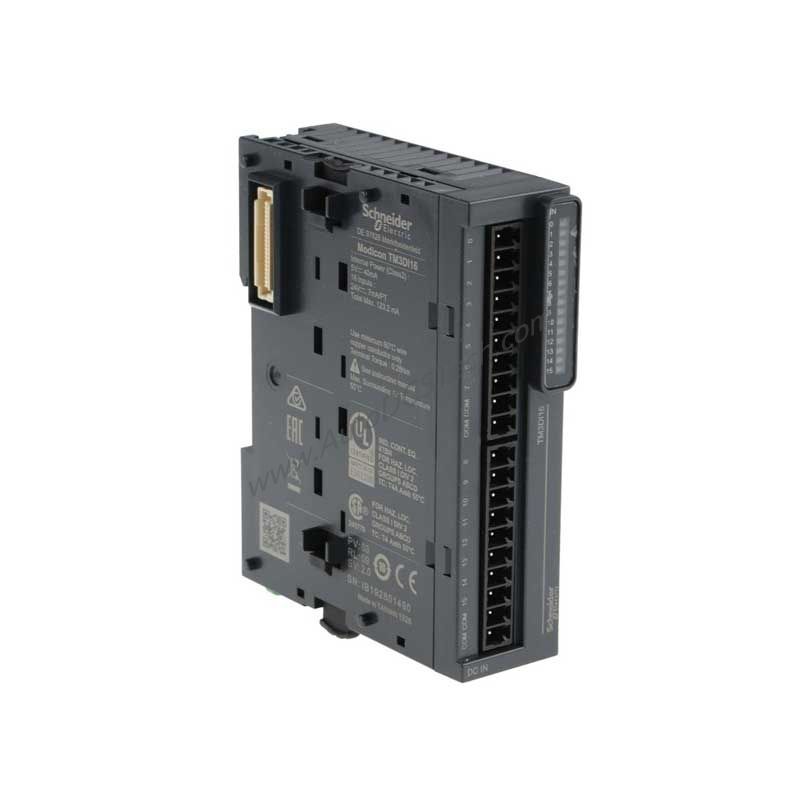

As industrial automation evolved from relay-based logic to programmable controllers, the need for reliable, high-density input modules became critical. The Schneider TM3DI16 discrete input module represents this evolution, offering 16 channels in a compact 27.4 mm wide package. Designed for Modicon M221, M241, and M251 controllers, it handles both sink and source wiring, simplifying integration into existing systems.
Technical Specifications Breakdown
The TM3DI16 delivers 16 discrete inputs conforming to IEC 61131-2 type 3, each accepting 24 VDC at 7 mA. Voltage state 1 is guaranteed between 15 and 28.8 V, while state 0 ranges from 0 to 5 V. Current thresholds are ≥2.5 mA for state 1 and ≤1 mA for state 0. Input impedance is 3.4 kOhm. Response time is 4 ms for both turn-on and turn-off. The module consumes 5 mA at 5 VDC via bus connector at state off, and 40 mA at 5 VDC at state on. It uses a removable screw terminal block with 3.81 mm pitch, accepting up to 1.5 mm² wires. Unshielded cable length can reach 50 m for regular inputs.
Industry Applications
In packaging lines, the TM3DI16 monitors limit switches and presence sensors, its 4 ms response time ensuring precise timing. For material handling conveyors, the 16 inputs handle multiple photo-eye signals, while sink/source flexibility allows direct connection to both NPN and PNP sensors. The module's IP20 rating suits control cabinets in dry industrial environments.
Installation & Setup Guidance
Mount the TM3DI16 on a TH35-15 or TH35-7.5 DIN rail per IEC 60715, or on a panel using a fixing kit. Connect 24 VDC power to the bus connector. Wire inputs to the removable screw terminal block, tightening to the recommended torque. Ensure cable lengths do not exceed 50 m for unshielded runs. The green LED per input provides local status indication.
Maintenance & Reliability
The TM3DI16 requires minimal maintenance. Periodically inspect the terminal connections for tightness and check for dust accumulation on the enclosure. The module operates from -10 to 55 °C horizontally or -10 to 35 °C vertically, with storage from -25 to 70 °C. It withstands vibration up to 3.5 mm at 5–8.4 Hz and 3 gn at 8.4–150 Hz on DIN rail, and shock up to 15 gn for 11 ms. These rugged specifications reduce downtime in demanding applications.
Compatibility & Integration
The TM3DI16 integrates seamlessly with Modicon M221, M241, and M251 controllers via the TM3 bus. It supports both sink and source logic (positive/negative), making it compatible with a wide range of sensors. The module is CE, C-Tick, and CULus certified, meeting EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
Selection Guide & Purchasing Advice
Before purchasing, verify your controller compatibility (M221, M241, or M251) and confirm that 24 VDC input voltage matches your sensor outputs. The TM3DI16 uses screw terminals; if you prefer spring-clamp, consider the TM3DI16G. SpareTechPLC stocks this module with fast shipping and expert support.
Frequently Asked Questions
Q1: Can the TM3DI16 accept both NPN and PNP sensors?
Yes, the TM3DI16 supports sink or source (positive/negative) logic, so it works with both NPN and PNP sensors.
Q2: What is the maximum cable length for inputs?
For regular inputs, unshielded cable can be up to 50 m.
Q3: Does the module include a power supply?
No, the TM3DI16 receives power from the bus connector; an external 24 VDC supply is required.
Q4: What is the response time of the inputs?
Both turn-on and turn-off response times are 4 ms.
Q5: Is the TM3DI16 compatible with Modicon M258 controllers?
No, the TM3DI16 is designed for Modicon M221, M241, and M251 controllers only.
