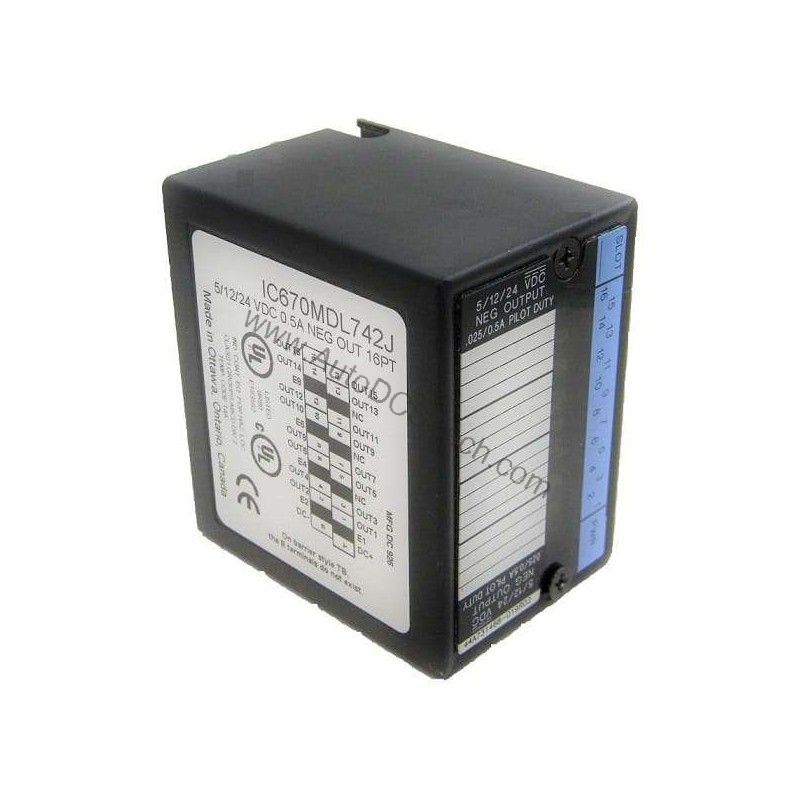

IC670MDL742: Field Control 16 Point Negative Logic Output Module
The IC670MDL742 is the Field Control 16 Point Negative Logic Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 2 Pounds.
The reason to specify this exact variant is field control 16 point negative logic output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. field control 16 point negative logic output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 2 Pounds against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC670MDL742 |
| User Input Voltage | 4.75-5.25 Volts DC, 10.5-28.5 Volts DC |
| Output Voltage Range | 4.5-28.25 Volts DC |
| Number of Outputs | 16 |
| Current drawn from power supply | 111 mA |
| Inrush Current | 2 Amps maximum for 100ms |
| Output Voltage Drop | 0.25 volts maximum |
| Output Leakage Current | 250 microamps at 28.5 Volts DC |
| Weight | 2 Pounds |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic670mdl740-field-control-16-point-discrete-output-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC670MDL742 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
