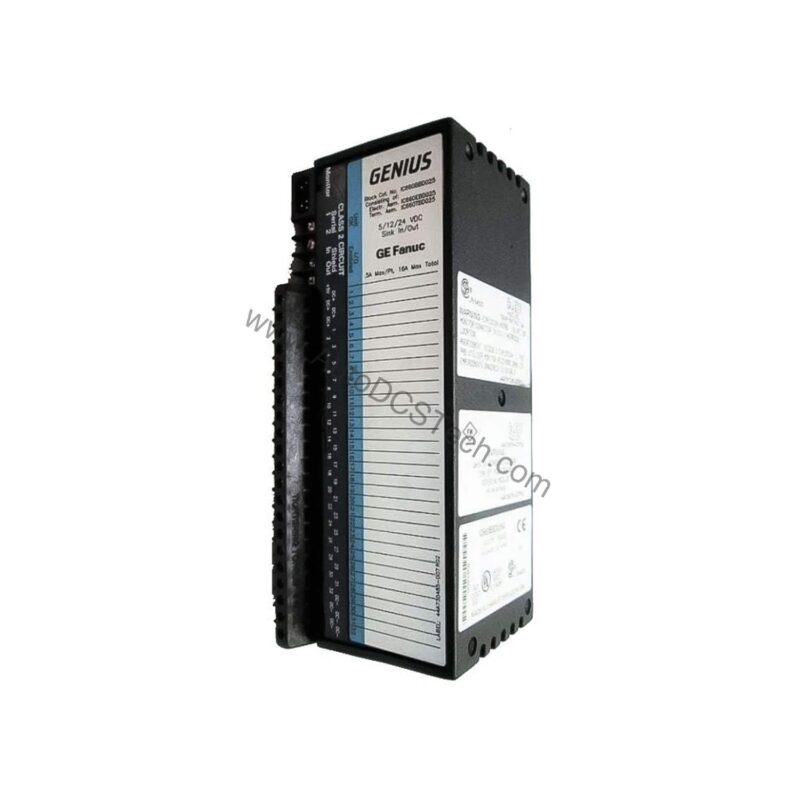

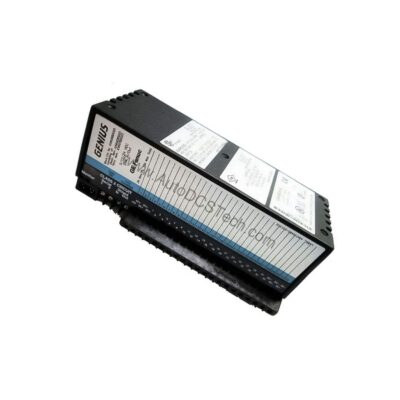

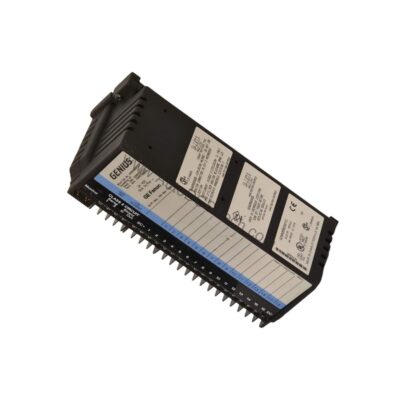

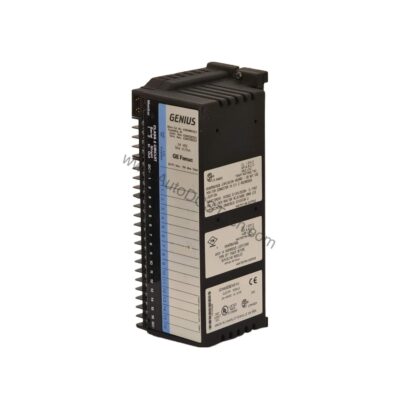

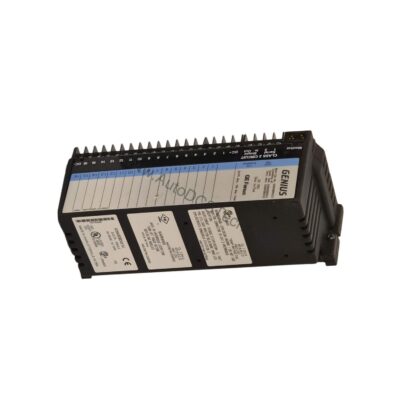

IC660TBD025: Genius I/O Terminal Assembly for Discrete I/O Blocks
The IC660TBD025 is the Genius I/O Terminal Assembly for Discrete I/O Blocks covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 °C (32 to 140 °F).
On this unit genius i/o terminal assembly for discrete i/o blocks is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius i/o terminal assembly for discrete i/o blocks sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to 60 °C (32 to 140 °F) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660TBD025 |
| Block Type | DC 32 circuit discrete input and output |
| Rated Voltage | 5/12/24 Volts DC |
| Operating Voltage | 4.9 to 5.3 Volts DC |
| Maximum Output Current per Circuit | 0.5 Amps |
| Maximum Inrush Current | 4 Amps for up to 10 milliseconds |
| Power Dissipation (Maximum) | 18 Watts |
| Block to Block Isolation | 850 Volts |
| Dimensions | 224 x 90 x 112 mm (8.8 x 3.5 x 4.4 in) |
| Weight | 1.8 kg (4 lb) |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 100 °C (-40 to 212 °F) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660tbd022-genius-i-o-terminal-assembly-for-discrete-i-o | confirm the configuration against your installation |
| ge-ic660tbd023-genius-i-o-terminal-assembly-for-discrete-i-o-blocks | confirm the configuration against your installation |
| ge-ic660tbd024-genius-i-o-terminal-assembly-overview | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660TBD025 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
