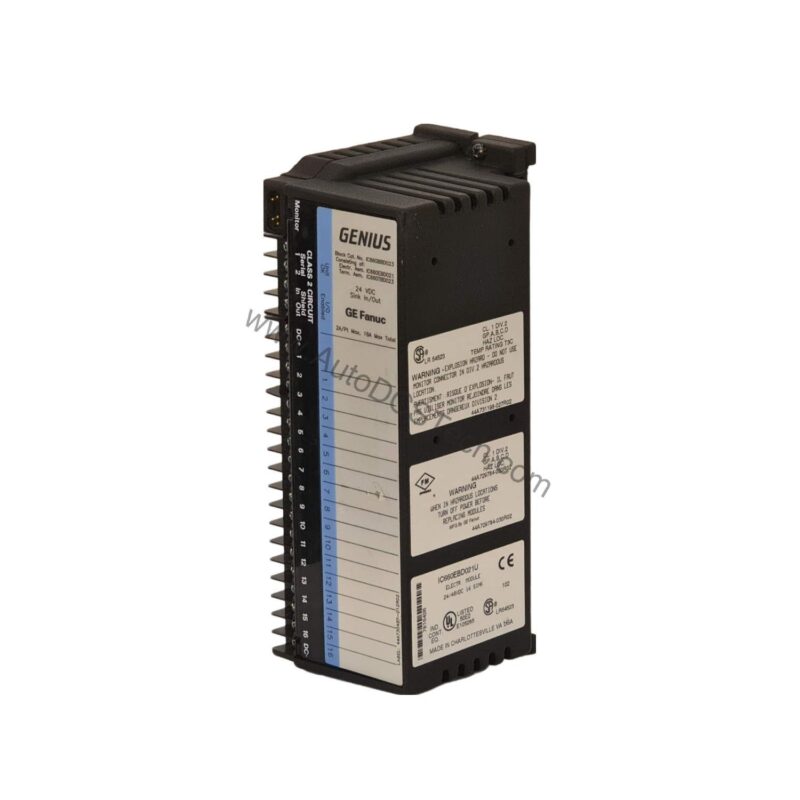

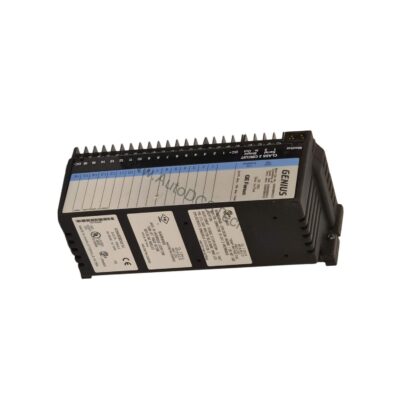

IC660TBD023: Genius I/O Terminal Assembly for Discrete I/O Blocks
The IC660TBD023 is the Genius I/O Terminal Assembly for Discrete I/O Blocks covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
The reason to specify this exact variant is genius i/o terminal assembly for discrete i/o blocks. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius i/o terminal assembly for discrete i/o blocks sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660TBD023 |
| Block Type | 16 circuit discrete input and output |
| Rated Voltage | 24 Volts DC |
| Operating Voltage | 18 to 30 Volts DC |
| Ripple | 10% maximum |
| Power Supply Dropout Time | 10 milliseconds (DC) |
| Required DC Power | 150 milliamps typical / 300 milliamps maximum |
| Heat Dissipation (Maximum) | 68.8 Watts with 16 outputs on at 2 Amps |
| Block to Block Isolation | 1500 Volts for 1 minute |
| Dimensions (HxWxD) | 224 x 88 x 100 millimeters (8.8 x 3.5 x 3.9 inches) |
| Weight | 1.8 kilograms (4 pounds) |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Storage Temperature | -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660tbd022-genius-i-o-terminal-assembly-for-discrete-i-o | confirm the configuration against your installation |
| ge-ic660tbd024-genius-i-o-terminal-assembly-overview | confirm the configuration against your installation |
| ge-fanuc-ic660tbd025-genius-i-o-terminal-assembly-for-discrete-i-o-blocks | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660TBD023 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
