Solving Network Communication Challenges in Industrial Automation

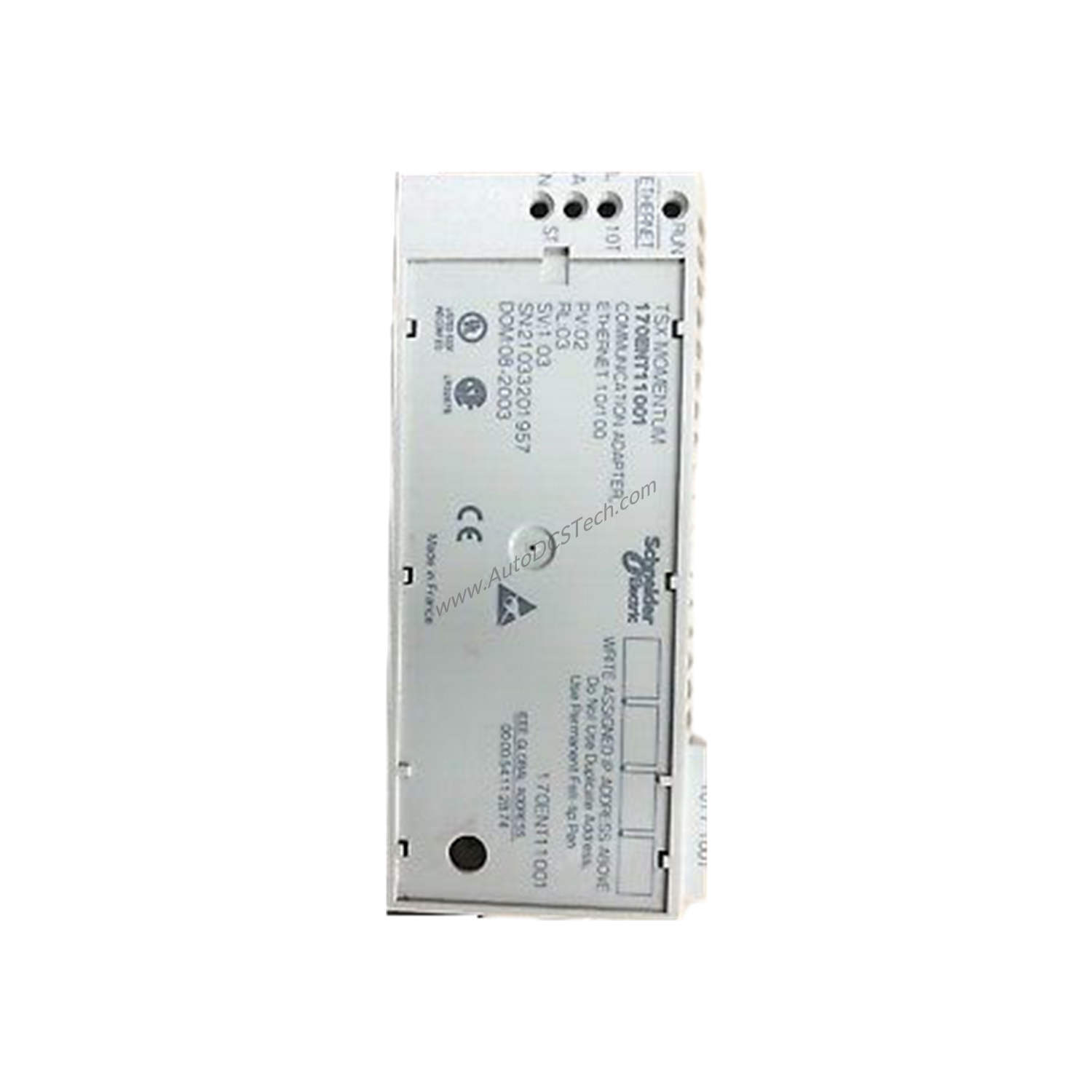

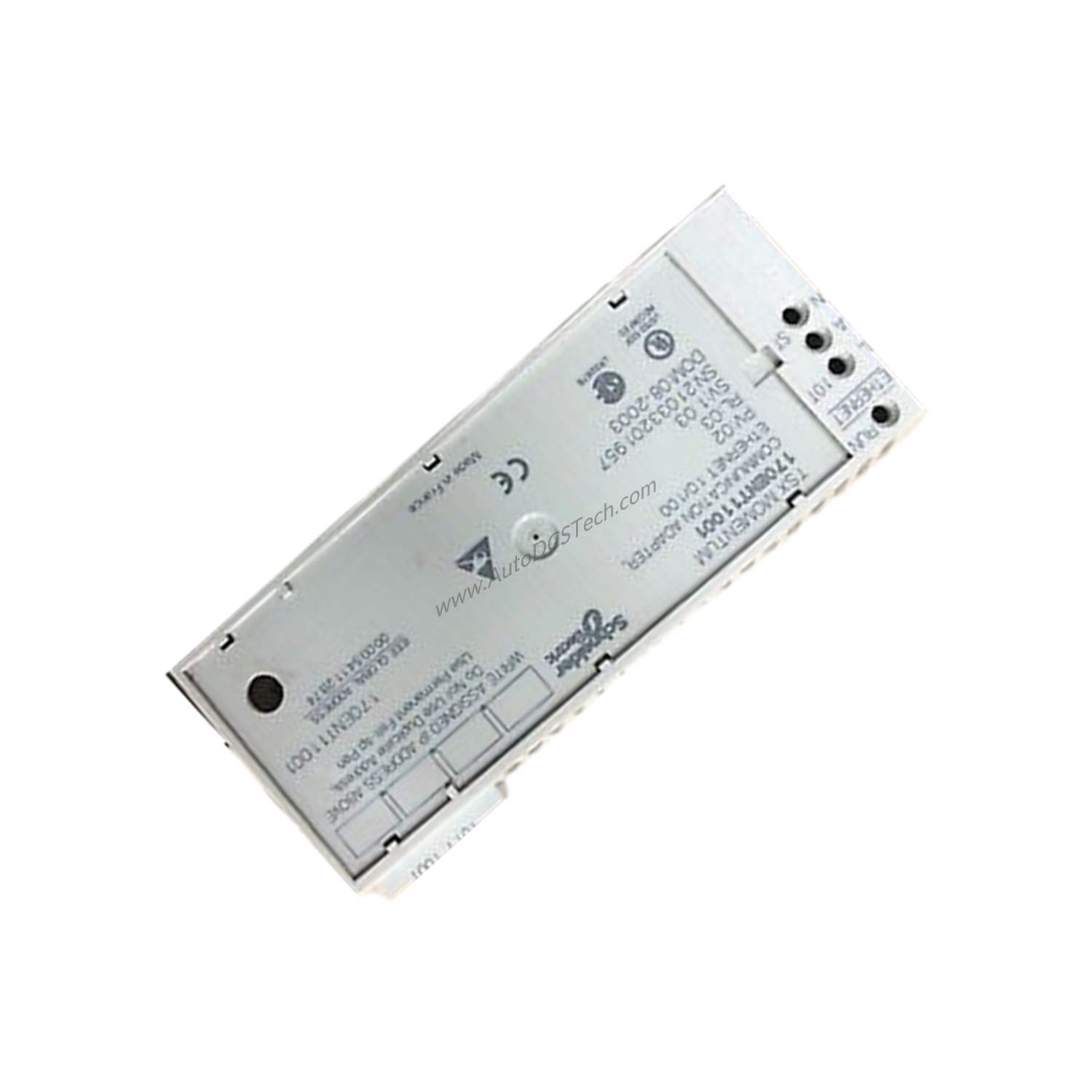

When industrial networks face data bottlenecks or unreliable connections, the Schneider 170ENT11001 Communication Adapter provides a robust solution. Part of the Modicon Momentum automation platform, this Ethernet TCP/IP adapter ensures high-speed data transmission with baud rates of either 10 or 100 megabits per second. It supports both master/slave and peer-to-peer (P2P) access methods, giving engineers flexibility to design efficient network topologies.
Key Technical Specifications
The 170ENT11001 delivers reliable performance with these critical parameters:
- Communication Protocol: Ethernet Transmission Control Protocol/Internet Protocol (TCP/IP)
- Baud Rate: 10 or 100 megabits per second (auto-negotiating)
- Access Method: Master/Slave and peer-to-peer (P2P)
- Network Topology: Star network and multi-drop
- Number of Devices Per Segment: 0 to 32 per segment
- Maximum Cable Distance Between Devices: 3,280 feet (1,000 meters)
- Ethernet Port Type: 100BASE-TX with RJ45 connector
- Transmission Cable Type: Shielded twisted pairs cable
- Control Parameter: CRC-32 for data integrity
- Protection Class: IP20
- Ambient Operating Temperature: 0 to 60°C (non-condensing environment)
- Storage Temperature: -40 to 85°C (non-condensing environment)
- Status Indicators: 4 LED indicators (3 green and 1 yellow)
These specifications ensure the adapter handles demanding industrial networking tasks while maintaining data accuracy.
Real-World Applications
1. Distributed Control System (DCS) Integration
In a DCS environment, the 170ENT11001 connects remote I/O racks to a central controller. Its master/slave access method allows deterministic data exchange, while the 100BASE-TX port ensures compatibility with existing Ethernet infrastructure. The star network topology simplifies troubleshooting by isolating each device.
2. Peer-to-Peer Machine Communication
For applications requiring direct data sharing between PLCs or drives, the P2P access method reduces latency. The adapter supports up to 32 devices per segment, making it suitable for medium-sized production lines. Shielded twisted pair cable minimizes electromagnetic interference in noisy factory floors.
Installation and Setup Guidance
Follow these steps for reliable installation:
- Mounting: Install the adapter in a dry, non-condensing environment within the 0 to 60°C operating range. Ensure adequate ventilation around the IP20 enclosure.
- Cabling: Use shielded twisted pair cable for the 100BASE-TX connection. Maximum cable distance between devices is 3,280 feet (1,000 meters).
- Configuration: The module uses a BOOTP server to assign IP parameters. Alternatively, assign a unique IEEE global address or a user-defined IP address.
- Network Topology: Connect in a star or multi-drop configuration. Do not exceed 32 devices per segment.
- LED Indicators: Monitor the 3 green and 1 yellow LEDs for operational status. Green indicates normal operation; yellow signals a warning.
Maintenance and Reliability
To maximize uptime, inspect the adapter periodically:
- Environmental Check: Verify ambient temperature stays within 0 to 60°C and storage temperature within -40 to 85°C. Avoid condensation.
- Cable Integrity: Check shielded twisted pair cables for damage or loose connections at the RJ45 port.
- LED Status: Confirm all 4 LEDs function correctly. Replace the adapter if any LED fails to illuminate.
- Firmware: While no firmware update details are provided, ensure the BOOTP server configuration matches network requirements.
Regular maintenance extends service life and reduces unexpected downtime.
Compatibility and Integration
The 170ENT11001 integrates seamlessly with the Modicon Momentum automation platform. It supports Ethernet TCP/IP protocol, making it compatible with Schneider Electric controllers and third-party devices that adhere to this standard. The adapter works with both star and multi-drop topologies, fitting into existing network architectures. For addressing, it uses a unique IEEE global address or a user-assigned IP address via BOOTP.
Selection Guide and Purchasing Advice
Before purchasing the 170ENT11001, verify these points:
- Network Requirements: Confirm your system uses Ethernet TCP/IP and requires baud rates of 10 or 100 Mbit/s.
- Device Count: Ensure your segment does not exceed 32 devices.
- Cabling: Prepare shielded twisted pair cable with RJ45 connectors.
- Environment: The adapter is rated IP20 and operates in 0 to 60°C. Not suitable for wet or condensing environments.
SpareTechPLC stocks the 170ENT11001 and can advise on availability and lifecycle status. Contact our team for current stock and replacement options if needed.
Frequently Asked Questions
Q1: What is the maximum number of devices I can connect to one 170ENT11001 segment?
A: The adapter supports 0 to 32 devices per segment. Exceeding this may cause communication errors.
Q2: Can I use the 170ENT11001 in a multi-drop network?
A: Yes, the adapter supports both multi-drop and star network topologies, giving you flexibility in system design.
Q3: What type of cable does the 170ENT11001 require?
A: It requires shielded twisted pair cable for the 100BASE-TX Ethernet connection, terminated with an RJ45 connector.
Q4: How do I assign an IP address to the 170ENT11001?
A: The module uses a BOOTP server to assign IP parameters. You can also assign a unique IEEE global address or a user-defined IP address.
Q5: What do the LED indicators mean?
A: The adapter has 3 green and 1 yellow LED. Green indicates normal operation; yellow signals a warning or specific condition. Refer to the manual for exact patterns.
