Product Overview

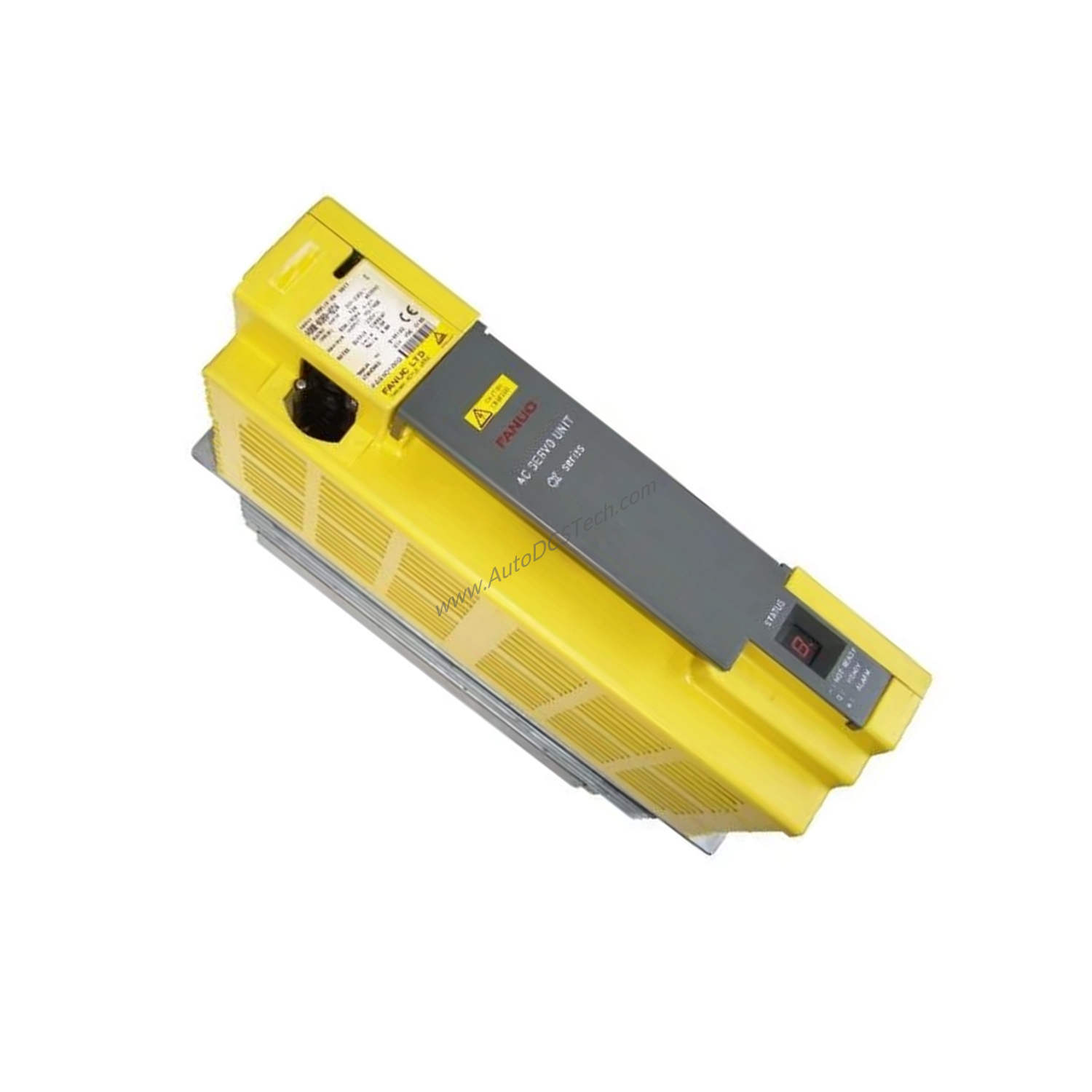

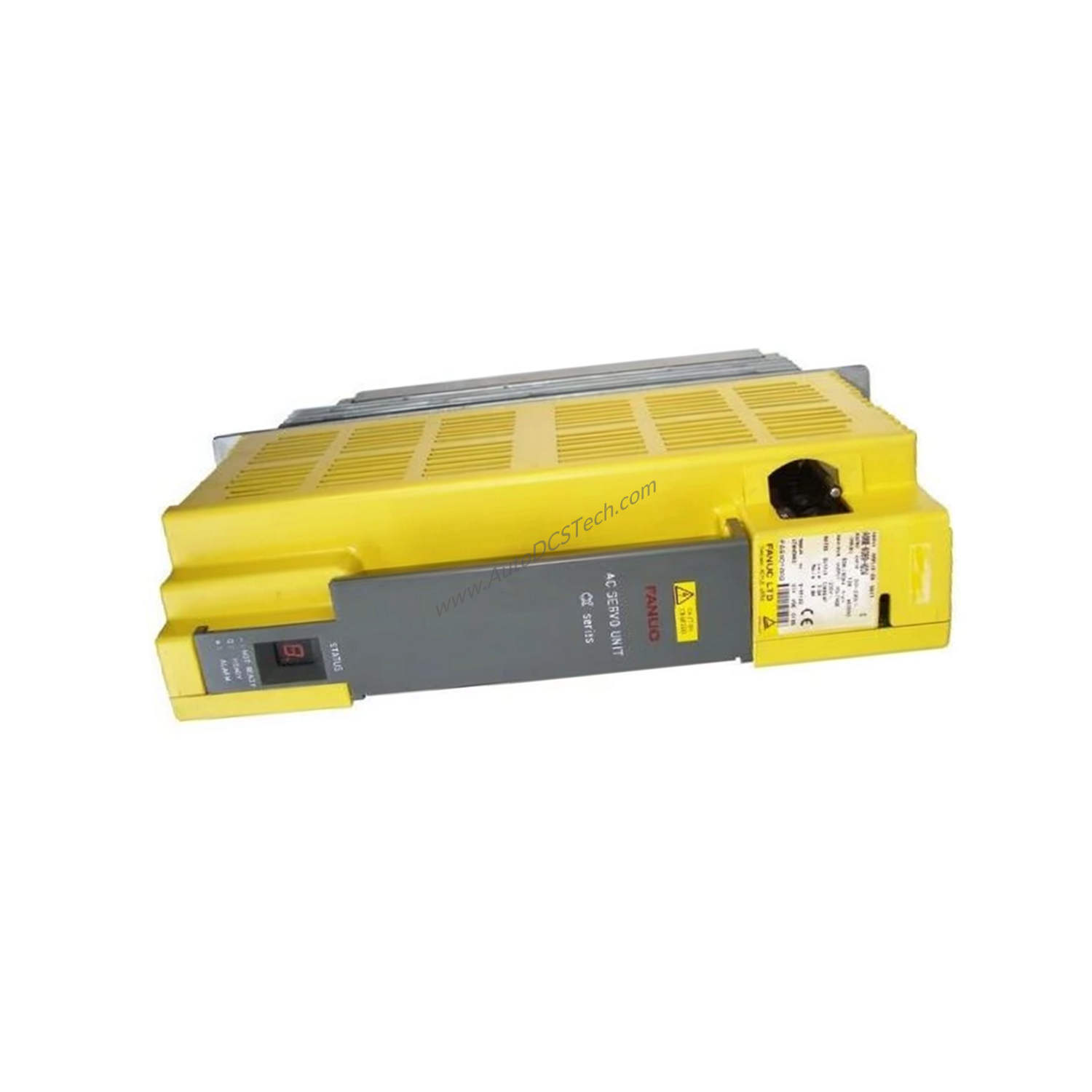

When CNC systems demand precise motion control under heavy loads, the FANUC A06B-6089-H106 servo amplifier delivers reliable performance. This vertical/wall-mounted unit from the A06B product line is engineered to power demanding automation tasks. With a 3-phase input and a voltage range of 200-230 V, it integrates seamlessly into industrial environments.
Technical Specifications Breakdown
The A06B-6089-H106 operates at a frequency of 50/60 Hz, matching standard industrial power supplies. Its rated output current of 130 A enables it to drive large servo motors in machining centers. The amplifier uses air cooling to maintain safe operating temperatures within an ambient range of 0°C to 55°C. Built-in protection features—overload, overcurrent, and overvoltage—safeguard both the drive and connected equipment. Weighing 28.00 lbs (12.70 kg), this unit is relatively lightweight for its power class, simplifying installation.
Industry Applications
This servo amplifier excels in CNC machining applications such as milling, turning, and grinding. The 130 A output current supports high-torque spindle drives, while the 3-phase input ensures stable power delivery even under fluctuating line conditions. In a typical retrofit project, replacing an older amplifier with the A06B-6089-H106 can reduce downtime and improve positioning accuracy.
Installation & Setup Guidance
Mount the A06B-6089-H106 vertically on a clean, vibration-free surface using the provided mounting brackets. Ensure adequate clearance around the unit for air-cooled heat dissipation. Connect the 3-phase power supply (200-230 V) following local electrical codes. Verify that the input voltage matches the nameplate rating before energizing. Use appropriately sized conductors for the 130 A output circuit.
Maintenance & Reliability
Periodically inspect the air intake and exhaust vents for dust buildup, as the air-cooled system relies on unobstructed airflow. Check all power and signal connections for tightness during routine maintenance. The overload, overcurrent, and overvoltage protection features help prevent damage from electrical faults, extending the service life of the amplifier. Operating within the 0°C to 55°C ambient range ensures optimal performance.
Selection Guide & Purchasing Advice
Before ordering, confirm that your CNC system requires a 130 A rated output and a 3-phase 200-230 V input. Verify the mounting orientation (vertical/wall-mounted) fits your cabinet layout. At SpareTechPLC, we stock the FANUC A06B-6089-H106 and can advise on compatibility with your existing drives and controllers. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the input voltage range for the A06B-6089-H106?
A: The amplifier accepts 200-230 V AC, 3-phase input.
Q: What is the rated output current?
A: The rated output current is 130 A.
Q: What cooling method does this servo amplifier use?
A: It uses air cooling.
Q: What protection features are included?
A: Overload, overcurrent, and overvoltage protection are built in.
Q: What is the operating temperature range?
A: The unit operates from 0°C to 55°C.
