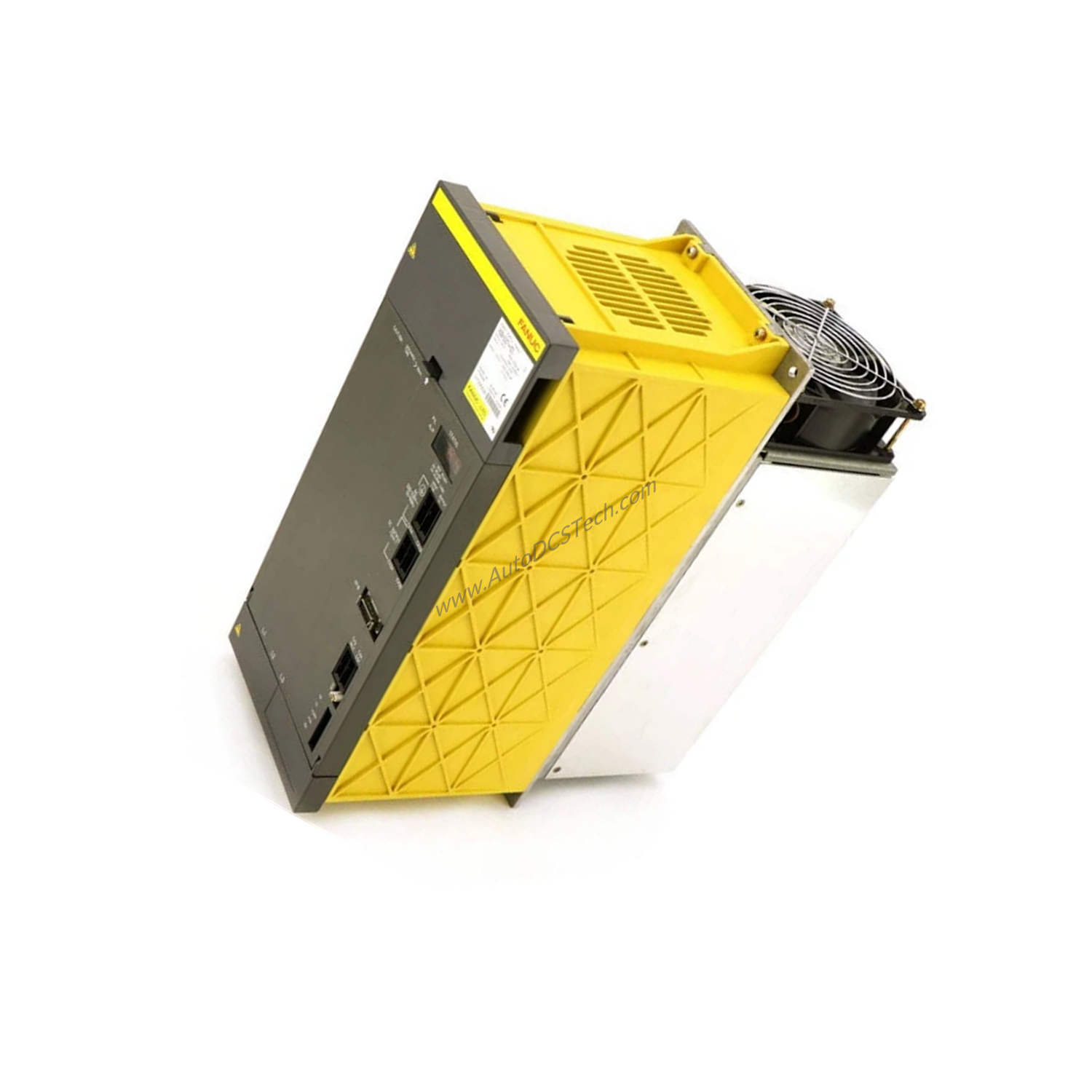

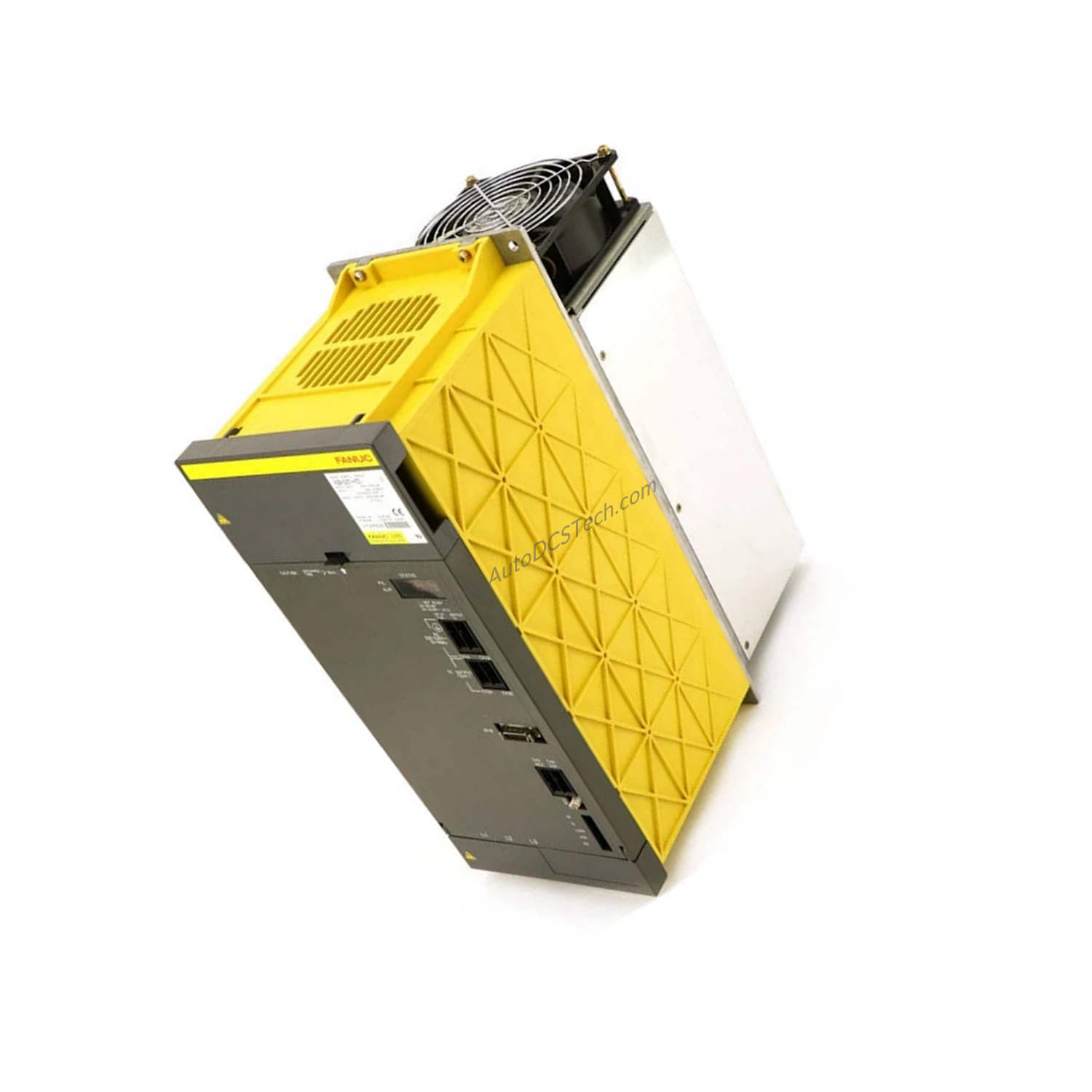

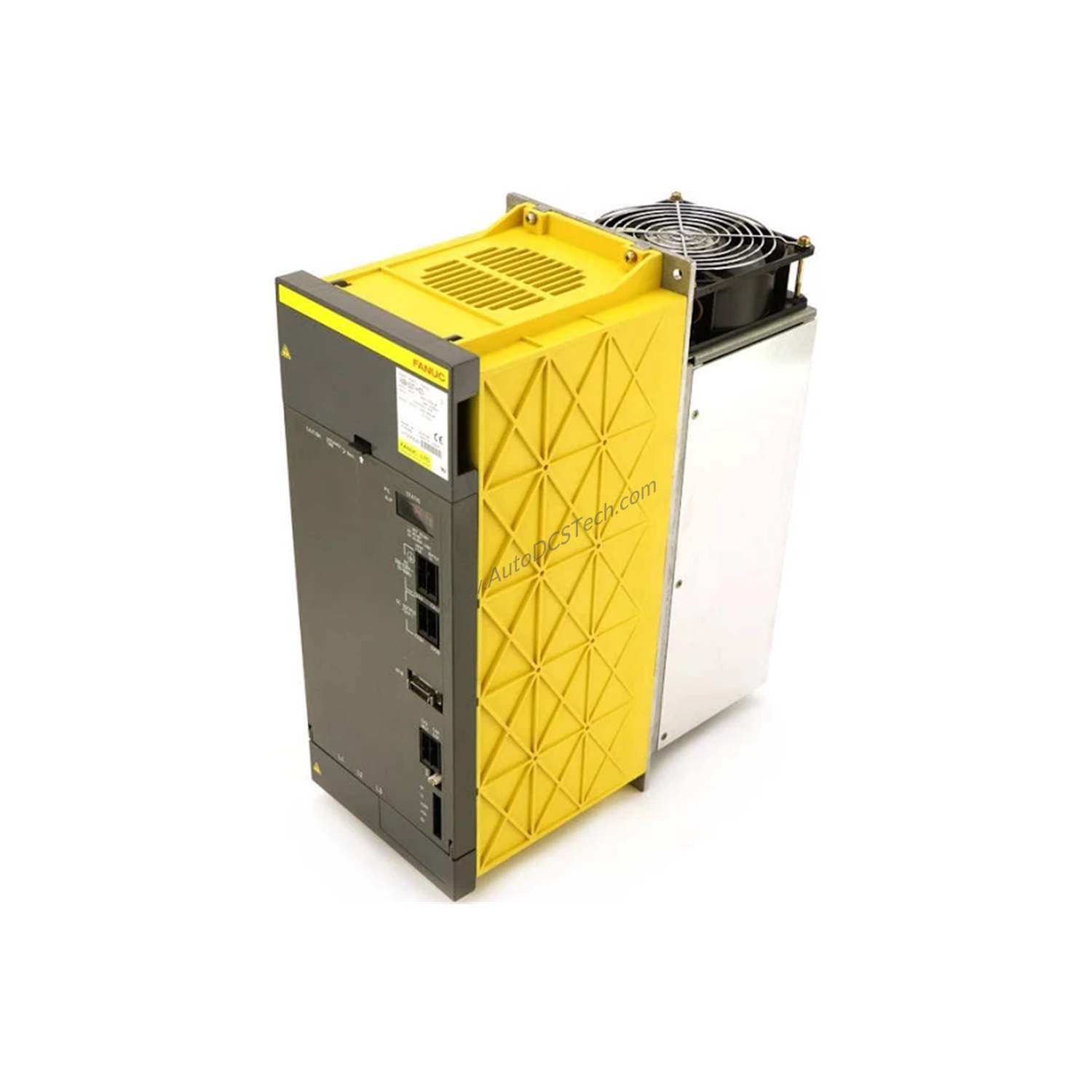

What Is the FANUC A06B-6087-H126?
When your CNC system demands a reliable and efficient power source, the FANUC A06B-6087-H126 Power Supply (Power Supply Module) delivers consistent performance. This module is part of the A06B product line and is engineered specifically for CNC systems. It handles a rated current of 106 A and operates at input voltages of 200 or 230 VAC, making it a robust solution for industrial automation.
Technical Specifications Breakdown
The FANUC A06B-6087-H126 offers several key specifications that ensure dependable operation:
- Input Voltage and Phase: Supports 200/230 VAC with single or three-phase input, providing flexibility for different electrical setups.
- Rated Current: 106 A allows the module to power demanding CNC machinery without strain.
- Efficiency: Exceeds 95%, reducing energy waste and heat generation in your control cabinet.
- Protection Features: Includes overload, overcurrent, and overvoltage protection to safeguard both the module and connected equipment.
- Cooling and Mounting: Air-cooled design with vertical or wall-mounting options simplifies installation in tight spaces.
- Operating Temperature: Functions reliably from 0°C to 55°C, suitable for typical industrial environments.
Industry Applications
In CNC machining centers, the A06B-6087-H126 provides stable power to servo drives and control units. For example, a multi-axis milling machine requires consistent voltage and high current capacity to maintain precision during heavy cuts. This module’s 106 A rating and >95% efficiency reduce downtime and energy costs. Additionally, in automated lathe systems, the single/three-phase flexibility allows integration into existing plant power distribution without major rewiring.
Installation & Setup Guidance
Mount the FANUC A06B-6087-H126 vertically or on a wall using the provided brackets. Ensure adequate airflow around the air-cooled module to maintain optimal operating temperature. Connect input power at 200 or 230 VAC, selecting single or three-phase as per your facility. Verify that the total load does not exceed 106 A. The output voltage matches the input, so no adjustment is needed. Always follow local electrical codes and the manufacturer’s manual for safe installation.
Maintenance & Reliability
To maximize the lifespan of this power supply module, inspect it periodically for dust accumulation on cooling vents. Clean the exterior with a dry, low-pressure air source. Check for loose connections or signs of overheating. The built-in overload, overcurrent, and overvoltage protection reduce the risk of damage from electrical faults. Operating within the 0°C to 55°C range ensures stable performance. Regular inspection helps avoid unexpected downtime and extends service life.
Compatibility & Integration
The A06B-6087-H126 integrates seamlessly with FANUC CNC systems. It is compatible with controllers and drives that accept 200/230 VAC input. The single/three-phase capability allows connection to standard industrial power grids. No special communication protocols are required—this is a pure power supply module. Verify that your system’s total current demand stays within 106 A to ensure reliable operation.
Selection Guide & Purchasing Advice
Before ordering, confirm that your CNC system requires a power supply module with 200/230 VAC input and 106 A rated current. Check the physical dimensions and weight (25.00 lbs / 11.34 kg) to ensure fit in your cabinet. SpareTechPLC stocks the FANUC A06B-6087-H126 and can advise on availability and replacement options. Contact our team for current lifecycle status and to verify compatibility with your specific system.
Frequently Asked Questions
What is the input voltage range for the A06B-6087-H126?
The module accepts 200 or 230 VAC, with single or three-phase input.
What protection features does this power supply include?
It includes overload, overcurrent, and overvoltage protection.
Can this module be mounted in any orientation?
It is designed for vertical or wall-mounted installation only.
What is the operating temperature range?
The A06B-6087-H126 operates from 0°C to 55°C.
How efficient is this power supply?
Efficiency exceeds 95%, reducing energy loss.
