Product Overview

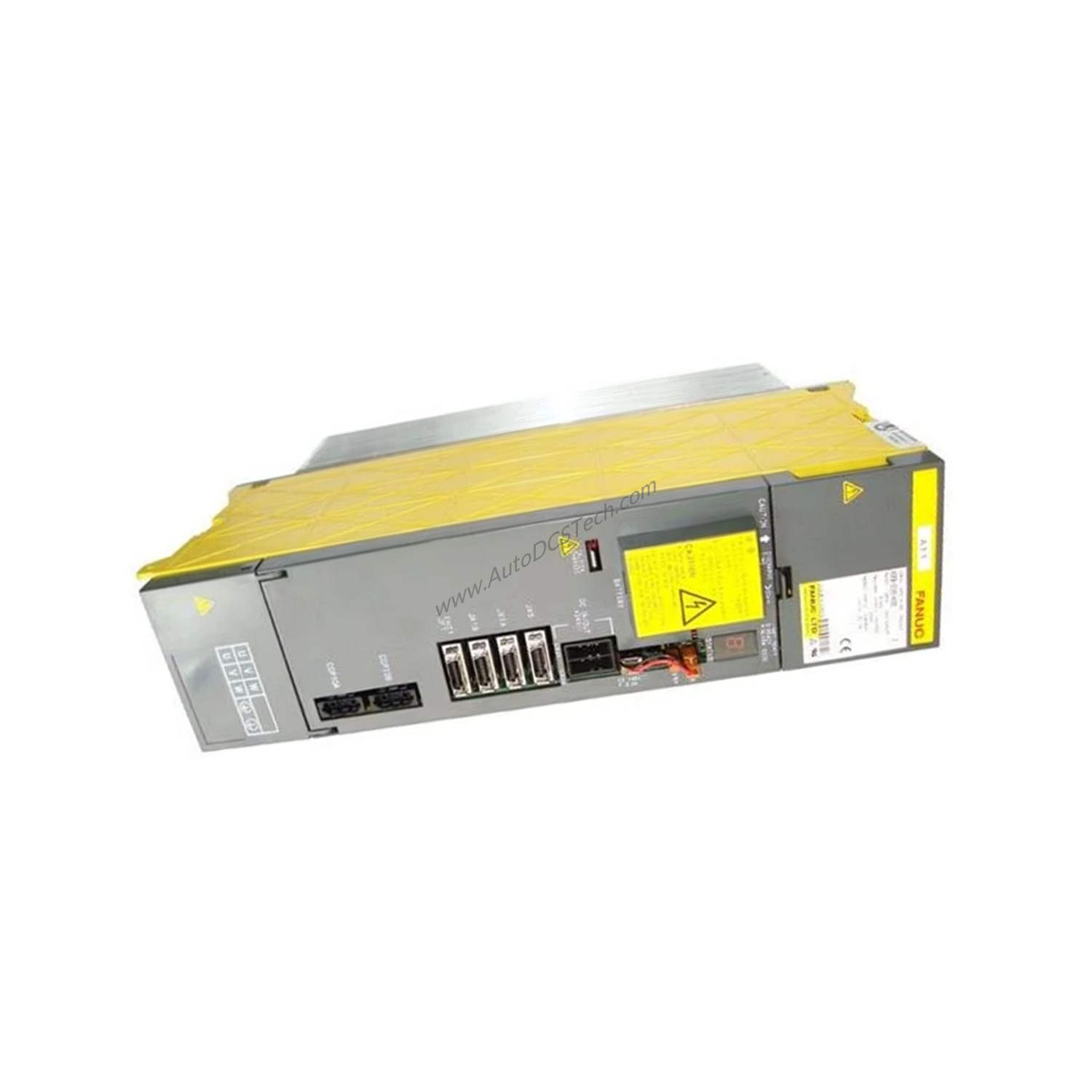

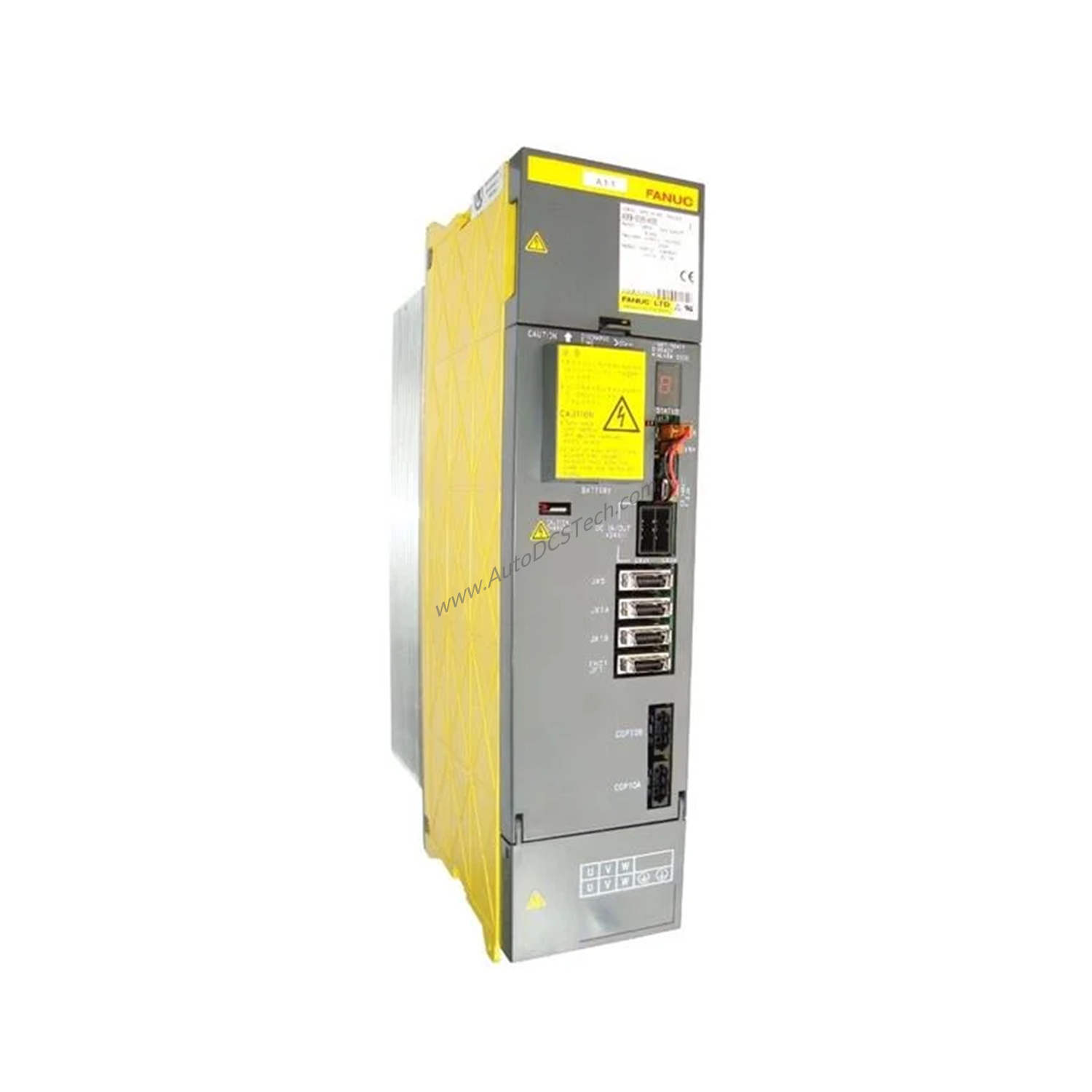

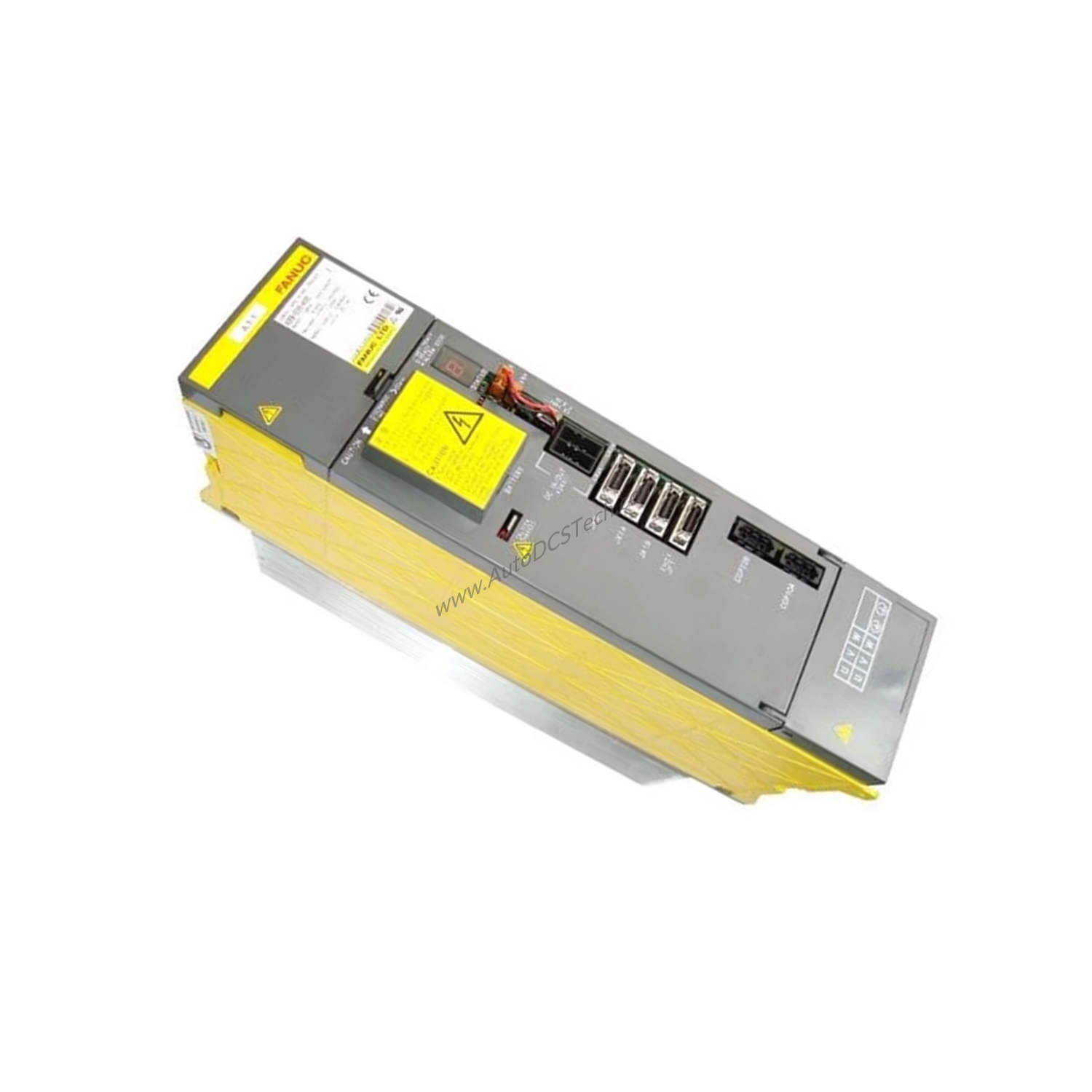

When your CNC or robotics system demands precise multi-axis control, the FANUC A06B-6096-H207 dual-axis servo amplifier delivers reliable performance. This unit combines two independent axes in a single compact package, reducing wiring complexity and cabinet space. With an output power rating of 8.5 kW and a maximum output voltage of 230V, it handles demanding motion tasks efficiently. The amplifier supports both CNC and robotics applications, making it a versatile choice for automated manufacturing environments.
Technical Specifications Breakdown
The A06B-6096-H207 operates on an input voltage range of 283-325V, ensuring stable power conversion even with fluctuating line conditions. Its dual-axis design provides an L-axis output current of 12.5 Amps and an M-axis output current of 18.7 Amps, allowing independent control of two servo motors. The maximum output voltage of 230V makes it compatible with a wide variety of FANUC servo motors. Weighing 19.00 lbs (8.62 kg), the amplifier is built for industrial durability while remaining manageable for installation.
Industry Applications
In CNC machining centers, the A06B-6096-H207 enables simultaneous control of two axes, such as X and Y, improving cycle times and surface finish. For robotic arms, the dual-axis capability allows coordinated movement of adjacent joints, reducing settling time and increasing throughput. The 5G maximum vibration rating ensures reliable operation in high-vibration environments like stamping presses or heavy milling. Operating within 0 to 40 degrees Celsius, it suits typical factory floor conditions without requiring special cooling.
Installation and Setup Guidance
Mount the A06B-6096-H207 in a clean, dry cabinet with adequate airflow. Ensure the input voltage matches the 283-325V range before connecting power. Use shielded cables for the motor and encoder connections to minimize electrical noise. Verify that the total load current on each axis does not exceed the specified limits: 12.5 Amps for the L-axis and 18.7 Amps for the M-axis. After installation, perform a functional test with low speed to confirm correct wiring and parameter settings.
Maintenance and Reliability
Regularly inspect the amplifier for dust accumulation on heat sinks and fans. Clean using low-pressure compressed air to maintain thermal performance. Check all terminal connections for tightness every six months. The unit is designed for altitudes up to 1000 meters above sea level, so no derating is needed for most installations. By following these simple steps, you extend the service life of the A06B-6096-H207 and reduce unplanned downtime.
Buying Guide
Before purchasing the FANUC A06B-6096-H207, confirm that your existing servo motors are compatible with the 230V maximum output voltage and the current ratings per axis. Verify that your power supply can deliver the required 283-325V input. SpareTechPLC stocks this amplifier and can assist with availability and lead times. Contact our team to check current stock and any applicable discounts for volume orders.
