Product Introduction

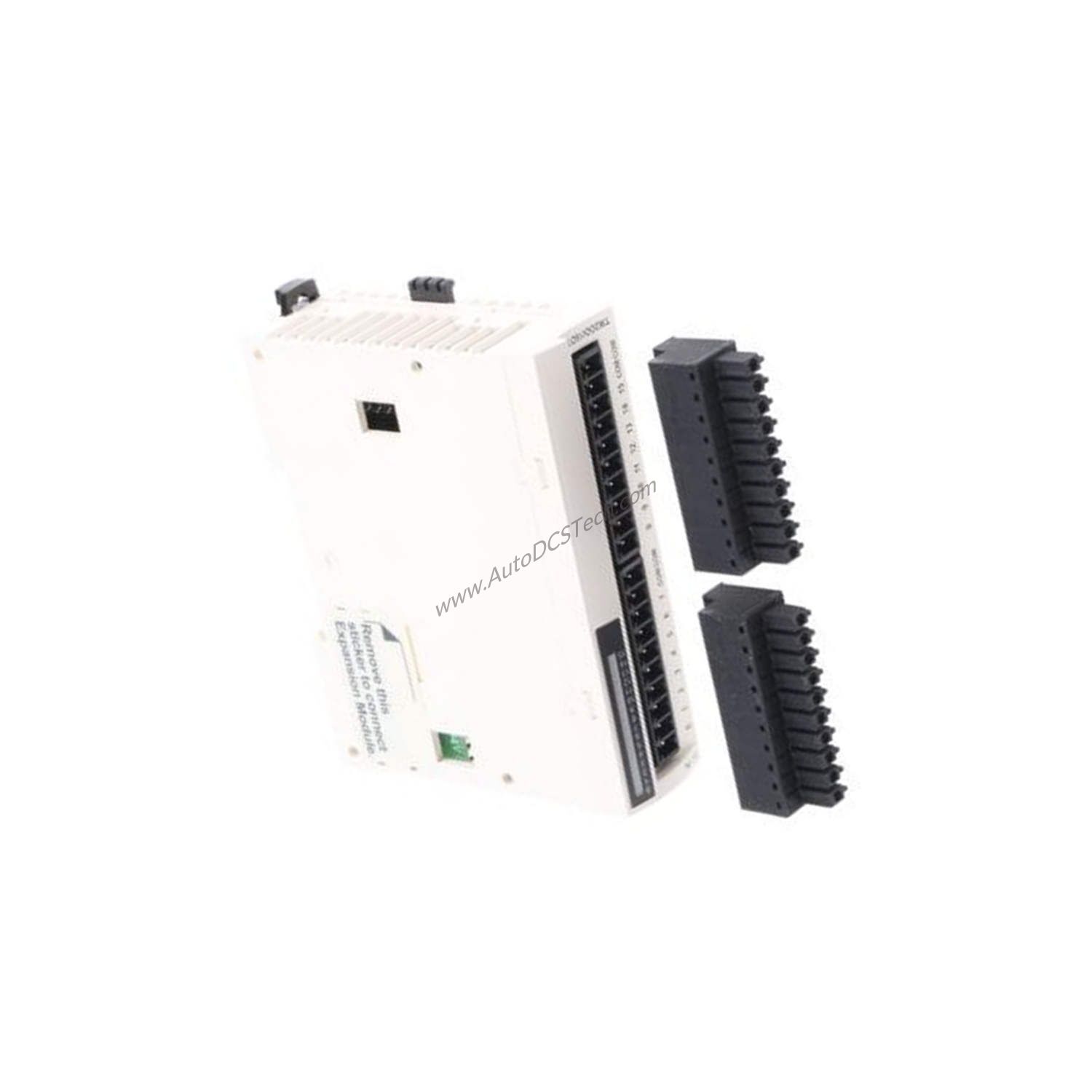

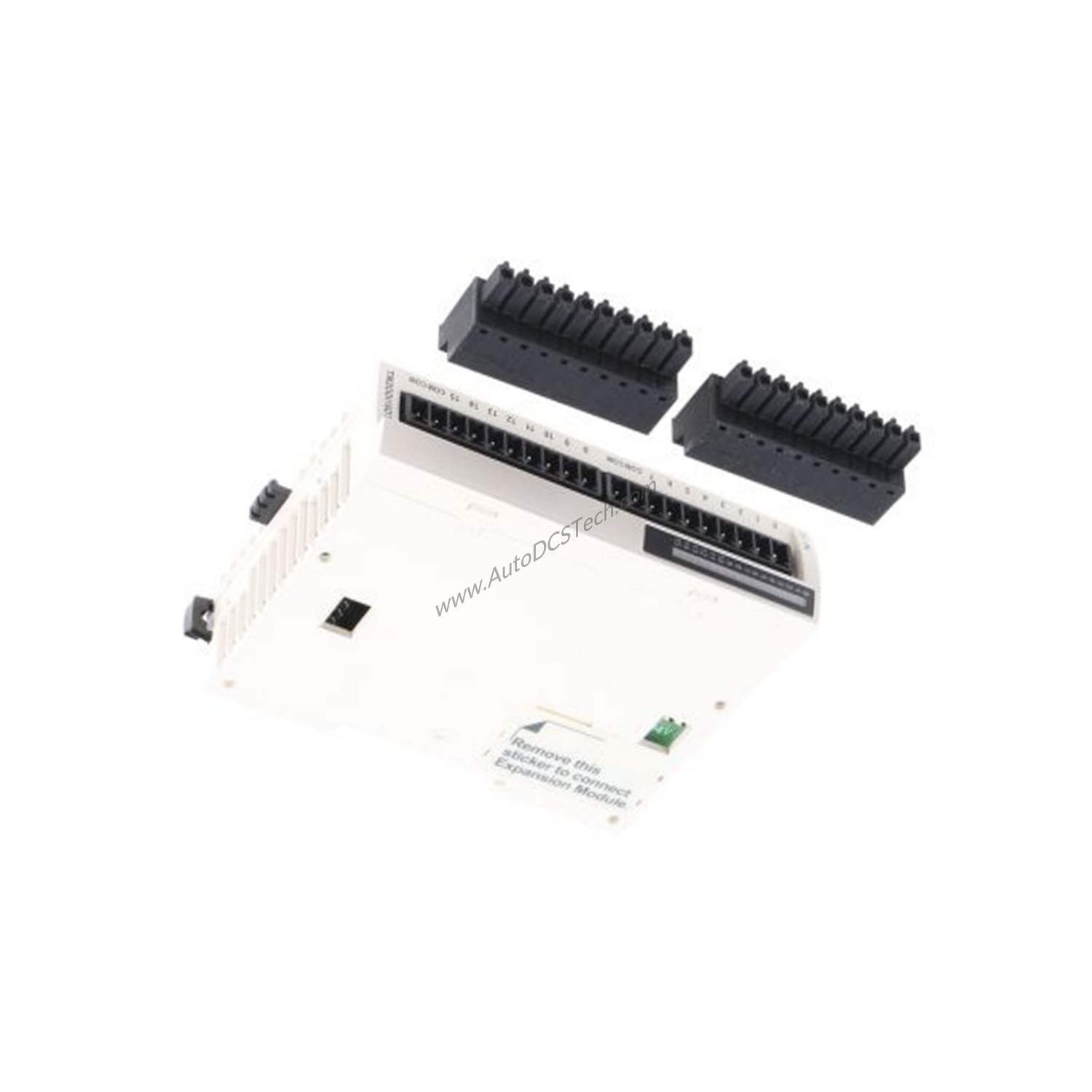

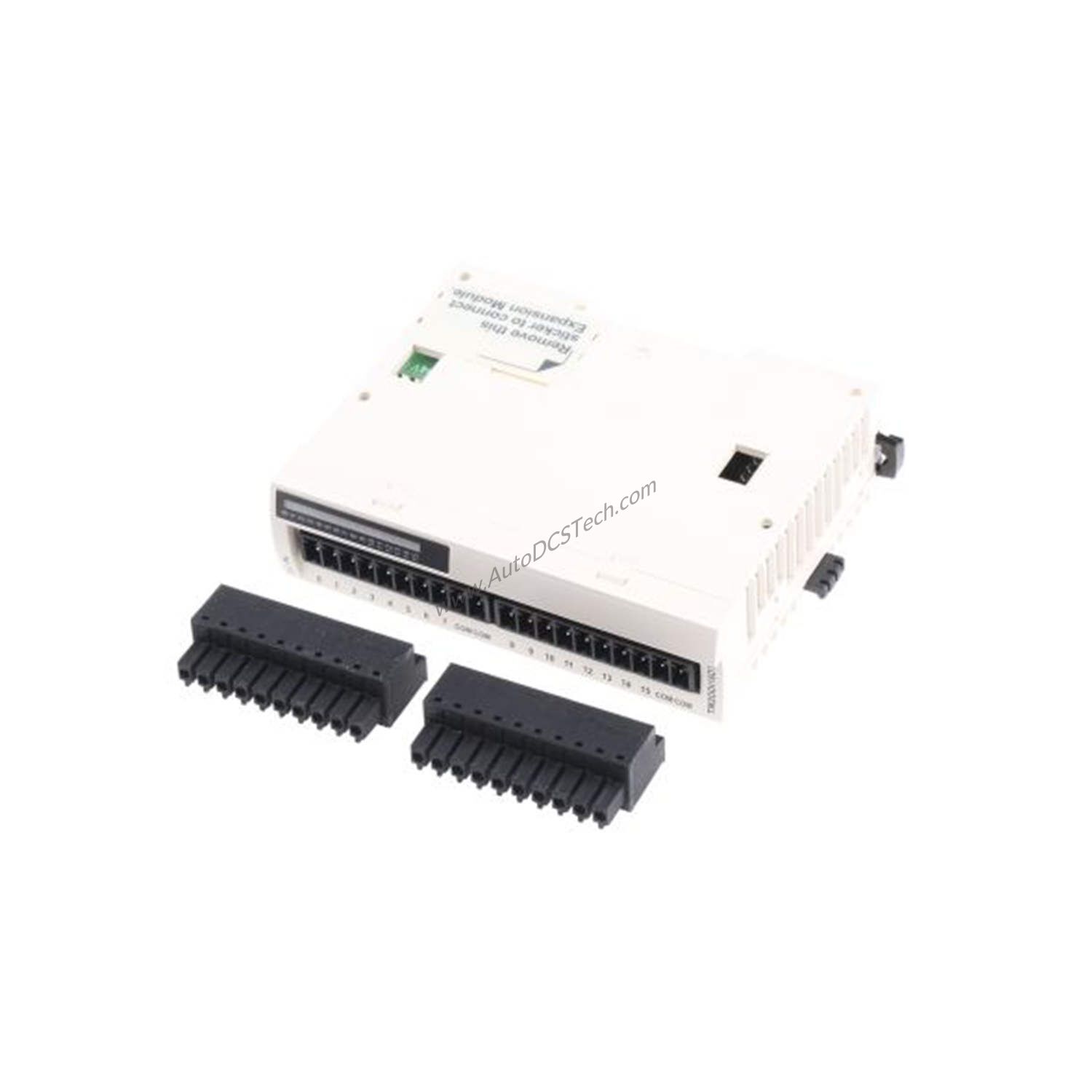

When signal noise or slow response times compromise your discrete input monitoring, the Schneider TM2DDI16DT provides a reliable solution. This I/O expansion module is part of the Modicon M238 logic controller family and delivers 16 digital inputs at 24 V DC. Designed for industrial environments, it handles sink or source logic configurations with ease, making it a versatile choice for automation engineers.
Technical Specifications Breakdown
The TM2DDI16DT offers key parameters that ensure consistent performance. Its input voltage limits span 20.4 to 28.8 V DC, accommodating real-world power fluctuations. Each input draws 7 mA and presents a 3.4 kOhm impedance, which minimizes loading on sensors. The module features a single common point and a response time of 4 ms for both state 0 and state 1 transitions, enabling fast detection of discrete events. Isolation between channels and internal logic is rated at 500 V for 1 minute, protecting the controller from transient surges.
Industry Applications
In packaging lines, the TM2DDI16DT monitors proximity sensors to detect product presence. Its 4 ms response time ensures timely triggering of downstream actuators, reducing jams. For material handling systems, the module reads limit switches on conveyor diverters. The sink/source flexibility simplifies wiring to both NPN and PNP sensors, cutting installation time. In HVAC control panels, it captures status signals from fans and dampers, feeding data to the Modicon M238 for energy optimization.
Installation & Setup Guidance
Mount the TM2DDI16DT on a 35 mm symmetrical DIN rail. Use the single removable screw terminal block for electrical connections. Ensure the input voltage stays within 20.4 to 28.8 V DC to avoid false readings. The module consumes 40 mA at 5 V DC when all inputs are at state 1, so verify your power budget. No special tools are required for wiring, but follow standard ESD precautions.
Maintenance & Reliability
Routine inspection of terminal block tightness and input wiring integrity helps maintain signal accuracy. The module's local signalling display block provides quick visual status of each input, speeding up troubleshooting. With no isolation between channels, avoid mixing high-voltage signals on adjacent inputs. The compact dimensions (84.6 mm depth, 90 mm height, 23.5 mm width) and light weight (0.065 kg) reduce mechanical stress on the DIN rail.
Compatibility & Integration
The TM2DDI16DT is compatible with Twido and Advantys OTB systems, in addition to Modicon M238 controllers. It integrates seamlessly as an I/O expansion module, requiring no special configuration beyond standard addressing. This broad compatibility makes it a drop-in upgrade for existing Schneider installations.
Selection Guide & Purchasing Advice
Before ordering, verify that your controller supports the TM2DDI16DT as an expansion module. Confirm the input voltage type (24 V DC) and logic configuration (sink or source) match your sensor outputs. SpareTechPLC stocks this module with fast shipping, ensuring minimal downtime for your project.
Frequently Asked Questions
Q: Can the TM2DDI16DT accept 24 V AC signals?
A: No, the module is designed for 24 V DC only. Applying AC may damage the inputs.
Q: What is the maximum cable length to sensors?
A: While not specified, keep sensor wiring under 30 meters to minimize voltage drop and noise pickup.
Q: Does the module support high-speed counting?
A: No, the 4 ms response time limits it to standard discrete input monitoring, not high-speed counters.
Q: How many TM2DDI16DT modules can I add to one Modicon M238?
A: Check your controller's manual for expansion limits; typically up to 7 modules depending on power budget.
Q: Is the terminal block included?
A: Yes, the module comes with one removable screw terminal block for wiring.
