Precision Temperature Measurement and Analog Control for Modicon M238
When a plastics extrusion line requires tight temperature monitoring of multiple zones, the Schneider TM2ALM3LT analog input/output module delivers reliable, accurate readings directly to the Modicon M238 logic controller. This compact module solves the common challenge of integrating low-level thermocouple and RTD signals without external signal conditioners, reducing wiring complexity and panel space.
Technical Specifications Breakdown

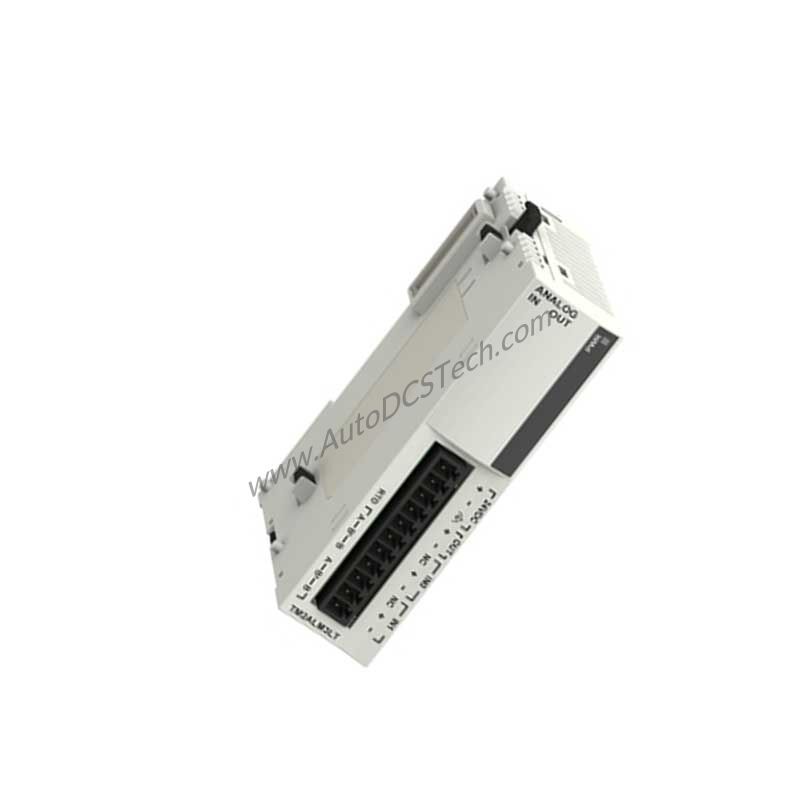

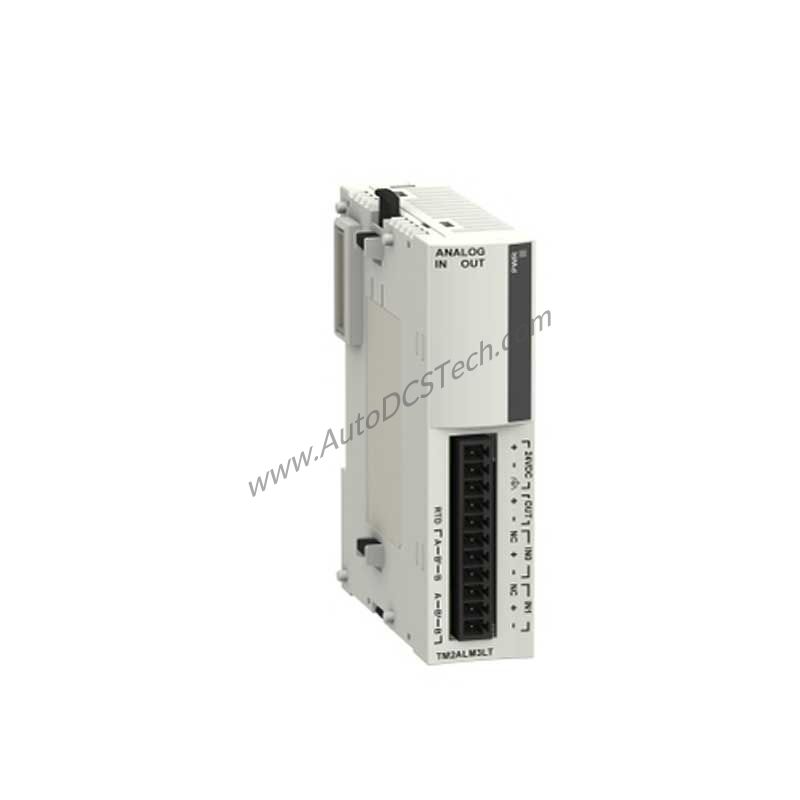

The TM2ALM3LT provides 2 analog inputs and 1 analog output in a slim 23.5 mm wide package. Key performance metrics include:
- Input types: 3-wire Pt probe (100...500 °C) and thermocouples J (0...1200 °C), K (0...1300 °C), T (0...400 °C) — all differential.
- Analog output: Configurable as 4...20 mA current or 0...10 V voltage, with 12-bit resolution.
- Resolution and accuracy: 12-bit for both input and output; LSB value of 0.1 °C for thermocouple, 0.15 °C for temperature probe. Measurement error is ±0.2% of full scale at 25 °C for all input types.
- Conversion time: 20 ms + 1 controller cycle time; acquisition period 60 ms per channel for thermocouple, 80 ms per channel for other inputs.
- Supply: Requires 24 V DC external supply (19.2...30 V limits), consuming 50 mA from external supply and 50 mA from 5 V DC internal.
- Isolation: Photocoupler insulation between channel and internal logic; dielectric strength 500 V between I/O and internal logic.
These specifications ensure stable, repeatable measurements (±0.5% FS repeat accuracy) even in electrically noisy industrial environments.
Industry Applications
- Plastic and rubber processing: Monitor barrel and die temperatures using J or K thermocouples while controlling heater output via the 4...20 mA analog output.
- Packaging machinery: Use Pt100 probes for precise temperature control of sealing bars, with the analog output driving a proportional valve or SCR power controller.
- HVAC systems: Measure duct temperatures with T-type thermocouples and modulate damper actuators using the 0...10 V output.
Installation and Setup Guidance
Mount the TM2ALM3LT directly onto the Modicon M238 base plate. Use shielded cable for all analog connections to minimize electromagnetic interference. Connect the external 24 V DC supply to the removable screw terminal block. Configure input type and output range via the controller programming software. Allow 20 ms stabilization time after power-up before taking critical measurements.
Maintenance and Reliability
The TM2ALM3LT requires minimal routine maintenance. Periodically inspect the screw terminal connections for tightness and check cable shielding integrity. The module's photocoupler isolation protects against ground loops and voltage transients, enhancing long-term reliability. With a weight of only 0.085 kg and compact dimensions (90 mm height, 70 mm depth), it fits easily into crowded cabinets.
Compatibility and Integration
Designed exclusively for the Modicon M238 logic controller family, the TM2ALM3LT is also compatible with Advantys OTB and Twido distributed I/O systems. It integrates seamlessly using the standard Modicon M238 backplane bus, requiring no additional configuration beyond the controller's programming environment.
Selection Guide and Purchasing Advice
Before ordering the TM2ALM3LT, verify that your Modicon M238 controller has an available expansion slot and that your application requires low-level analog inputs (thermocouple or Pt probe). The module does not include an internal power supply — you must provide 24 V DC external. SpareTechPLC stocks this module and can confirm current availability and lifecycle status. Contact us for pricing and lead times.
Frequently Asked Questions
Q: Can the TM2ALM3LT accept both thermocouple and RTD inputs simultaneously?
A: Yes, the two inputs can be configured independently for thermocouple (J, K, or T) or 3-wire Pt probe (100...500 °C) types.
Q: What is the maximum cable length for the analog inputs?
A: The module requires shielded cable for all analog connections. While the data does not specify a maximum length, use shielded twisted-pair cable and keep runs under 30 meters to maintain signal integrity.
Q: Does the analog output support both current and voltage simultaneously?
A: No, the single analog output can be configured as either 4...20 mA current or 0...10 V voltage, not both at the same time.
Q: How do I power the TM2ALM3LT?
A: It requires an external 24 V DC supply (19.2...30 V range) connected to the removable screw terminal block. It also draws 50 mA from the 5 V DC internal bus.
Q: What is the repeat accuracy of the module?
A: The repeat accuracy is ±0.5% of full scale for both input and output.
