Product Overview

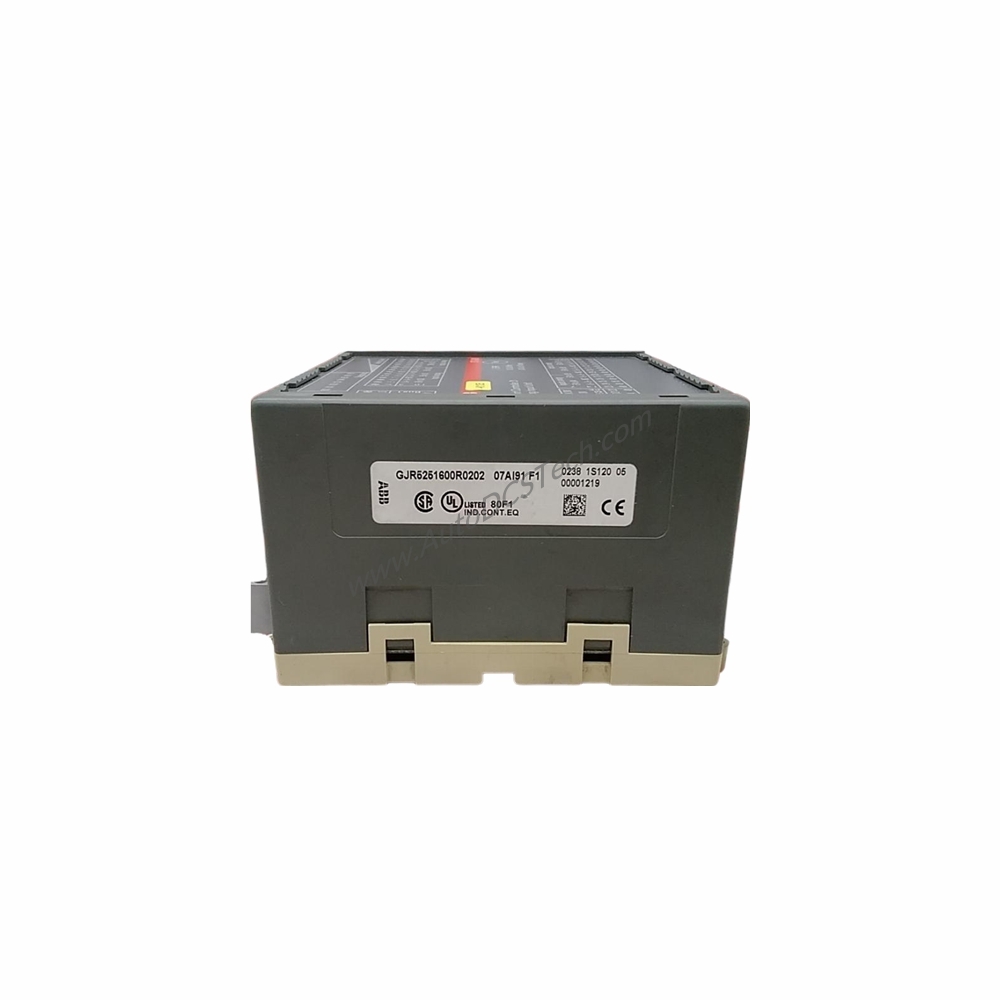

When you need precise temperature or voltage measurement in a distributed control system, the ABB 07AI91 analog input module delivers reliable performance. Designed as a remote module for the CS31 system bus, this unit offers 8 analog input channels that you can configure in pairs for various sensor types. As a maintenance engineer, you will appreciate its straightforward setup and robust diagnostics.
Technical Specifications Breakdown
The 07AI91 operates on a rated supply voltage of 24 V DC, with a maximum current consumption of 0.15 A and maximum power dissipation of 3 W. Protection against reversed polarity of the power connection is built in, reducing the risk of damage during installation. The module supports line frequency suppression configurable for 50 Hz, 60 Hz, or none, with a software filter of 20.0 ms at 50-Hz suppression and 16.7 ms at 60-Hz suppression. Permissible input overvoltage is max. +/- 30 V, and the input delay is 0 (no RC combination). These specs ensure stable readings in industrial environments.
Industry Applications
In process plants, the 07AI91 excels at monitoring temperatures from Pt100 or thermocouple sensors (types J, K, S) with linearization. For example, you can connect type J (Fe-CuNi) thermocouples for furnace monitoring up to 1200 °C. The module also handles voltage inputs (±10 V, ±5 V, ±500 mV, ±50 mV) and current inputs (0...20 mA or 4...20 mA with an external 250 Ω resistor). This flexibility makes it suitable for both temperature and signal conditioning tasks.
Installation & Setup Guidance
Mount the 07AI91 on a DIN rail (15 mm high) or use 4 screws (M4). Wiring uses removable terminal blocks with screw-type terminals, accepting conductor cross sections up to max. 2.5 mm². Configure input channels and module address using the DIL switches (coding switch under the right housing cover). Remember: only electrically isolated sensors may be used. For unused channels, bridge the input terminals to maintain proper operation.
Maintenance & Reliability

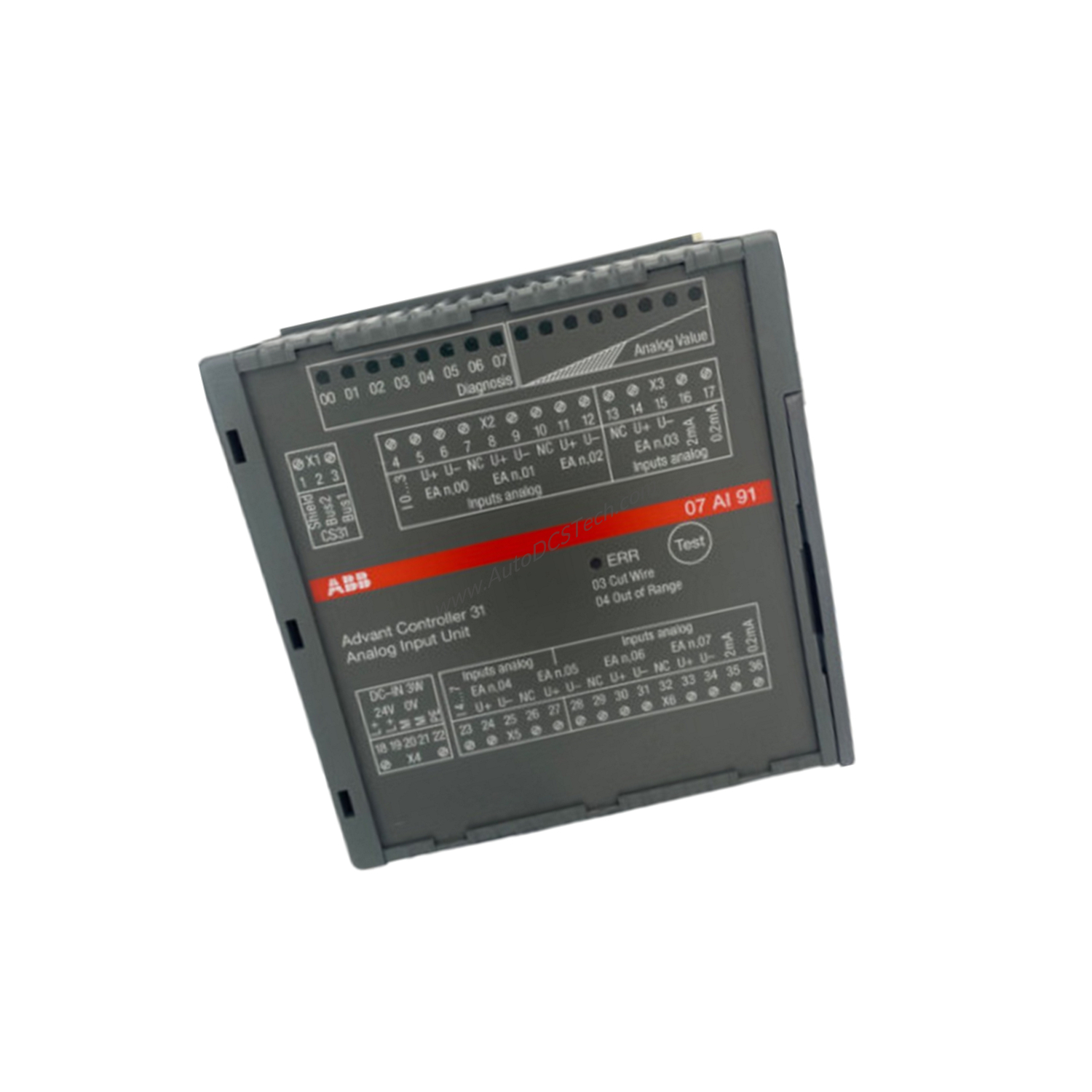

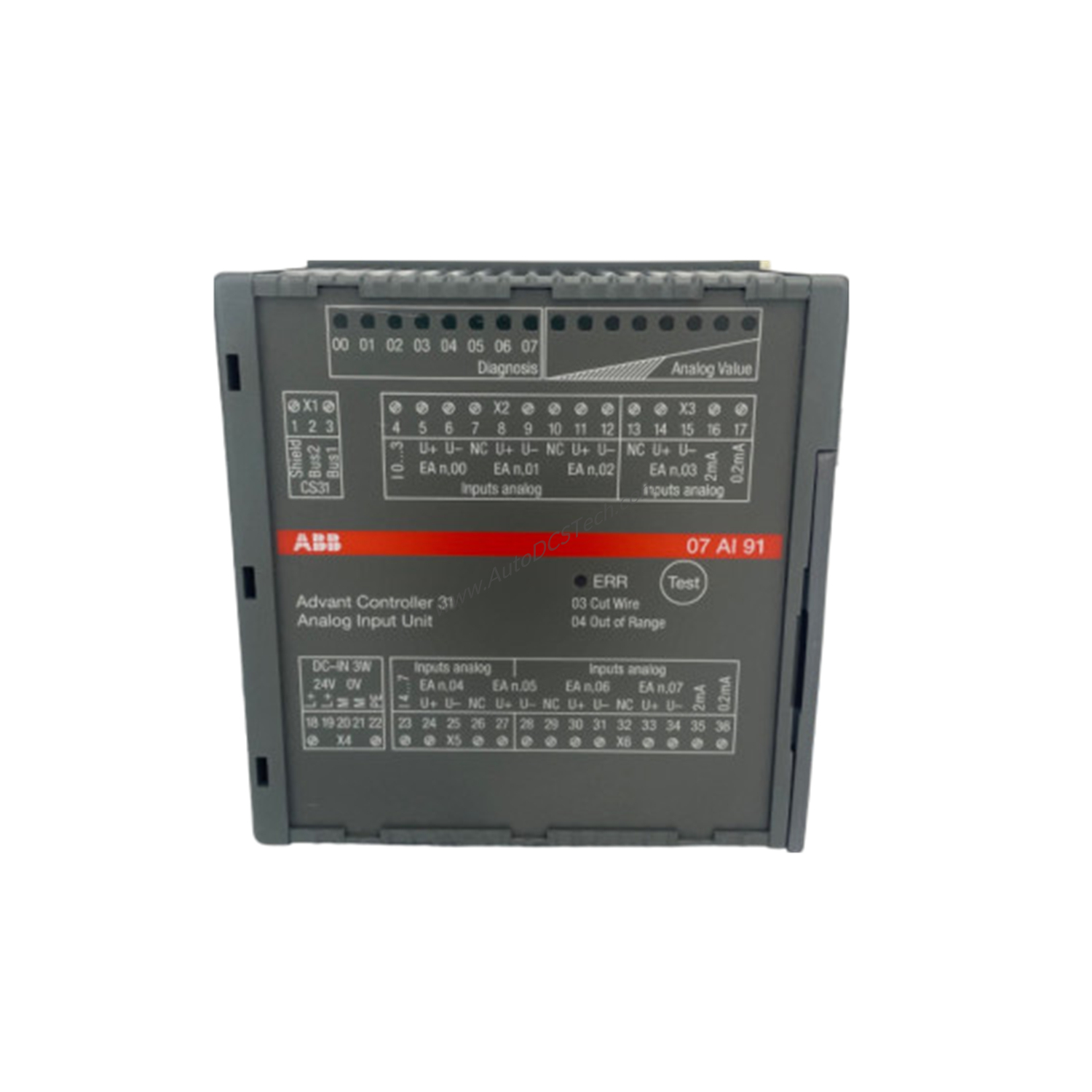

From a maintenance perspective, the 07AI91 offers self-calibration and diagnosis functions for all channels. The front panel provides 17 LEDs for channel selection, analog value display, and error messages, making troubleshooting quick. The permissible temperature range during operation is 0...55 °C, so ensure adequate ventilation in cabinets. No special cleaning procedures are required; periodic inspection of connections and LED status is sufficient.
Compatibility & Integration
The 07AI91 communicates via the CS31 system bus, which is electrically isolated from the rest of the unit. It uses one module address (group number) in the word input range, with each of the 8 channels using 16 bits. This integration is straightforward with ABB CS31-compatible controllers. The module is powered by 24 V DC, and the bus connection is isolated for noise immunity.
Frequently Asked Questions
Q: Can the 07AI91 measure 4...20 mA signals?
A: Yes, by using an external 250 Ω resistor across the input terminals, you can measure 4...20 mA current loops. Select the ±5 V measuring range for this configuration.
Q: How do I configure the input channels for thermocouples?
A: Use the DIL switches under the right housing cover to set channel pairs for thermocouple types J, K, or S. The module provides linearization automatically.
Q: What is the maximum cable length for Pt100 sensors?
A: For shielded cables laid in parallel, the maximum length is 50 m. For two-core shielded cables with cross section > 0.5 mm², you can extend up to 200 m.
Q: Does the module support 50 Hz and 60 Hz line frequency rejection?
A: Yes, you can configure line frequency suppression for 50 Hz, 60 Hz, or none. The software filter provides 20.0 ms at 50-Hz suppression and 16.7 ms at 60-Hz suppression.
Q: What happens if I connect power with reversed polarity?
A: The module includes protection against reversed polarity of the power connection, so it will not be damaged. Correct the wiring and the module will operate normally.
