Product Overview

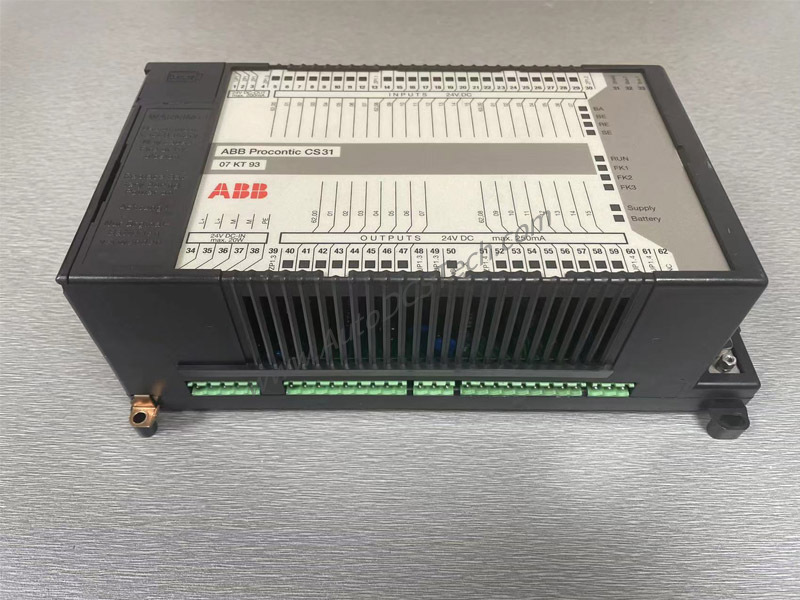

When industrial processes demand both reliable logic control and integrated safety functions, the ABB 07 KT 93-S central unit delivers a robust solution. This compact controller combines a powerful 56 kByte program memory with integral I/O and CS 31 field bus communication, making it suitable for applications requiring safety-oriented control up to AK4 (DIN V 19250) and category 3 (EN 954).
Technical Specifications Breakdown
The ABB 07 KT 93-S offers a comprehensive set of performance parameters:
- Program Memory: 56 kByte Flash EPROM and RAM for flexible application storage.
- Data Memory: 4096 bits, 4096 words (16-bit), and 512 double words (32-bit) for extensive data handling.
- Cycle Time: 0.7 ms per 1 Kbyte of program code, ensuring fast execution.
- Integral I/O: 24 digital inputs and 16 digital outputs for direct machine interfacing.
- Expandability: Supports up to 1032 total DI/DO and 192 AI/AO points.
- Special Functions: Includes PI and PID controllers, PDNet and MODBUS protocols, fast counter (1 at 10 kHz), and ASCII communication.
- Hardware Features: Password protection, exchangeable battery, real-time clock, withdrawable terminal blocks with screw terminals, and DIN rail or panel mounting.
Industry Applications
Safety-Critical Machinery Control
With safety-oriented control up to AK4 and category 3, the 07 KT 93-S excels in applications like press brakes, packaging lines, and robotic cells where fail-safe operation is mandatory. The integrated safety functions reduce the need for external safety relays, simplifying system design.
Distributed I/O with CS 31 Field Bus
Using the built-in CS 31 field bus, this central unit can network with remote I/O modules over long distances, ideal for material handling systems or conveyor lines. The combination of fast cycle time and robust communication ensures synchronized operation.
Installation & Setup Guidance
Mount the 07 KT 93-S on a standard DIN rail or directly on a panel using the provided slots. Connect field wiring to the withdrawable terminal blocks with screw terminals for easy maintenance. Ensure the exchangeable battery is installed before first power-up to retain real-time clock and memory data. Use the 907PC331 programming system to configure logic, tasks, and safety functions.
Maintenance & Reliability
Regularly inspect the terminal blocks for secure connections and verify the battery status indicator. The real-time clock and memory rely on battery backup during power loss; replace the battery every 3-5 years or as indicated by the system. The robust design with password protection prevents unauthorized changes, enhancing long-term reliability.
Compatibility & Integration
The ABB 07 KT 93-S integrates seamlessly with:
- CS 31 Field Bus: For distributed I/O and remote modules.
- PDNet and MODBUS Protocols: Enables connectivity with PLCs, drives, and SCADA systems.
- ASCII Communication: For serial data exchange with barcode readers or printers.
- Programming System: 907PC331 for ladder logic and function block programming.
Selection Guide & Purchasing Advice
Before ordering, verify your system voltage and I/O requirements. The 07 KT 93-S provides 24 DI and 16 DO integral, but can expand to 1032 total I/O. Confirm compatibility with your existing CS 31 network or MODBUS devices. SpareTechPLC stocks this ABB central unit and can advise on availability and replacement options.
Troubleshooting & Common Issues
- Battery Failure: If the real-time clock resets or memory is lost, replace the exchangeable battery.
- Communication Errors: Check CS 31 bus cabling and termination resistors; verify protocol settings in 907PC331.
- I/O Malfunction: Inspect terminal block connections; ensure screw terminals are tightened to specified torque.
Frequently Asked Questions
Q: What is the maximum number of I/O points the 07 KT 93-S can handle?
A: The central unit supports up to 1032 total digital I/O and 192 analog I/O when expanded.
Q: Does the 07 KT 93-S support safety functions?
A: Yes, it offers safety-oriented control up to AK4 (DIN V 19250) and category 3 (EN 954) for additional programming of safety functions.
Q: What programming software is required?
A: Use the 907PC331 programming system to configure logic, tasks, and parameters.
Q: Can I use MODBUS with this unit?
A: Yes, the 07 KT 93-S supports MODBUS protocol along with PDNet and ASCII communication.
Q: How do I mount the central unit?
A: It can be mounted on a DIN rail or directly on a panel using the provided mounting slots.
