Product Overview

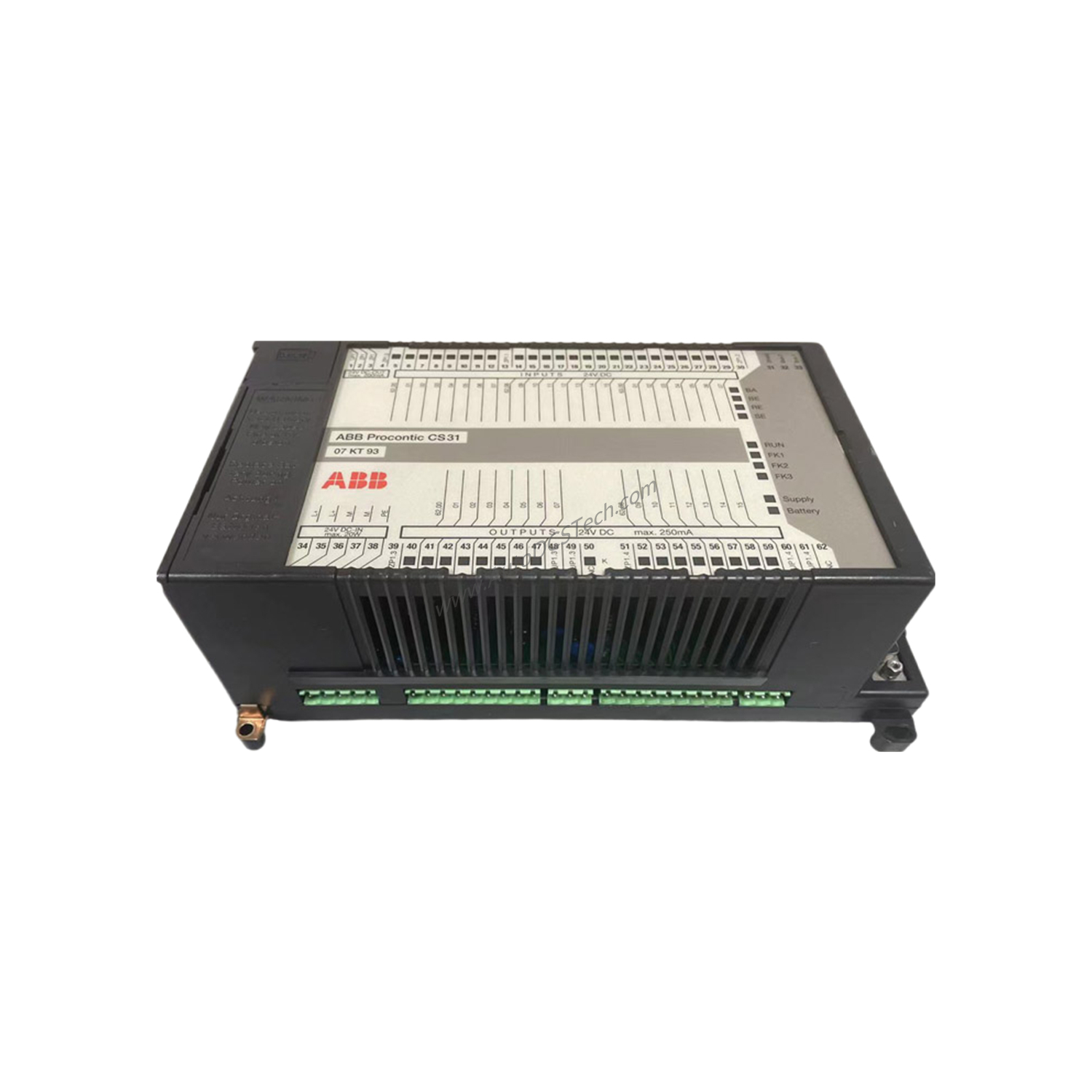

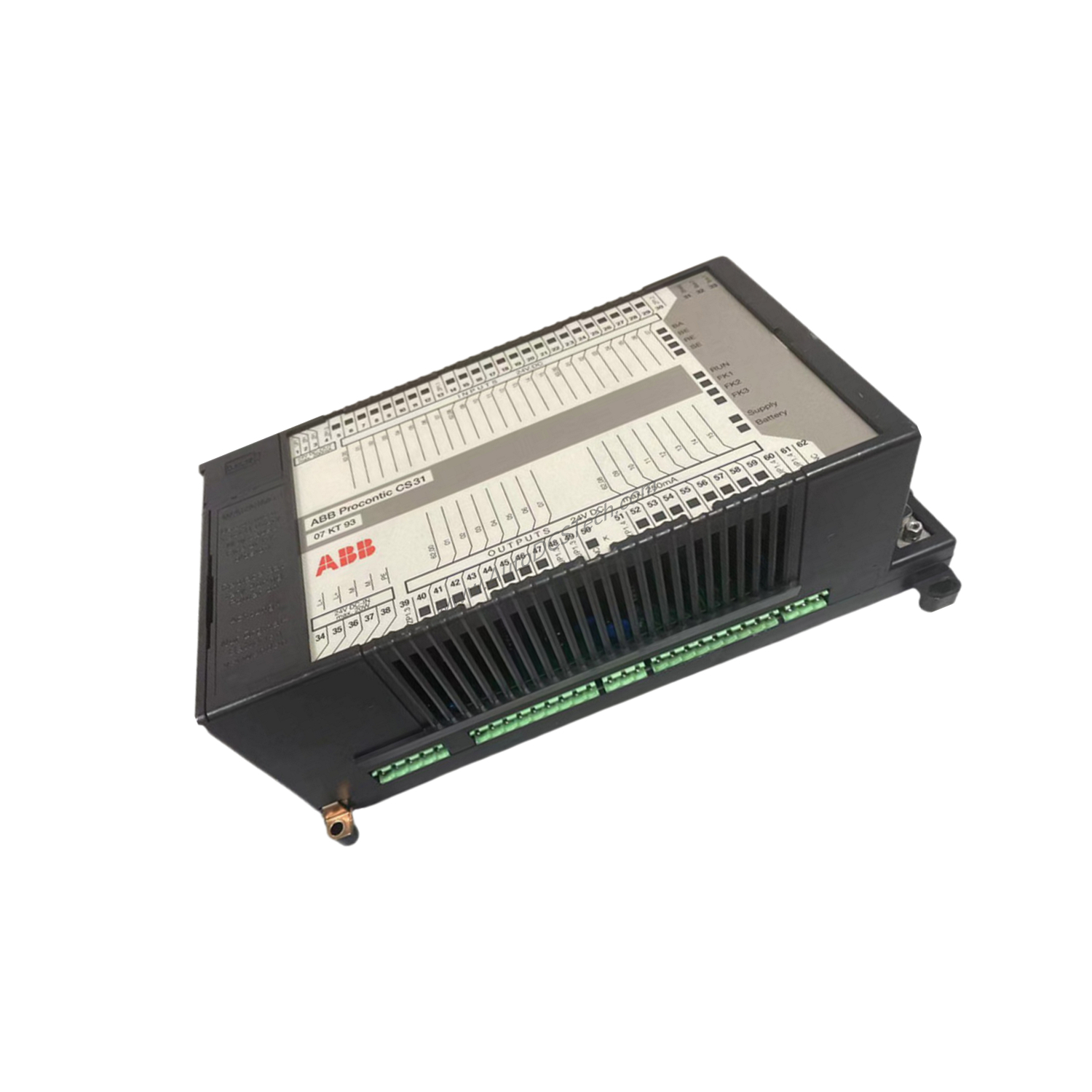

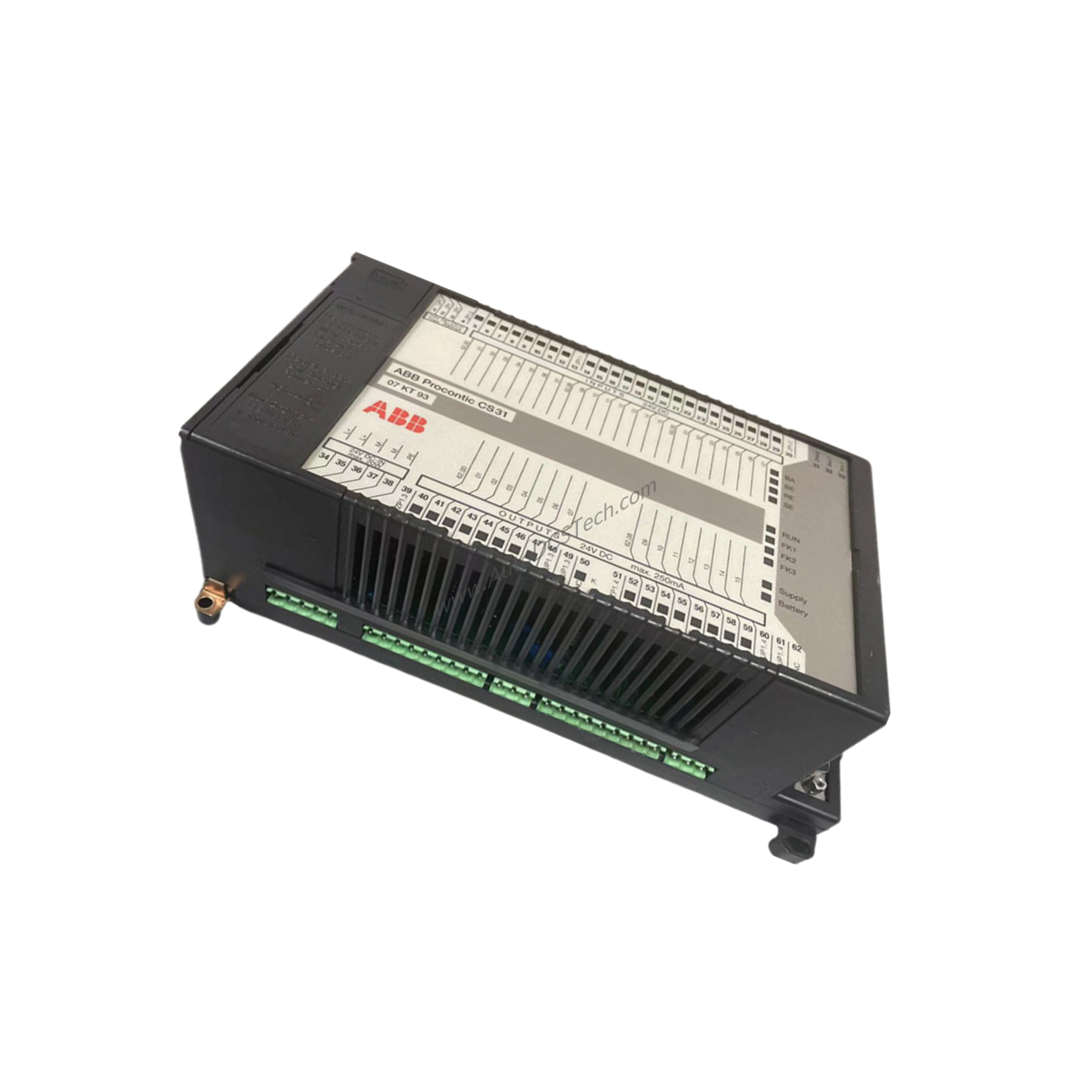

When your industrial application demands rapid response to external signals, the ABB 07KT93 Central Processing Unit delivers. This CPU integrates a high-speed counter that operates independently of the user program, ensuring quick detection of 0->1 edges at terminal 02 (designated as E 62,00). The 07KT93 is designed for precise counting and control tasks in automation environments.
Technical Specifications
The ABB 07KT93 offers key performance metrics derived directly from its design:
- Counting Frequency: 10 kHz maximum, enabling fast pulse counting.
- Counter Control: Enable/disable via internal variable A 63,14 or signal at terminal 03 (E 62,01).
- Counter Setting: Set to a value in internal word variable AW 06,15 using A 63,15 = 1.
- Counter Reading: Read content via internal variable EW 06,15.
- Zero-Crossing Message: Signal changes from 0 to 1 when counter goes from -1 to 0, available via internal variable E 63,13 or terminal 36 (A 62,00) when A 63,14 = 1.
- Fast Digital Input: Terminal 02 (E 62,00) and terminal 03 (E 62,01) provide input delays under 0.02 ms.
Industry Applications
The 07KT93 excels in applications requiring high-speed counting and fast digital input response. For example, in packaging lines, the CPU counts products passing a sensor at terminal 02, triggering a zero-crossing message at terminal 36 to control a reject mechanism. In material handling, the fast input (delay < 0.02 ms) captures rapid events for precise timing. The counter’s independence from the user program ensures reliable operation even during complex control cycles.
Installation & Setup Guidance
Install the ABB 07KT93 in a suitable control cabinet with proper ventilation. Connect external signals to terminal 02 (E 62,00) for counting and terminal 03 (E 62,01) for enable/disable control. Configure the counter in your user program using internal variables: set A 63,14 = 1 to enable external enable via terminal 03, or use A 63,13 = 1 for program-based enable. Set the counter value via AW 06,15 and trigger with A 63,15 = 1. Note that dead time may be 0 to 1.5 ms when using terminal 03. For zero-crossing output at terminal 36, ensure A 63,14 = 1.
Maintenance & Reliability
Regular inspection of the 07KT93 and its connections ensures long-term reliability. Check terminal wiring for secure connections and verify that the power supply remains stable. The CPU’s high-speed counter operates independently, reducing wear from program cycles. Periodic testing of the zero-crossing message and fast input functions helps maintain system accuracy. Follow manufacturer guidelines for routine maintenance to maximize uptime.
Compatibility & Integration
The ABB 07KT93 integrates seamlessly with ABB PLC systems as a central processing unit. It uses internal variables (A 63,13, A 63,14, A 63,15, AW 06,15, EW 06,15, E 63,13, E 63,14, E 63,15) for communication with the user program. The CPU works with standard digital inputs and outputs, making it suitable for a wide range of automation architectures. Verify compatibility with your specific ABB controller model before installation.
Selection Guide & Purchasing Advice
Before purchasing the ABB 07KT93, confirm that your system requires a CPU with a high-speed counter and fast digital inputs. Check the part number 07KT93 against your existing hardware for compatibility. SpareTechPLC offers the 07KT93 as a reliable replacement or upgrade for your automation needs. Contact our team for current availability and to discuss any technical requirements.
Frequently Asked Questions
Q: What is the maximum counting frequency of the 07KT93?
A: The maximum counting frequency is 10 kHz, counting 0->1 edges at terminal 02 (E 62,00).
Q: How do I enable the counting procedure?
A: You can enable counting by setting internal variable A 63,13 = 1, or by applying signal 1 at terminal 03 (E 62,01) when A 63,14 = 1.
Q: How can I read the counter content?
A: Read the counter content via the internal variable EW 06,15 in your user program.
Q: What is the zero-crossing message and how do I use it?
A: The zero-crossing message signals when the counter changes from -1 to 0. It is available via internal variable E 63,13 or at terminal 36 (A 62,00) when A 63,14 = 1.
Q: How fast are the digital inputs on the 07KT93?
A: The fast inputs at terminals 02 and 03 have a delay of less than 0.02 ms, allowing rapid capture of digital signals.
