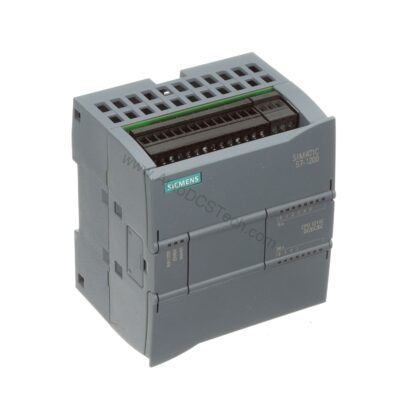

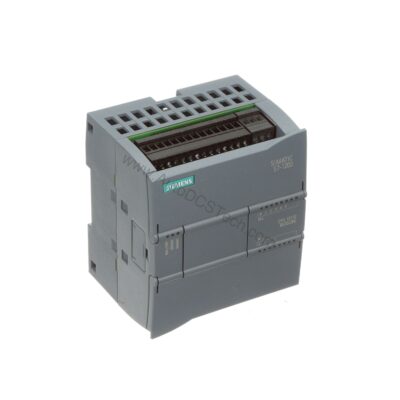

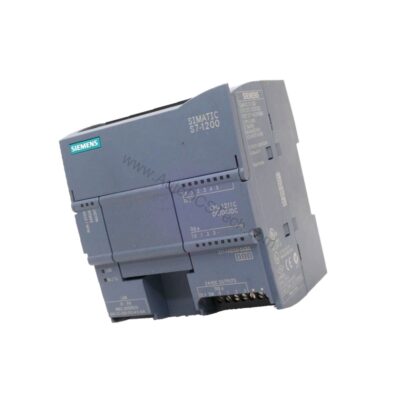

6ES7211-1BE40-0XB0 AC/DC/Relay CPU 1211C

Introduction to the 6ES7211-1BE40-0XB0

This SIMATIC S7-1200 CPU 1211C is engineered for reliability and ease of service, making it a solid choice for maintenance engineers. With onboard I/O including 6 digital inputs at 24 V DC, 4 relay outputs rated at 2 A, and 2 analog inputs for 0-10 V DC, it covers a wide range of applications.

The CPU operates on an AC power supply ranging from 85 to 264 V AC at 47 to 63 Hz, ensuring flexibility in various industrial environments. Its compact design saves panel space while providing robust performance.

Key Features and Technical Specifications

This CPU is part of the SIMATIC S7-1200 family, known for its scalability and integrated functions. Below are the critical specifications that define its capabilities:

• Power Supply: AC 85-264 V AC at 47-63 Hz
• Digital Inputs: 6 integrated, 24 V DC, with 6 usable for high-speed counting (HSC)
• Digital Outputs: 4 relay outputs, switching capacity 2 A resistive load
• Analog Inputs: 2, voltage range 0-10 V DC, resolution 10 bit
• Work Memory: 75 kbyte integrated
• Load Memory: 1 Mbyte integrated, expandable with SIMATIC Memory Card
• Power Loss: Typ. 10 W
• Dimensions: 90 mm x 100 mm x 75 mm (W x H x D)
• Weight: Approx. 420 g
• Protection: IP20

One distinctive feature is the integrated PROFINET interface, which enables seamless integration into modern industrial networks. This CPU supports PROFINET IO Controller and Device roles, with a transmission rate of 100 Mbit/s. Additionally, it supports protocols like TCP/IP, UDP, ISO-on-TCP, MODBUS, and OPC UA, providing versatile connectivity.

Applications and Use Cases

The 6ES7211-1BE40-0XB0 is suitable for a variety of automation tasks, from simple machine control to more complex processes. The analog inputs allow direct connection to sensors providing 0-10 V signals, such as pressure transmitters or temperature transducers.

For maintenance engineers, the CPU's diagnostic capabilities are invaluable. It features a diagnostic buffer, status/control variables, and forcing functions, enabling quick troubleshooting. The integrated web server and OPC UA server facilitate remote monitoring and data exchange, reducing downtime.

Installation and Setup

Installation is straightforward with a DIN rail mount or wall mounting. The CPU is designed for horizontal installation with an ambient temperature range of -20 °C to 60 °C, and vertical installation up to 50 °C. Ensure adequate clearance for ventilation and cable routing. The power supply connection accepts AC 85-264 V, and the relay outputs are potential-free, allowing flexible wiring.

When wiring, use shielded cables for analog inputs (max 100 m, twisted and shielded) and for digital inputs (max 500 m shielded, 300 m unshielded). For relay outputs, shielded cable length is max 500 m, unshielded max 150 m. Always follow the manufacturer's manual for detailed wiring diagrams.

Maintenance and Reliability

Routine maintenance is minimal due to the maintenance-free backup without battery. The CPU includes a hardware clock with a backup time of 480 hours, ensuring time retention during power outages. The relay outputs have a mechanical life of 10 million operating cycles, and at rated load voltage, 100,000 cycles, providing long service life.

To ensure reliable operation, periodically inspect the unit for dust accumulation and verify that all connections are secure. The CPU meets EMC standards, including immunity to electrostatic discharge (8 kV air, 6 kV contact) and conducted disturbances, enhancing its robustness in industrial settings.

Compatibility and Integration

It supports up to 3 communication modules and 1 signal board, allowing expansion. The PROFINET interface enables connection to IO devices, with up to 16 IO devices supported. For PROFIBUS or AS-Interface, additional communication modules (CM 1243-5, CM 1242-5, CM 1243-2) are required.

Programming is done with STEP 7 V18 or higher, using LAD, FBD, or SCL languages. The CPU supports S7 communication as server and client, and open IE communication with TCP/IP, UDP, and ISO-on-TCP. OPC UA server functionality is available with a runtime license, providing secure data access.

Troubleshooting and Common Issues

Common issues with PLCs include wiring errors, incorrect parameterization, and communication failures. The CPU's diagnostic LEDs (RUN/STOP, ERROR, MAINT) provide immediate visual status. Use the diagnostic buffer to trace faults. For analog input issues, verify the input range (0-10 V) and wiring, ensuring shielded twisted pairs are used.

If communication problems arise, check the PROFINET settings, including IP address and device names. The CPU supports autonegotiation and autocrossing, simplifying network setup. For OPC UA, ensure the runtime license is installed and security policies are configured appropriately.

Product Support and Availability

The Siemens 6ES7211-1BE40-0XB0 is available from AutoDCSTech. Contact our team for current availability and lead times. We are ready to assist with your automation needs.
