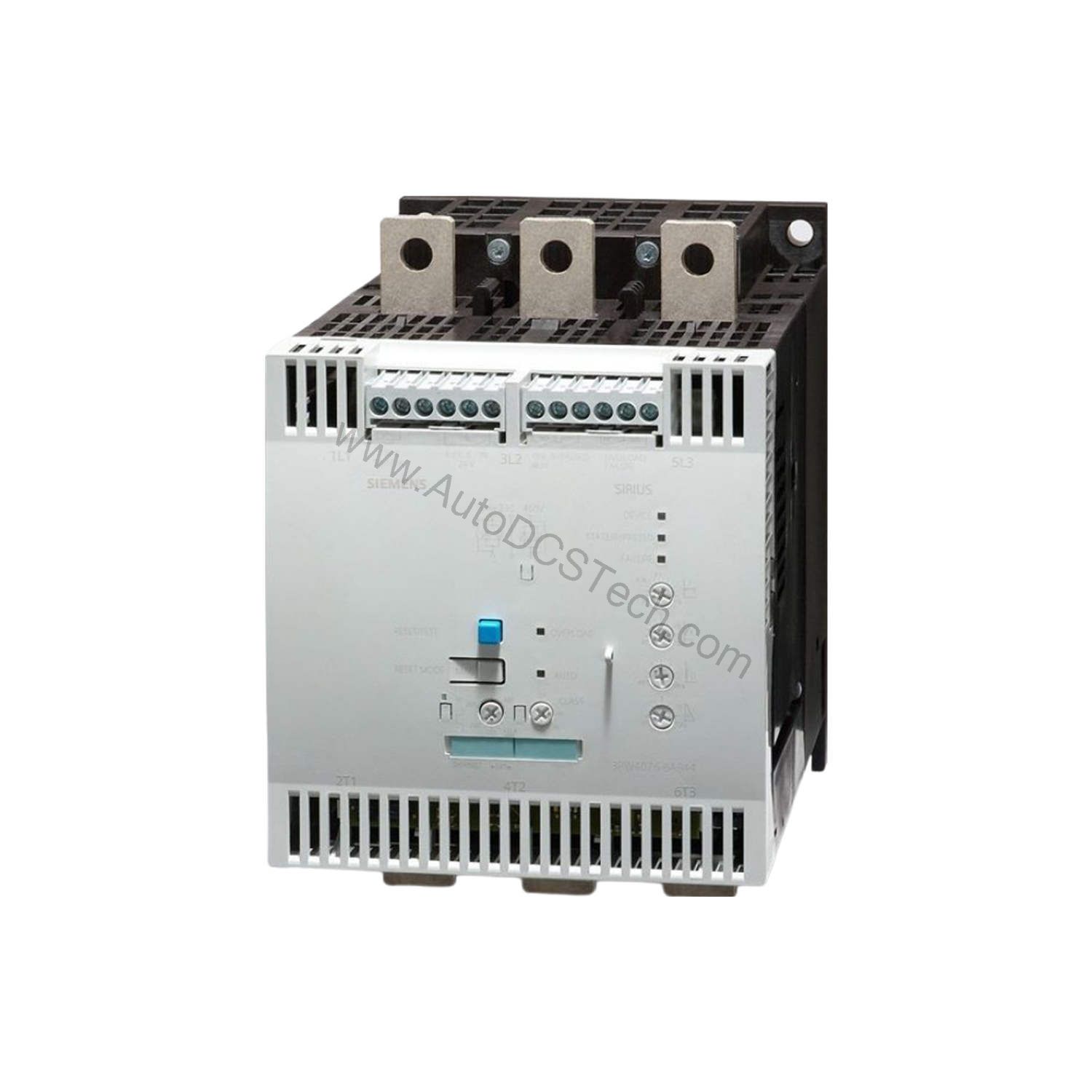

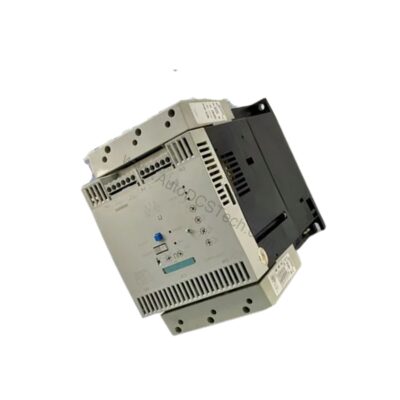

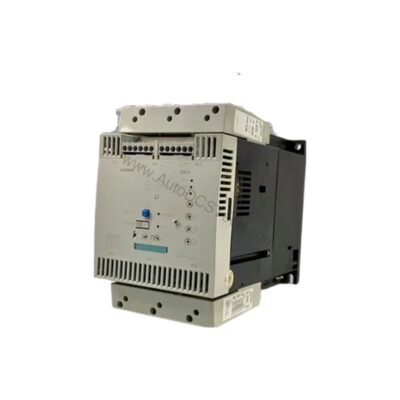

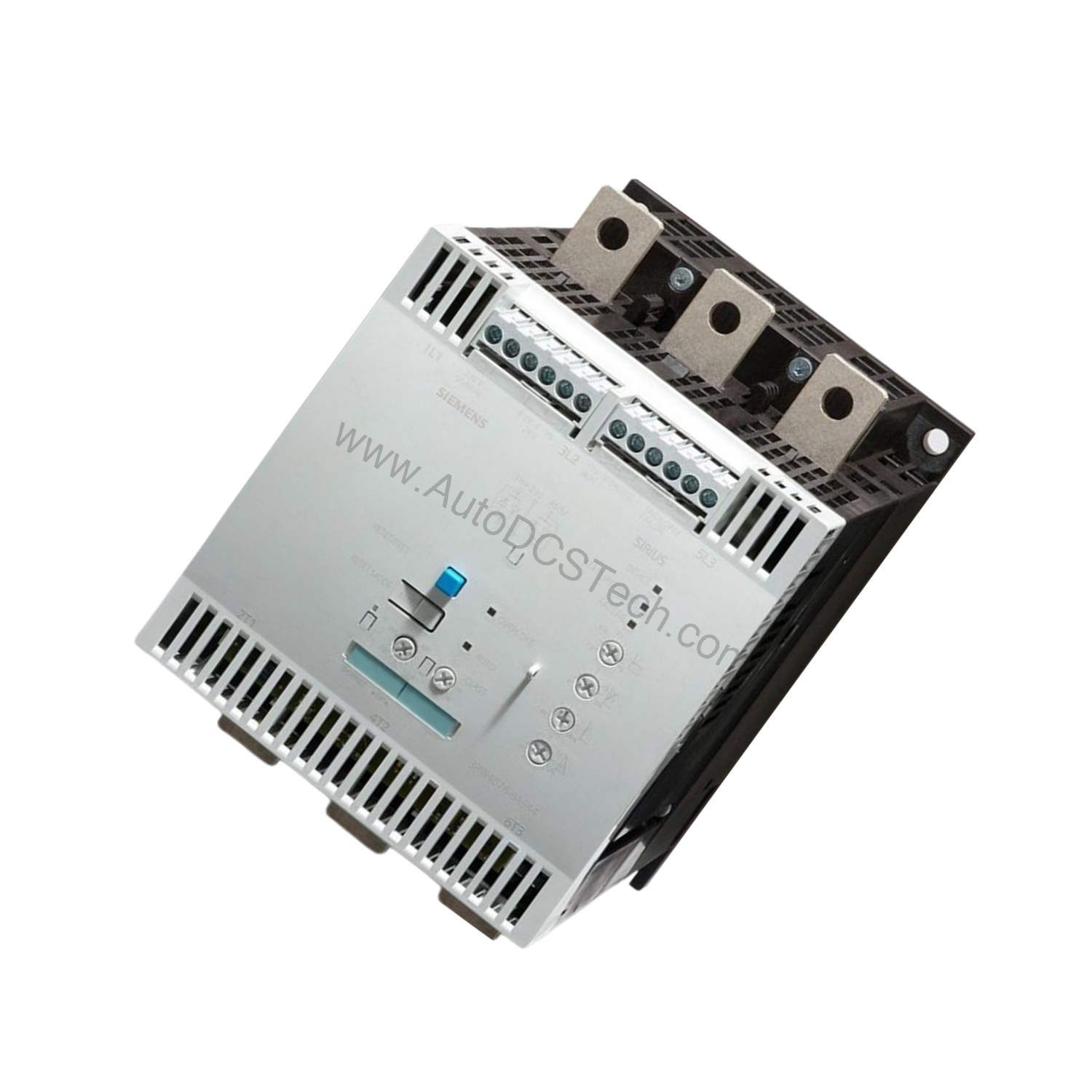

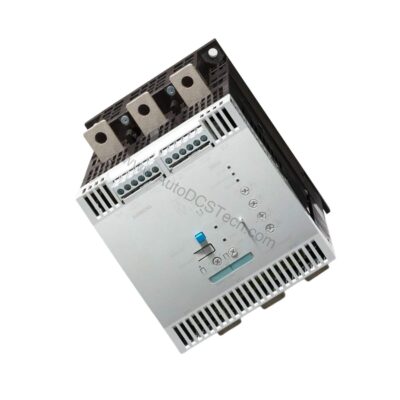

3RW4075-6BB44 356A 200kW Soft Starter

Key Features and Technical Specifications

The 3RW4075-6BB44 is engineered for heavy-duty applications. Its core specs include:

• Operational current: 356 A at 40 °C
• Rated power: 200 kW at 400 V
• Operating voltage: 200–460 V AC
• Control supply voltage: 230 V AC at 50/60 Hz
• Integrated bypass contact system: Yes
• Degree of protection: IP00
• Dimensions: 160 mm width, 230 mm height, 278 mm depth

These specifications make the 3RW4075-6BB44 a robust choice for three-phase motors. The integrated bypass reduces heat and energy losses after startup, improving overall efficiency.

Real-World Applications

This soft starter suits various industries, including pumps, fans, compressors, and conveyors. In pumping systems, it prevents water hammer by gradually increasing torque. For conveyor belts, it reduces mechanical shock, extending belt life. Its wide voltage range and high current rating make it versatile across different installations.

Installation and Mounting Guidance

Proper installation ensures optimal performance. The 3RW4075-6BB44 supports screw fixing and offers flexible mounting positions. With an additional fan, you can rotate the unit up to 90° on a vertical surface. Without a fan, rotation is limited to 10°. Maintain required clearances: 100 mm above, 5 mm on the sides, and 75 mm below for airflow. Connect main circuits via busbar connections; auxiliary circuits use screw terminals.

Maintenance and Reliability

Regular inspection keeps the soft starter operating reliably. Check for dust accumulation on heatsinks and ensure ventilation paths are clear. The device operates in ambient temperatures from -25 °C to +60 °C, but derating occurs above 40 °C. Following manufacturer guidelines for periodic checks helps prevent unexpected downtime.

Compatibility and Integration

The 3RW4075-6BB44 integrates easily into existing motor control centers. It works with standard 3-phase AC motors and supports both 50 Hz and 60 Hz supplies. The control supply accepts 230 V AC, simplifying wiring in many industrial panels. Its auxiliary contacts (2 NO, 1 CO) allow status feedback to PLCs or HMIs.

Troubleshooting Common Issues

If the soft starter fails to start, check the control supply voltage and frequency. Verify that the motor current does not exceed the adjustable overload range (minimum 131 A). Ensure the operating voltage stays within 200–460 V AC. For persistent issues, consult the Siemens manual or contact AutoDCSTech for support.

Product Support and Availability

The 3RW4075-6BB44 is available at AutoDCSTech. As a phased-out product, its successor is the 3RW5075-6AB14. Contact AutoDCSTech to confirm stock and lifecycle status before ordering.
