Product Overview

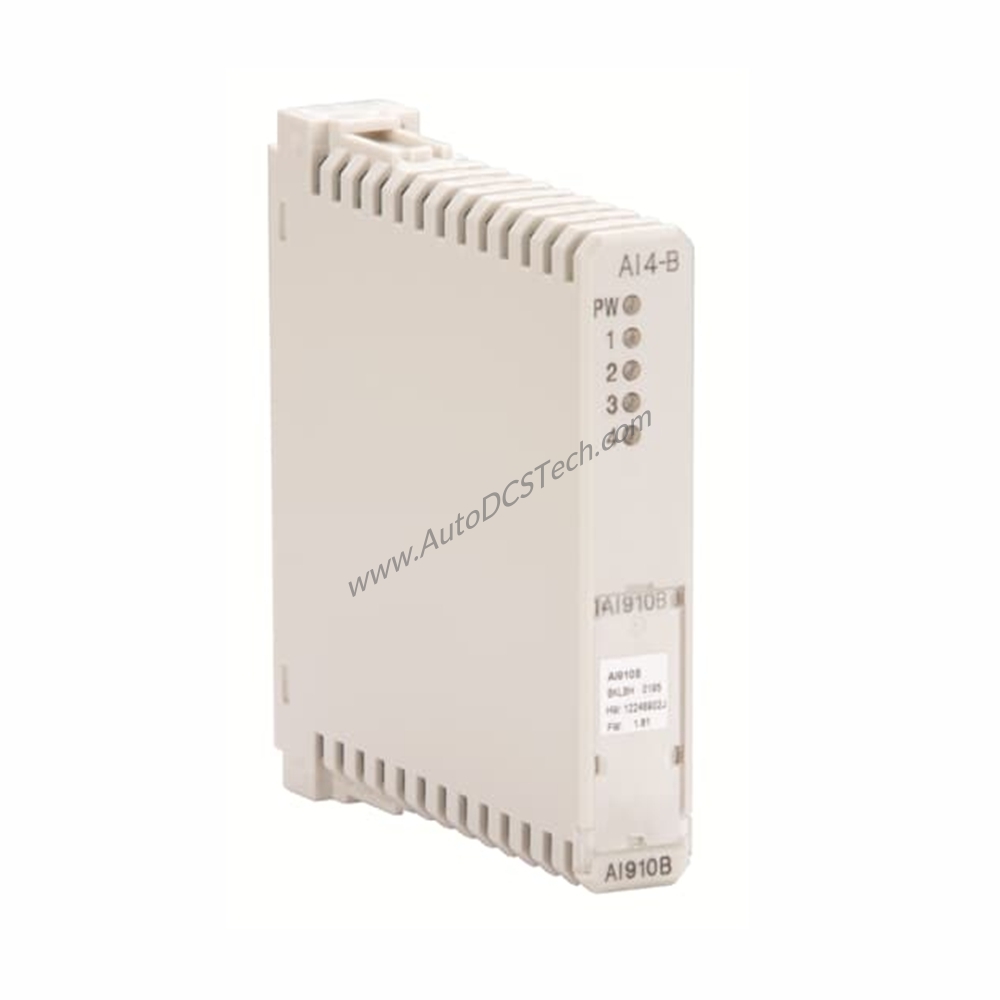

When you need reliable analog input acquisition in hazardous environments, the ABB AI910B (3KDE175512L9100) delivers robust performance. This 4-channel analog input module supports 4...20 mA loop-powered 2-wire transmitters and is designed for installation in Zone 2 hazardous areas. Part of the ABB S900 I/O system, the AI910B reduces marshalling and wiring costs by enabling direct field installation.
Technical Specifications Breakdown
The AI910B features four input channels, each accepting 4...20 mA signals from intrinsically safe field devices. It provides power for loop-powered 2-wire transmitters, simplifying field wiring. Key environmental specs include an ambient temperature range of -20 °C to 60 °C and relative humidity up to 93% at 40 °C. The module is ATEX certified for Zone 2 and coated to G3 corrosion standards per ISA-S71.04. Electrical isolation exists between input/bus and input/power, with a common return for all inputs. Dimensions are 20 mm width, 104 mm depth, and 104 mm height, weighing only 0.13 kg.
Industry Applications
In chemical processing plants, the AI910B connects to pressure and temperature transmitters located in Zone 1 or Zone 2 areas, feeding critical process data to the control system via PROFIBUS DP. For oil and gas facilities, its intrinsic safety and hot swap capability allow module replacement without interrupting primary voltage, minimizing downtime during maintenance.
Installation & Setup Guidance
Mount the AI910B on a standard S900 I/O bus rail in a Zone 2 area. Ensure the bus connector is properly seated and the module clicks into place. Connect 2-wire transmitters to the screw terminals, observing polarity. The module supports hot configuration in run, so you can add or change channels without stopping the system. Always verify that the field devices are intrinsically safe and rated for the applicable zone.
Maintenance & Reliability
The AI910B includes extended diagnostics and auto-diagnostics for simplified maintenance. Short and break detection on each input channel alerts operators to wiring faults. The G3 coating protects against corrosive atmospheres, extending service life in harsh environments. Inspect connections periodically and verify diagnostic status via FDT/DTM tools. With no internal user-serviceable parts, replace the module if faults persist.
Compatibility & Integration
The AI910B communicates via PROFIBUS DP with the control system. It integrates seamlessly with ABB S900 I/O racks and supports redundancy for power and communication. The module is compatible with FDT/DTM configuration tools for detailed setup and diagnostics. It does not support HART or SOE functions. Use with intrinsically safe barriers if required for Zone 0 or Zone 1 field devices.
Selection Guide & Purchasing Advice
Before ordering the ABB AI910B, confirm your system uses S900 I/O mechanics and requires 4...20 mA analog input for loop-powered transmitters. Verify that your hazardous area classification matches ATEX Zone 2. The module does not include redundancy; plan for spare units if needed. SpareTechPLC offers this module with fast shipping and expert support. Contact us to verify current lifecycle status and availability before ordering.
Frequently Asked Questions
Q: Can the AI910B be used in Zone 1 hazardous areas?
A: The AI910B is certified for Zone 2 installation. It can connect to intrinsically safe field devices located in Zone 1 or Zone 0, but the module itself must remain in Zone 2.
Q: Does the AI910B support HART communication?
A: No, the AI910B does not support HART. It is a standard 4...20 mA analog input module without HART capability.
Q: What is the maximum cable length for field wiring?
A: The provided data does not specify maximum cable length. For reliable operation, follow standard 4...20 mA loop guidelines and keep wiring within the transmitter's specified limits.
Q: Can I replace the AI910B while the system is running?
A: Yes, the AI910B supports hot swap functionality, allowing replacement during operation without interrupting primary voltage.
Q: What tools are needed for configuration?
A: Use FDT/DTM-compatible configuration software for detailed setup and diagnostics of the AI910B.
