Product Overview

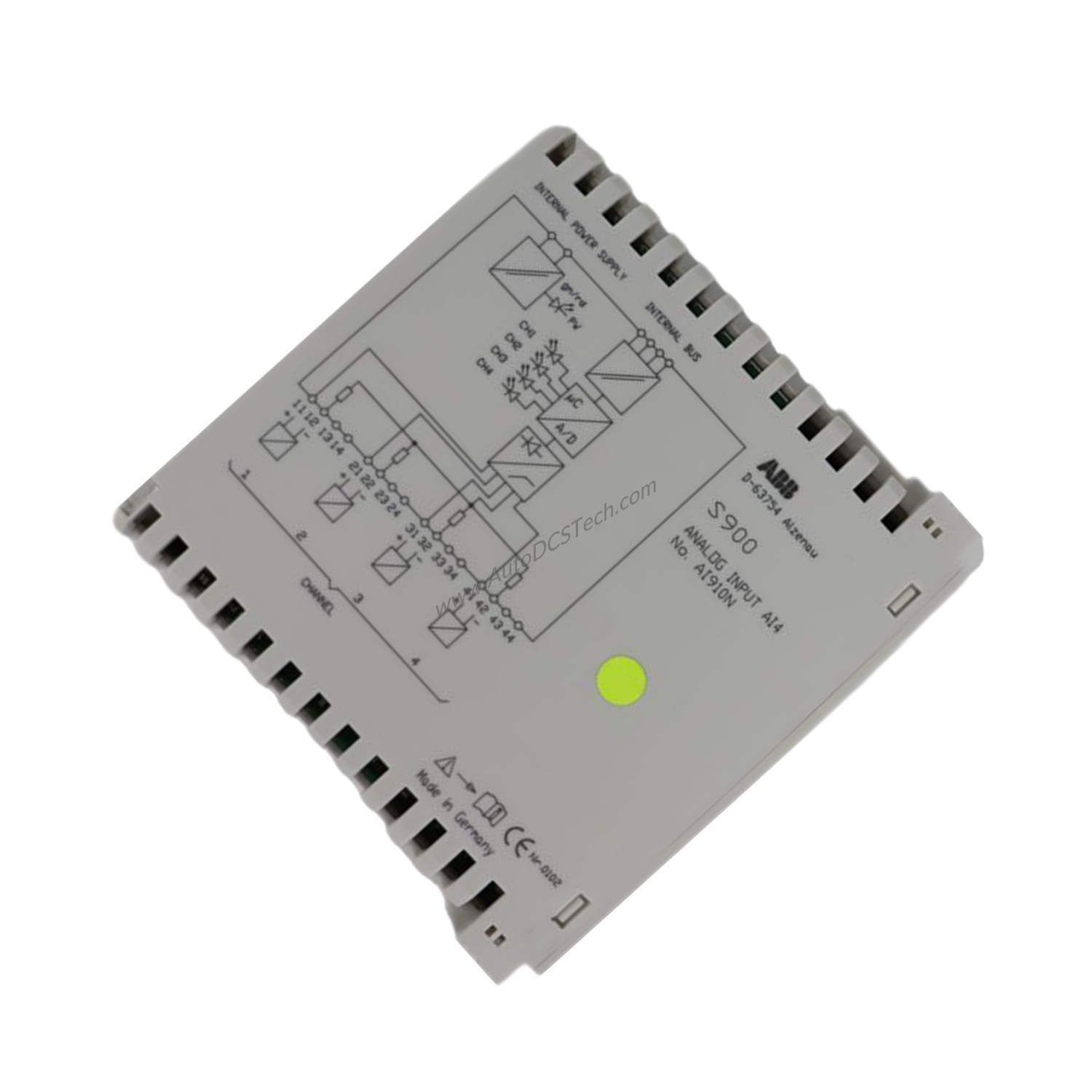

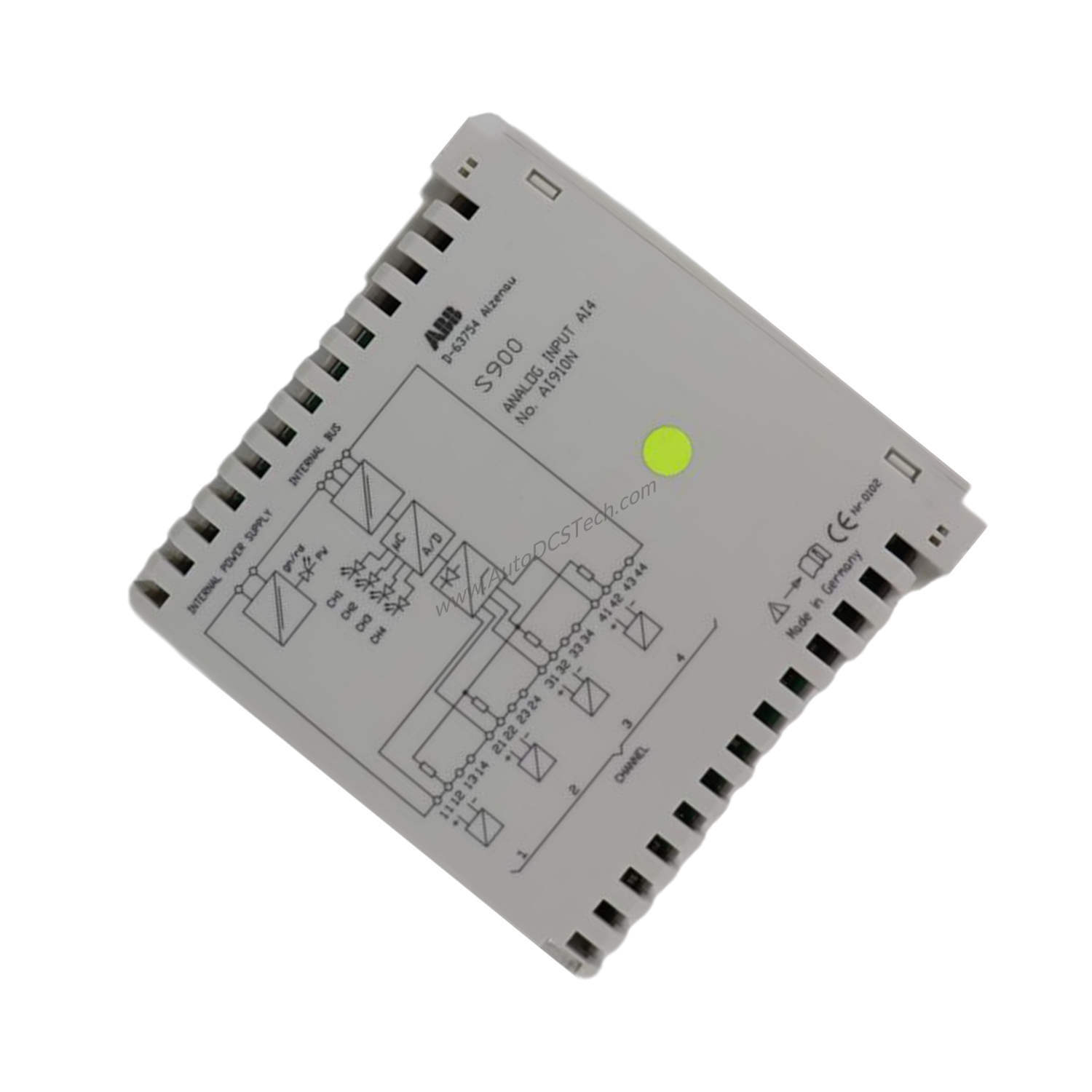

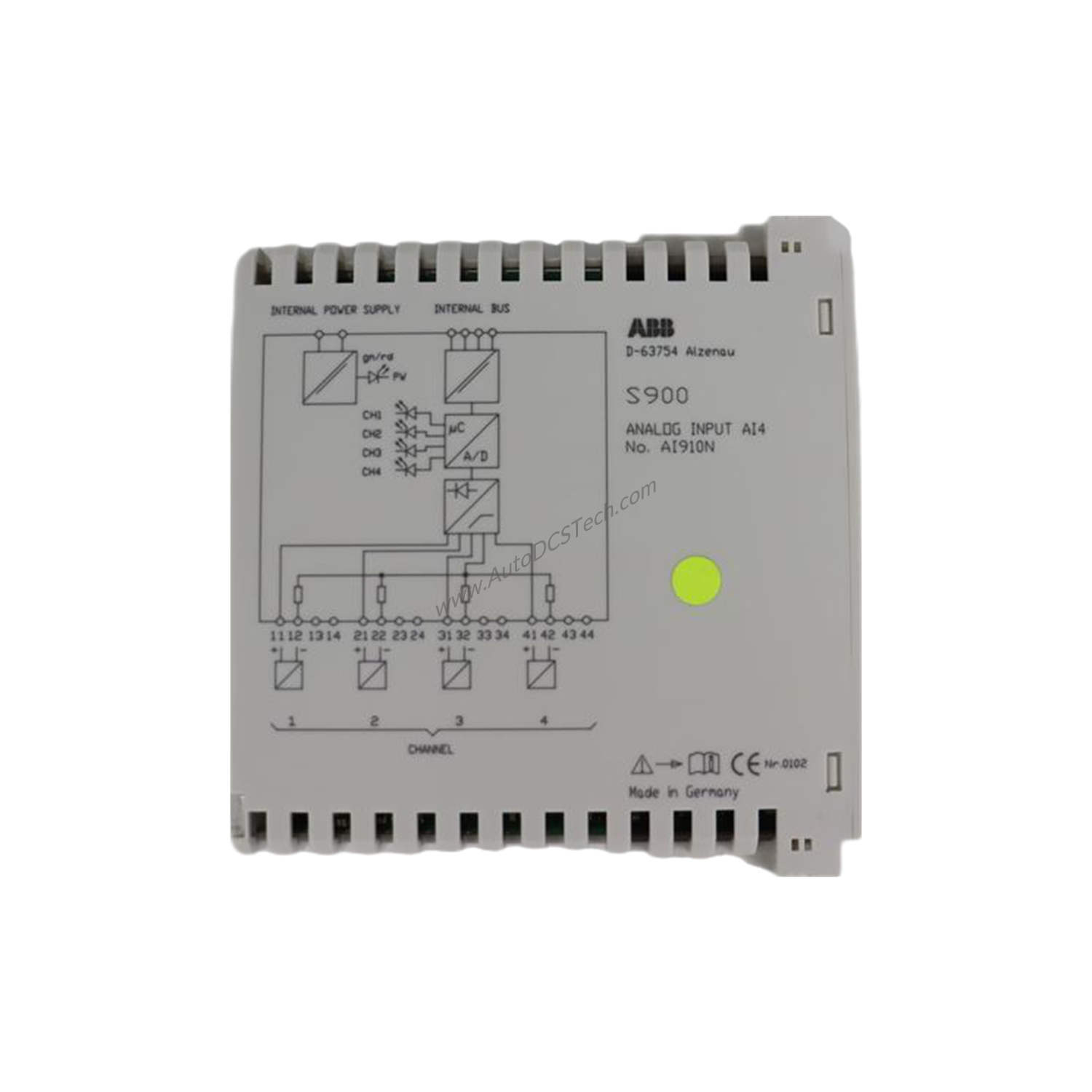

When process uptime is critical, the ABB AI910N 3KDE175513L9100 Redundancy Module delivers reliable analog input for your S900 I/O system. Designed for installation in safe (non-hazardous) areas, this module provides four channels of 4...20 mA input, powering loop-powered 2-wire transmitters directly. With hot swap capability and comprehensive diagnostics, the AI910N minimizes downtime and simplifies maintenance in demanding industrial environments.
Technical Specifications
- Part Number: 3KDE175513L9100
- Type: Analog Input
- Number of Channels: 4
- Signal Type: 4...20 mA
- Redundancy: No (module supports redundancy in power and communication via system design)
- Intrinsic Safety: No
- Mechanics: S900
- CE Mark: Yes
- Corrosive Atmosphere: ISA-S71.04 G3
- Climatic Operating Conditions: Relative humidity max. 93 % +/- 3 % at 40 °C
- Max Ambient Temperature: -20 °C...60 °C
- RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
- WEEE Compliance: DIRECTIVE/2012/19/EU
- Dimensions: Width 20 mm (0.79 in.), Depth 104 mm (4.09 in.), Height 104 mm (4.09 in.)
- Weight: 0.13 kg (0.29 lbs.)
Industry Applications
The AI910N excels in applications requiring reliable 4...20 mA signal acquisition from loop-powered transmitters. Common use cases include:
- Process Monitoring: Connect pressure, temperature, or level transmitters in chemical plants and refineries. The module's short and break detection ensures immediate fault notification, reducing unplanned downtime.
- Remote I/O Installations: Deploy the S900 I/O system directly in the field to reduce marshalling and wiring costs. The AI910N's hot swap functionality allows module replacement without interrupting primary voltage, keeping production running.
Installation & Setup Guidance
Install the AI910N in a safe (non-hazardous) area within the S900 I/O system. Follow these guidelines:
- Mount the module securely on the DIN rail. Ensure proper grounding per system requirements.
- Connect 4...20 mA loop-powered 2-wire transmitters to the input terminals. The module provides power for the loop.
- Use the integrated disconnection mechanisms to replace the module during operation without powering down the system.
- Configure the module using FDT/DTM tools for excellent diagnostics and parameterization.
Maintenance & Reliability
The AI910N is built for long-term reliability in harsh environments. Key maintenance considerations:
- G3 Coating: All components are coated to resist corrosive atmospheres per ISA-S71.04 G3, extending service life in industrial settings.
- Auto-Diagnostics: The module performs continuous self-checks, simplifying maintenance by flagging issues early.
- Environmental Limits: Operate within -20 °C to 60 °C and up to 93% relative humidity at 40 °C to ensure optimal performance.
Compatibility & Integration
The AI910N integrates seamlessly with the ABB S900 I/O system, which communicates via PROFIBUS DP. It is designed for safe area installation (type N) and works with standard 4...20 mA loop-powered transmitters. The module supports hot configuration in run and hot swap, making it compatible with live system expansions.
Selection Guide & Purchasing Advice
Before ordering the ABB AI910N, verify your system requirements:
- Confirm your S900 I/O system variant supports safe area modules (type N).
- Ensure your transmitters are 4...20 mA loop-powered (2-wire).
- Check that the ambient temperature and humidity conditions fall within the specified range.
SpareTechPLC stocks the AI910N (3KDE175513L9100) and can advise on availability and replacement options. Contact us for current lifecycle status and pricing.
Troubleshooting & Common Issues
- No Signal from Transmitter: Verify transmitter wiring and loop power. The AI910N provides power for 4...20 mA loop-powered 2-wire transmitters. Check for open or short circuits using the module's break detection feature.
- Module Not Recognized: Ensure the module is properly seated on the DIN rail and the bus connector is engaged. Hot swap requires correct insertion.
- Diagnostic Alerts: Use FDT/DTM tools to read detailed diagnostics. The module reports short and break conditions, helping isolate faults quickly.
Frequently Asked Questions
Q: Can the AI910N be used in hazardous areas?
A: No. The AI910N is type N, designed for installation in safe (non-hazardous) areas only. For hazardous locations, select an S900 variant rated for Zone 1 or Zone 2.
Q: Does the AI910N support HART communication?
A: No. The module does not support HART. It is a standard 4...20 mA analog input module.
Q: What is the weight of the AI910N?
A: The module weighs 0.13 kg (0.29 lbs.), making it lightweight and easy to handle during installation.
Q: Can I replace the AI910N while the system is running?
A: Yes. The S900 system supports hot swap, allowing module replacement without interrupting primary voltage or shutting down the system.
Q: What certifications does the AI910N carry?
A: The module has CE marking, complies with RoHS (DIRECTIVE/2011/65/EU) and WEEE (DIRECTIVE/2012/19/EU), and is rated for corrosive atmospheres per ISA-S71.04 G3.
